GGH25W-PFTQK (2011)
Toyota Alphard/Vellfire/Hv
(1110- )

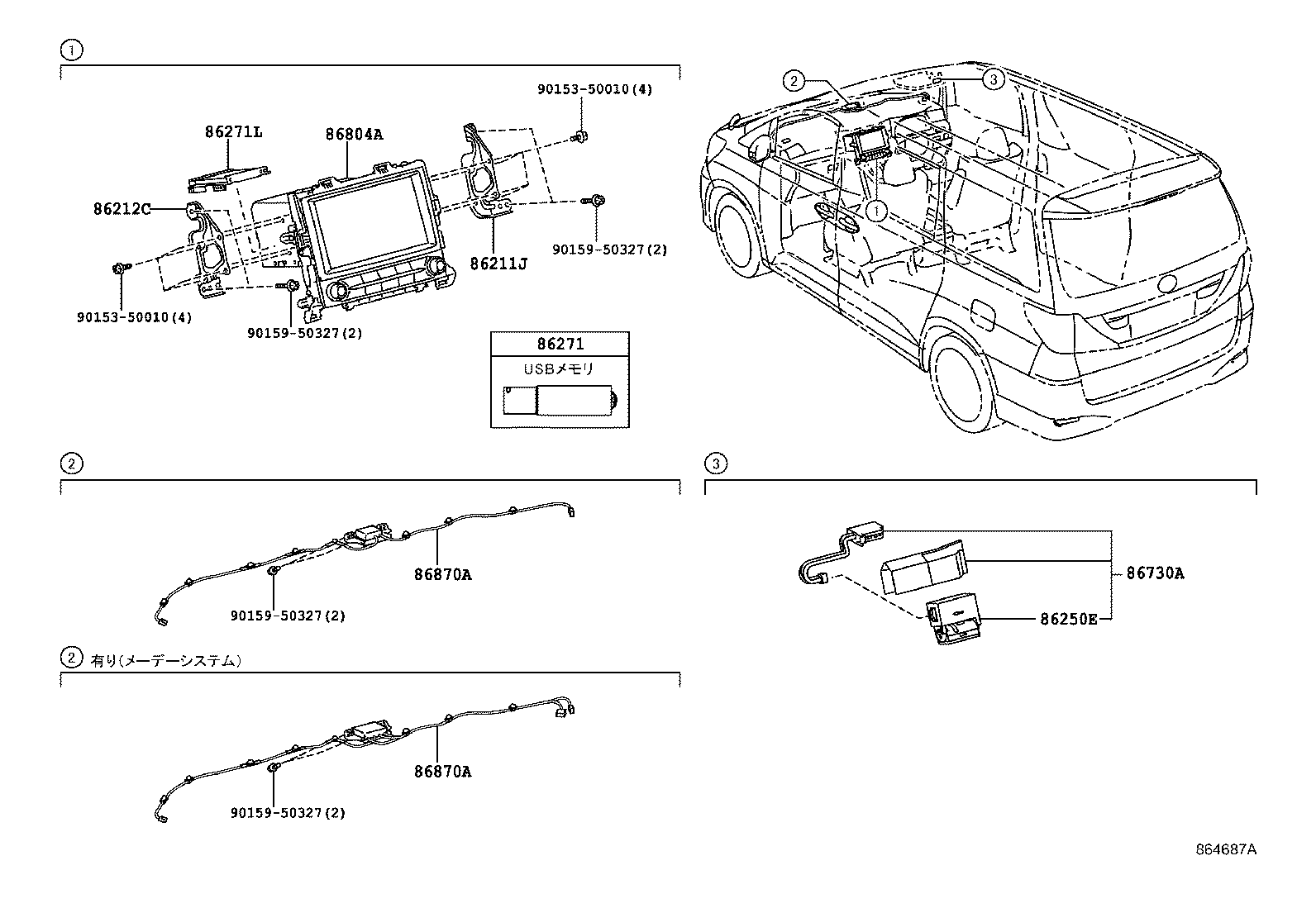

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86211J - BRACKET, RADIO RECEIVER, NO.1 | ||||
| 86211-58080 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86211-58040 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86211-58040 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86211-58080 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86212C - BRACKET, RADIO RECEIVER, NO.2 | ||||
| 86212-58080 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86212-58080 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86212-58040 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86212-58040 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86250E - MICROPHONE ASSY, AMPLIFIER | ||||
| 86250-52020 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86250-52020 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86250-52020 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86250-52020 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86271 - DISC, DISC PLAYER | ||||
| 86271-58090 |
ANH2#,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,USBﾒﾓﾘ |
1 | ||
| 86271-58090 |
ANH2#,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,USBﾒﾓﾘ |
1 | ||
| 86271-58060 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,USBﾒﾓﾘ |
1 | ||
| 86271-58060 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,USBﾒﾓﾘ |
1 | ||
| 86271L - HARD DISC | ||||
| 86271-30663 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86271-30662 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86271-30664 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86271-30662 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86271-58100 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86271-30665 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86271-30661 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86271-30661 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86271-58100 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86271-30664 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86271-30663 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86271-30665 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86271-30666 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86271-30666 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-58010 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86730-58010 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86730-58010 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86730-58010 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86804A - SUB-ASSY, NAVIGATION COMPUTER | ||||
| 86804-58010 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86804-58010 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86804-58010 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86804-58010 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86870A - ANTENNA ASSY, GPS & VICS | ||||
| 86870-58020 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86870-58030 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&GｰBOOK−有り(DCM) |
1 | ||
| 86870-58030 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&GｰBOOK−有り(DCM) |
1 | ||
| 86870-58030 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 86870-58040 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86870-58030 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 86870-58020 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86870-58040 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86870A - ANTENNA ASSY, GPS & VICS | ||||
| 86870-58020 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86870-58030 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&GｰBOOK−有り(DCM) |
1 | ||
| 86870-58030 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&GｰBOOK−有り(DCM) |
1 | ||
| 86870-58030 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 86870-58040 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86870-58030 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 86870-58020 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86870-58040 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90159-50327 | ||||
