GGH25W-PFTQK (2011)

Toyota Alphard/Vellfire/Hv

Production Oct 2011 - Jan 2015
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1110- )

Click highlighted areas on diagram

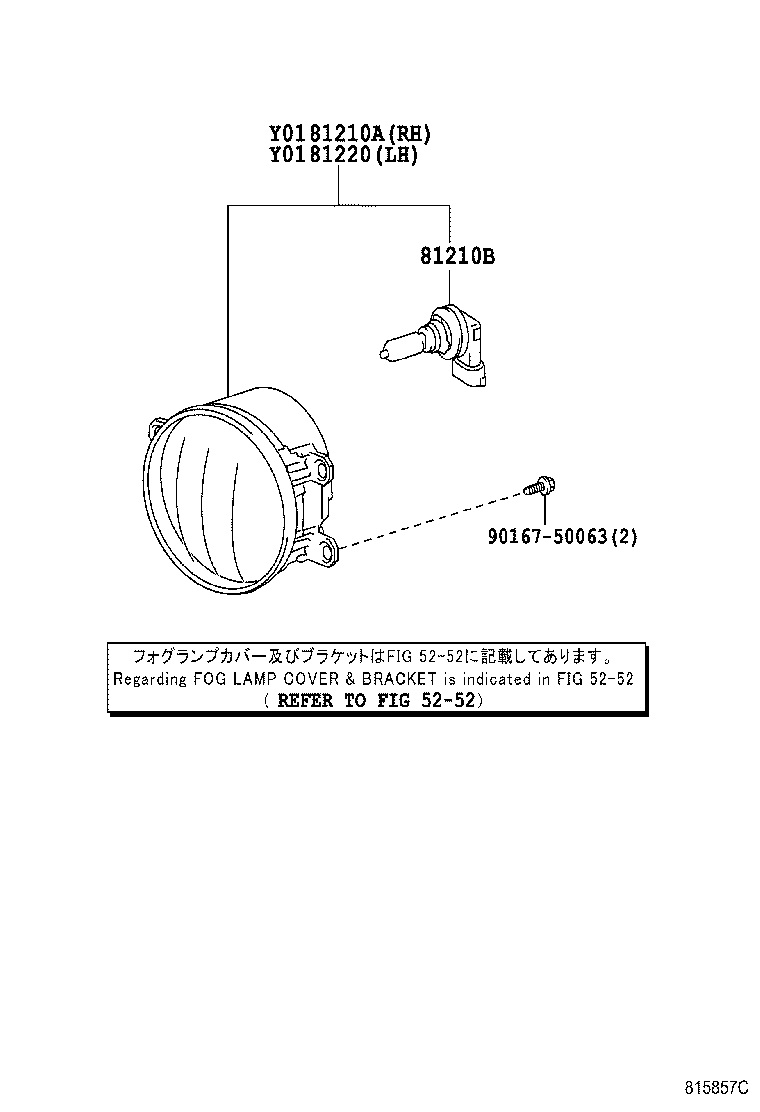

diagram 5252 81210A 81210B 81220 9016750063
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-0W060

ANH2#,ATH20,GGH2#..CBU

 1
81210B - BULB, FOG LAMP
90981-13047

ANH2#,GGH2#..CBU

12V 55W,ﾊﾛｹﾞﾝ

 2
90981-13075

ANH2#,ATH20,GGH2#..CBU

12V 55W,ﾊﾛｹﾞﾝ

 2
81220 - LAMP ASSY, FOG, LH
81220-0W050

ANH2#,ATH20,GGH2#..CBU

 1
Common parts
90167-50063
Linked diagrams
5252
