GGH25W-PFTQK (2011)
Toyota Alphard/Vellfire/Hv

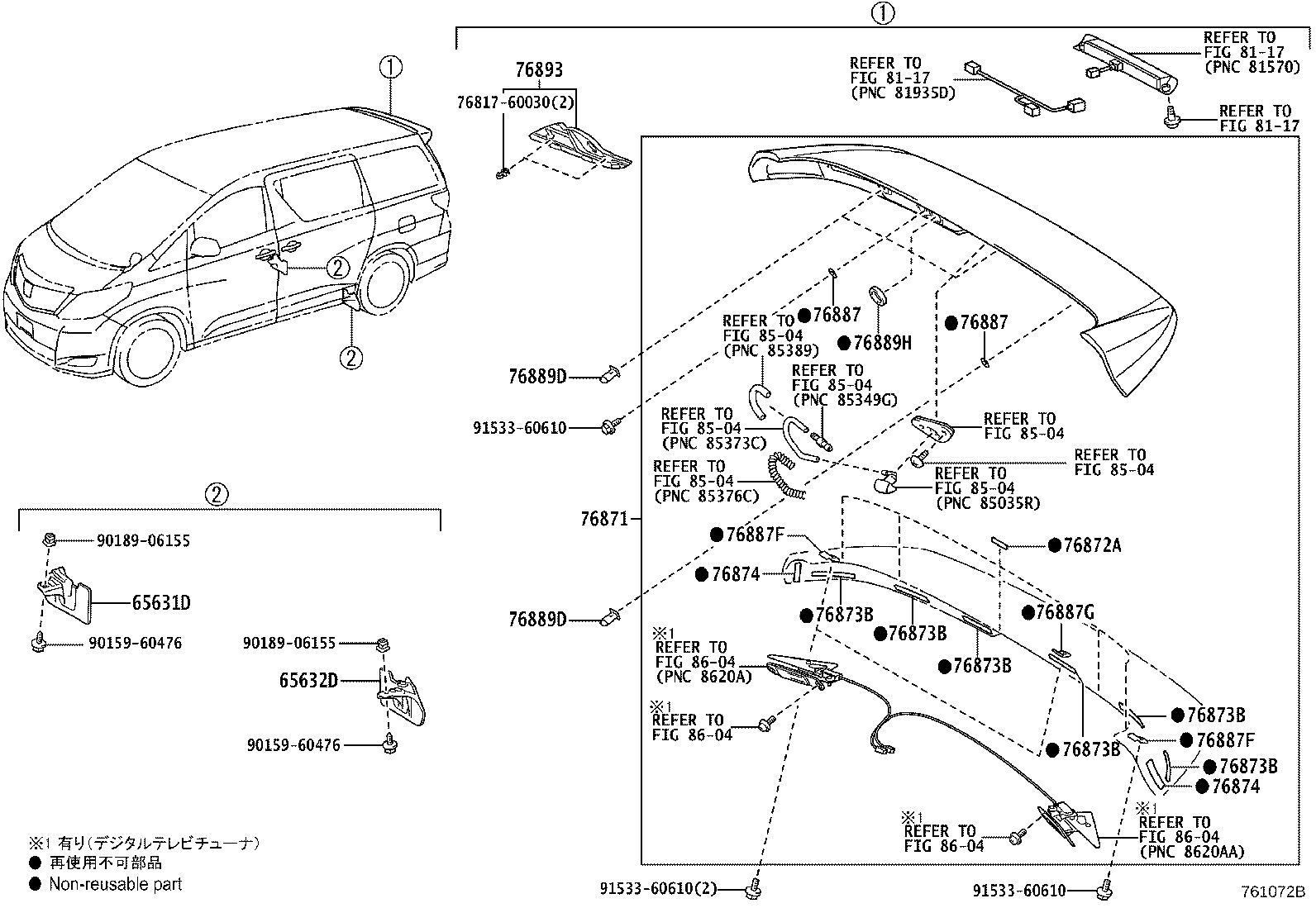

ILLUST NO. 1 OF 2(1110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65631D - PLATE, REAR WHEEL HOUSE, FRONT RH | ||||
| 65631-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 65631-58010 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 65632D - PLATE, REAR WHEEL HOUSE, FRONT LH | ||||
| 65632-58010 |
ANH2#,ATH20,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 65632-58010 |
ANH2#,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 65632-58010 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 65632-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 76871 - SPOILER, REAR | ||||
| 76085-58040B1 |
ANH25..07S..(240G,24V,24Z);ANH25..08S..(240G,240X,24V,24X,24Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,24Z,350G,350X,35V,35X,35Z)..CBU ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り,SILVER ME.,1F7 |
1 | ||
| 76085-58040E1 |
ANH25..08S..240X..CBU;ANH25..(240G,240S,24V)..CBU;ANH20,GGH2#..(240G,240S,240X,24V,350G,350S,350X,35V)..CBU ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り,GOLD PEARL CS.,4U1 |
1 | ||
| 76085-58030A0 |
ANH2#,GGH2#..CBU WHITE PEARL CS.,070 |
1 | ||
| 76085-58040J0 |
ANH25..08S..240X..CBU;ANH25..(240G,240S,24V,24Z)..CBU;ANH20,GGH2#..(240G,240S,240X,24V,24Z,350G,350S,350X,35V,35Z)..CBU ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り,DK.BLUE MC.,8S6 |
1 | ||
| 76085-58040A0 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り,WHITE PEARL CS.,070 |
1 | ||
| 76085-58030B1 |
ANH2#,GGH2#..(240G,240X,24V,24X,24Z,350G,350X,35V,35X,35Z)..CBU SILVER ME.,1F7 |
1 | ||
| 76085-58030E1 |
ANH2#,GGH2#..(240G,240S,240X,24V,350G,350S,350X,35V)..CBU GOLD PEARL CS.,4U1 |
1 | ||
| 76085-58040C0 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り,BLACK,202 |
1 | ||
| 76085-58030C0 |
ANH2#,GGH2#..CBU BLACK,202 |
1 | ||
| 76085-58040E0 |
ANH25..07S..(240G,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り,BEIGE ME.,4T8 |
1 | ||
| 76085-58030E0 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU BEIGE ME.,4T8 |
1 | ||
| 76085-58030J0 |
ANH2#,GGH2#..(240G,240S,240X,24V,24Z,350G,350S,350X,35V,35Z)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 76085-58902B0 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,24Z,350G,35V,35Z,HBDG,HBDV,HBDX,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,1F7 |
1 | ||
| 76085-58902A0 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,070 |
1 | ||
| 76085-58902A0 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,070 |
1 | ||
| 76085-58902C0 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,202 |
1 | ||
| 76085-58902B0 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,24Z,350G,35V,35Z,HBDG,HBDV,HBDX,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,1F7 |
1 | ||
| 76085-58902E1 |
ANH2#,ATH20,GGH2#..ALPHD..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,4U1 |
1 | ||
| 76085-58902J3 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDSR,HBDV,HBDX)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,8Q6 |
1 | ||
| 76085-58902J2 |
ATH20..ALPHD..HBDX..CBU;ANH2#,ATH20,GGH2#..(240G,240S,240X,24Z,350G,350S,35Z,HBDG,HBDSR,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,8P8 |
1 | ||
| 76085-58902J3 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDSR,HBDV,HBDX)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,8Q6 |
1 | ||
| 76085-58902C0 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,202 |
1 | ||
| 76085-58902E1 |
ANH2#,ATH20,GGH2#..ALPHD..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,4U1 |
1 | ||
| 76085-58902J2 |
ATH20..ALPHD..HBDX..CBU;ANH2#,ATH20,GGH2#..(240G,240S,240X,24Z,350G,350S,35Z,HBDG,HBDSR,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,8P8 |
1 | ||
| 76085-58901E1 |
ANH2#,ATH20,GGH2#..ALPHD..CBU 4U1 |
1 | ||
| 76085-58901C0 |
ANH2#,ATH20,GGH2#..CBU 202 |
1 | ||
| 76085-58901A0 |
ANH2#,ATH20,GGH2#..CBU 070 |
1 | ||
| 76085-58903B0 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,1F7 |
1 | ||
| 76085-58903A0 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,070 |
1 | ||
| 76085-58903A0 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,070 |
1 | ||
| 76085-58901J2 |
ATH20..ALPHD..HBDX..CBU;ANH2#,ATH20,GGH2#..(240G,240X,24Z,350G,35Z,HBDG,HBDZR)..CBU 8P8 |
1 | ||
| 76085-58903B0 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,1F7 |
1 | ||
| 76085-58903C0 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,202 |
1 | ||
| 76085-58901J3 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU 8Q6 |
1 | ||
| 76085-58903C0 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,202 |
1 | ||
| 76085-58903J2 |
ATH20..ALPHD..HBDX..CBU;ANH2#,ATH20,GGH2#..(240G,240X,24Z,350G,35Z,HBDG,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,8P8 |
1 | ||
| 76085-58903E1 |
ANH2#,ATH20,GGH2#..ALPHD..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,4U1 |
1 | ||
| 76085-58903J3 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,8Q6 |
1 | ||
| 76085-58903E1 |
ANH2#,ATH20,GGH2#..ALPHD..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,4U1 |
1 | ||
| 76085-58901B0 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU 1F7 |
1 | ||
| 76085-58903J3 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,8Q6 |
1 | ||
| 76085-58903J2 |
ATH20..ALPHD..HBDX..CBU;ANH2#,ATH20,GGH2#..(240G,240X,24Z,350G,35Z,HBDG,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,8P8 |
1 | ||
| 76872A - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-58020 |
ANH2#,ATH20,GGH2#..CBU |
5 | ||
| 76872-58020 |
ANH2#,GGH2#..CBU |
5 | ||
| 76873B - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-58020 |
ANH2#,GGH2#..CBU |
6 | ||
| 76873-58020 |
ANH2#,ATH20,GGH2#..CBU |
6 | ||
| 76873B - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-58020 |
ANH2#,GGH2#..CBU |
6 | ||
| 76873-58020 |
ANH2#,ATH20,GGH2#..CBU |
6 | ||
| 76873B - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-58020 |
ANH2#,GGH2#..CBU |
6 | ||
| 76873-58020 |
ANH2#,ATH20,GGH2#..CBU |
6 | ||
| 76873B - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-58020 |
ANH2#,GGH2#..CBU |
6 | ||
| 76873-58020 |
ANH2#,ATH20,GGH2#..CBU |
6 | ||
| 76873B - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-58020 |
ANH2#,GGH2#..CBU |
6 | ||
| 76873-58020 |
ANH2#,ATH20,GGH2#..CBU |
6 | ||
| 76873B - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-58020 |
ANH2#,GGH2#..CBU |
6 | ||
| 76873-58020 |
ANH2#,ATH20,GGH2#..CBU |
6 | ||
| 76874 - PROTECTOR, REAR SPOILER, NO.3 | ||||
| 76874-58020 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 76874-58020 |
ANH2#,GGH2#..CBU |
2 | ||
| 76874 - PROTECTOR, REAR SPOILER, NO.3 | ||||
| 76874-58020 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 76874-58020 |
ANH2#,GGH2#..CBU |
2 | ||
| 76887 - SEAL, REAR SPOILER | ||||
| 76887-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 76887-58010 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 76887 - SEAL, REAR SPOILER | ||||
| 76887-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 76887-58010 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 76887F - SEAL, REAR SPOILER, NO.2 | ||||
| 76887-58020 |
ANH2#,GGH2#..CBU |
2 | ||
| 76887-58020 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 76887F - SEAL, REAR SPOILER, NO.2 | ||||
| 76887-58020 |
ANH2#,GGH2#..CBU |
2 | ||
| 76887-58020 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 76887G - SEAL, REAR SPOILER, NO.3 | ||||
| 76887-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 76887-58030 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 76889D - CLIP, REAR SPOILER, NO.2 | ||||
| 76889-44020 |
ANH2#,GGH2#..CBU |
3 | ||
| 76889-44020 |
ANH2#,ATH20,GGH2#..CBU |
3 | ||
| 76889D - CLIP, REAR SPOILER, NO.2 | ||||
| 76889-44020 |
ANH2#,GGH2#..CBU |
3 | ||
| 76889-44020 |
ANH2#,ATH20,GGH2#..CBU |
3 | ||
| 76889H - SEAL, REAR SPOILER, NO.1 | ||||
| 76889-28020 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 76889-58030 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 76889-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 76893 - COVER, REAR SPOILER, NO.1 | ||||
| 76893-58020 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 76893-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 76817-60030 | ||||
| 90159-60476 | ||||
| 90189-06155 | ||||
| 91533-60610 | ||||
| Linked diagrams | ||||
| 8117 | ||||
| 8504 | ||||
| 8604 | ||||
