GGH25W-NRTQK (2008)
Toyota Alphard/Vellfire/Hv
(0804- )ANH2#,GGH2#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

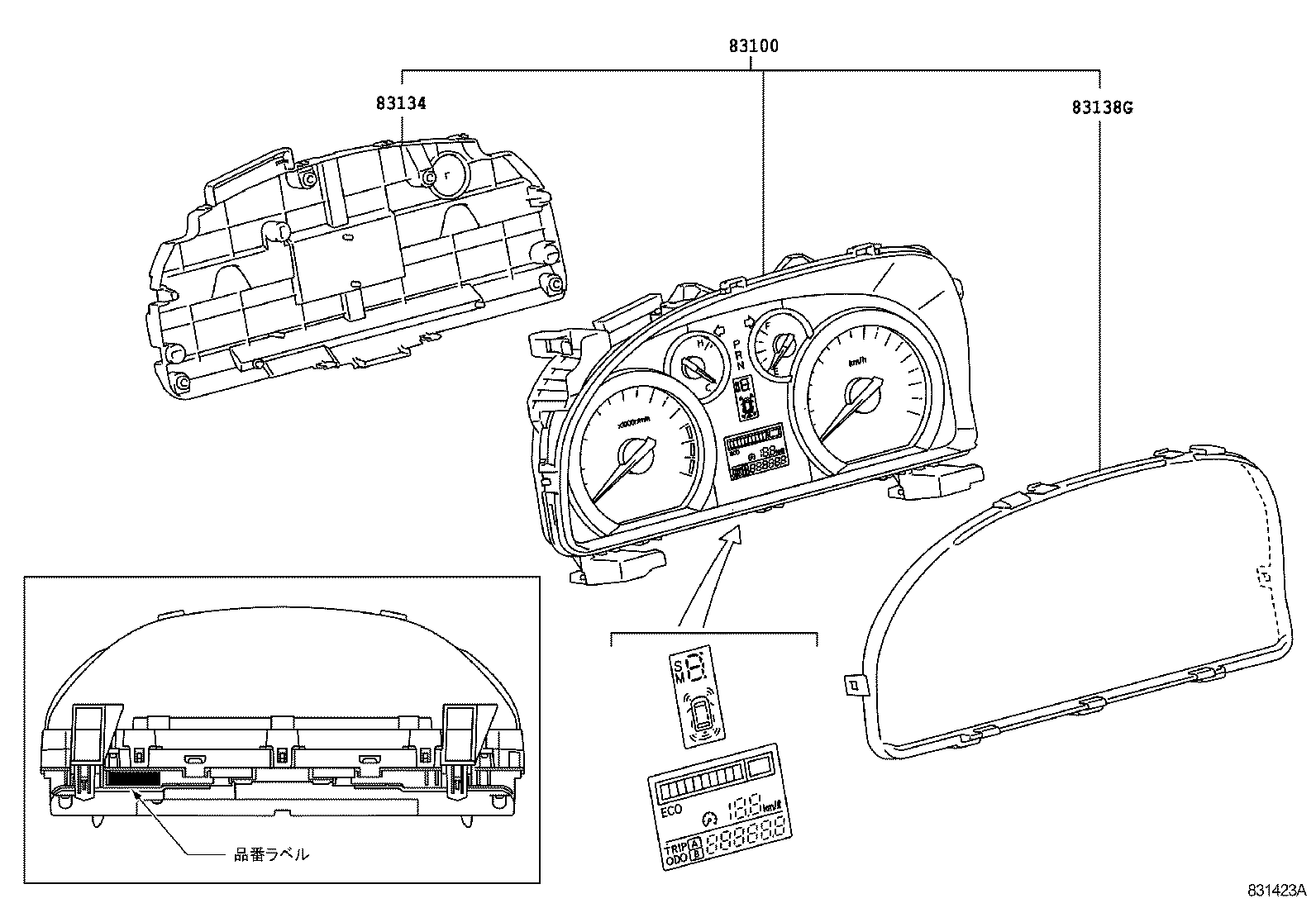

| 83100 - METER ASSY, COMBINATION | ||||
| 83800-58300 |
GGH2#..(350G,35V)..CBU YAZAKI,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),品番ﾗﾍﾞﾙ確認 |
1 | ||
| 83800-58310 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU YAZAKI,品番ﾗﾍﾞﾙ確認 |
1 | ||
| 83800-58311 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU YAZAKI,品番ﾗﾍﾞﾙ確認 |
1 | ||
| 83800-58301 |
GGH2#..(350G,35V)..CBU YAZAKI,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),品番ﾗﾍﾞﾙ確認 |
1 | ||
| 83800-58312 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU YAZAKI,品番ﾗﾍﾞﾙ確認 |
1 | ||
| 83800-58302 |
GGH2#..(350G,35V)..CBU YAZAKI,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),品番ﾗﾍﾞﾙ確認 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-58270 |
ANH2#,GGH2#..CBU |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-58270 |
ANH2#,GGH2#..CBU |
1 | ||
(0804- )GGH25..07S ; (0804- )GGH20..07S..350S,35Z ; (0804- )GGH25..08S..35
ｱﾘ(ｸﾙｰｽﾞ ｺﾝﾄﾛｰﾙ - ｼｬｶﾝ ｾｲｷﾞｮ ﾂｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

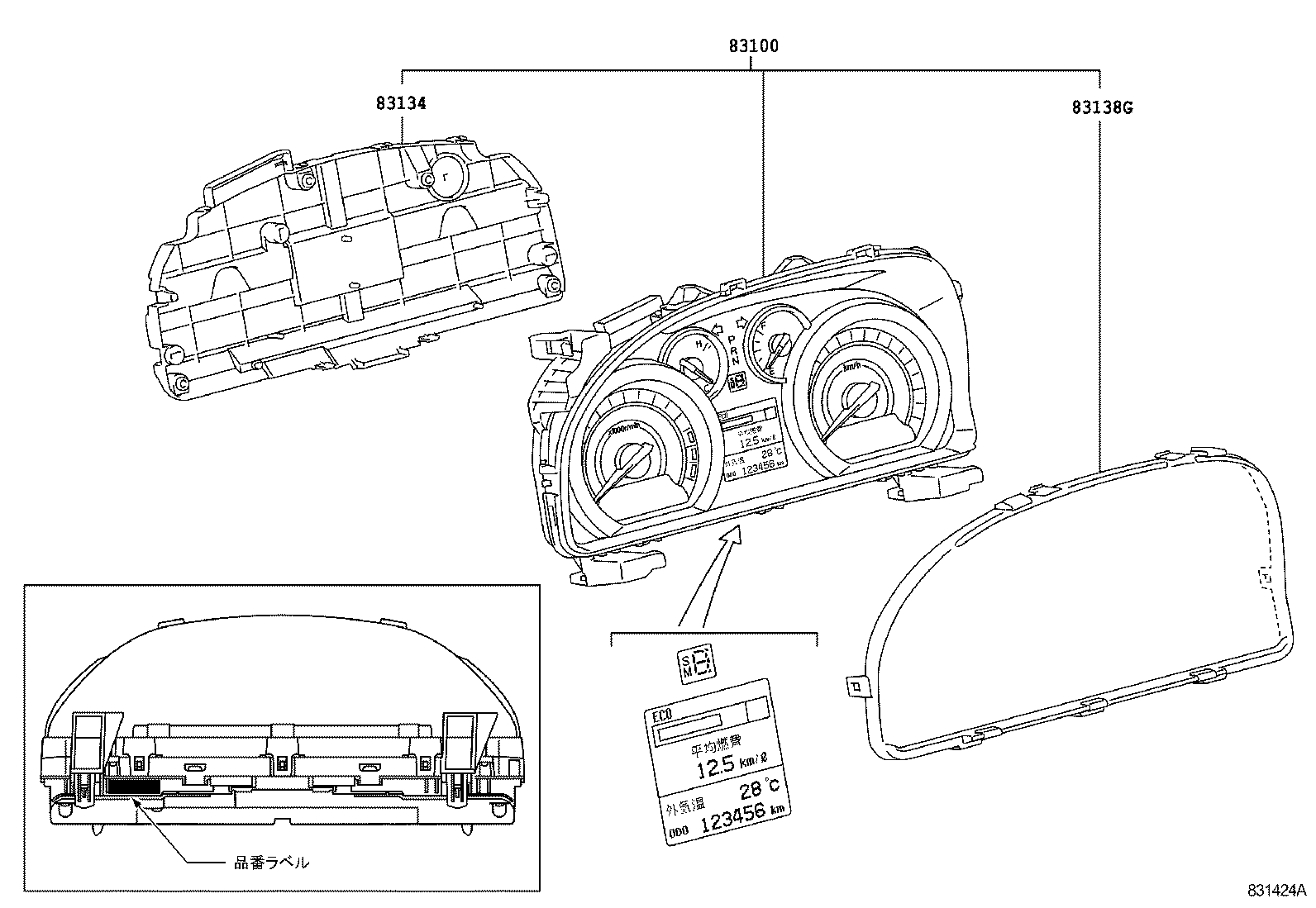

| 83100 - METER ASSY, COMBINATION | ||||
| 83800-58300 |
GGH2#..(350G,35V)..CBU YAZAKI,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),品番ﾗﾍﾞﾙ確認 |
1 | ||
| 83800-58300 |
GGH2#..(350G,35V)..CBU YAZAKI,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),品番ﾗﾍﾞﾙ確認 |
1 | ||
| 83800-58310 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU YAZAKI,品番ﾗﾍﾞﾙ確認 |
1 | ||
| 83800-58310 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU YAZAKI,品番ﾗﾍﾞﾙ確認 |
1 | ||
| 83800-58311 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU YAZAKI,品番ﾗﾍﾞﾙ確認 |
1 | ||
| 83800-58311 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU YAZAKI,品番ﾗﾍﾞﾙ確認 |
1 | ||
| 83800-58301 |
GGH2#..(350G,35V)..CBU YAZAKI,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),品番ﾗﾍﾞﾙ確認 |
1 | ||
| 83800-58301 |
GGH2#..(350G,35V)..CBU YAZAKI,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),品番ﾗﾍﾞﾙ確認 |
1 | ||
| 83800-58312 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU YAZAKI,品番ﾗﾍﾞﾙ確認 |
1 | ||
| 83800-58312 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU YAZAKI,品番ﾗﾍﾞﾙ確認 |
1 | ||
| 83800-58302 |
GGH2#..(350G,35V)..CBU YAZAKI,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),品番ﾗﾍﾞﾙ確認 |
1 | ||
| 83800-58302 |
GGH2#..(350G,35V)..CBU YAZAKI,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),品番ﾗﾍﾞﾙ確認 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-58270 |
ANH2#,GGH2#..CBU |
1 | ||
| 83821-58270 |
ANH2#,GGH2#..CBU |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-58270 |
ANH2#,GGH2#..CBU |
1 | ||
| 83852-58270 |
ANH2#,GGH2#..CBU |
1 | ||
