GGH25W-NRTQK (2008)

Toyota Alphard/Vellfire/Hv

Production Apr 2008 - Oct 2011
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0804- )GGH2#..VFIRE ; (1004- )07S..24Z ;(1110- )HBDV,HBDZR

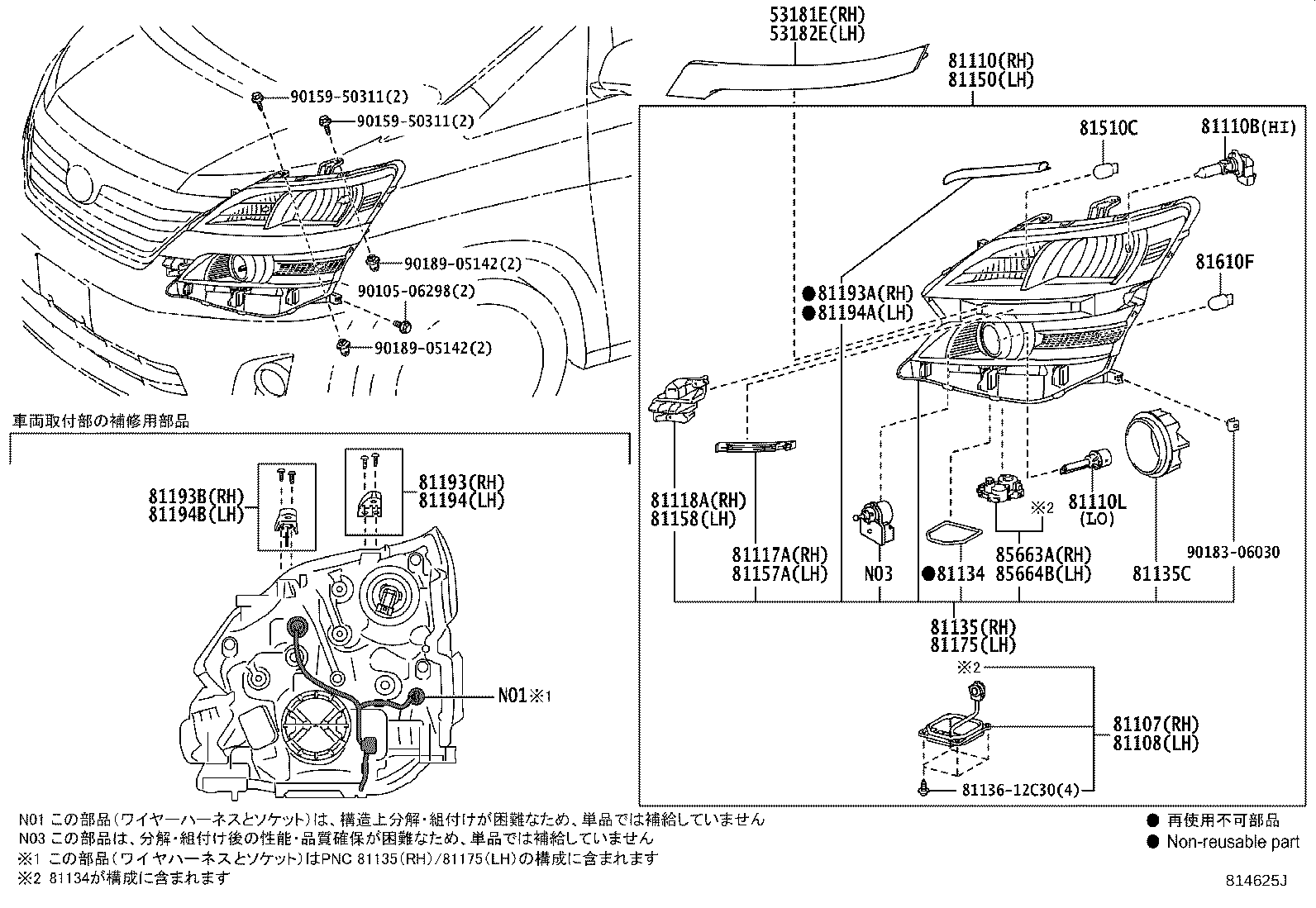

Click highlighted areas on diagram

diagram 53181E 53182E 81107 81108 81110 81110B 81110L 81117A 81118A 81134 81135 81135C 8113612C30 81150 81157A 81158 81175 81193 81193A 81193B 81194 81194A 81194B 81510C 81610F 85663A 85664B 9010506298 9015950311 9015950311 9018306030 9018905142 9018905142
Part # Description Qty Price
53181E - COVER, HEADLAMP, RH
53181-58010B1

ANH2#,GGH2#..VFIRE..CBU

SILVER ME.,1F7

 1
53181-58010C0

ANH2#,GGH2#..VFIRE..CBU

BLACK,202

 1
53181-58010E0

ANH2#,GGH2#..(24V,24X,35V,35X)..CBU

BEIGE ME.,4T8

 1
53181-58010A0

ANH2#,GGH2#..VFIRE..CBU

WHITE PEARL CS.,070

 1
53181-58010D0

ANH2#,GGH2#..VFIRE..CBU

DEEP RED M.M.,3R9

 1
53182E - COVER, HEADLAMP, LH
53182-58010A0

ANH2#,GGH2#..VFIRE..CBU

WHITE PEARL CS.,070

 1
53182-58010B1

ANH2#,GGH2#..VFIRE..CBU

SILVER ME.,1F7

 1
53182-58010D0

ANH2#,GGH2#..VFIRE..CBU

DEEP RED M.M.,3R9

 1
53182-58010E0

ANH2#,GGH2#..(24V,24X,35V,35X)..CBU

BEIGE ME.,4T8

 1
53182-58010C0

ANH2#,GGH2#..VFIRE..CBU

BLACK,202

 1
81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81107-52680

ANH2#,GGH2#..CBU

 1
81107-52681

ANH2#,GGH2#..CBU

 1
81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81107-52681

ANH2#,GGH2#..CBU

 1
81107-52680

ANH2#,GGH2#..CBU

 1
81110 - HEADLAMP ASSY, RH
81110-58140

GGH2#..(35V,35X)..CBU

 1
81110-58141

GGH2#..(35V,35X)..CBU

 1
81110-58142

GGH2#..(35V,35X)..CBU

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046

ANH2#,GGH2#..CBU

12V65W(SAE),60W(ECE)

 2
81110L - BULB, DISCHARGE HEADLAMP
90981-20019

ANH2#,GGH2#..CBU

45V 35W

 2
90981-20028

ANH2#,GGH2#..CBU

45V 35W

 2
90981-20018

ANH2#,GGH2#..CBU

45V 35W

 2
81117A - BRACKET, HEADLAMP, RH
81117-58130

ANH2#,GGH2#..VFIRE..CBU

 1
81118A - BRACKET, HEADLAMP, RH
81118-58130

ANH2#,GGH2#..VFIRE..CBU

 1
81134 - GASKET, HEADLAMP
90075-68007

ANH2#,GGH2#..CBU

 1
81135 - UNIT ASSY, HEADLAMP, RH
81145-58140

GGH2#..(35V,35X)..CBU

 1
81145-58141

GGH2#..(35V,35X)..CBU

 1
81145-58142

GGH2#..(35V,35X)..CBU

 1
81135C - COVER, HEADLAMP BACK, NO.1
81135-58050

ANH2#,GGH2#..CBU

 2
81150 - HEADLAMP ASSY, LH
81150-58141

GGH2#..(35V,35X)..CBU

 1
81150-58140

GGH2#..(35V,35X)..CBU

 1
81150-58142

GGH2#..(35V,35X)..CBU

 1
81157A - BRACKET, HEADLAMP, LH
81157-58130

ANH2#,GGH2#..VFIRE..CBU

 1
81158 - BRACKET, HEADLAMP, LH
81158-58130

ANH2#,GGH2#..VFIRE..CBU

 1
81175 - UNIT ASSY, HEADLAMP, LH
81185-58140

GGH2#..(35V,35X)..CBU

 1
81185-58142

GGH2#..(35V,35X)..CBU

 1
81185-58141

GGH2#..(35V,35X)..CBU

 1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-58050

ANH2#,GGH2#..VFIRE..CBU

 1
81193A - PROTECTOR, HEADLAMP, RH
81117-58200

ANH2#,GGH2#..VFIRE..CBU

 1
81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193-58060

ANH2#,GGH2#..VFIRE..CBU

 1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-58050

ANH2#,GGH2#..VFIRE..CBU

 1
81194A - PROTECTOR, HEADLAMP, LH
81117-58200

ANH2#,GGH2#..VFIRE..CBU

 1
81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194-58060

ANH2#,GGH2#..VFIRE..CBU

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011

ANH2#,GGH2#..CBU

12V 21W,ｱﾝﾊﾞｰ

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

ANH2#,GGH2#..(24V,24X,24Z,35V,35X)..CBU

12V 5W

 2
99132-12050

ANH2#,GGH2#..(24V,24X,24Z,35V,35X)..CBU

12V 5W

 2
85663A - MOTOR, HEADLAMP SWIVEL, RH
81129-58101

GGH2#..(35V,35X)..CBU

 1
81129-58100

GGH2#..CBU

 1
85664B - MOTOR, HEADLAMP SWIVEL, LH
81169-58100

GGH2#..CBU

 1
81169-58101

GGH2#..(35V,35X)..CBU

 1
Common parts
81136-12C30
90105-06298
90159-50311
90183-06030
90189-05142
