Toyota Alphard/vellfire/hv GGH25 SEAT RAIL

GGH25W-NRTGK (2008)

Toyota Alphard/Vellfire/Hv

Production Apr 2008 - Oct 2011

Engine 2GRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

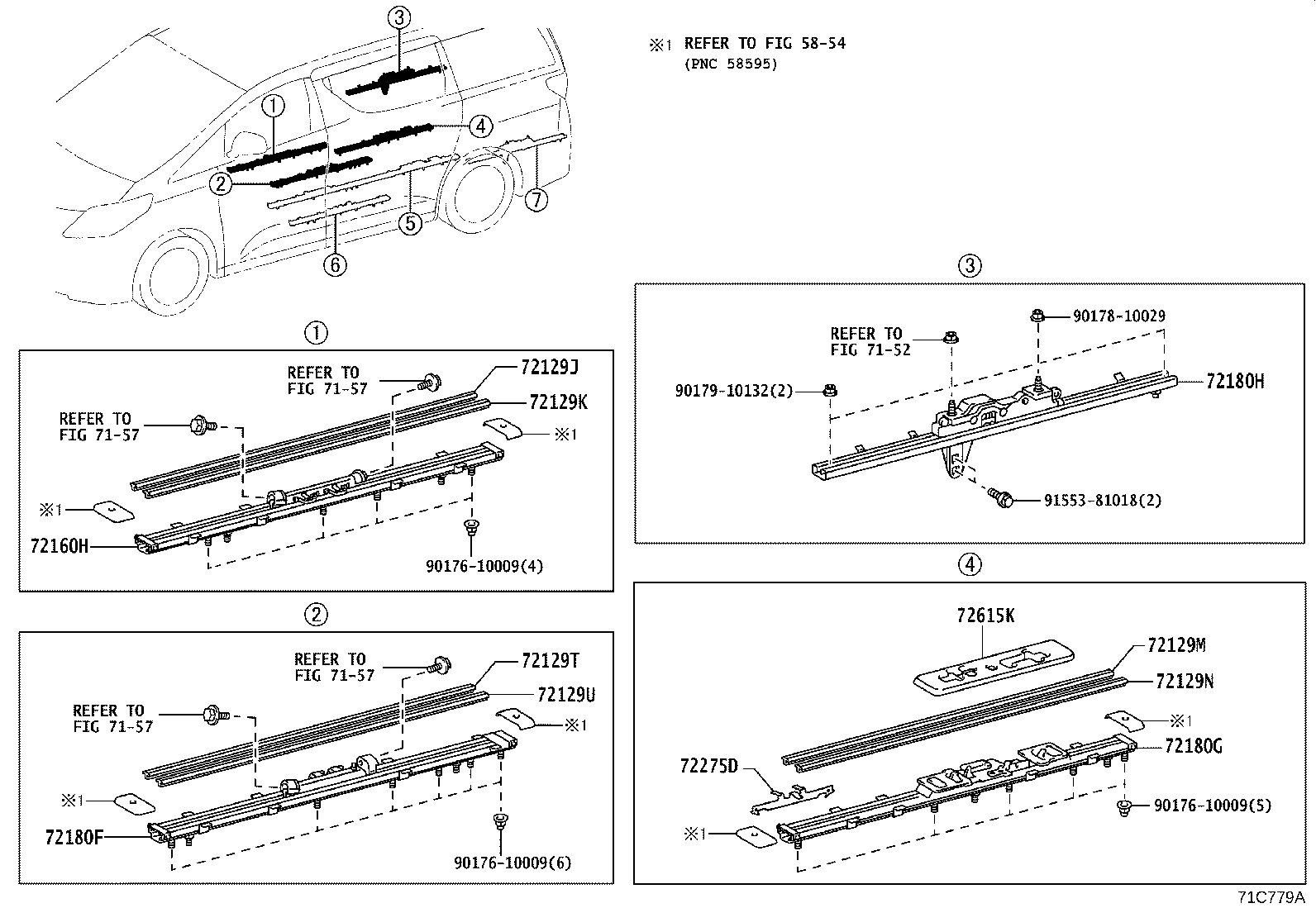

ILLUST NO. 1 OF 2(0804- )08S

Click highlighted areas on diagram

ﾗｲﾄ

Part #	Description	Period	Qty
72129J - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1
72129-58060A0	ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0#	04/2008 - 10/2011	1
72129K - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.2
72129-58070A0	ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0#	04/2008 - 10/2011	1
72129M - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER REAR NO.1
72129-58080A0	ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0#	04/2008 - 10/2011	1
72129N - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER REAR NO.2
72129-58080A0	ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0#	04/2008 - 10/2011	1
72129T - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.1
72129-58070A0	ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0#	04/2008 - 10/2011	1
72129U - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.2
72129-58060A0	ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0#	04/2008 - 10/2011	1
72160H - TRACK ASSY, REAR SEAT, OUTER RH
72160-58090	ANH2#,GGH2#..08S..CBU	04/2008 - 10/2011	1
72180F - TRACK ASSY, REAR SEAT, INNER RH
72170-58090	ANH2#,GGH2#..08S..CBU	04/2008 - 10/2011	1
72180G - TRACK ASSY, REAR SEAT, INNER RH REAR
72190-58030	ANH2#,GGH2#..08S..CBU	04/2008 - 10/2011	1
72180H - TRACK ASSY, REAR RH SEAT, OUTER NO.2
72180-58030	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
72275D - STOPPER, REAR SEAT TRACK SLIDE, RH NO.1
72275-58010	ANH2#,GGH2#..08S..CBU	04/2008 - 10/2011	1
72615K - COVER, REAR SEAT LOCK STRIKER, RH
72615-58030A0	ANH2#..07S..240S;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0#	04/2008 - 10/2011	1
Common parts
90176-10009
90178-10029
90179-10132
91553-81018
Linked diagrams
5854
7152
7157

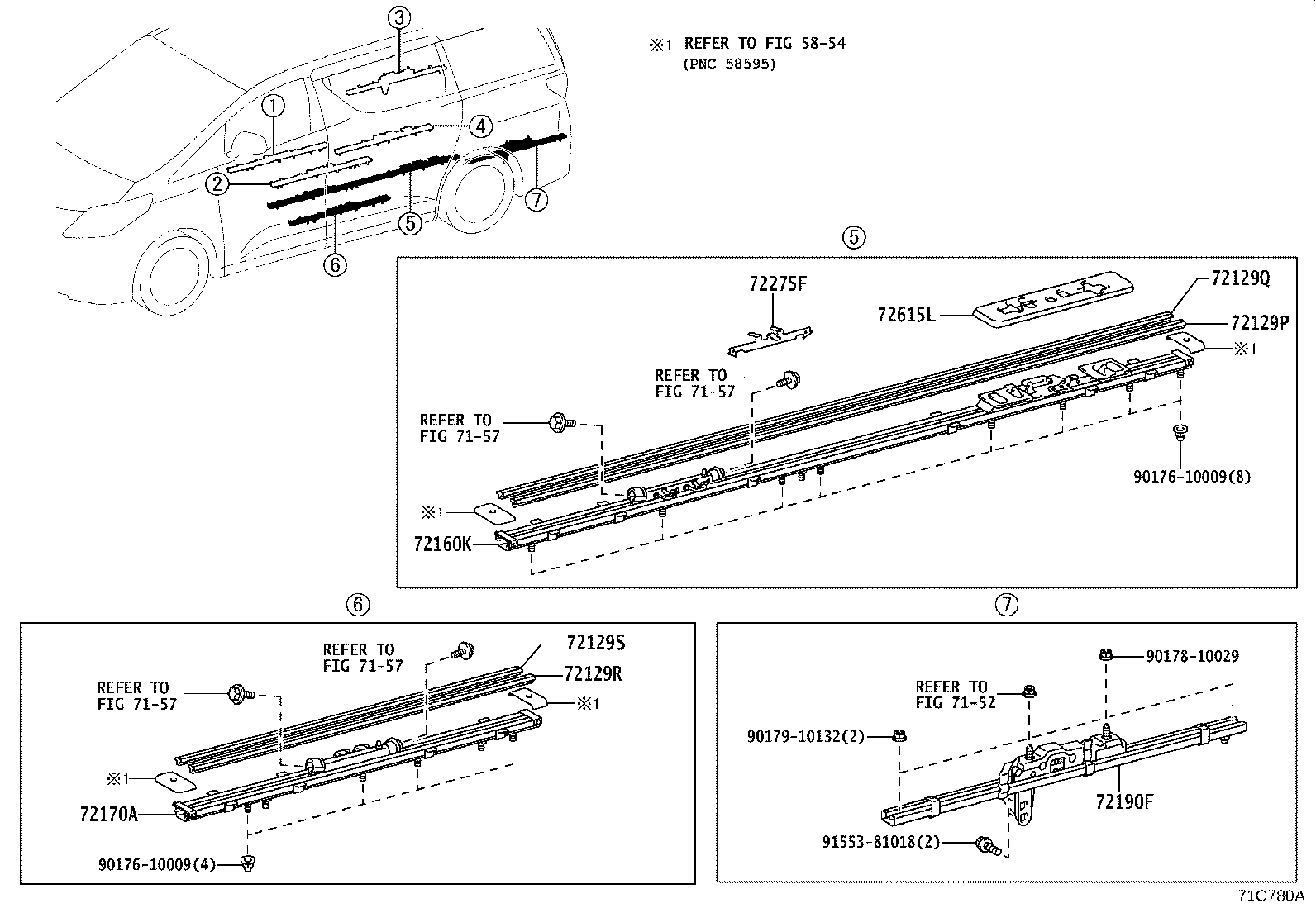

ILLUST NO. 2 OF 2(0804- )08S

Click highlighted areas on diagram

ﾚﾌﾄ

Part #	Description	Period	Qty
72129P - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.1
72129-58090A0	GGH2#..(350G,350X,35V,35X)..CBU;ANH2#..07S..(240G,240S,24V)..CBU;ANH2#..08S..(240G,240X,24V,24X)..CBU SHELL,TRIM0#	04/2008 - 10/2011	1
72129Q - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.2
72129-58090A0	GGH2#..(350G,350X,35V,35X)..CBU;ANH2#..07S..(240G,240S,24V)..CBU;ANH2#..08S..(240G,240X,24V,24X)..CBU SHELL,TRIM0#	04/2008 - 10/2011	1
72129R - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.1
72129-58060A0	ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0#	04/2008 - 10/2011	1
72129S - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.2
72129-58070A0	ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0#	04/2008 - 10/2011	1
72160K - TRACK ASSY, REAR LH SEAT, INNER NO.1
72160-58100	ANH2#,GGH2#..08S..CBU	04/2008 - 10/2011	1
72170A - TRACK ASSY, REAR SEAT, OUTER LH
72170-58100	ANH2#,GGH2#..08S..CBU	04/2008 - 10/2011	1
72190F - TRACK ASSY, REAR LH SEAT, OUTER NO.2
72190-58040	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
72275F - STOPPER, REAR SEAT TRACK SLIDE, LH NO.1
72275-58010	ANH2#,GGH2#..08S..CBU	04/2008 - 10/2011	1
72615L - COVER, REAR SEAT LOCK STRIKER, LH
72615-58020A0	ANH2#..07S..240S;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0#	04/2008 - 10/2011	1
Common parts
90176-10009
90178-10029
90179-10132
91553-81018
Linked diagrams
5854
7152
7157

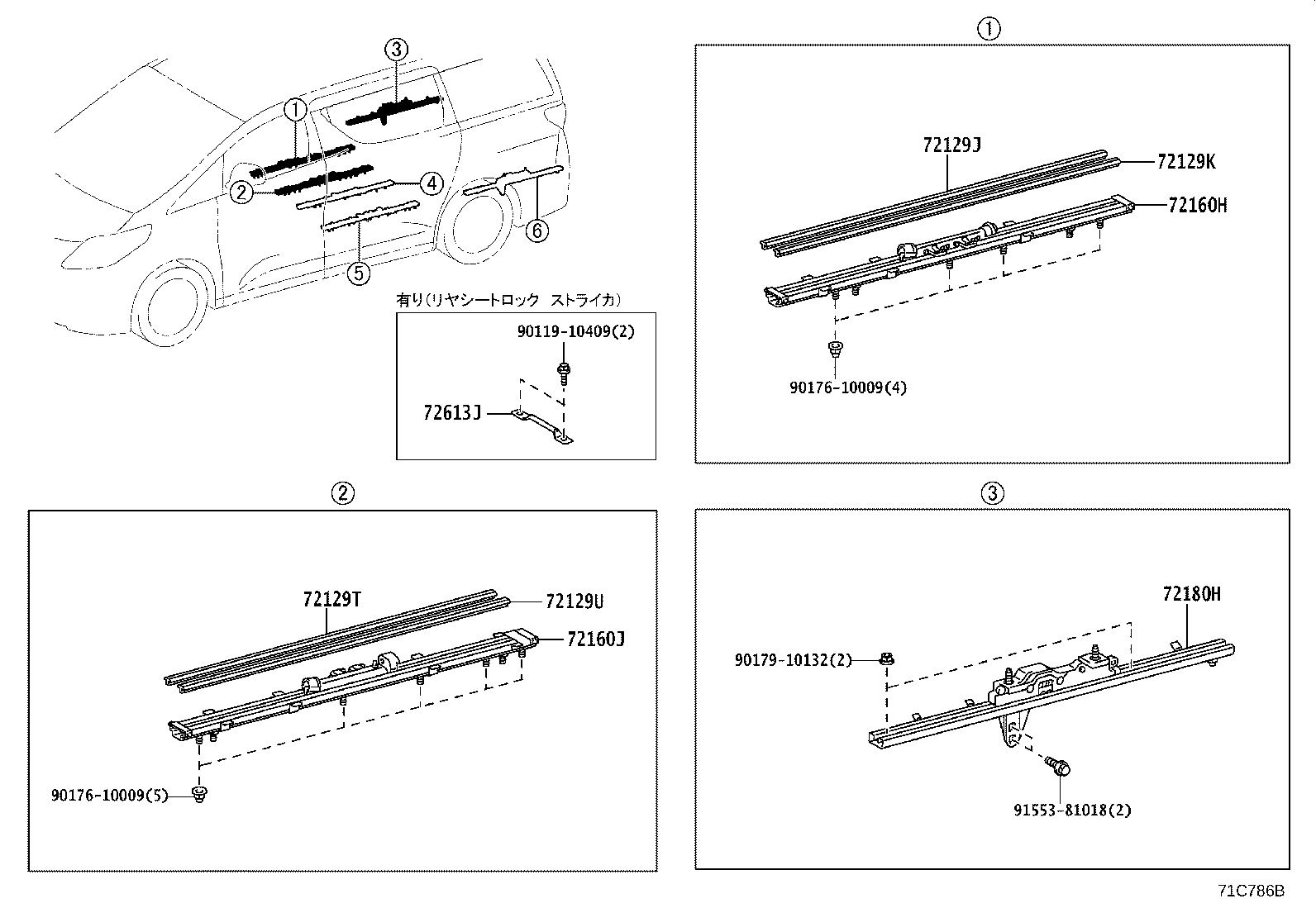

ILLUST NO. 1 OF 2(0804- )08S

Click highlighted areas on diagram

ﾗｲﾄｱﾘ(ﾘﾔｽﾛｰﾌﾟ)

Part #	Description	Period	Qty
72129J - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1
72129-58060A0	ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0#	04/2008 - 10/2011	1
72129K - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.2
72129-58070A0	ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0#	04/2008 - 10/2011	1
72129T - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.1
72129-58070A0	ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0#	04/2008 - 10/2011	1
72129U - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.2
72129-58060A0	ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0#	04/2008 - 10/2011	1
72160H - TRACK ASSY, REAR SEAT, OUTER RH
72160-58090	ANH2#,GGH2#..08S..CBU	04/2008 - 10/2011	1
72180H - TRACK ASSY, REAR RH SEAT, OUTER NO.2
72180-58030	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
Common parts
90119-10409
90176-10009
90179-10132
91553-81018

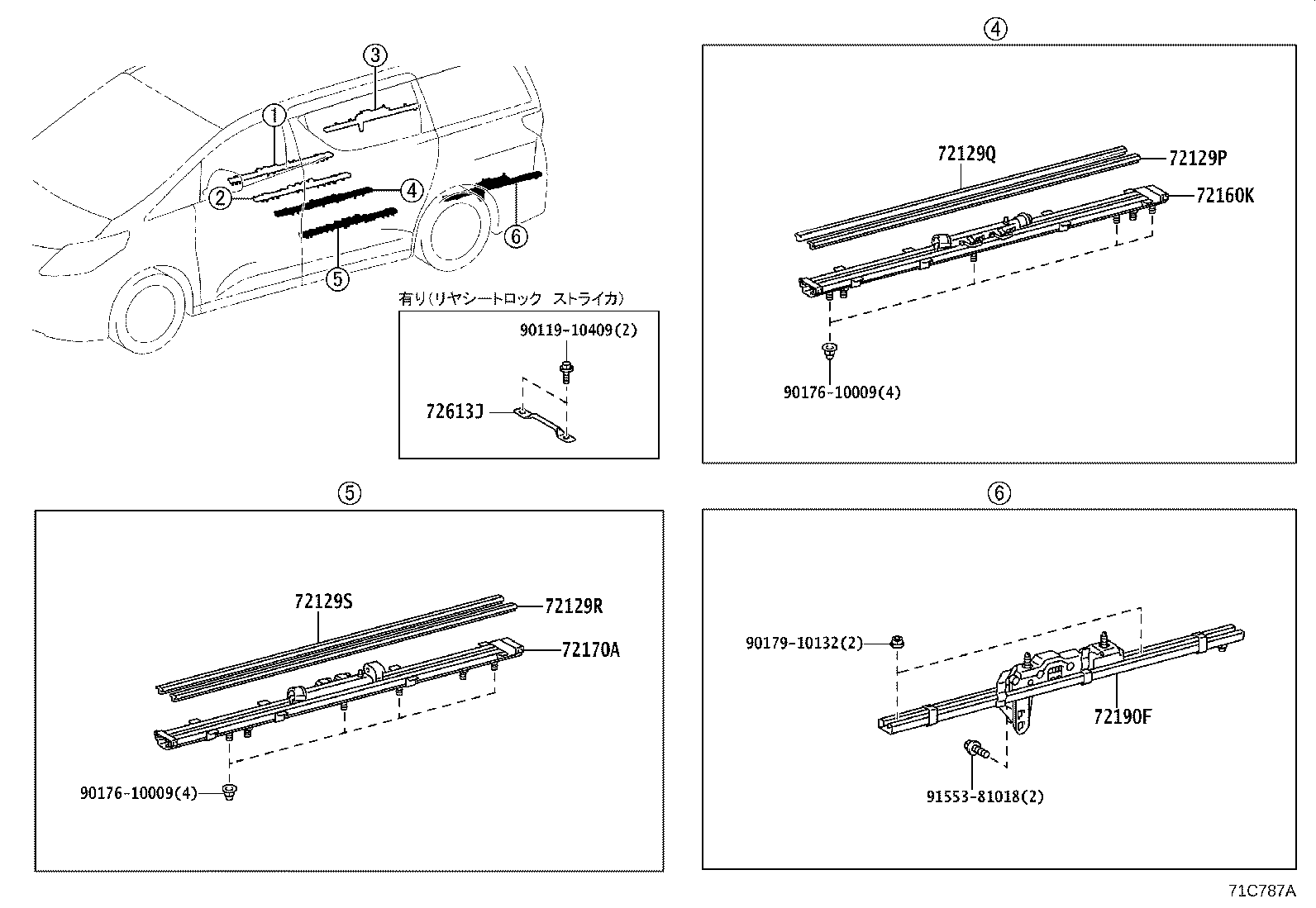

ILLUST NO. 2 OF 2(0804- )08S

Click highlighted areas on diagram

ﾚﾌﾄｱﾘ(ﾘﾔｽﾛｰﾌﾟ)

Part #	Description	Period	Qty
72129P - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.1
72129-58090A0	GGH2#..(350G,350X,35V,35X)..CBU;ANH2#..07S..(240G,240S,24V)..CBU;ANH2#..08S..(240G,240X,24V,24X)..CBU SHELL,TRIM0#	04/2008 - 10/2011	1
72129Q - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.2
72129-58090A0	GGH2#..(350G,350X,35V,35X)..CBU;ANH2#..07S..(240G,240S,24V)..CBU;ANH2#..08S..(240G,240X,24V,24X)..CBU SHELL,TRIM0#	04/2008 - 10/2011	1
72129R - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.1
72129-58060A0	ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0#	04/2008 - 10/2011	1
72129S - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.2
72129-58070A0	ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0#	04/2008 - 10/2011	1
72160K - TRACK ASSY, REAR LH SEAT, INNER NO.1
72160-58100	ANH2#,GGH2#..08S..CBU	04/2008 - 10/2011	1
72170A - TRACK ASSY, REAR SEAT, OUTER LH
72170-58100	ANH2#,GGH2#..08S..CBU	04/2008 - 10/2011	1
72190F - TRACK ASSY, REAR LH SEAT, OUTER NO.2
72190-58040	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
Common parts
90119-10409
90176-10009
90179-10132
91553-81018
