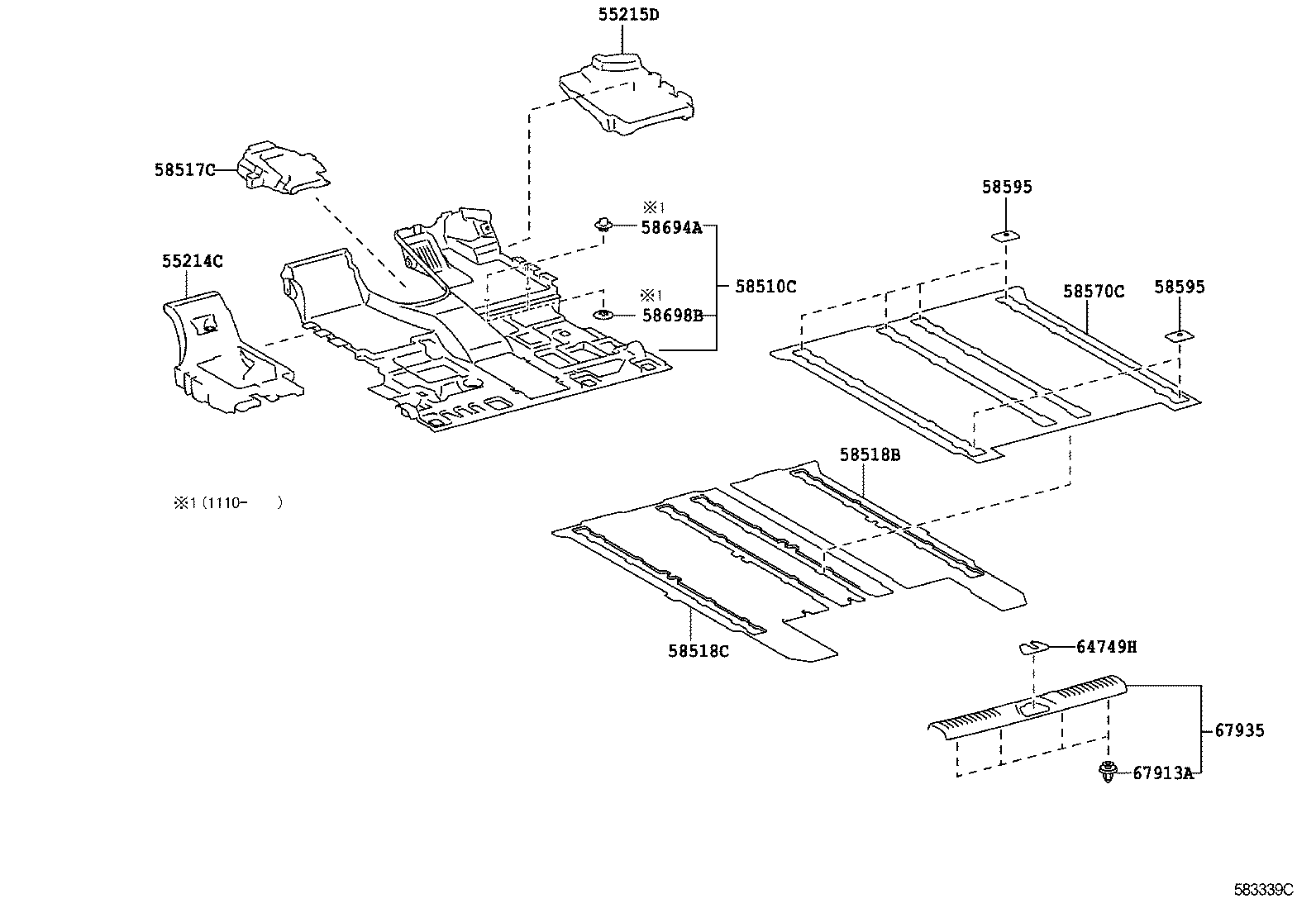

GGH25W-NRTGK (2008)
Toyota Alphard/Vellfire/Hv
(0804-1110)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55214C - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 58192-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 55215D - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 58510C - CARPET ASSY, FRONT FLOOR, FRONT | ||||
| 58500-58110A0 |
ANH25..07S..(240G,240S,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..07S..(240S,350S,35Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り,SHELL,TRIM0# |
1 | ||
| 58500-58110A0 |
ANH25..07S..(240G,240S,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..07S..(240S,350S,35Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り,SHELL,TRIM0# |
1 | ||
| 58500-58110A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,SHELL,TRIM0# |
1 | ||
| 58500-58110A0 |
ANH25..07S..(240G,240S,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..07S..(240S,350S,35Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り,SHELL,TRIM0# |
1 | ||
| 58500-58110A0 |
ANH25..07S..(240G,240S,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..07S..(240S,350S,35Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り,SHELL,TRIM0# |
1 | ||
| 58500-58100A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 58500-58110A0 |
ANH25..07S..(240G,240S,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..07S..(240S,350S,35Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,SHELL,TRIM0# |
1 | ||
| 58517C - PAD, FRONT FLOOR MAT | ||||
| 58573-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 58518B - MAT, REAR FLOOR, NO.2 | ||||
| 58518-58290 |
ANH2#,GGH2#..08S..CBU |
1 | ||
| 58518C - MAT, REAR FLOOR, NO.2 | ||||
| 58518-58300 |
ANH2#,GGH2#..08S..CBU |
1 | ||
| 58518D - MAT, REAR FLOOR, NO.2 | ||||
| 58518-58310 |
ANH2#,GGH2#..CBU |
1 | ||
| 58518E - MAT, REAR FLOOR, NO.2 | ||||
| 58518-58480 |
ANH2#,GGH2#..CBU |
1 | ||
| 58518E - MAT, REAR FLOOR, NO.2 | ||||
| 58518-58480 |
ANH2#,GGH2#..CBU |
1 | ||
| 58570C - CARPET ASSY, REAR FLOOR | ||||
| 58570-58150A0 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-58020A0 |
GGH2#..(350G,350X,35V,35X)..CBU;ANH2#..07S..(240G,240S,24V)..CBU;ANH2#..08S..(240G,240X,24V,24X)..CBU SHELL,TRIM0#,TYPE A:ｲﾗｽﾄ参照 |
8 | ||
| 58595-58030A0 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0#,TYPE F:ｲﾗｽﾄ参照 |
2 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-58020A0 |
GGH2#..(350G,350X,35V,35X)..CBU;ANH2#..07S..(240G,240S,24V)..CBU;ANH2#..08S..(240G,240X,24V,24X)..CBU SHELL,TRIM0#,TYPE A:ｲﾗｽﾄ参照 |
8 | ||
| 58595-58030A0 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0#,TYPE F:ｲﾗｽﾄ参照 |
2 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-58020A0 |
GGH2#..(350G,350X,35V,35X)..CBU;ANH2#..07S..(240G,240S,24V)..CBU;ANH2#..08S..(240G,240X,24V,24X)..CBU SHELL,TRIM0#,TYPE A:ｲﾗｽﾄ参照 |
8 | ||
| 58595-58030A0 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0#,TYPE F:ｲﾗｽﾄ参照 |
2 | ||
| 64749H - COVER, BACK DOOR STRIKER | ||||
| 64749-58010A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 67913A - CLIP(FOR SCUFF PLATE) | ||||
| 90467-10161 |
ANH2#,GGH2#..CBU |
6 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-58021A0 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 67935-58020A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
(0804- )08S
ﾘﾔｽﾛｰﾌﾟ ﾀｲﾌﾟ2(ﾘﾔNO.2ｼｰﾄ 1ｷｬｸｿｳﾋﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55214C - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 58192-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 55215D - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 58510C - CARPET ASSY, FRONT FLOOR, FRONT | ||||
| 58500-58110A0 |
ANH25..07S..(240G,240S,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..07S..(240S,350S,35Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り,SHELL,TRIM0# |
1 | ||
| 58500-58110A0 |
ANH25..07S..(240G,240S,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..07S..(240S,350S,35Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り,SHELL,TRIM0# |
1 | ||
| 58500-58110A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,SHELL,TRIM0# |
1 | ||
| 58500-58110A0 |
ANH25..07S..(240G,240S,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..07S..(240S,350S,35Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り,SHELL,TRIM0# |
1 | ||
| 58500-58110A0 |
ANH25..07S..(240G,240S,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..07S..(240S,350S,35Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り,SHELL,TRIM0# |
1 | ||
| 58500-58100A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 58500-58110A0 |
ANH25..07S..(240G,240S,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..07S..(240S,350S,35Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,SHELL,TRIM0# |
1 | ||
| 58517C - PAD, FRONT FLOOR MAT | ||||
| 58573-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 58518B - MAT, REAR FLOOR, NO.2 | ||||
| 58518-58290 |
ANH2#,GGH2#..08S..CBU |
1 | ||
| 58518C - MAT, REAR FLOOR, NO.2 | ||||
| 58518-58300 |
ANH2#,GGH2#..08S..CBU |
1 | ||
| 58570C - CARPET ASSY, REAR FLOOR | ||||
| 58570-58150A0 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-58020A0 |
GGH2#..(350G,350X,35V,35X)..CBU;ANH2#..07S..(240G,240S,24V)..CBU;ANH2#..08S..(240G,240X,24V,24X)..CBU SHELL,TRIM0#,TYPE A:ｲﾗｽﾄ参照 |
8 | ||
| 58595-58030A0 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0#,TYPE F:ｲﾗｽﾄ参照 |
2 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-58020A0 |
GGH2#..(350G,350X,35V,35X)..CBU;ANH2#..07S..(240G,240S,24V)..CBU;ANH2#..08S..(240G,240X,24V,24X)..CBU SHELL,TRIM0#,TYPE A:ｲﾗｽﾄ参照 |
8 | ||
| 58595-58030A0 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0#,TYPE F:ｲﾗｽﾄ参照 |
2 | ||
| 64749H - COVER, BACK DOOR STRIKER | ||||
| 64749-58010A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 67913A - CLIP(FOR SCUFF PLATE) | ||||
| 90467-10161 |
ANH2#,GGH2#..CBU |
6 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-58021A0 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 67935-58020A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
