GGH25W-NRTGK (2008)

Toyota Alphard/Vellfire/Hv

Production Apr 2008 - Oct 2011
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0804-1110)VFIRE

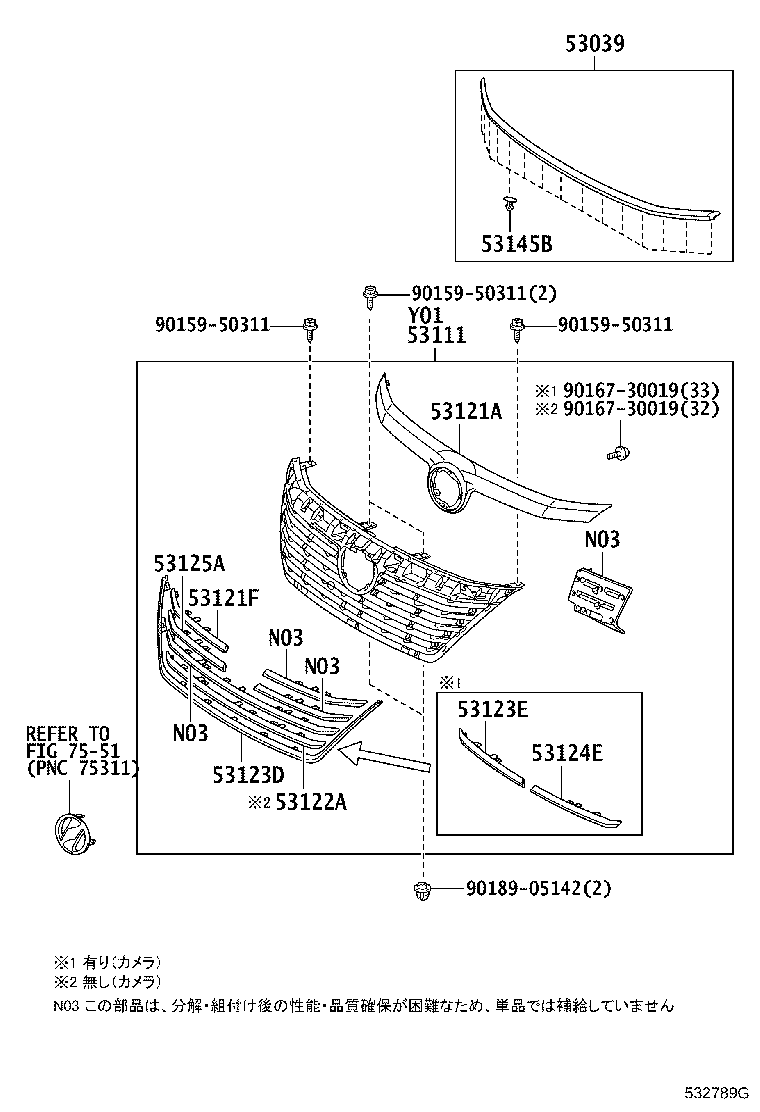

Click highlighted areas on diagram

diagram 53039 53111 53121A 53121F 53122A 53123D 53123E 53124E 53125A 53145B 7551 9015950311 9015950311 9015950311 9016730019 9016730019 9018905142
Part # Description Qty Price
53039 - SEAL, RADIATOR, UPPER
53039-58050

ANH2#,GGH2#..VFIRE..CBU

 1
53111 - GRILLE, RADIATOR
53101-58140

ANH2#,GGH2#..VFIRE..CBU

ﾒｯｷ

 1
53101-58150

ANH25..07S..(24V,24Z);ANH25..VFIRE..08S..CBU;ANH20,GGH2#..VFIRE..CBU

ﾒｯｷ,ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞcjﾀ)

 1
53121A - MOULDING, RADIATOR GRILLE
53121-58030

ANH2#,GGH2#..VFIRE..CBU

 1
53121F - MOULDING, RADIATOR GRILLE, UPPER RH
53121-58040

ANH2#,GGH2#..VFIRE..CBU

 1
53122A - MOULDING, RADIATOR GRILLE, LOWER
53122-58040

ANH2#,GGH2#..VFIRE..CBU

 1
53123D - MOULDING, RADIATOR GRILLE, LOWER
53123-58040

ANH2#,GGH2#..VFIRE..CBU

 1
53123E - MOULDING, RADIATOR GRILLE, LOWER RH
53123-58080

ANH25..07S..(24V,24Z);ANH25..VFIRE..08S..CBU;ANH20,GGH2#..VFIRE..CBU

ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ)

 1
53124E - MOULDING, RADIATOR GRILLE, LOWER LH
53124-58080

ANH25..07S..(24V,24Z);ANH25..VFIRE..08S..CBU;ANH20,GGH2#..VFIRE..CBU

ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ)

 1
53125A - MOULDING, RADIATOR GRILLE, CENTER RH
53125-58010

ANH2#,GGH2#..VFIRE..CBU

 1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-60030

ANH2#,GGH2#..VFIRE..CBU

 15
Common parts
90159-50311
90167-30019
90189-05142
Linked diagrams
7551
