GGH25W-NFTQK (2011)
Toyota Alphard/Vellfire/Hv
(1110- )

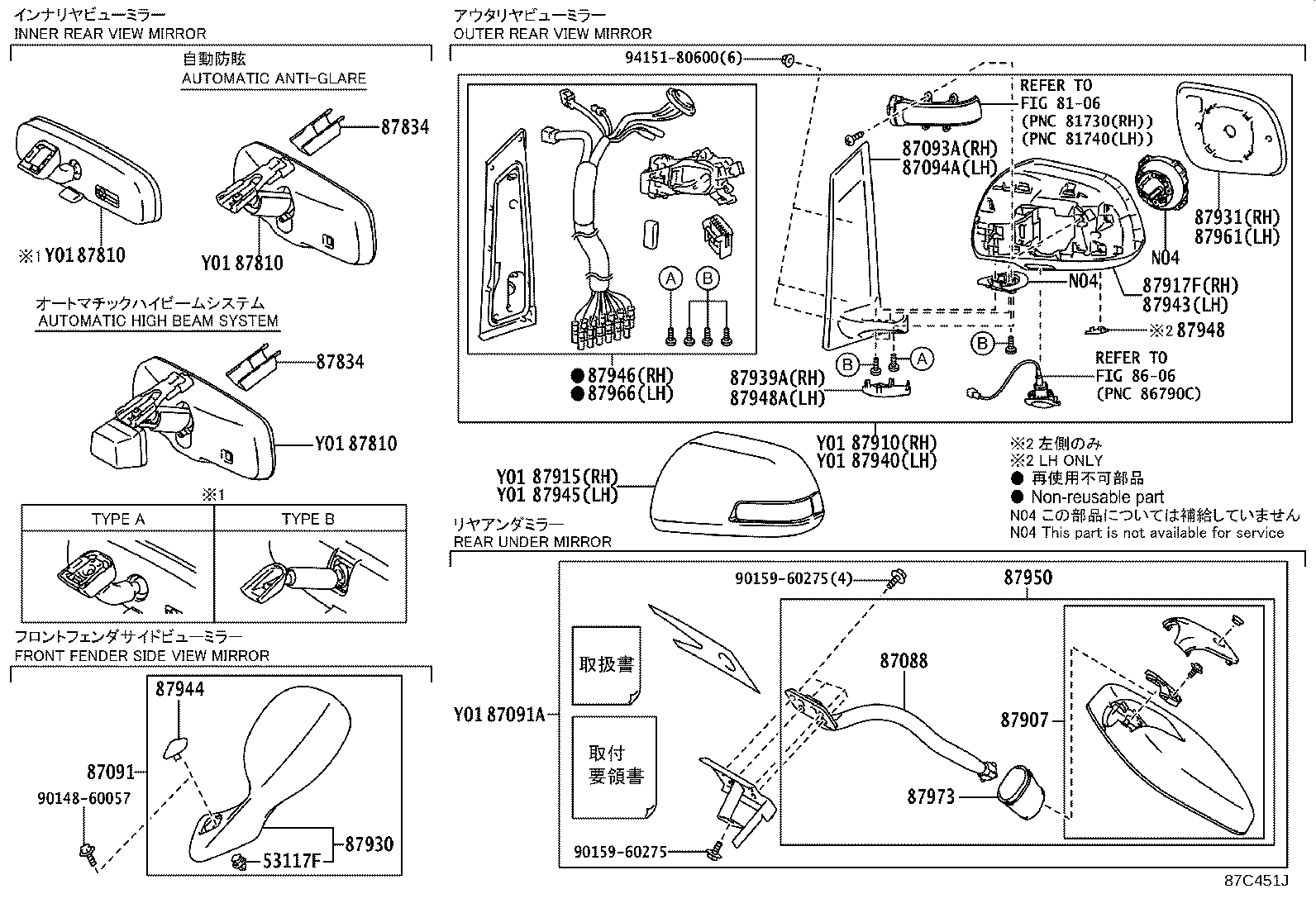

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53117F - RETAINER, FRONT FENDER SIDE VIEW DEVICE | ||||
| 53117-42010 |
ANH2#,GGH2#..CBU |
1 | ||
| 53117-42010 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 53117-42010 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53117-42010 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87088 - ARM SUB-ASSY, OUTER UNDER REAR VIEW MIRROR | ||||
| 87088-58020 |
ANH2#,GGH2#..CBU ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| 87088-58020 |
ANH2#,ATH20,GGH2#..CBU ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| 87091 - MIRROR SET, OUTER REAR VIEW, NO.1 | ||||
| 87091-58030B1 |
ANH2#,GGH2#..VFIRE..CBU ***,SILVER ME.,1F7 |
1 | ||
| 87091-58030D0 |
ANH2#,GGH2#..VFIRE..CBU ***,DEEP RED M.M.,3R9 |
1 | ||
| 87091-58030E0 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU ***,BEIGE ME.,4T8 |
1 | ||
| 87091-58030C0 |
ANH2#,GGH2#..VFIRE..CBU ***,BLACK,202 |
1 | ||
| 87091-58030A0 |
ANH2#,GGH2#..VFIRE..CBU ***,WHITE PEARL CS.,070 |
1 | ||
| 87091-58030A0 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ***,WHITE PEARL CS.,070 |
1 | ||
| 87091-58030A0 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ***,ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 87091-58030A0 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ***,ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 87091-58030B0 |
ANH2#,ATH20,GGH2#..(24V,24X,24Z,35V,35Z,HBDZR)..CBU ***,SILVER ME.,1E4 |
1 | ||
| 87091-58030B0 |
ANH2#,ATH20,GGH2#..(24V,24X,24Z,35V,35Z,HBDZR)..CBU ***,ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),SILVER ME.,1E4 |
1 | ||
| 87091-58030B0 |
ANH2#,ATH20,GGH2#..(24V,24X,24Z,35V,35Z,HBDZR)..CBU ***,ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),SILVER ME.,1E4 |
1 | ||
| 87091-58030D0 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ***,ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),DEEP RED M.M.,3R9 |
1 | ||
| 87091-58030C0 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ***,BLACK,202 |
1 | ||
| 87091-58030B1 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ***,ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),SILVER ME.,1F7 |
1 | ||
| 87091-58030D0 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ***,ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),DEEP RED M.M.,3R9 |
1 | ||
| 87091-58030C0 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ***,ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BLACK,202 |
1 | ||
| 87091-58030C0 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ***,ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BLACK,202 |
1 | ||
| 87091-58030B1 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ***,ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),SILVER ME.,1F7 |
1 | ||
| 87091-58030D0 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ***,DEEP RED M.M.,3R9 |
1 | ||
| 87091-58030J2 |
ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU ***,LT.BLUE ME.,8Q6 |
1 | ||
| 87091-58030J2 |
ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU ***,ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),LT.BLUE ME.,8Q6 |
1 | ||
| 87091-58030J2 |
ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU ***,ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),LT.BLUE ME.,8Q6 |
1 | ||
| 87091-58030B1 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ***,SILVER ME.,1F7 |
1 | ||
| 87091A - MIRROR SET, OUTER REAR VIEW, NO.2 | ||||
| 87091-58010 |
ANH2#,ATH20,GGH2#..CBU ***,ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| 87091-58010 |
ANH2#,GGH2#..CBU ***,ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| 87093A - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, RH | ||||
| 8791B-58050 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 8791B-58050 |
ANH2#,ATH20,GGH2#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 8791B-58050 |
ANH2#,ATH20,GGH2#..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87094A - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, LH | ||||
| 8794B-58050 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 8794B-58050 |
ANH2#,ATH20,GGH2#..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 8794B-58050 |
ANH2#,ATH20,GGH2#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-52041 |
ANH2#,GGH2#..CBU ﾀｲﾌﾟ A |
1 | ||
| 87810-0W870 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 87810-0WC10 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 87810-0W870 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-52041 |
ANH2#,GGH2#..CBU ﾀｲﾌﾟ A |
1 | ||
| 87810-0W870 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 87810-0WC10 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 87810-0W870 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-52041 |
ANH2#,GGH2#..CBU ﾀｲﾌﾟ A |
1 | ||
| 87810-0W870 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 87810-0WC10 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 87810-0W870 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87818-04010 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87818-04010 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-58020 |
ANH2#,GGH2#..CBU ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| 87907-58020 |
ANH2#,ATH20,GGH2#..CBU ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-58070 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU 塗装不要,寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WuFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87910-58070 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU 塗装不要,寒冷地仕様 |
1 | ||
| 87910-58090 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU 塗装不要 |
1 | ||
| 87910-58070 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU 塗装不要,ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲhﾓﾆﾀ) |
1 | ||
| 87910-58081 |
ANH2#,ATH20,GGH2#..CBU 塗装不要,寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｰﾓﾆﾀ) |
1 | ||
| 87910-58072 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU 塗装不要,寒冷地仕様 |
1 | ||
| 87910-58081 |
ANH2#,ATH20,GGH2#..CBU 塗装不要,ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87910-58091 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU 塗装不要 |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-28060C0 |
ANH2#,GGH2#..CBU BLACK,202 |
1 | ||
| 87915-28060E2 |
ANH2#,GGH2#..(24V,35V)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),GOLD PEARL CS.,4U1 |
1 | ||
| 87915-28060E1 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU BEIGE ME.,4T8 |
1 | ||
| 87915-28060E2 |
ANH2#,GGH2#..(24V,35V)..CBU 寒冷地仕様,GOLD PEARL CS.,4U1 |
1 | ||
| 87915-28060A1 |
ANH2#,GGH2#..CBU WHITE PEARL CS.,070 |
1 | ||
| 87915-28060B0 |
ANH2#,GGH2#..(240G,240X,24V,24X,24Z,350G,350X,35V,35X,35Z)..CBU SILVER ME.,1F7 |
1 | ||
| 87915-28060J0 |
ANH2#,GGH2#..(24V,35V)..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),DK.BLUE MC.,8S6 |
1 | ||
| 87915-28060D2 |
ANH2#,GGH2#..VFIRE..CBU DEEP RED M.M.,3R9 |
1 | ||
| 87915-28060J0 |
ANH2#,GGH2#..(24V,35V)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),DK.BLUE MC.,8S6 |
1 | ||
| 87915-28060E2 |
ANH2#,GGH2#..(24V,35V)..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),GOLD PEARL CS.,4U1 |
1 | ||
| 87915-28060J0 |
ANH2#,GGH2#..(24V,35V)..CBU 寒冷地仕様,DK.BLUE MC.,8S6 |
1 | ||
| 87915-28060C0 |
ANH2#,ATH20,GGH2#..CBU BLACK,202 |
1 | ||
| 87915-28060D2 |
ANH2#,ATH20,GGH2#..VFIRE..CBU DEEP RED M.M.,3R9 |
1 | ||
| 87915-28060A1 |
ANH2#,ATH20,GGH2#..CBU WHITE PEARL CS.,070 |
1 | ||
| 87915-28060B0 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,24Z,350G,35V,HBDG,HBDV,HBDX,HBDZR)..CBU SILVER ME.,1F7 |
1 | ||
| 87915-28060B4 |
ANH2#,ATH20,GGH2#..(240S,24V,24X,24Z,350S,35V,35Z,HBDSR,HBDZR)..CBU SILVER ME.,1E4 |
1 | ||
| 87915-28060J6 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDSR,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
1 | ||
| 87917F - BODY, OUTER MIRROR, RH | ||||
| 8791A-28A20 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 8791A-28B90 |
ANH2#,ATH20,GGH2#..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 8791A-28B90 |
ANH2#,ATH20,GGH2#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87930 - DEVICE ASSY, FRONT FENDER SIDE VIEW, LH | ||||
| 87930-58030A0 |
ANH2#,GGH2#..VFIRE..CBU WHITE PEARL CS.,070 |
1 | ||
| 87930-58030B1 |
ANH2#,GGH2#..VFIRE..CBU SILVER ME.,1F7 |
1 | ||
| 87930-58030D0 |
ANH2#,GGH2#..VFIRE..CBU DEEP RED M.M.,3R9 |
1 | ||
| 87930-58030C0 |
ANH2#,GGH2#..VFIRE..CBU BLACK,202 |
1 | ||
| 87930-58030E0 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU BEIGE ME.,4T8 |
1 | ||
| 87930-58030B0 |
ANH2#,ATH20,GGH2#..(24V,24X,24Z,35V,35Z,HBDZR)..CBU SILVER ME.,1E4 |
1 | ||
| 87930-58030B1 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),SILVER ME.,1F7 |
1 | ||
| 87930-58030B0 |
ANH2#,ATH20,GGH2#..(24V,24X,24Z,35V,35Z,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),SILVER ME.,1E4 |
1 | ||
| 87930-58030C0 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BLACK,202 |
1 | ||
| 87930-58030A0 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 87930-58030B1 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),SILVER ME.,1F7 |
1 | ||
| 87930-58030B1 |
ANH2#,ATH20,GGH2#..VFIRE..CBU SILVER ME.,1F7 |
1 | ||
| 87930-58030A0 |
ANH2#,ATH20,GGH2#..VFIRE..CBU WHITE PEARL CS.,070 |
1 | ||
| 87930-58030C0 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BLACK,202 |
1 | ||
| 87930-58030A0 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 87930-58030C0 |
ANH2#,ATH20,GGH2#..VFIRE..CBU BLACK,202 |
1 | ||
| 87930-58030B0 |
ANH2#,ATH20,GGH2#..(24V,24X,24Z,35V,35Z,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),SILVER ME.,1E4 |
1 | ||
| 87930-58030J2 |
ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
1 | ||
| 87930-58030D0 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),DEEP RED M.M.,3R9 |
1 | ||
| 87930-58030J2 |
ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),LT.BLUE ME.,8Q6 |
1 | ||
| 87930-58030D0 |
ANH2#,ATH20,GGH2#..VFIRE..CBU DEEP RED M.M.,3R9 |
1 | ||
| 87930-58030J2 |
ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),LT.BLUE ME.,8Q6 |
1 | ||
| 87930-58030D0 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),DEEP RED M.M.,3R9 |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-58060 |
ANH2#,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 87931-58060 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87931-58050 |
ANH2#,GGH2#..CBU |
1 | ||
| 87931-58060 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87931-58062 |
ANH2#,ATH20,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 87931-58062 |
ANH2#,ATH20,GGH2#..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87931-58051 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 87931-58062 |
ANH2#,ATH20,GGH2#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87939A - COVER, OUTER MIRROR HOLE, RH | ||||
| 87939-58050 |
ANH2#,GGH2#..CBU |
1 | ||
| 87939-58050 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-58110 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU 塗装不要,寒冷地仕様 |
1 | ||
| 87940-58120 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) 塗装不要,寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WuFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87940-58150 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU 塗装不要 |
1 | ||
| 87940-58120 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) 塗装不要,ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲhﾓﾆﾀ) |
1 | ||
| 87940-58112 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU 塗装不要,寒冷地仕様 |
1 | ||
| 87940-58131 |
ANH2#,ATH20,GGH2#..CBU 塗装不要,ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87940-58151 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU 塗装不要 |
1 | ||
| 87940-58131 |
ANH2#,ATH20,GGH2#..CBU 塗装不要,寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｰﾓﾆﾀ) |
1 | ||
| 87943 - BODY, OUTER MIRROR, LH | ||||
| 8794A-28A20 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 8794A-28B90 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 8794A-28B90 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 8794A-28B90 |
ANH2#,ATH20,GGH2#..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 8794A-28B90 |
ANH2#,ATH20,GGH2#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87944 - COVER, FRONT FENDER SIDE VIEW DEVICE, LH | ||||
| 87944-58020A0 |
ANH2#,GGH2#..CBU WHITE PEARL CS.,070 |
1 | ||
| 87944-58020B1 |
ANH2#,GGH2#..(240G,240X,24V,24X,24Z,350G,350X,35V,35X,35Z)..CBU SILVER ME.,1F7 |
1 | ||
| 87944-58020C0 |
ANH2#,GGH2#..CBU BLACK,202 |
1 | ||
| 87944-58020E0 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU BEIGE ME.,4T8 |
1 | ||
| 87944-58020B1 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,24Z,350G,35V,35Z,HBDG,HBDV,HBDX,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),SILVER ME.,1F7 |
1 | ||
| 87944-58020B1 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,24Z,350G,35V,35Z,HBDG,HBDV,HBDX,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),SILVER ME.,1F7 |
1 | ||
| 87944-58020A0 |
ANH2#,ATH20,GGH2#..CBU WHITE PEARL CS.,070 |
1 | ||
| 87944-58020D0 |
ANH2#,GGH2#..VFIRE..CBU DEEP RED M.M.,3R9 |
1 | ||
| 87944-58020C0 |
ANH2#,ATH20,GGH2#..CBU BLACK,202 |
1 | ||
| 87944-58020B0 |
ANH2#,ATH20,GGH2#..(240S,24V,24X,24Z,350S,35V,35Z,HBDSR,HBDZR)..CBU SILVER ME.,1E4 |
1 | ||
| 87944-58020B0 |
ANH2#,ATH20,GGH2#..(240S,24V,24X,24Z,350S,35V,35Z,HBDSR,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),SILVER ME.,1E4 |
1 | ||
| 87944-58020A0 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 87944-58020A0 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 87944-58020B0 |
ANH2#,ATH20,GGH2#..(240S,24V,24X,24Z,350S,35V,35Z,HBDSR,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),SILVER ME.,1E4 |
1 | ||
| 87944-58020C0 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BLACK,202 |
1 | ||
| 87944-58020B1 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,24Z,350G,35V,35Z,HBDG,HBDV,HBDX,HBDZR)..CBU SILVER ME.,1F7 |
1 | ||
| 87944-58020D0 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),DEEP RED M.M.,3R9 |
1 | ||
| 87944-58020D0 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),DEEP RED M.M.,3R9 |
1 | ||
| 87944-58020J2 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDSR,HBDV,HBDX)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),LT.BLUE ME.,8Q6 |
1 | ||
| 87944-58020J2 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDSR,HBDV,HBDX)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),LT.BLUE ME.,8Q6 |
1 | ||
| 87944-58020D0 |
ANH2#,ATH20,GGH2#..VFIRE..CBU DEEP RED M.M.,3R9 |
1 | ||
| 87944-58020C0 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BLACK,202 |
1 | ||
| 87944-58020J2 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDSR,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-28060A1 |
ANH2#,GGH2#..CBU WHITE PEARL CS.,070 |
1 | ||
| 87945-28060D2 |
ANH2#,GGH2#..VFIRE..CBU DEEP RED M.M.,3R9 |
1 | ||
| 87945-28060B0 |
ANH2#,GGH2#..(240G,240X,24V,24X,24Z,350G,350X,35V,35X,35Z)..CBU SILVER ME.,1F7 |
1 | ||
| 87945-28060E2 |
ANH2#,GGH2#..(24V,35V)..CBU 寒冷地仕様,GOLD PEARL CS.,4U1 |
1 | ||
| 87945-28060J0 |
ANH2#,GGH2#..(24V,35V)..CBU 寒冷地仕様,DK.BLUE MC.,8S6 |
1 | ||
| 87945-28060E1 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU BEIGE ME.,4T8 |
1 | ||
| 87945-28060E2 |
ANH2#,GGH2#..(24V,35V)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),GOLD PEARL CS.,4U1 |
1 | ||
| 87945-28060C0 |
ANH2#,GGH2#..CBU BLACK,202 |
1 | ||
| 87945-28060J0 |
ANH2#,GGH2#..(24V,35V)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),DK.BLUE MC.,8S6 |
1 | ||
| 87945-28060E2 |
ANH2#,GGH2#..(24V,35V)..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),GOLD PEARL CS.,4U1 |
1 | ||
| 87945-28060A1 |
ANH2#,ATH20,GGH2#..CBU WHITE PEARL CS.,070 |
1 | ||
| 87945-28060B0 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,24Z,350G,35V,HBDG,HBDV,HBDX,HBDZR)..CBU SILVER ME.,1F7 |
1 | ||
| 87945-28060J0 |
ANH2#,GGH2#..(24V,35V)..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),DK.BLUE MC.,8S6 |
1 | ||
| 87945-28060C0 |
ANH2#,ATH20,GGH2#..CBU BLACK,202 |
1 | ||
| 87945-28060D2 |
ANH2#,ATH20,GGH2#..VFIRE..CBU DEEP RED M.M.,3R9 |
1 | ||
| 87945-28060B4 |
ANH2#,ATH20,GGH2#..(240S,24V,24X,24Z,350S,35V,35Z,HBDSR,HBDZR)..CBU SILVER ME.,1E4 |
1 | ||
| 87945-28060J6 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDSR,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
1 | ||
| 87946 - RETRACTOR, OUTER MIRROR, RH | ||||
| 87946-58090 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 87946-58070 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87946-58070 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU 寒冷地仕様 |
1 | ||
| 87946-58070 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU 寒冷地仕様 |
1 | ||
| 87946-58081 |
ANH2#,ATH20,GGH2#..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87946-58070 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87946-58090 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 87946-58081 |
ANH2#,ATH20,GGH2#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87948 - COVER, OUTER MIRROR HOLE, LH | ||||
| 87948-58150 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 87948-58150 |
ANH2#,GGH2#..CBU |
1 | ||
| 87948A - COVER, OUTER MIRROR HOLE, LH | ||||
| 87948-58070 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 87948-58070 |
ANH2#,GGH2#..CBU |
1 | ||
| 87950 - MIRROR ASSY, OUTER UNDER REAR VIEW | ||||
| 87950-58020 |
ANH2#,ATH20,GGH2#..CBU ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| 87950-58020 |
ANH2#,GGH2#..CBU ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-58070 |
ANH2#,GGH2#..CBU |
1 | ||
| 87961-58080 |
ANH2#,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 87961-58080 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87961-58080 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87961-58082 |
ANH2#,ATH20,GGH2#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87961-58082 |
ANH2#,ATH20,GGH2#..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87961-58082 |
ANH2#,ATH20,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 87961-58071 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 87966 - RETRACTOR, OUTER MIRROR, LH | ||||
| 87966-58120 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87966-58120 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87966-58110 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU 寒冷地仕様 |
1 | ||
| 87966-58150 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 87966-58110 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU 寒冷地仕様 |
1 | ||
| 87966-58131 |
ANH2#,ATH20,GGH2#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87966-58150 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 87966-58131 |
ANH2#,ATH20,GGH2#..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 87973 - COVER, OUTER UNDER RR VIEW MIRROR | ||||
| 87973-58020 |
ANH2#,ATH20,GGH2#..CBU ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| 87973-58020 |
ANH2#,GGH2#..CBU ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| Common parts | ||||
| 90148-60057 | ||||
| 90159-60275 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8106 | ||||
| 8606 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
