GGH25W-NFTQK (2011)
Toyota Alphard/Vellfire/Hv
(1110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86170U - SWITCH & VOLUME ASSY, REAR | ||||
| 86170-58040 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86170-58050 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86174B - CASE, SWITCH & VOLUME | ||||
| 86174-58020 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86174-58010 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86191A - TERMINAL, VIDEO(VIDEO ADAPTER) | ||||
| 86191-58020A0 |
ANH25..07S..(240G,240S,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..07S..(240S,350S,35Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,SHELL,TRIM0# |
1 | ||
| 86191-45020C0 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,BLACK,TRIM0# |
1 | ||
| 86191-58020A0 |
ANH25..07S..(240G,240S,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..07S..(240S,350S,35Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,SHELL,TRIM0# |
1 | ||
| 86191-45020C0 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,BLACK,TRIM0# |
1 | ||
| 86291 - BRACKET, TELEVISION | ||||
| 86291-58020 |
ANH2#,GGH2#..CBU 左側 |
1 | ||
| 86291-58030 |
GGH25..350G,35V;ANH20,ATH20,GGH20..CBU ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),右側 |
1 | ||
| 86291-58010 |
ANH2#,ATH20,GGH2#..CBU 右側 |
1 | ||
| 86291-58030 |
GGH25..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,右側 |
1 | ||
| 86291-58010 |
ANH2#,GGH2#..CBU 右側 |
1 | ||
| 86291-58040 |
GGH25..350G,35V;ANH20,ATH20,GGH20..CBU ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),左側 |
1 | ||
| 86291-58020 |
ANH2#,ATH20,GGH2#..CBU 左側 |
1 | ||
| 86291-58040 |
GGH25..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,左側 |
1 | ||
| 86291 - BRACKET, TELEVISION | ||||
| 86291-58020 |
ANH2#,GGH2#..CBU 左側 |
1 | ||
| 86291-58030 |
GGH25..350G,35V;ANH20,ATH20,GGH20..CBU ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),右側 |
1 | ||
| 86291-58010 |
ANH2#,ATH20,GGH2#..CBU 右側 |
1 | ||
| 86291-58030 |
GGH25..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,右側 |
1 | ||
| 86291-58010 |
ANH2#,GGH2#..CBU 右側 |
1 | ||
| 86291-58040 |
GGH25..350G,35V;ANH20,ATH20,GGH20..CBU ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),左側 |
1 | ||
| 86291-58020 |
ANH2#,ATH20,GGH2#..CBU 左側 |
1 | ||
| 86291-58040 |
GGH25..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,左側 |
1 | ||
| 86291 - BRACKET, TELEVISION | ||||
| 86291-58020 |
ANH2#,GGH2#..CBU 左側 |
1 | ||
| 86291-58030 |
GGH25..350G,35V;ANH20,ATH20,GGH20..CBU ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),右側 |
1 | ||
| 86291-58010 |
ANH2#,ATH20,GGH2#..CBU 右側 |
1 | ||
| 86291-58030 |
GGH25..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,右側 |
1 | ||
| 86291-58010 |
ANH2#,GGH2#..CBU 右側 |
1 | ||
| 86291-58040 |
GGH25..350G,35V;ANH20,ATH20,GGH20..CBU ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),左側 |
1 | ||
| 86291-58020 |
ANH2#,ATH20,GGH2#..CBU 左側 |
1 | ||
| 86291-58040 |
GGH25..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,左側 |
1 | ||
| 86291 - BRACKET, TELEVISION | ||||
| 86291-58020 |
ANH2#,GGH2#..CBU 左側 |
1 | ||
| 86291-58030 |
GGH25..350G,35V;ANH20,ATH20,GGH20..CBU ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),右側 |
1 | ||
| 86291-58010 |
ANH2#,ATH20,GGH2#..CBU 右側 |
1 | ||
| 86291-58030 |
GGH25..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,右側 |
1 | ||
| 86291-58010 |
ANH2#,GGH2#..CBU 右側 |
1 | ||
| 86291-58040 |
GGH25..350G,35V;ANH20,ATH20,GGH20..CBU ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),左側 |
1 | ||
| 86291-58020 |
ANH2#,ATH20,GGH2#..CBU 左側 |
1 | ||
| 86291-58040 |
GGH25..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,左側 |
1 | ||
| 86295 - BASE, TELEVISION | ||||
| 86295-58030A0 |
ANH25..07S..(240G,240S,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..07S..(240S,350S,35Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,SHELL,TRIM0# |
1 | ||
| 86295-58030A0 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,SHELL,TRIM0# |
1 | ||
| 86680A - DISPLAY ASSY, TELEVISION | ||||
| 86680-58040A0 |
ANH25..07S..(240G,240S,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..07S..(240S,350S,35Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU PANASONIC,ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,SHELL,TRIM0# |
1 | ||
| 86680-58130A0 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU PANASONIC,ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,SHELL,TRIM0# |
1 | ||
| 86790B - CAMERA ASSY, TELEVISION, FR | ||||
| 86790-58100 |
ANH25..07S..(24V,24Z);ANH25..VFIRE..08S..CBU;ANH20,GGH2#..VFIRE..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 86790-58140 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 86790C - CAMERA ASSY, TELEVISION, SIDE | ||||
| 86790-28290 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 86790-58120 |
ANH2#,ATH20,GGH2#..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),右側 |
1 | ||
| 86790-28390 |
ANH2#,ATH20,GGH2#..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),左側 |
1 | ||
| 86790D - CAMERA ASSY, TELEVISION, RR | ||||
| 86790-58110 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 86790-58110 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(音声ｶﾞｲﾄﾞ付き駐車ｱｼｽﾄ) |
1 | ||
| 86790-58111 |
ANH2#,ATH20,GGH2#..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 86790-58111 |
ANH2#,ATH20,GGH2#..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(音声ｶﾞｲﾄﾞ付き駐車ｱｼｽﾄ) |
1 | ||
| 86792C - COMPUTER, PARKING ASSIST | ||||
| 86792-58060 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 86792-58150 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| Common parts | ||||
| 90159-50389 | ||||
| 90159-60303 | ||||
| 90189-05175 | ||||
| 90189-06244 | ||||
| 91511-B0610 | ||||
| 93383-15010 | ||||
| 93568-55014 | ||||

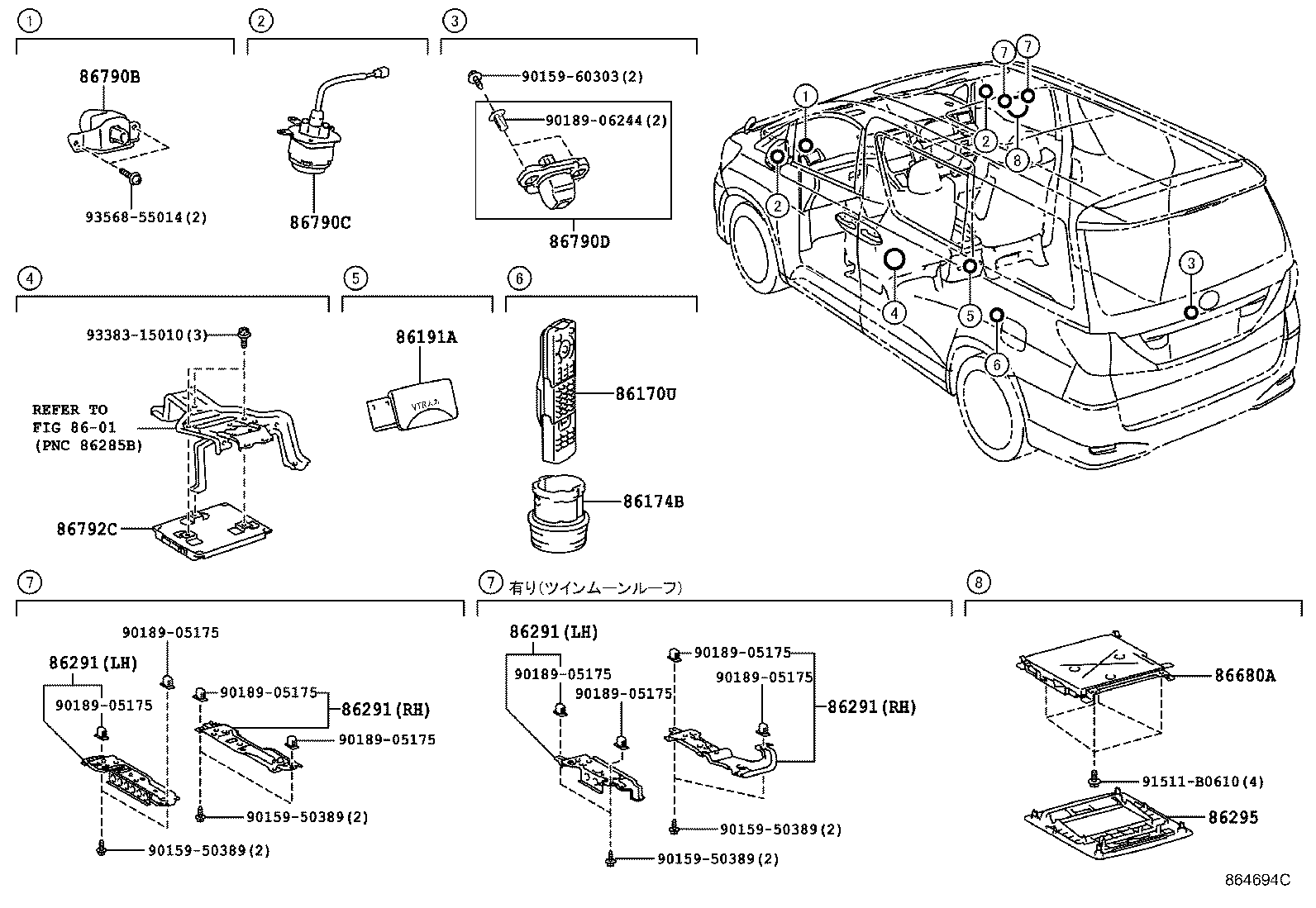

| Linked diagrams | ||||
| 8601 | ||||
