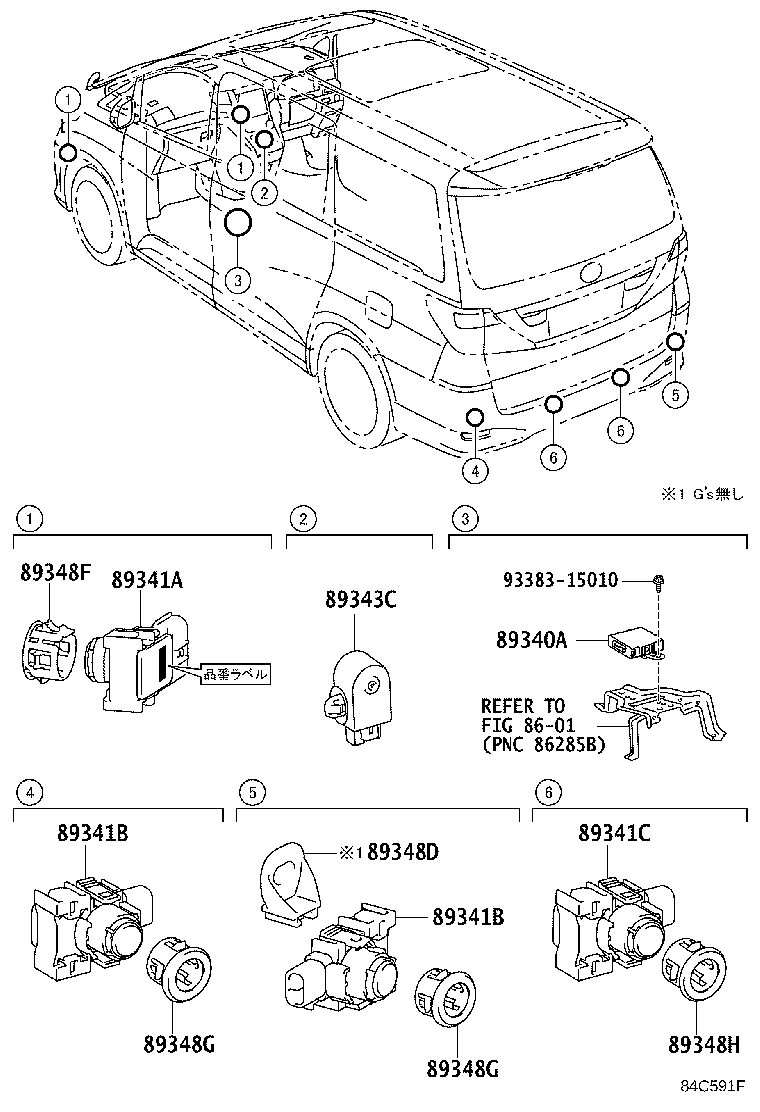

GGH25W-NFTQK (2011)
Toyota Alphard/Vellfire/Hv
(1110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89340A - COMPUTER ASSY, CLEARANCE WARNING | ||||
| 89340-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 89340-58040 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 89341A - SENSOR, ULTRASONIC, NO.1 | ||||
| 89341-58030B2 |
ANH25..07S..(240G,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),LT. GRAY,1F7 ,4T8 |
6 | ||
| 89341-58030B2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU LT. GRAY,1F7 ,4T8 |
6 | ||
| 89341-58030B3 |
ANH25..07S..(24V,24Z);ANH25..VFIRE..08S..CBU;ANH20,GGH2#..VFIRE..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),GRAY,070 |
6 | ||
| 89341-58030C1 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU BLACK,202 ,3R9 |
6 | ||
| 89341-58030B3 |
ANH2#,GGH2#..VFIRE..CBU GRAY,070 |
6 | ||
| 89341-58030C1 |
ANH25..07S..24V;ANH25..08S..(24V,24X)..CBU;ANH20,GGH2#..(24V,24X,35V,35X)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),BLACK,202 ,3R9 |
6 | ||
| 89341-76010A1 |
ANH2#,ATH20,GGH2#..CBU WHITE PEARL CS.,070 |
2 | ||
| 89341-76010C3 |
ANH2#,ATH20,GGH2#..CBU BLACK,202 |
2 | ||
| 89341-76010B4 |
ANH2#,ATH20,GGH2#..(240S,24V,24X,24Z,350S,35V,35Z,HBDSR,HBDZR)..CBU SILVER ME.,1E4 |
2 | ||
| 89341-76010J5 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDSR,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
2 | ||
| 89341-76010B5 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,24Z,350G,35V,35Z,HBDG,HBDV,HBDX,HBDZR)..CBU SILVER ME.,1F7 |
2 | ||
| 89341-76010D2 |
ANH2#,ATH20,GGH2#..VFIRE..CBU DEEP RED M.M.,3R9 |
2 | ||
| 89341B - SENSOR, ULTRASONIC, NO.2 | ||||
| 89341-72010A0 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),WHITE PEARL CS.,070 |
2 | ||
| 89341-72010C1 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),BLACK,202 |
2 | ||
| 89341-72010B3 |
ANH25..07S..(240G,24V,24Z);ANH25..08S..(240G,240X,24V,24X,24Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,24Z,350G,350X,35V,35X,35Z)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),SILVER ME.,1F7 |
2 | ||
| 89341-72010D2 |
ANH25..07S..(24V,24Z);ANH25..VFIRE..08S..CBU;ANH20,GGH2#..VFIRE..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),DEEP RED M.M.,3R9 |
2 | ||
| 89341-72010J0 |
ANH25..08S..240X..CBU;ANH25..(240G,240S,24V,24Z)..CBU;ANH20,GGH2#..(240G,240S,240X,24V,24Z,350G,350S,350X,35V,35Z)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),DK.BLUE MC.,8S6 |
2 | ||
| 89341-72010E0 |
ANH25..07S..(240G,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),BEIGE ME.,4T8 |
2 | ||
| 89341-76010A1 |
ANH2#,ATH20,GGH2#..CBU WHITE PEARL CS.,070 |
2 | ||
| 89341-76010C3 |
ANH2#,ATH20,GGH2#..CBU BLACK,202 |
2 | ||
| 89341-76010B4 |
ANH2#,ATH20,GGH2#..(240S,24V,24X,24Z,350S,35V,35Z,HBDSR,HBDZR)..CBU SILVER ME.,1E4 |
2 | ||
| 89341-76010J5 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDSR,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
2 | ||
| 89341-76010B5 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,24Z,350G,35V,35Z,HBDG,HBDV,HBDX,HBDZR)..CBU SILVER ME.,1F7 |
2 | ||
| 89341-76010D2 |
ANH2#,ATH20,GGH2#..VFIRE..CBU DEEP RED M.M.,3R9 |
2 | ||
| 89341B - SENSOR, ULTRASONIC, NO.2 | ||||
| 89341-72010A0 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),WHITE PEARL CS.,070 |
2 | ||
| 89341-72010C1 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),BLACK,202 |
2 | ||
| 89341-72010B3 |
ANH25..07S..(240G,24V,24Z);ANH25..08S..(240G,240X,24V,24X,24Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,24Z,350G,350X,35V,35X,35Z)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),SILVER ME.,1F7 |
2 | ||
| 89341-72010D2 |
ANH25..07S..(24V,24Z);ANH25..VFIRE..08S..CBU;ANH20,GGH2#..VFIRE..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),DEEP RED M.M.,3R9 |
2 | ||
| 89341-72010J0 |
ANH25..08S..240X..CBU;ANH25..(240G,240S,24V,24Z)..CBU;ANH20,GGH2#..(240G,240S,240X,24V,24Z,350G,350S,350X,35V,35Z)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),DK.BLUE MC.,8S6 |
2 | ||
| 89341-72010E0 |
ANH25..07S..(240G,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),BEIGE ME.,4T8 |
2 | ||
| 89341-76010A1 |
ANH2#,ATH20,GGH2#..CBU WHITE PEARL CS.,070 |
2 | ||
| 89341-76010C3 |
ANH2#,ATH20,GGH2#..CBU BLACK,202 |
2 | ||
| 89341-76010B4 |
ANH2#,ATH20,GGH2#..(240S,24V,24X,24Z,350S,35V,35Z,HBDSR,HBDZR)..CBU SILVER ME.,1E4 |
2 | ||
| 89341-76010J5 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDSR,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
2 | ||
| 89341-76010B5 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,24Z,350G,35V,35Z,HBDG,HBDV,HBDX,HBDZR)..CBU SILVER ME.,1F7 |
2 | ||
| 89341-76010D2 |
ANH2#,ATH20,GGH2#..VFIRE..CBU DEEP RED M.M.,3R9 |
2 | ||
| 89341C - SENSOR, ULTRASONIC, NO.3 | ||||
| 89341-76010B4 |
ANH2#,ATH20,GGH2#..(240S,24V,24X,24Z,350S,35V,35Z,HBDSR,HBDZR)..CBU SILVER ME.,1E4 |
2 | ||
| 89341-76010C3 |
ANH2#,ATH20,GGH2#..CBU BLACK,202 |
2 | ||
| 89341-76010A1 |
ANH2#,ATH20,GGH2#..CBU WHITE PEARL CS.,070 |
2 | ||
| 89341-76010D2 |
ANH2#,ATH20,GGH2#..VFIRE..CBU DEEP RED M.M.,3R9 |
2 | ||
| 89341-76010B5 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,24Z,350G,35V,35Z,HBDG,HBDV,HBDX,HBDZR)..CBU SILVER ME.,1F7 |
2 | ||
| 89341-76010J5 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDSR,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
2 | ||
| 89343C - BUZZER, CLEARANCE WARNING, NO.1 | ||||
| 89343-72010 |
ANH2#,GGH2#..CBU |
1 | ||
| 89343-72010 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 89348D - CLIP, ULTRASONIC SENSOR | ||||
| 89348-35030 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 89348F - BEZEL, ULTRASONIC SENSOR, NO.1 | ||||
| 89348-33010A3 |
ANH2#,GGH2#..(240G,240X,24V,24X,24Z,350G,350X,35V,35X,35Z)..CBU WHITE PEARL CS.,070 |
2 | ||
| 89348-33010B2 |
ANH2#,GGH2#..(240G,240X,24V,24X,24Z,350G,350X,35V,35X,35Z)..CBU SILVER ME.,1F7 |
2 | ||
| 89348-33010A3 |
ANH25..07S..(240G,24V,24Z);ANH25..08S..(240G,240X,24V,24X,24Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,24Z,350G,350X,35V,35X,35Z)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),WHITE PEARL CS.,070 |
2 | ||
| 89348-33010C0 |
ANH2#,GGH2#..(240G,240X,24V,24X,24Z,350G,350X,35V,35X,35Z)..CBU BLACK,202 |
2 | ||
| 89348-33010C0 |
ANH25..07S..(240G,24V,24Z);ANH25..08S..(240G,240X,24V,24X,24Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,24Z,350G,350X,35V,35X,35Z)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),BLACK,202 |
2 | ||
| 89348-33010E2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU BEIGE ME.,4T8 |
2 | ||
| 89348-33010D4 |
ANH2#,GGH2#..VFIRE..CBU DEEP RED M.M.,3R9 |
2 | ||
| 89348-33010B2 |
ANH25..07S..(240G,24V,24Z);ANH25..08S..(240G,240X,24V,24X,24Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,24Z,350G,350X,35V,35X,35Z)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),SILVER ME.,1F7 |
2 | ||
| 89348-33010E2 |
ANH25..07S..(240G,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),BEIGE ME.,4T8 |
2 | ||
| 89348-33010D4 |
ANH25..07S..(24V,24Z);ANH25..VFIRE..08S..CBU;ANH20,GGH2#..VFIRE..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),DEEP RED M.M.,3R9 |
2 | ||
| 89348-33010J3 |
ANH2#,GGH2#..(240G,240X,24V,24Z,350G,350X,35V,35Z)..CBU DK.BLUE MC.,8S6 |
2 | ||
| 89348-33010J3 |
ANH25..08S..240X..CBU;ANH25..(240G,24V,24Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24Z,350G,350X,35V,35Z)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),DK.BLUE MC.,8S6 |
2 | ||
| 89348-64030D1 |
ANH2#,ATH20,GGH2#..VFIRE..CBU DEEP RED M.M.,3R9 |
2 | ||
| 89348-64030A0 |
ANH2#,ATH20,GGH2#..CBU WHITE PEARL CS.,070 |
2 | ||
| 89348-64030B2 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,24Z,350G,35V,35Z,HBDG,HBDV,HBDX,HBDZR)..CBU SILVER ME.,1F7 |
2 | ||
| 89348-64030C0 |
ANH2#,ATH20,GGH2#..CBU BLACK,202 |
2 | ||
| 89348-64030J4 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDSR,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
2 | ||
| 89348-64030B4 |
ANH2#,ATH20,GGH2#..(240S,24V,24X,24Z,350S,35V,35Z,HBDSR,HBDZR)..CBU SILVER ME.,1E4 |
2 | ||
| 89348G - BEZEL, ULTRASONIC SENSOR, NO.2 | ||||
| 89348-33010A3 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),WHITE PEARL CS.,070 |
2 | ||
| 89348-33010A3 |
ANH2#,GGH2#..CBU WHITE PEARL CS.,070 |
2 | ||
| 89348-33010E2 |
ANH25..07S..(240G,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),BEIGE ME.,4T8 |
2 | ||
| 89348-33010C0 |
ANH2#,GGH2#..CBU BLACK,202 |
2 | ||
| 89348-33010D4 |
ANH25..07S..(24V,24Z);ANH25..VFIRE..08S..CBU;ANH20,GGH2#..VFIRE..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),DEEP RED M.M.,3R9 |
2 | ||
| 89348-33010D4 |
ANH2#,GGH2#..VFIRE..CBU DEEP RED M.M.,3R9 |
2 | ||
| 89348-33010B2 |
ANH25..07S..(240G,24V,24Z);ANH25..08S..(240G,240X,24V,24X,24Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,24Z,350G,350X,35V,35X,35Z)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),SILVER ME.,1F7 |
2 | ||
| 89348-33010B2 |
ANH2#,GGH2#..(240G,240X,24V,24X,24Z,350G,350X,35V,35X,35Z)..CBU SILVER ME.,1F7 |
2 | ||
| 89348-33010J3 |
ANH25..08S..240X..CBU;ANH25..(240G,240S,24V,24Z)..CBU;ANH20,GGH2#..(240G,240S,240X,24V,24Z,350G,350S,350X,35V,35Z)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),DK.BLUE MC.,8S6 |
2 | ||
| 89348-33010J3 |
ANH2#,GGH2#..(240G,240S,240X,24V,24Z,350G,350S,350X,35V,35Z)..CBU DK.BLUE MC.,8S6 |
2 | ||
| 89348-33010E2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU BEIGE ME.,4T8 |
2 | ||
| 89348-30030B4 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SILVER ME.,1F7 |
2 | ||
| 89348-30030A1 |
ANH2#,ATH20,GGH2#..CBU WHITE PEARL CS.,070 |
2 | ||
| 89348-30030D3 |
ANH2#,ATH20,GGH2#..VFIRE..CBU DEEP RED M.M.,3R9 |
2 | ||
| 89348-33010C0 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),BLACK,202 |
2 | ||
| 89348-30030C3 |
ANH2#,ATH20,GGH2#..CBU BLACK,202 |
2 | ||
| 89348-30030J8 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
2 | ||
| 89348G - BEZEL, ULTRASONIC SENSOR, NO.2 | ||||
| 89348-33010A3 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),WHITE PEARL CS.,070 |
2 | ||
| 89348-33010A3 |
ANH2#,GGH2#..CBU WHITE PEARL CS.,070 |
2 | ||
| 89348-33010E2 |
ANH25..07S..(240G,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),BEIGE ME.,4T8 |
2 | ||
| 89348-33010C0 |
ANH2#,GGH2#..CBU BLACK,202 |
2 | ||
| 89348-33010D4 |
ANH25..07S..(24V,24Z);ANH25..VFIRE..08S..CBU;ANH20,GGH2#..VFIRE..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),DEEP RED M.M.,3R9 |
2 | ||
| 89348-33010D4 |
ANH2#,GGH2#..VFIRE..CBU DEEP RED M.M.,3R9 |
2 | ||
| 89348-33010B2 |
ANH25..07S..(240G,24V,24Z);ANH25..08S..(240G,240X,24V,24X,24Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,24Z,350G,350X,35V,35X,35Z)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),SILVER ME.,1F7 |
2 | ||
| 89348-33010B2 |
ANH2#,GGH2#..(240G,240X,24V,24X,24Z,350G,350X,35V,35X,35Z)..CBU SILVER ME.,1F7 |
2 | ||
| 89348-33010J3 |
ANH25..08S..240X..CBU;ANH25..(240G,240S,24V,24Z)..CBU;ANH20,GGH2#..(240G,240S,240X,24V,24Z,350G,350S,350X,35V,35Z)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),DK.BLUE MC.,8S6 |
2 | ||
| 89348-33010J3 |
ANH2#,GGH2#..(240G,240S,240X,24V,24Z,350G,350S,350X,35V,35Z)..CBU DK.BLUE MC.,8S6 |
2 | ||
| 89348-33010E2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU BEIGE ME.,4T8 |
2 | ||
| 89348-30030B4 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SILVER ME.,1F7 |
2 | ||
| 89348-30030A1 |
ANH2#,ATH20,GGH2#..CBU WHITE PEARL CS.,070 |
2 | ||
| 89348-30030D3 |
ANH2#,ATH20,GGH2#..VFIRE..CBU DEEP RED M.M.,3R9 |
2 | ||
| 89348-33010C0 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),BLACK,202 |
2 | ||
| 89348-30030C3 |
ANH2#,ATH20,GGH2#..CBU BLACK,202 |
2 | ||
| 89348-30030J8 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
2 | ||
| 89348H - BEZEL, ULTRASONIC SENSOR, NO.3 | ||||
| 89348-58020E0 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU BEIGE ME.,4T8 |
2 | ||
| 89348-58020C0 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),BLACK,202 |
2 | ||
| 89348-58020B1 |
ANH25..07S..(240G,24V,24Z);ANH25..08S..(240G,240X,24V,24X,24Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,24Z,350G,350X,35V,35X,35Z)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),SILVER ME.,1F7 |
2 | ||
| 89348-58020A0 |
ANH2#,GGH2#..CBU WHITE PEARL CS.,070 |
2 | ||
| 89348-58020B1 |
ANH2#,GGH2#..(240G,240X,24V,24X,24Z,350G,350X,35V,35X,35Z)..CBU SILVER ME.,1F7 |
2 | ||
| 89348-58020C0 |
ANH2#,GGH2#..CBU BLACK,202 |
2 | ||
| 89348-58020E0 |
ANH25..07S..(240G,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),BEIGE ME.,4T8 |
2 | ||
| 89348-58020J0 |
ANH2#,GGH2#..(240G,240S,240X,24V,24Z,350G,350S,350X,35V,35Z)..CBU DK.BLUE MC.,8S6 |
2 | ||
| 89348-58020D0 |
ANH25..07S..(24V,24Z);ANH25..VFIRE..08S..CBU;ANH20,GGH2#..VFIRE..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),DEEP RED M.M.,3R9 |
2 | ||
| 89348-58020D0 |
ANH2#,GGH2#..VFIRE..CBU DEEP RED M.M.,3R9 |
2 | ||
| 89348-58020J0 |
ANH25..08S..240X..CBU;ANH25..(240G,240S,24V,24Z)..CBU;ANH20,GGH2#..(240G,240S,240X,24V,24Z,350G,350S,350X,35V,35Z)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),DK.BLUE MC.,8S6 |
2 | ||
| 89348-58020A0 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),WHITE PEARL CS.,070 |
2 | ||
| 89348-64030A0 |
ANH2#,ATH20,GGH2#..CBU WHITE PEARL CS.,070 |
2 | ||
| 89348-64030B4 |
ANH2#,ATH20,GGH2#..(240S,24V,24X,24Z,350S,35V,35Z,HBDSR,HBDZR)..CBU SILVER ME.,1E4 |
2 | ||
| 89348-64030J4 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDSR,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
2 | ||
| 89348-64030D1 |
ANH2#,ATH20,GGH2#..VFIRE..CBU DEEP RED M.M.,3R9 |
2 | ||
| 89348-64030B2 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,24Z,350G,35V,35Z,HBDG,HBDV,HBDX,HBDZR)..CBU SILVER ME.,1F7 |
2 | ||
| 89348-64030C0 |
ANH2#,ATH20,GGH2#..CBU BLACK,202 |
2 | ||
| Common parts | ||||
| 93383-15010 | ||||
| Linked diagrams | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
