GGH25W-NFTQK (2011)
Toyota Alphard/Vellfire/Hv

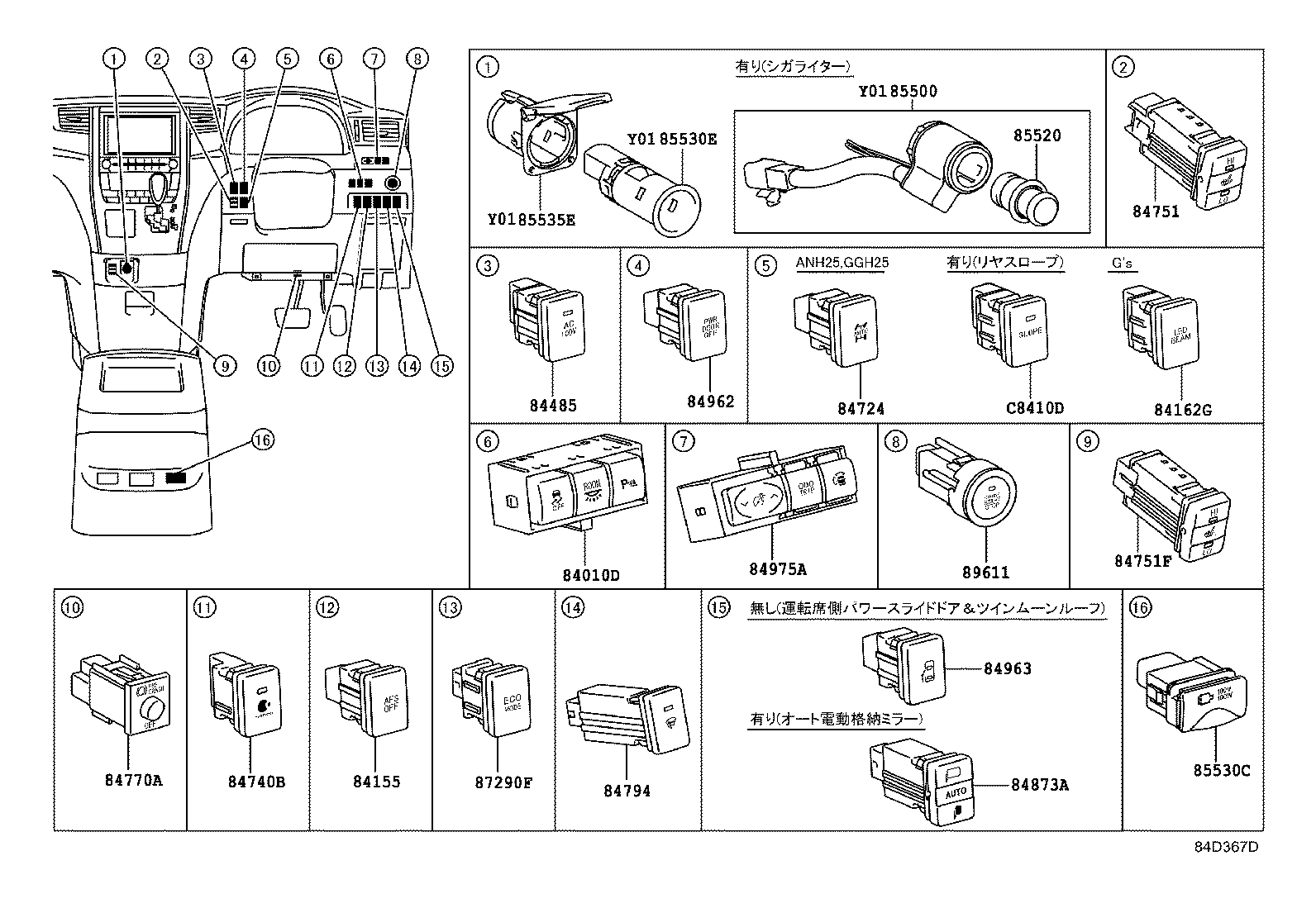

ILLUST NO. 5 OF 8(1110- )ANH2#,GGH2#
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-58090 |
ANH2#,GGH2#..CBU |
1 | ||
| 84010-58230 |
ANH2#,GGH2#..CBU |
1 | ||
| 84155 - SWITCH, HEADLAMP SWIVEL MAIN | ||||
| 84155-33021 |
ATH20,GGH2#..(350G,350S,35V,35Z,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 84155-33020 |
ATH20,GGH2#..(350G,350S,35V,35Z,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 84155-28010 |
GGH2#..CBU |
1 | ||
| 84485 - SWITCH, POWER OUTLET(AC100V ACCESSORY SOCKET) | ||||
| 84485-60020 |
ANH2#,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 84485-28020 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 84485-28020 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 84485-60020 |
ANH2#,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-28060 |
ANH25,GGH25..CBU |
1 | ||
| 84724-28061 |
ANH25,GGH25..CBU |
1 | ||
| 84724-28060 |
ANH25,GGH25..CBU |
1 | ||
| 84740B - SWITCH ASSY, AIR PURIFIER | ||||
| 84741-52010 |
ANH2#,ATH20,GGH2#..(240G,240S,24V,24Z,350G,350S,35V,35Z,HBDG,HBDSR,HBDV,HBDX,HBDZR)..CBU |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-58030 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 84751-58030 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 84751-58030 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-58040 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 84751-58050 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 84751-58050 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | ||||
| 84770-48010 |
GGH2#..(350G,35V)..CBU;GGH2#..07S..(350S,35Z)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 84770-48010 |
ATH20,GGH2#..07S..(350G,350S,35V,35Z,HBDG,HBDSR,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-52010 |
ANH2#,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 84794-52010 |
ANH2#,ATH20,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-58020 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 84873-58020 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ(ﾌﾞﾗｯｸﾏｲｶ) |
1 | ||
| 84873-58020 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 84962 - SWITCH, POWER SLIDE DOOR MAIN | ||||
| 84962-28010 |
ANH2#,GGH2#..CBU |
1 | ||
| 84962-28010 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 84962-28011 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 84975A - TRIP & RHEOSTAT SWITCH ASSY | ||||
| 84975-58011 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 84975-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 84975-58030 |
ANH2#,ATH20,GGH2#..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 84975-58020 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-58010 |
ANH2#,GGH2#..CBU ｼｶﾞﾚｯﾄﾗｲﾀｰ−ﾌﾛﾝﾄ1個(照明付き) |
1 | ||
| 85500-58010 |
ANH2#,GGH2#..CBU ｼｶﾞﾚｯﾄﾗｲﾀｰ−ﾌﾛﾝﾄ1個(照明付き) |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ANH2#,GGH2#..CBU ｼｶﾞﾚｯﾄﾗｲﾀｰ−ﾌﾛﾝﾄ1個(照明付き) |
1 | ||
| 85520-28010 |
ANH2#,GGH2#..CBU ｼｶﾞﾚｯﾄﾗｲﾀｰ−ﾌﾛﾝﾄ1個(照明付き) |
1 | ||
| 85530C - SOCKET ASSY, POWER OUTLET, CENTER | ||||
| 85530-58020A0 |
ANH25..07S..(240G,240S,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..07S..(240S,350S,35Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,SHELL,TRIM0# |
2 | ||
| 85530-58020C0 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,35V)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,BLACK,TRIM0# |
1 | ||
| 85530-58020A0 |
ANH25..07S..(240G,240S,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..07S..(240S,350S,35Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,SHELL,TRIM0# |
2 | ||
| 85530-58020C0 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,35V)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,BLACK,TRIM0# |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-42010 |
ANH2#,GGH2#..CBU |
1 | ||
| 85530-42010 |
ANH2#,GGH2#..CBU |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-50020 |
ANH2#,GGH2#..CBU |
1 | ||
| 85535-50020 |
ANH2#,GGH2#..CBU |
1 | ||
| 87290F - SWITCH ASSY, ECO | ||||
| 87290-33060 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 87290-33061 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52011 |
ANH2#,GGH2#..CBU |
1 | ||
| 89611-52014 |
ANH2#,GGH2#..CBU |
1 | ||
| 89611-52013 |
ANH2#,GGH2#..CBU |
1 | ||
