GGH25W-NFTQK (2011)
Toyota Alphard/Vellfire/Hv

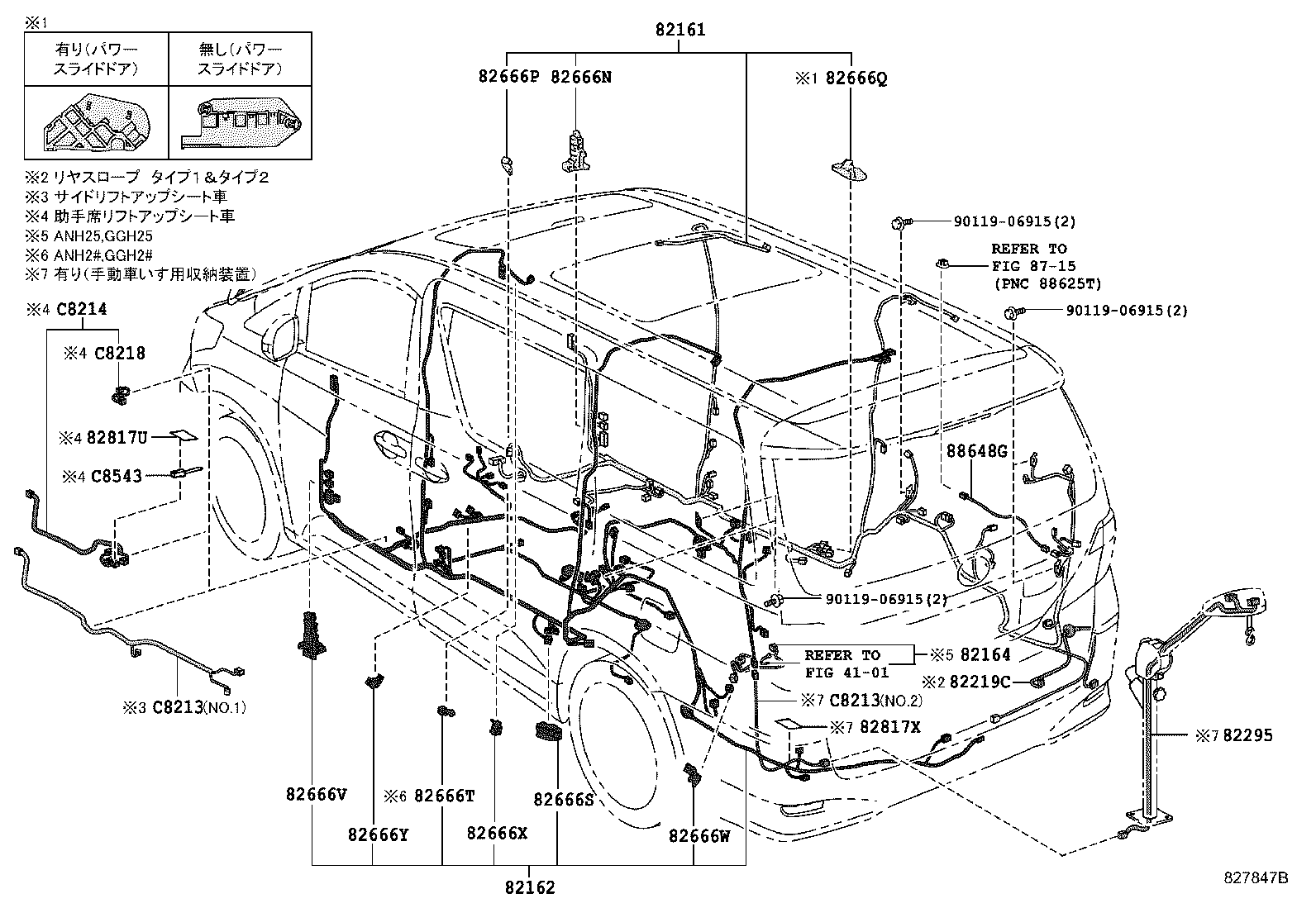

ILLUST NO. 6 OF17(1110- )
ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-58220 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 82161-58230 |
GGH25..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 82161-58221 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 82161-58231 |
ANH20,GGH2#..(240G,24V,350G,35V)..CBU ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 82161-58231 |
ANH20,GGH2#..(240G,24V,350G,35V)..CBU ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82161-58231 |
ANH20,GGH2#..(240G,24V,350G,35V)..CBU ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82161-58232 |
ANH20,GGH2#..(240G,24V,350G,35V)..CBU ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 82161-58222 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82161-58232 |
ANH20,GGH2#..(240G,24V,350G,35V)..CBU ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82161-58262 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 82161-58232 |
ANH20,GGH2#..(240G,24V,350G,35V)..CBU ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82161-58222 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-58310 |
GGH2#..07S..(350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58310 |
GGH2#..07S..(350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ& DVD 5.1CH |
1 | ||
| 82162-58310 |
GGH2#..07S..(350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 82162-58310 |
GGH2#..07S..(350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58310 |
GGH2#..07S..(350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ) |
1 | ||
| 82162-58310 |
GGH2#..07S..(350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ) |
1 | ||
| 82162-58310 |
GGH2#..07S..(350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ)&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58310 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58310 |
GGH2#..07S..(350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58310 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58310 |
GGH2#..07S..(350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ)&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ& DVD 5.1CH |
1 | ||
| 82162-58320 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD5.1CH |
1 | ||
| 82162-58320 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 82162-58320 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD5.1CH |
1 | ||
| 82162-58350 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 82162-58313 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 82162-58322 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58322 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58322 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58322 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58322 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82162-58431 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82162-58314 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 82162-58432 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82162-58323 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58323 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82162-58323 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58323 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82162-58323 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58323 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58323 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58323 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58314 |
ANH2#,GGH2#..07S..(240G,24V,350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58314 |
ANH2#,GGH2#..07S..(240G,24V,350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 82162-58314 |
GGH2#..(350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58314 |
ANH2#,GGH2#..07S..(240G,24V,350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58314 |
GGH2#..(350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ) |
1 | ||
| 82162-58314 |
GGH2#..(350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ)&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ& DVD 5.1CH |
1 | ||
| 82162-58314 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58314 |
GGH2#..(350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ)&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58314 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58314 |
GGH2#..(350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ) |
1 | ||
| 82162-58314 |
GGH2#..(350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ& DVD 5.1CH |
1 | ||
| 82162-58323 |
ANH2#,GGH2#..07S..(240G,24V,350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58323 |
GGH2#..(350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58433 |
GGH2#..(350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82162-58323 |
GGH2#..(350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58323 |
ANH2#,GGH2#..07S..(240G,24V,350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58323 |
GGH2#..(350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58323 |
GGH2#..(350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58490 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 82162-58433 |
ANH2#,GGH2#..07S..(240G,24V,350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82162-58433 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82162-58310 |
GGH2#..07S..(350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ);ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)父Iｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH;ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH;ｻｲﾄﾞ潟tﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ);ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ)&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH;ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱ﾀｲﾌﾟ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH;ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ);ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ)&Iｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH;ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58310 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH;ｵｰﾃﾞｨｵ−AVN 18Xﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58433 |
GGH2#..(350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82162-58350 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 82162-58320 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ;Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ|AVN 11ｽﾋﾟｰｶ & DVD 5.1CH;Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58313 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 82162-58322 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH;有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞBｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58431 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82162-58322 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ);“L EDITION”*(L) or “LﾊﾟｯｹｰW”*(L)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN@11ｽﾋﾟｰｶ & DVD 5.1CH;“L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58314 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 82162-58432 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82162-58323 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ);“L EDITION”*(L) or “LﾊﾟｯｹｰW”*(L)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN@11ｽﾋﾟｰｶ & DVD 5.1CH;“L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH;“PREMIUM SEAT PACK`GE/EDITION”*(P)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ);“PREMIUM SEAT PACKAGE/EDITION”*(P)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH;“PREMIUM SEAT PACKAGE/EDITION”*(P)風Lり(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰJ & DVD 5.1CH |
1 | ||
| 82162-58323 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH;有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞBｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58433 |
GGH2#..(350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ);ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞhｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82162-58323 |
ANH2#,GGH2#..07S..(240G,24V,350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH;ｻｲﾄﾞﾘﾌﾄｱbﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰfｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58314 |
GGH2#..(350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ);ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ)父Iｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH;ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH;ｻｲﾄﾞ潟tﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ);ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ)&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH;ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟVｰﾄ車(脱着､自操ﾀｲﾌﾟ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1bH |
1 | ||
| 82162-58314 |
ANH2#,GGH2#..07S..(240G,24V,350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ);ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)父Iｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH;ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58314 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH;ｵｰﾃﾞｨｵ−AVN 18Xﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58433 |
ANH2#,GGH2#..07S..(240G,24V,350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82162-58490 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 82162-58323 |
GGH2#..(350G,35V)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH;ｻｲﾄﾞﾘﾌﾄｱbﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰfｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH;ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH;ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操^ｲﾌﾟ)&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN 1Wｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82162-58433 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-58060 |
ANH25,GGH25..CBU |
1 | ||
| 82164-58060 |
ANH25,GGH25..CBU |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-58160 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 82666-58160 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-58190 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 82666-58190 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-28380 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 82666-28380 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-28330 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 82666-28330 |
ANH2#,GGH2#..CBU |
1 | ||
| 82666T - HOLDER, CONNECTOR NO.14 | ||||
| 82666-28340 |
ANH2#,GGH2#..CBU |
1 | ||
| 82666-28340 |
ANH2#,GGH2#..CBU |
1 | ||
| 82666V - HOLDER, CONNECTOR NO.15 | ||||
| 82666-58270 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 82666-58170 |
ANH2#,GGH2#..CBU |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-58180 |
ANH2#,GGH2#..CBU |
1 | ||
| 82666-58180 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 82666X - HOLDER, CONNECTOR NO.17 | ||||
| 82666-58200 |
ANH2#,GGH2#..CBU |
1 | ||
| 82666-58200 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 82666Y - HOLDER, CONNECTOR NO.18 | ||||
| 82666-58210 |
ANH2#,GGH2#..CBU |
1 | ||
| 88648G - WIRE, AIR CONDITIONER | ||||
| 88648-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 88648-58020 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| C8213 - WIRE, POWER LIFT MOTOR TO BODY | ||||
| C8213-58030 |
GGH2#..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ),NO.1 |
1 | ||
| C8213-58030 |
ANH2#,ATH20,GGH2#..07S..(240G,240S,24V,24Z,350G,35V,HBDSR,HBDX,HBDZR)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),NO.1 |
1 | ||
| C8213-58030 |
ANH2#,ATH20,GGH2#..07S..(240S,24Z,350G,35V,HBDSR,HBDX,HBDZR)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ),NO.1 |
1 | ||
| C8213-58030 |
ANH2#,ATH20,GGH2#..07S..(240S,24Z,350G,35V,HBDSR,HBDX,HBDZR)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),NO.1 |
1 | ||
| C8213-58030 |
GGH2#..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),NO.1 |
1 | ||
| C8213-58030 |
GGH2#..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),NO.1 |
1 | ||
| C8213 - WIRE, POWER LIFT MOTOR TO BODY | ||||
| C8213-58030 |
GGH2#..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ),NO.1 |
1 | ||
| C8213-58030 |
ANH2#,ATH20,GGH2#..07S..(240G,240S,24V,24Z,350G,35V,HBDSR,HBDX,HBDZR)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),NO.1 |
1 | ||
| C8213-58030 |
ANH2#,ATH20,GGH2#..07S..(240S,24Z,350G,35V,HBDSR,HBDX,HBDZR)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ),NO.1 |
1 | ||
| C8213-58030 |
ANH2#,ATH20,GGH2#..07S..(240S,24Z,350G,35V,HBDSR,HBDX,HBDZR)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),NO.1 |
1 | ||
| C8213-58030 |
GGH2#..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),NO.1 |
1 | ||
| C8213-58030 |
GGH2#..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),NO.1 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 4101 | ||||
| 8715 | ||||

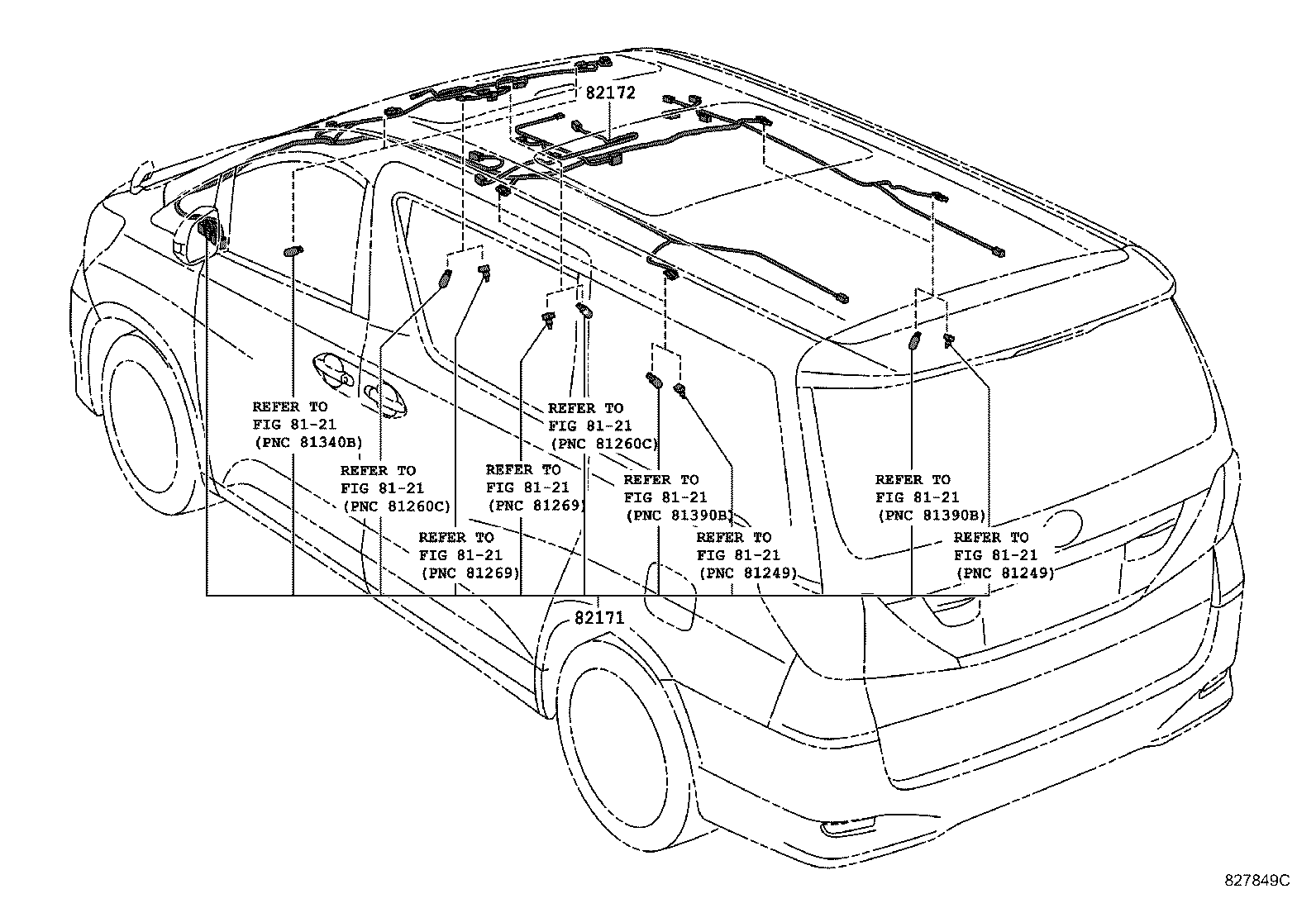

ILLUST NO. 8 OF17(1110- )
ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-58100 |
GGH2#..(350G,35V)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82171-58110 |
GGH2#..(350G,35V)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82171-58150 |
GGH25..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD5.1CH |
1 | ||
| 82171-58080 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 82171-58090 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82171-58140 |
GGH25..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 82171-58160 |
GGH25..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82171-58170 |
GGH25..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82171-58081 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 82171-58111 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82171-58101 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82171-58141 |
ANH20,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 82171-58091 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82171-58151 |
ANH20,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82171-58161 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 82171-58171 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82171-58082 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 82171-58092 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82171-58102 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82171-58152 |
ANH20,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82171-58112 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82171-58142 |
ANH20,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 82171-58172 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82171-58100 |
GGH2#..(350G,35V)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82171-58080 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 82171-58162 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 82171-58110 |
GGH2#..(350G,35V)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82171-58090 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82171-58150 |
GGH25..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD5.1CH |
1 | ||
| 82171-58160 |
GGH25..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82171-58140 |
GGH25..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 82171-58170 |
GGH25..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82171-58091 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82171-58111 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82171-58081 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 82171-58101 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82171-58151 |
ANH20,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82171-58141 |
ANH20,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 82171-58092 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82171-58082 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 82171-58171 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82171-58112 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82171-58161 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 82171-58102 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82171-58172 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82171-58152 |
ANH20,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82171-58142 |
ANH20,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 82171-58162 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-58021 |
ANH20,ATH20,GGH20..CBU;GGH25..(350G,35V)..CBU ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 82172-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 82172-58020 |
GGH25..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 82172-58030 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82172-58020 |
ANH20,ATH20,GGH20..CBU;GGH25..(350G,35V)..CBU ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 82172-58031 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82172-58010 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 82172-58011 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 82172-58032 |
ANH2#,ATH20,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82172-58041 |
ANH20,ATH20,GGH20..CBU;GGH25..(350G,35V)..CBU ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82172-58042 |
ANH20,ATH20,GGH20..CBU;GGH25..(350G,35V)..CBU ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82172-58040 |
GGH25..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD5.1CH |
1 | ||
| Linked diagrams | ||||
| 8121 | ||||

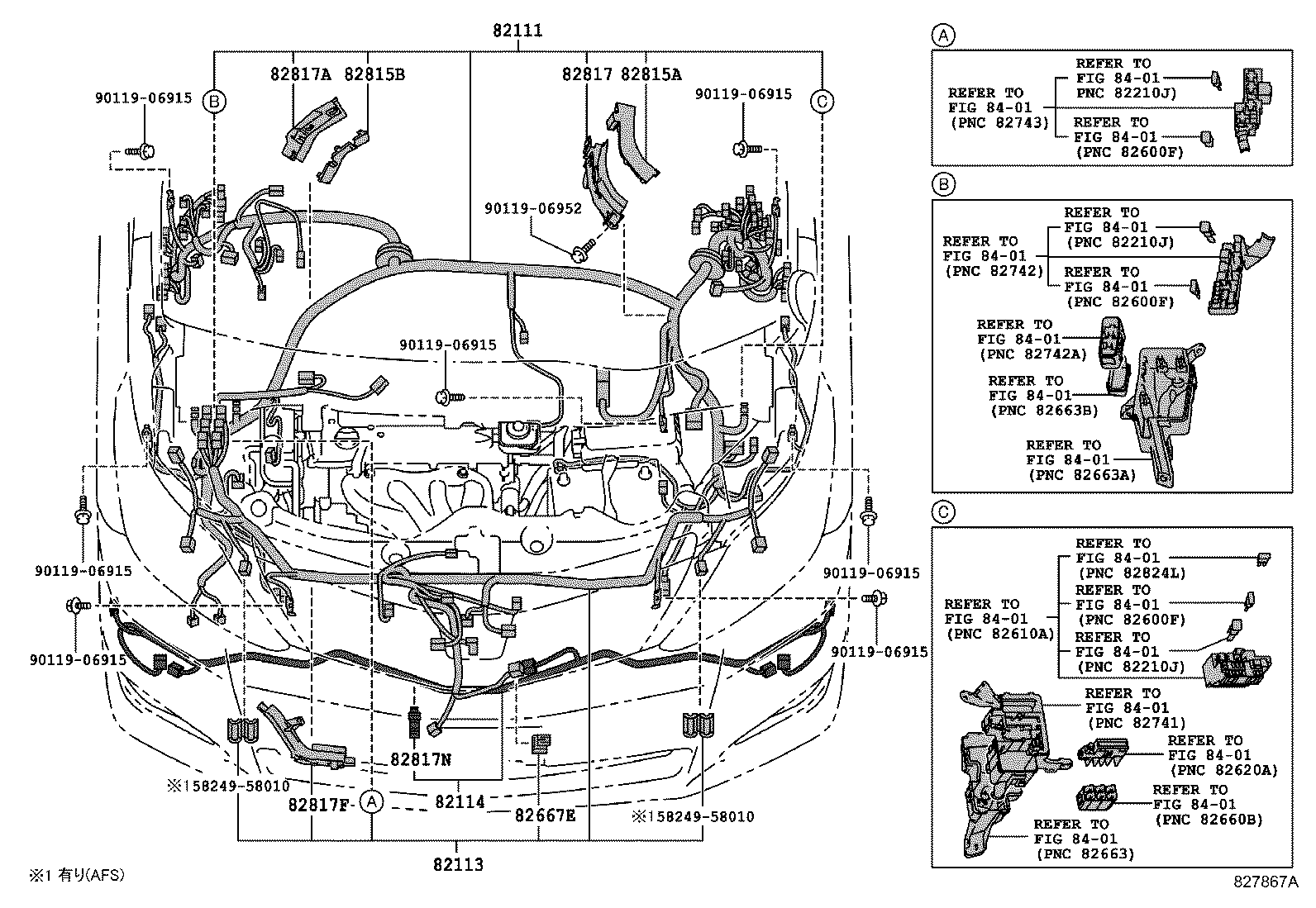

ILLUST NO. 1 OF17(1110- )ANH2#,GGH2#
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-58250 |
GGH25..CBU |
1 | ||
| 82111-58260 |
GGH2#..(350G,35V)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82111-58270 |
GGH25..CBU 寒冷地仕様 |
1 | ||
| 82111-58261 |
GGH2#..(350G,35V)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82111-58280 |
GGH2#..(350G,35V)..CBU 寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82111-58271 |
GGH25..CBU 寒冷地仕様 |
1 | ||
| 82111-58251 |
GGH25..CBU |
1 | ||
| 82111-58281 |
GGH2#..(350G,35V)..CBU 寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82111-58262 |
GGH2#..(350G,35V)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82111-58272 |
GGH25..CBU 寒冷地仕様 |
1 | ||
| 82111-58252 |
GGH25..CBU |
1 | ||
| 82111-58282 |
GGH2#..(350G,35V)..CBU 寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82111-58250 |
GGH25..CBU |
1 | ||
| 82111-58270 |
GGH25..CBU 寒冷地仕様 |
1 | ||
| 82111-58280 |
GGH2#..(350G,35V)..CBU 寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82111-58260 |
GGH2#..(350G,35V)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82111-58251 |
GGH25..CBU |
1 | ||
| 82111-58261 |
GGH2#..(350G,35V)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82111-58271 |
GGH25..CBU 寒冷地仕様 |
1 | ||
| 82111-58281 |
GGH2#..(350G,35V)..CBU 寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82111-58282 |
GGH2#..(350G,35V)..CBU 寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82111-58252 |
GGH25..CBU |
1 | ||
| 82111-58272 |
GGH25..CBU 寒冷地仕様 |
1 | ||
| 82111-58262 |
GGH2#..(350G,35V)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-58110 |
GGH2#..(350G,35V)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82113-58080 |
GGH2#..(350G,35V)..CBU |
1 | ||
| 82113-58100 |
GGH2#..(350G,35V)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82113-58090 |
GGH2#..(350G,35V)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82113-58071 |
GGH2#..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82113-58270 |
GGH2#..(350G,35V)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82113-58280 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82113-58270 |
GGH2#..(350G,35V)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82113-58360 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82113-58360 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 82113-58280 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82113-58061 |
GGH2#..CBU |
1 | ||
| 82113-58280 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82113-58280 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82113-58072 |
GGH2#..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82113-58360 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 82113-58360 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-58160 |
ANH2#,GGH2#..VFIRE..CBU |
1 | ||
| 82114-58170 |
ANH25..07S..(24V,24Z);ANH25..VFIRE..08S..CBU;ANH20,GGH2#..VFIRE..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82114-58161 |
ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU |
1 | ||
| 82667E - HOLDER, CONNECTOR, NO.20 | ||||
| 82666-58220 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-28680 |
ANH2#,GGH2#..CBU |
1 | ||
| 82815-28680 |
ANH2#,GGH2#..CBU |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-28B20 |
ANH2#,GGH2#..CBU |
1 | ||
| 82815-28B20 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-28D40 |
ANH2#,GGH2#..CBU |
1 | ||
| 82817-28D40 |
ANH2#,GGH2#..CBU |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-28G20 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 82817-28G20 |
ANH2#,GGH2#..CBU |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-58460 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 82817-58460 |
ANH2#,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 58249-58010 | ||||
| 90119-06915 | ||||
| 90119-06952 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
