GGH25W-NFTQK (2011)
Toyota Alphard/Vellfire/Hv

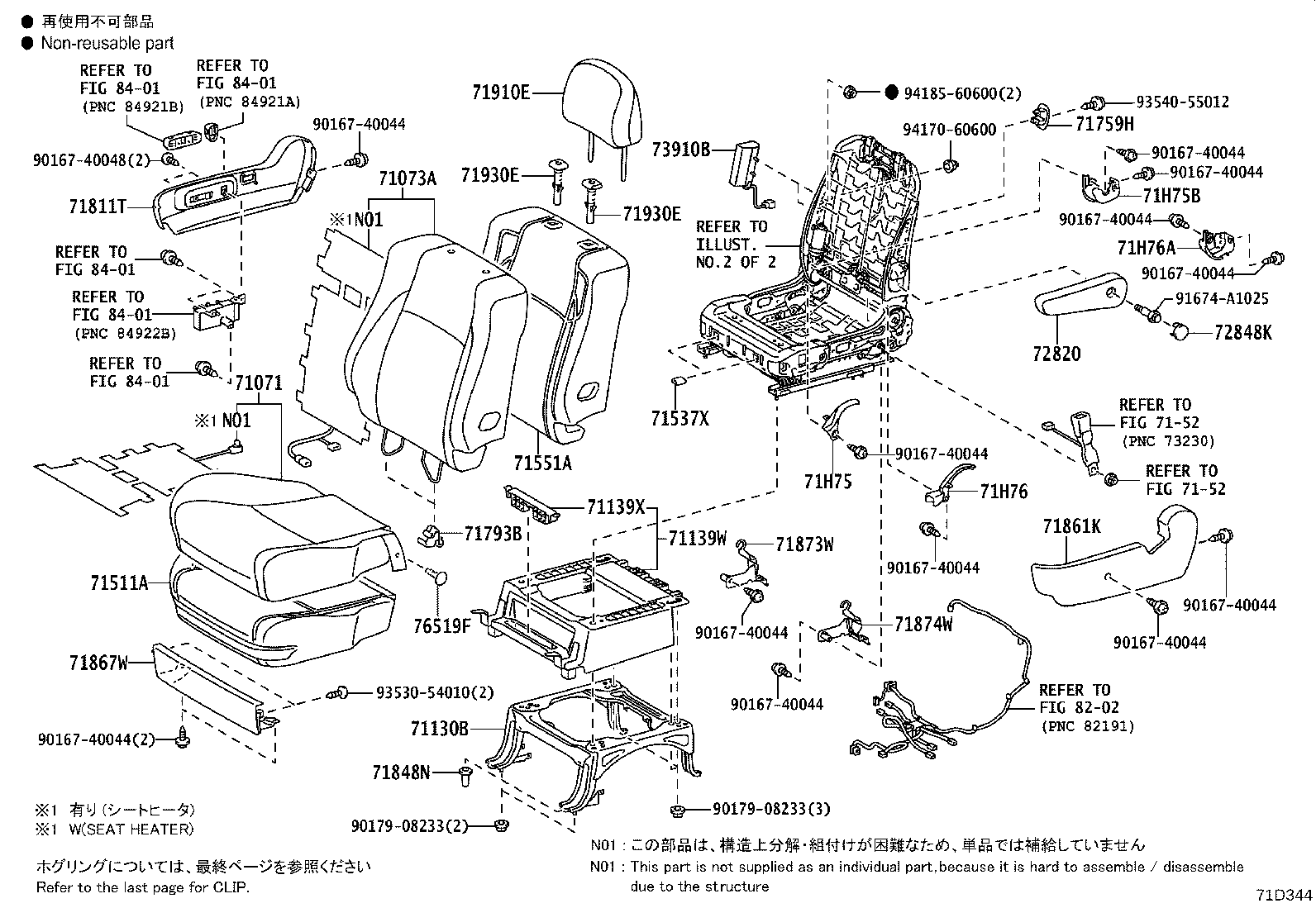

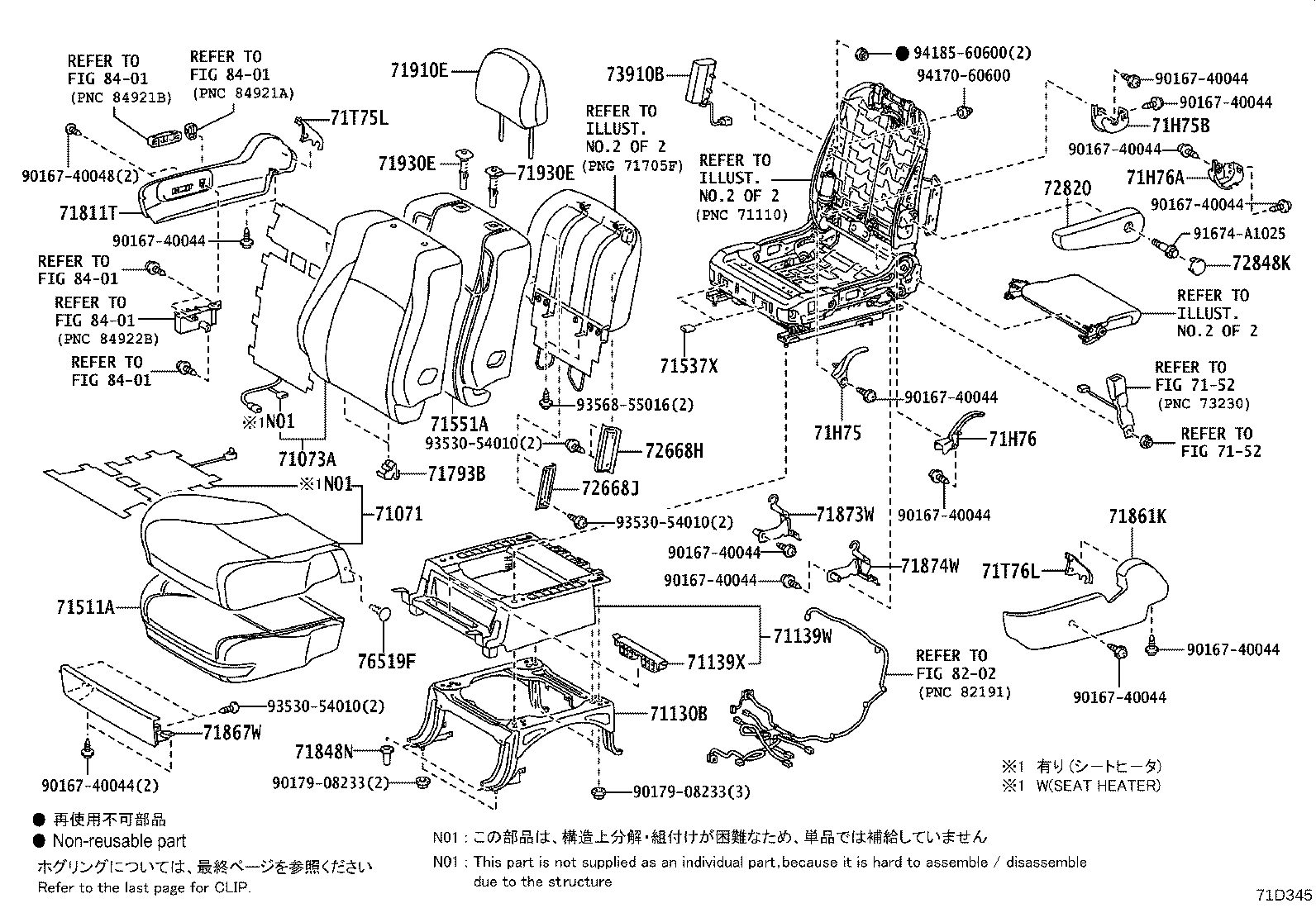

ILLUST NO. 1 OF 2(1110- )ANH20,ATH20,GGH2#..07S..240G,240S,24V,24Z,350G,350S,35V,35Z,HBDG,HBDSR,H
ｳﾝﾃﾝｾｷ-ｱﾘ(ﾊﾟﾜｰｼｰﾄ)&ﾅｼ(ｵｵｶﾞﾀ ﾌｯﾄﾚｽﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71071-58190A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71071-58190A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71071-58180A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71071-58180A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71071-58190A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71071-58190A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71071-58180A1 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71071-58180A1 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71071-58300A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),IVORY,TRIM0# |
1 | ||
| 71071-58300A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),IVORY,TRIM0# |
1 | ||
| 71071-58190A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71071-58190A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71071-58300A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),IVORY,TRIM0# |
1 | ||
| 71071-58300A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),IVORY,TRIM0# |
1 | ||
| 71071-58190A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71071-58190A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71071-58180A3 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71071-58180A3 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71071-58190A4 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71071-58190A4 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71071-58190A4 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71071-58190A4 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71071-58300A3 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71071-58300A3 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71071-58300A3 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71071-58300A3 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71071-58180A4 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71071-58180A4 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71073-58342A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71073-58342A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71073-58330A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71073-58330A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71073-58340A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71073-58340A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71073-58330A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71073-58330A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71073-58341A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71073-58341A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71073-58331A1 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71073-58331A1 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71073-58331A1 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71073-58331A1 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71073-58342A3 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71073-58342A3 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71073-58540A1 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),IVORY,TRIM0# |
1 | ||
| 71073-58540A1 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),IVORY,TRIM0# |
1 | ||
| 71073-58540A1 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),IVORY,TRIM0# |
1 | ||
| 71073-58540A1 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),IVORY,TRIM0# |
1 | ||
| 71130B - LEG ASSY, FRONT SEAT, RH | ||||
| 71130-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 71130-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 71130-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 71130-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 71139W - COVER, FRONT SEAT LEG(FOR RH SEAT) | ||||
| 71139-58150A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71139-58150A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71139-58150A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71139-58150A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||

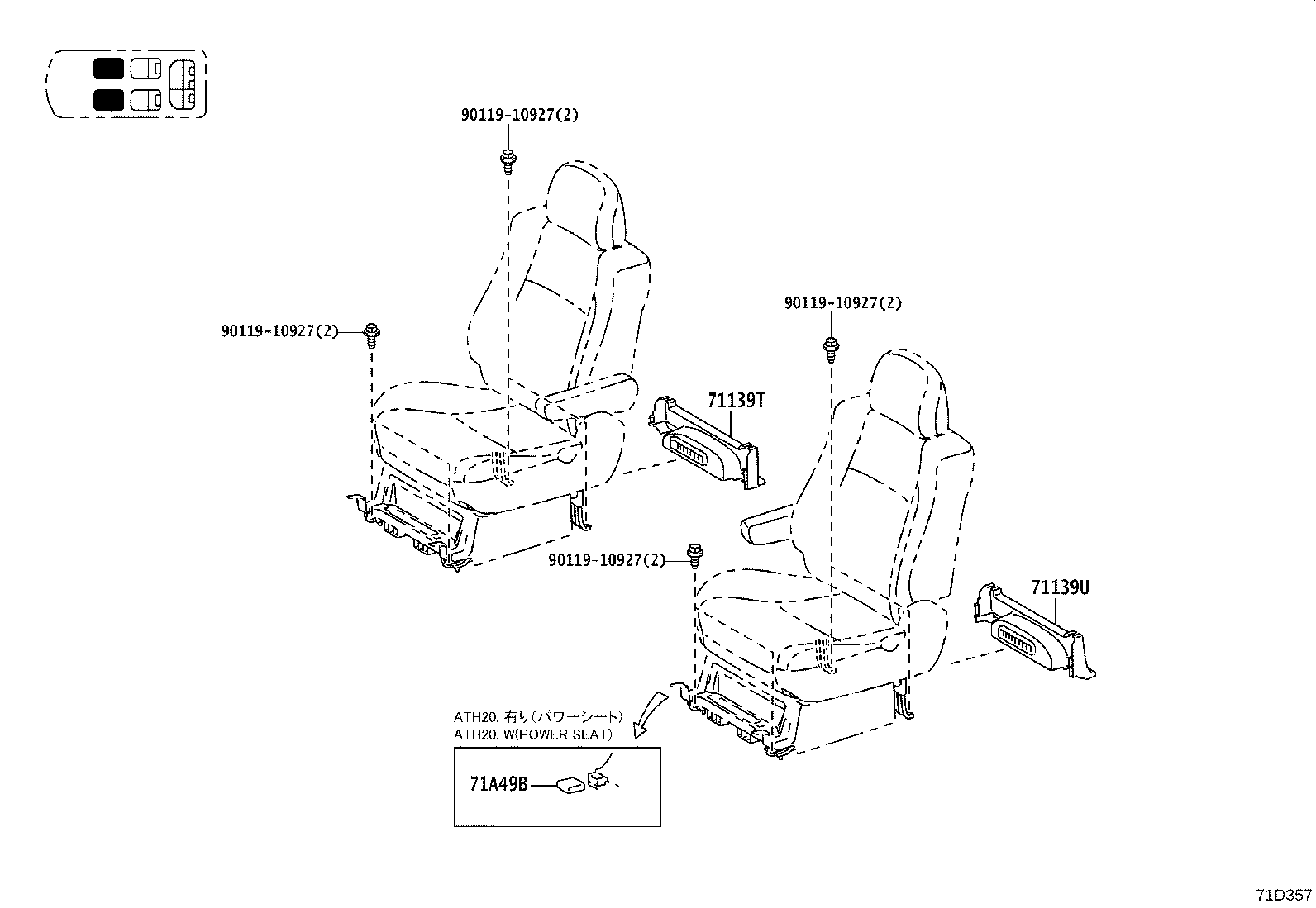

| 71139X - COVER, FRONT SEAT LEG NO.2 | ||||
| 71139-58130A0 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 71139-58130A0 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 71139-58130A0 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SHELL,TRIM0# |
1 | ||
| 71139-58130A0 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SHELL,TRIM0# |
1 | ||
| 71511A - PAD, FRONT SEAT CUSHION, RH | ||||
| 71511-58060 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71511-58060 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71511-58060 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 71511-58060 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 71537X - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-26010 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 71537-26010 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 71537-26010 |
ANH2#,GGH2#..CBU |
2 | ||
| 71537-26010 |
ANH2#,GGH2#..CBU |
2 | ||
| 71551A - PAD, FRONT SEAT BACK, RH | ||||
| 71551-58090 |
ANH2#,GGH2#..(240G,240S,24V,24Z,350G,350S,35V,35Z)..CBU |
1 | ||
| 71551-58090 |
ANH2#,GGH2#..(240G,240S,24V,24Z,350G,350S,35V,35Z)..CBU |
1 | ||
| 71551-58100 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71551-58100 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71551-58100 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 71551-58100 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 71551-58090 |
ANH2#,GGH2#..(240G,240S,24V,24Z,350G,350S,35V,35Z)..CBU |
1 | ||
| 71551-58090 |
ANH2#,GGH2#..(240G,240S,24V,24Z,350G,350S,35V,35Z)..CBU |
1 | ||
| 71551-58100 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71551-58100 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71551-58100 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 71551-58100 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 71551-58100 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71551-58100 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71551-58100 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71551-58100 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71759H - HOOK, FRONT SEAT BACK | ||||
| 71759-28050A1 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
2 | ||
| 71759-28050A1 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
2 | ||
| 71759-28050A1 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SHELL,TRIM0# |
2 | ||
| 71759-28050A1 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SHELL,TRIM0# |
2 | ||
| 71793B - CLIP, FRONT SEAT BACK POCKET | ||||
| 71793-58010 |
ANH2#,GGH2#..CBU |
4 | ||
| 71793-58010 |
ANH2#,GGH2#..CBU |
4 | ||
| 71793-58010 |
ANH2#,ATH20,GGH2#..CBU |
4 | ||
| 71793-58010 |
ANH2#,ATH20,GGH2#..CBU |
4 | ||
| 71811T - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-58070A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71811-58070A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71811-58070A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71811-58070A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71811-28360A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71811-28360A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71811-58070A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71811-58070A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71811-28360A0 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 71811-28360A0 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 71811-58070A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71811-58070A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71811-58070A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71811-58070A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71811-58070A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71811-58070A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1 | ||||
| 71848-33010 |
ANH2#,GGH2#..CBU |
2 | ||
| 71848-33010 |
ANH2#,GGH2#..CBU |
2 | ||
| 71848-33010 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 71848-33010 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 71861K - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-58060A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71861-58060A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71861-58060A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71861-58060A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71861-58070A0 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 71861-58070A0 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 71861-58060A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71861-58060A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71861-58070A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71861-58070A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71861-58060A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71861-58060A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71861-58060A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71861-58060A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71861-58060A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71861-58060A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71867W - SHIELD, FRONT SEAT CUSHION, FRONT RH | ||||
| 71867-28030A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71867-28030A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71867-28030A0 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 71867-28030A0 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 71873W - SHIELD, FRONT SEAT CUSHION, LOWER RH, OUTER | ||||
| 71874-30020 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71874-30020 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71874-30020 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 71874-30020 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 71874W - SHIELD, FRONT SEAT CUSHION, LOWER LH, INNER | ||||
| 71873-30070 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71873-30070 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71873-30070 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 71873-30070 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 71910E - HEADREST ASSY, FRONT SEAT, RH | ||||
| 71910-58150A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71910-58150A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71910-58150A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71910-58150A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71910-58140A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71910-58140A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71910-58150A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71910-58150A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71910-58150A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71910-58150A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71910-58150A3 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71910-58150A3 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71910-58150A3 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71910-58150A3 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71910-58210A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71910-58210A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71910-58310A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71910-58310A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71910-58320A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),LT.SHELL,TRIM0# |
1 | ||
| 71910-58320A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),LT.SHELL,TRIM0# |
1 | ||
| 71910-58310A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71910-58310A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71910-58140A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71910-58140A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71910-58210A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71910-58210A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71910-58320A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),LT.SHELL,TRIM0# |
1 | ||
| 71910-58320A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),LT.SHELL,TRIM0# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71931-47010A7 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ無,SHELL,TRIM0# |
1 | ||
| 71931-47010A7 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ無,SHELL,TRIM0# |
1 | ||
| 71930-44020A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ付,SHELL,TRIM0# |
1 | ||
| 71930-44020A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ付,SHELL,TRIM0# |
1 | ||
| 71930-44020A2 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDX)..CBU ﾛｯｸ付,SHELL,TRIM0# |
1 | ||
| 71930-44020A2 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDX)..CBU ﾛｯｸ付,SHELL,TRIM0# |
1 | ||
| 71931-47010A7 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDX)..CBU ﾛｯｸ無,SHELL,TRIM0# |
1 | ||
| 71931-47010A7 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDX)..CBU ﾛｯｸ無,SHELL,TRIM0# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71931-47010A7 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ無,SHELL,TRIM0# |
1 | ||
| 71931-47010A7 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ無,SHELL,TRIM0# |
1 | ||
| 71930-44020A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ付,SHELL,TRIM0# |
1 | ||
| 71930-44020A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ付,SHELL,TRIM0# |
1 | ||
| 71930-44020A2 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDX)..CBU ﾛｯｸ付,SHELL,TRIM0# |
1 | ||
| 71930-44020A2 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDX)..CBU ﾛｯｸ付,SHELL,TRIM0# |
1 | ||
| 71931-47010A7 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDX)..CBU ﾛｯｸ無,SHELL,TRIM0# |
1 | ||
| 71931-47010A7 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDX)..CBU ﾛｯｸ無,SHELL,TRIM0# |
1 | ||
| 71H75 - COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT) | ||||
| 71875-58030A3 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71875-58030A3 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71875-58030A3 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71875-58030A3 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71875-48050A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71875-48050A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71H75B - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT BACK F | ||||
| 71875-58050 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 71875-58050 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 71875-58050 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71875-58050 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71H76 - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT) | ||||
| 71875-48050A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71875-48050A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71875-48050A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71875-48050A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71875-58030A3 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71875-58030A3 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71H76A - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT BACK F | ||||
| 71876-58050 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71876-58050 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71876-58050 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 71876-58050 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 72820 - ARMREST ASSY, FRONT SEAT, LH(FOR RH SEAT) | ||||
| 72890-58520A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72890-58520A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72890-58510A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 72890-58510A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 72890-58520A1 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 72890-58520A1 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 72890-58520A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 72890-58520A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 72890-58780A1 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 72890-58780A1 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 72890-58520A1 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 72890-58520A1 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 72890-58510A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 72890-58510A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 72890-58780A1 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 72890-58780A1 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 72848K - CAP, SEAT ARMREST, NO.1(FOR RH SEAT) | ||||
| 72848-28030A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 72848-28030A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 72848-28030A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 72848-28030A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73910B - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 73910-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 73910-58030 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 73910-58030 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 76519F - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
4 | ||
| 76519-42010 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
4 | ||
| 76519-42010 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
6 | ||
| 76519-42010 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
6 | ||
| 76519-42010 |
ANH2#,GGH2#..CBU |
4 | ||
| 76519-42010 |
ANH2#,GGH2#..CBU |
4 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90179-08233 | ||||
| 91674-A1025 | ||||
| 93530-54010 | ||||
| 93540-55012 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||

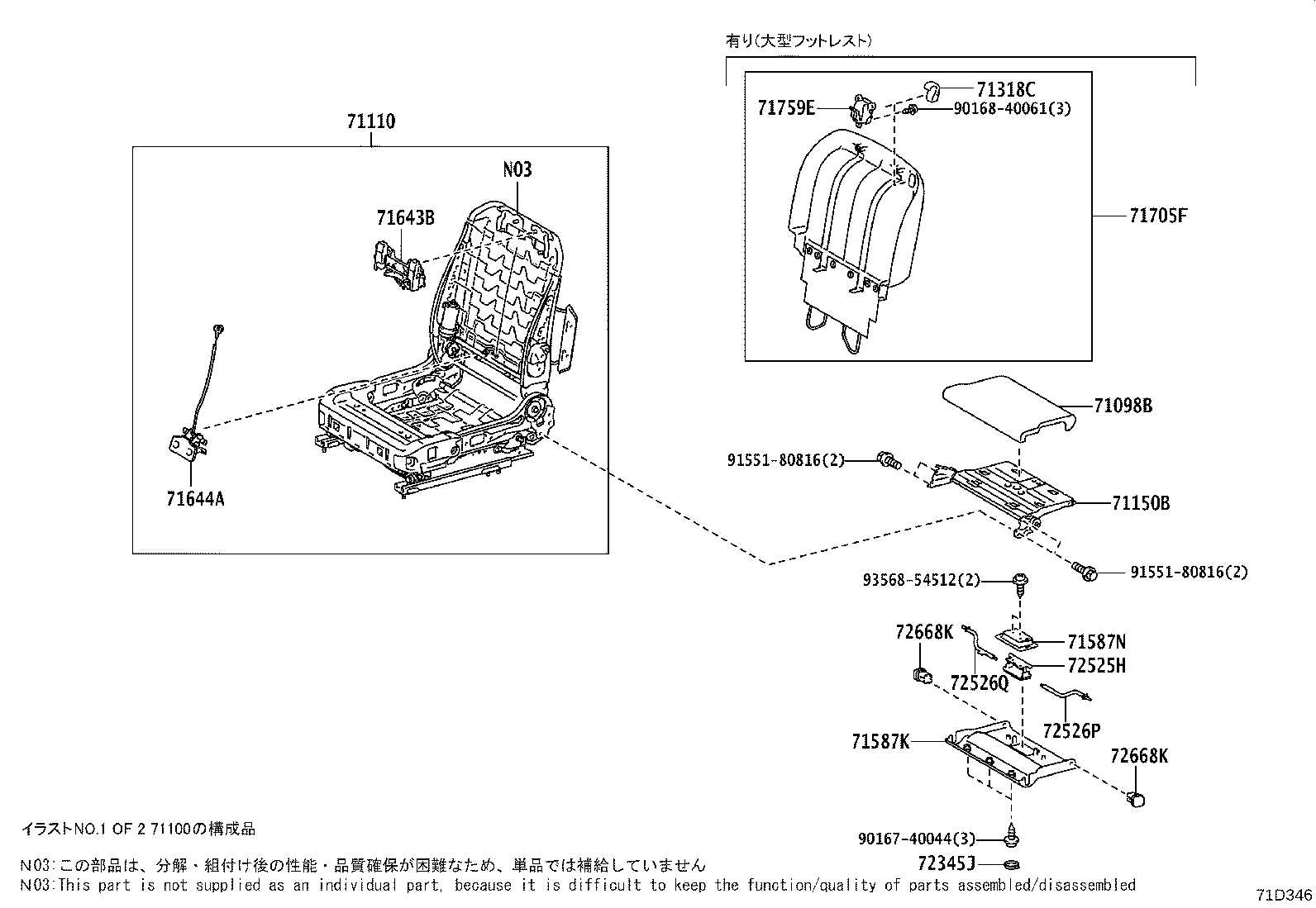

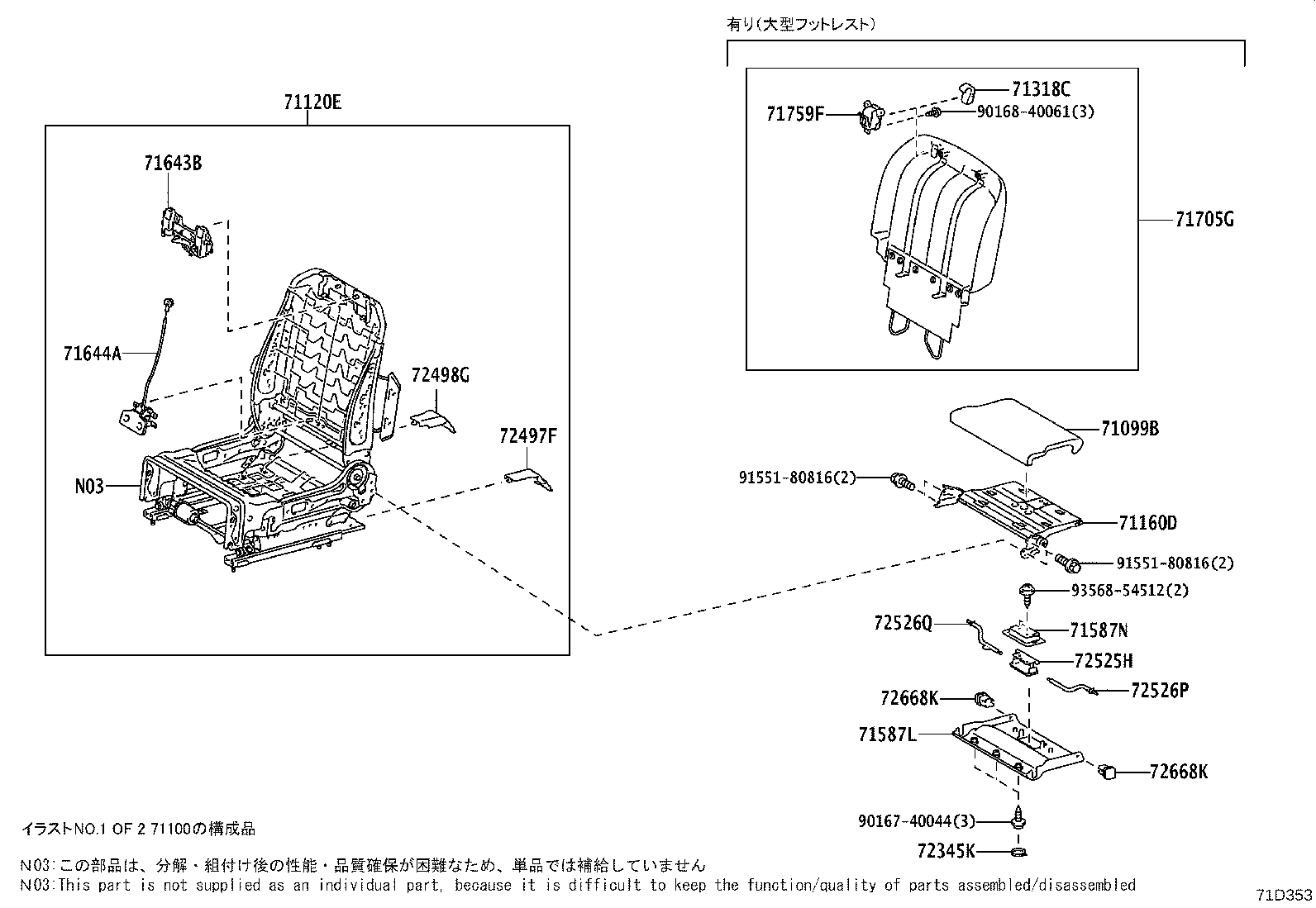

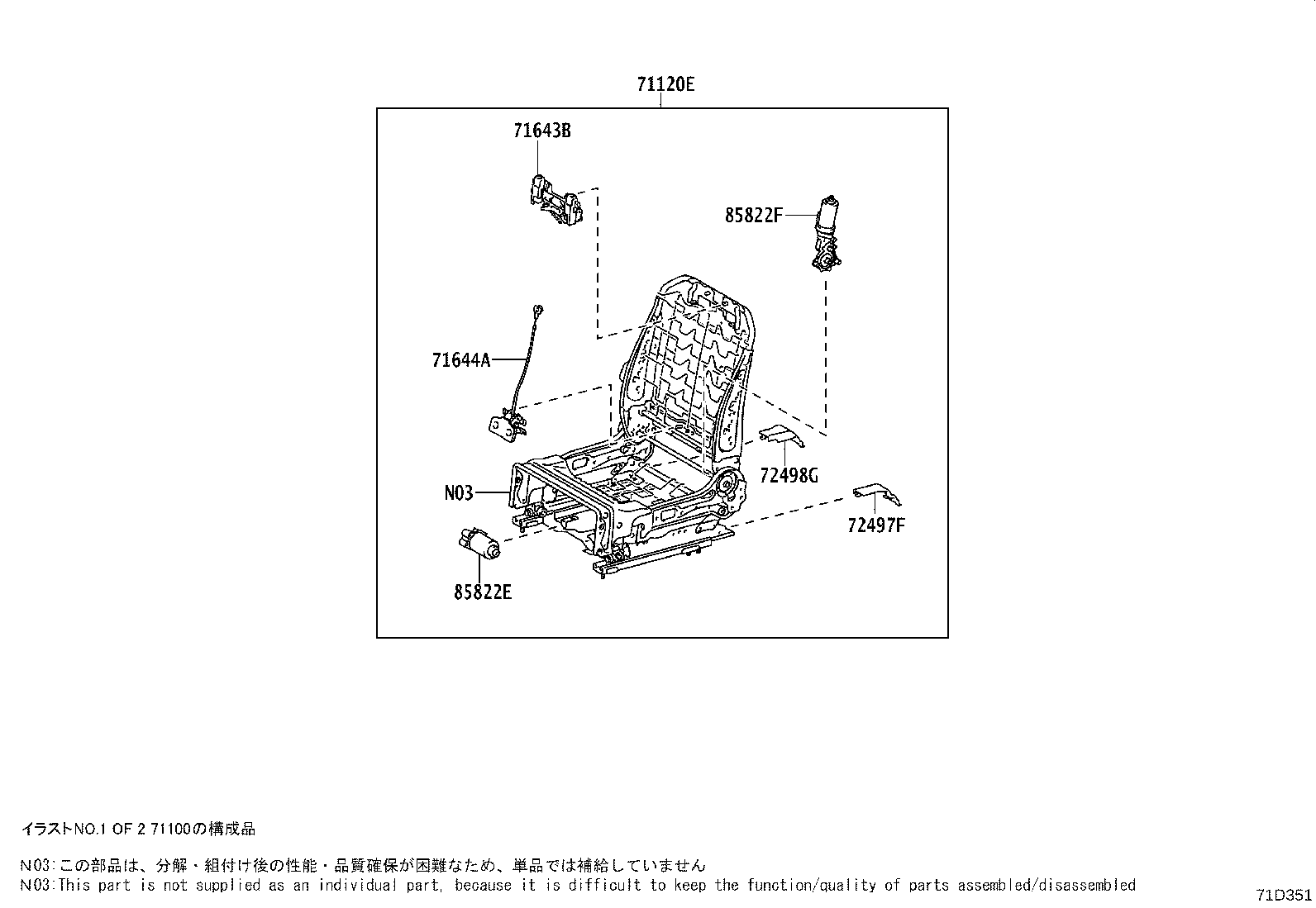

ILLUST NO. 1 OF 2(1110- )07S..240S,24Z,350G,350S,35V,35Z,HBDG,HBDSR,HBDV,HBDZR
ｳﾝﾃﾝｾｷ-ｱﾘ(ﾊﾟﾜｰｼｰﾄ & ｵｵｶﾞﾀ ﾌｯﾄﾚｽﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71071-58190A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71071-58180A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71071-58190A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71071-58180A1 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71071-58300A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),IVORY,TRIM0# |
1 | ||
| 71071-58190A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71071-58300A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),IVORY,TRIM0# |
1 | ||
| 71071-58190A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71071-58180A3 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71071-58190A4 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71071-58190A4 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71071-58300A3 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71071-58300A3 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71071-58180A4 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71073-58342A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71073-58330A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71073-58340A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71073-58330A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71073-58341A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71073-58331A1 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71073-58331A1 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71073-58342A3 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71073-58540A1 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),IVORY,TRIM0# |
1 | ||
| 71073-58540A1 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),IVORY,TRIM0# |
1 | ||
| 71130B - LEG ASSY, FRONT SEAT, RH | ||||
| 71130-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 71130-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 71139W - COVER, FRONT SEAT LEG(FOR RH SEAT) | ||||
| 71139-58150A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71139-58150A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71139X - COVER, FRONT SEAT LEG NO.2 | ||||
| 71139-58130A0 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 71139-58130A0 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SHELL,TRIM0# |
1 | ||
| 71511A - PAD, FRONT SEAT CUSHION, RH | ||||
| 71511-58060 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71511-58060 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 71537X - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-26010 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 71537-26010 |
ANH2#,GGH2#..CBU |
2 | ||
| 71551A - PAD, FRONT SEAT BACK, RH | ||||
| 71551-58090 |
ANH2#,GGH2#..(240G,240S,24V,24Z,350G,350S,35V,35Z)..CBU |
1 | ||
| 71551-58100 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71551-58100 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 71551-58090 |
ANH2#,GGH2#..(240G,240S,24V,24Z,350G,350S,35V,35Z)..CBU |
1 | ||
| 71551-58100 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71551-58100 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 71551-58100 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71551-58100 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71793B - CLIP, FRONT SEAT BACK POCKET | ||||
| 71793-58010 |
ANH2#,GGH2#..CBU |
4 | ||
| 71793-58010 |
ANH2#,ATH20,GGH2#..CBU |
4 | ||
| 71811T - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-58070A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71811-58070A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71811-28360A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71811-58070A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71811-28360A0 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 71811-58070A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71811-58070A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71811-58070A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1 | ||||
| 71848-33010 |
ANH2#,GGH2#..CBU |
2 | ||
| 71848-33010 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 71861K - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-58060A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71861-58060A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71861-58070A0 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 71861-58060A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71861-58070A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71861-58060A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71861-58060A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71861-58060A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71867W - SHIELD, FRONT SEAT CUSHION, FRONT RH | ||||
| 71867-28030A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71867-28030A0 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 71873W - SHIELD, FRONT SEAT CUSHION, LOWER RH, OUTER | ||||
| 71874-30020 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71874-30020 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 71874W - SHIELD, FRONT SEAT CUSHION, LOWER LH, INNER | ||||
| 71873-30070 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71873-30070 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 71910E - HEADREST ASSY, FRONT SEAT, RH | ||||
| 71910-58150A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71910-58150A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71910-58140A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71910-58150A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71910-58150A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71910-58150A3 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71910-58150A3 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71910-58210A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71910-58310A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71910-58320A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),LT.SHELL,TRIM0# |
1 | ||
| 71910-58310A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71910-58140A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71910-58210A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71910-58320A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),LT.SHELL,TRIM0# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71931-47010A7 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ無,SHELL,TRIM0# |
1 | ||
| 71930-44020A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ付,SHELL,TRIM0# |
1 | ||
| 71930-44020A2 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDX)..CBU ﾛｯｸ付,SHELL,TRIM0# |
1 | ||
| 71931-47010A7 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDX)..CBU ﾛｯｸ無,SHELL,TRIM0# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71931-47010A7 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ無,SHELL,TRIM0# |
1 | ||
| 71930-44020A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ付,SHELL,TRIM0# |
1 | ||
| 71930-44020A2 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDX)..CBU ﾛｯｸ付,SHELL,TRIM0# |
1 | ||
| 71931-47010A7 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDX)..CBU ﾛｯｸ無,SHELL,TRIM0# |
1 | ||
| 71H75 - COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT) | ||||
| 71875-58030A3 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71875-58030A3 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71875-48050A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71H75B - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT BACK F | ||||
| 71875-58050 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 71875-58050 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71H76 - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT) | ||||
| 71875-48050A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71875-48050A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71875-58030A3 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71H76A - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT BACK F | ||||
| 71876-58050 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71876-58050 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 71T75L - COVER, RECLINING ADJUSTER OUTSIDE, RH | ||||
| 71875-58190A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71875-58190A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71875-58190A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 71875-58190A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 71875-58190A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
2 | ||
| 71875-58190A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
2 | ||
| 71T76L - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58180A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71876-58180A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71876-58180A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71876-58180A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71876-58180A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71876-58180A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 72668H - BEZEL, FRONT SEAT BACK LOCK, LOWER NO.1 | ||||
| 72668-58020A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72668-58020A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 72668-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
2 | ||
| 72668-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72668-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72668-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
2 | ||
| 72668J - BEZEL, FRONT SEAT BACK LOCK, LOWER NO.2 | ||||
| 72668-58030A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 72668-58030A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72668-58030A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72668-58030A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72668-58030A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
2 | ||
| 72668-58030A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
2 | ||
| 72820 - ARMREST ASSY, FRONT SEAT, LH(FOR RH SEAT) | ||||
| 72890-58520A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72890-58510A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 72890-58520A1 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 72890-58520A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 72890-58780A1 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 72890-58520A1 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 72890-58510A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 72890-58780A1 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 72848K - CAP, SEAT ARMREST, NO.1(FOR RH SEAT) | ||||
| 72848-28030A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 72848-28030A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73910B - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 73910-58030 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 76519F - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
4 | ||
| 76519-42010 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
6 | ||
| 76519-42010 |
ANH2#,GGH2#..CBU |
4 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90179-08233 | ||||
| 91674-A1025 | ||||
| 93530-54010 | ||||
| 93568-55016 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||

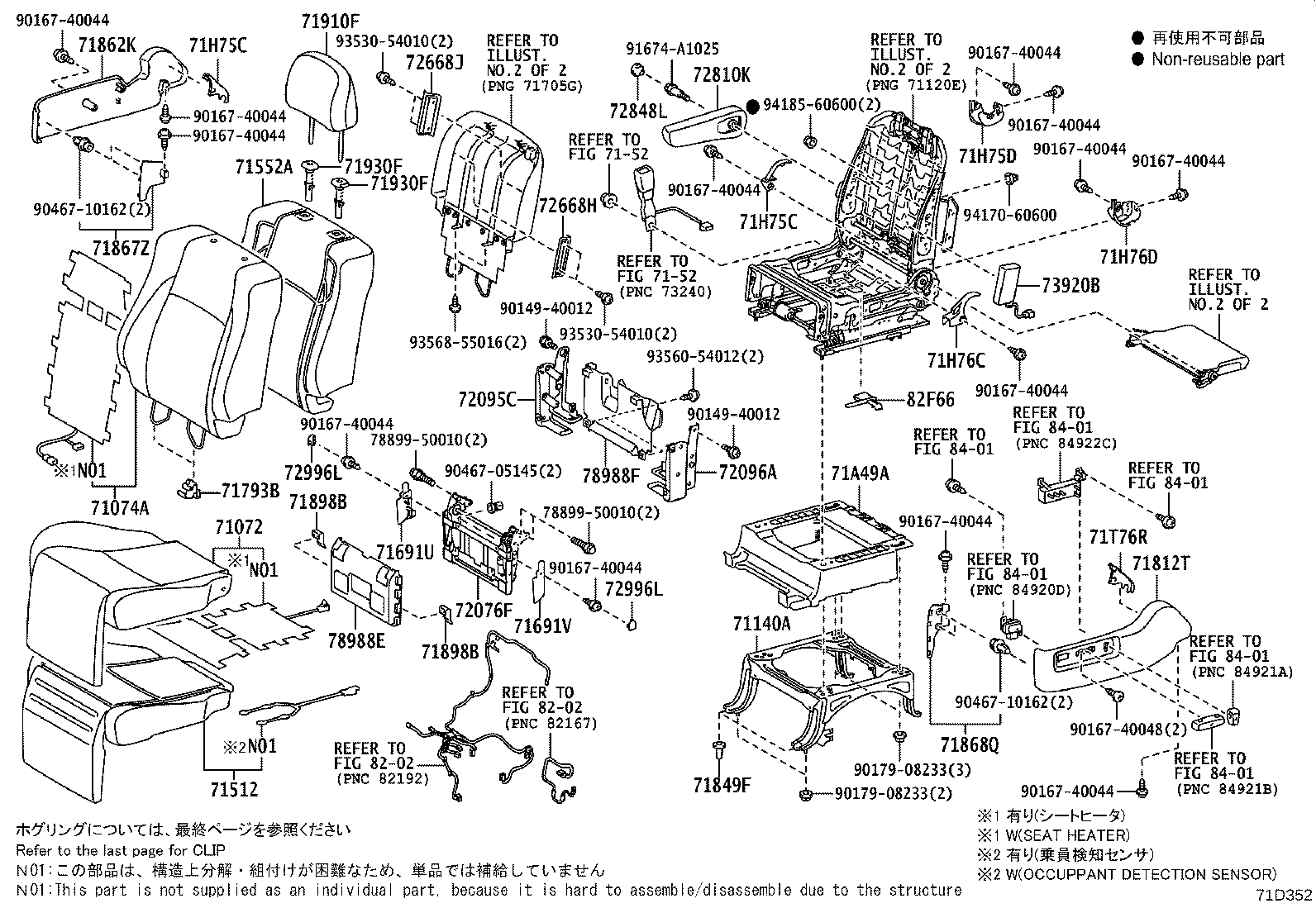

ILLUST NO. 2 OF 2(1110- )ANH20,ATH20,GGH2#..07S..240G,240S,24V,24Z,350G,350S,35V,35Z,HBDG,HBDSR,H
ｳﾝﾃﾝｾｷ ｱﾘ(ﾊﾟﾜｰｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71098B - COVER SUB-ASSY, FRONT SEAT BACK, LOWER RH | ||||
| 71099-58010A2 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71099-58010A2 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71099-58010A2 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71099-58010A2 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71099-58010A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71099-58010A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71099-58010A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71099-58010A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71099-58010A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71099-58010A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71099-58010A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71099-58010A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71110 - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-58160 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71110-58160 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71110-58100 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71110-58100 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71110-58110 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71110-58110 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71110-58160 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71110-58160 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71110-58110 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 71110-58110 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 71110-58150 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71110-58150 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71110-58161 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71110-58161 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71110-58151 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71110-58151 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71110-58161 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71110-58161 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71110-58160 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71110-58160 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71110-58150 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71110-58150 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71110-58160 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 71110-58160 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 71110-58160 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71110-58160 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71110-58160 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71110-58160 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71110-58161 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71110-58161 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71110-58161 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71110-58161 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71110-58151 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71110-58151 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71110-58161 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71110-58161 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71110-58161 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 71110-58161 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 71150B - FRAME ASSY, FRONT SEAT BACK, LOWER RH | ||||
| 71160-58010 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71160-58010 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71160-58010 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 71160-58010 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 71160-58010 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71160-58010 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71160-58010 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71160-58010 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71160-58010 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71160-58010 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71160-58010 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 71160-58010 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 71318C - HOOK, FRONT SEAT BACK LOCK | ||||
| 71318-58010A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 71318-58010A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 71318-58010A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 71318-58010A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 71318-58010A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
2 | ||
| 71318-58010A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
2 | ||
| 71318-58010A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
2 | ||
| 71318-58010A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
2 | ||
| 71318-58010A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 71318-58010A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 71318-58010A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 71318-58010A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 71587K - PROTECTOR, FRONT SEAT BACK EDGE, RH | ||||
| 71587-58020A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71587-58020A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71587-58020A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71587-58020A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71587-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71587-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71587-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71587-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71587-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71587-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71587-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71587-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71587N - PROTECTOR, FRONT SEAT BACK EDGE, NO.2 | ||||
| 71587-58030A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 71587-58030A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 71587-58030A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 71587-58030A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 71587-58030A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 71587-58030A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 71587-58030A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
2 | ||
| 71587-58030A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
2 | ||
| 71587-58030A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 71587-58030A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 71587-58030A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
2 | ||
| 71587-58030A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
2 | ||
| 71643B - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ANH2#,GGH2#..CBU |
2 | ||
| 71643-12011 |
ANH2#,GGH2#..CBU |
2 | ||
| 71643-12011 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 71643-12011 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 71644A - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ANH2#,GGH2#..CBU |
2 | ||
| 71644-12030 |
ANH2#,GGH2#..CBU |
2 | ||
| 71644-12030 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 71644-12030 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 71705F - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71701-58020A2 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71701-58020A2 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71701-58020A2 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71701-58020A2 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71701-58020A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71701-58020A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71701-58020A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71701-58020A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71701-58020A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71701-58020A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71701-58020A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71701-58020A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71759E - HOOK, FRONT SEAT BACK, RH | ||||
| 71318-58020A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71318-58020A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71318-58020A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71318-58020A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71318-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71318-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71318-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71318-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71318-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71318-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71318-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71318-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 72345J - CAP, SEAT STAND FRAME, RH | ||||
| 72345-58040A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
3 | ||
| 72345-58040A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
3 | ||
| 72345-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
3 | ||
| 72345-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
3 | ||
| 72345-58040A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
3 | ||
| 72345-58040A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
3 | ||
| 72345-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
3 | ||
| 72345-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
3 | ||
| 72345-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
3 | ||
| 72345-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
3 | ||
| 72345-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
3 | ||
| 72345-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
3 | ||
| 72525H - HANDLE, FRONT SEAT BACK LOCK | ||||
| 72525-58090A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 72525-58090A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 72525-58090A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72525-58090A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72525-58090A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
2 | ||
| 72525-58090A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
2 | ||
| 72525-58090A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72525-58090A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72525-58090A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72525-58090A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72525-58090A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
2 | ||
| 72525-58090A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
2 | ||
| 72526P - HANDLE, RECLINING ADJUSTER RELEASE, LH NO.1 | ||||
| 72526-58110A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 72526-58110A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 72526-58110A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72526-58110A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72526-58110A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72526-58110A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72526-58110A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
2 | ||
| 72526-58110A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
2 | ||
| 72526-58110A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
2 | ||
| 72526-58110A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
2 | ||
| 72526-58110A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72526-58110A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72526Q - HANDLE, RECLINING ADJUSTER RELEASE, LH NO.2 | ||||
| 72526-58100A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72526-58100A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72526-58100A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 72526-58100A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 72526-58100A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
2 | ||
| 72526-58100A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
2 | ||
| 72526-58100A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
2 | ||
| 72526-58100A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
2 | ||
| 72526-58100A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72526-58100A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72526-58100A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72526-58100A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72668K - BEZEL, FRONT SEAT BACK LOCK, LOWER NO.3 | ||||
| 72668-58040A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
4 | ||
| 72668K - BEZEL, FRONT SEAT BACK LOCK, LOWER NO.3 | ||||
| 72668-58040A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
4 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90168-40061 | ||||
| 91551-80816 | ||||
| 93568-54512 | ||||
ILLUST NO. 1 OF 2(1110- )240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR
ｼﾞｮｼｭｾｷ-ｱﾘ(ﾊﾟﾜｰｼｰﾄ)&ﾅｼ(ｵｵｶﾞﾀ ﾌｯﾄﾚｽﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71072-58181A3 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71072-58180A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71072-58190A2 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71072-58190A2 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71072-58290A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),IVORY,TRIM0# |
1 | ||
| 71072-58190A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71072-58190A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71072-58181A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71072-58290A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),IVORY,TRIM0# |
1 | ||
| 71072-58290A3 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71072-58190A4 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71072-58190A4 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71072-58290A3 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71074-58350A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71074-58360A1 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71074-58350A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71074-58361A1 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71074-58480A0 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71074-58362A1 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71074-58540A1 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),IVORY,TRIM0# |
1 | ||
| 71074-58540A1 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),IVORY,TRIM0# |
1 | ||
| 71074-58362A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71074-58480A0 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71140A - LEG ASSY, FRONT SEAT, LH | ||||
| 71140-58030 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71140-58030 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71512 - PAD, FRONT SEAT CUSHION, LH | ||||
| 71502-58030 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71502-58030 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 71552A - PAD, FRONT SEAT BACK, LH | ||||
| 71552-58060 |
ANH2#,GGH2#..(240G,240S,24V,24Z,350G,350S,35V,35Z)..CBU |
1 | ||
| 71552-58070 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 71552-58070 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71552-58090 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71552-58060 |
ANH2#,GGH2#..(240G,240S,24V,24Z,350G,350S,35V,35Z)..CBU |
1 | ||
| 71552-58090 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71552-58090 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71552-58090 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 71691U - COVER, RECLINING ADJUSTER ARM, NO.1 | ||||
| 71691-50010A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71691-50010A2 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 71691V - COVER, RECLINING ADJUSTER ARM, NO.2 | ||||
| 71691-50020A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71691-50020A2 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 71759H - HOOK, FRONT SEAT BACK | ||||
| 71759-28050A1 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
2 | ||
| 71759-28050A1 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SHELL,TRIM0# |
2 | ||
| 71793B - CLIP, FRONT SEAT BACK POCKET | ||||
| 71793-58010 |
ANH2#,GGH2#..CBU |
4 | ||
| 71793-58010 |
ANH2#,ATH20,GGH2#..CBU |
4 | ||
| 71812T - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-58080A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71812-58080A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71812-58090A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71812-58080A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71812-58080A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71812-58080A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71812-58090A0 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 71812-58080A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71849F - CAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT) | ||||
| 71848-33010 |
ANH2#,ATH20,GGH2#..(240G,240S,240X,24V,24X,24Z,350G,350S,35V,35Z,HBDX)..CBU |
2 | ||
| 71848-33010 |
ANH2#,GGH2#..CBU |
2 | ||
| 71862K - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-58050A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71862-58050A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71862-58050A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71862-58050A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71862-58060A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71862-58060A0 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 71862-58050A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71862-58050A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71867Z - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH(FOR LH SEAT) | ||||
| 71867-58010A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71867-58010A0 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 71868Q - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH(FOR LH SEAT) | ||||
| 71868-58010A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71868-58010A0 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 71898B - HOOK, FRONT SEAT COVER | ||||
| 71898-50010 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
2 | ||
| 71898-50010 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
2 | ||
| 71898B - HOOK, FRONT SEAT COVER | ||||
| 71898-50010 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
2 | ||
| 71898-50010 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
2 | ||
| 71910F - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-58150A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71910-58150A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71910-58150A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71910-58150A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71910-58140A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71910-58150A3 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71910-58150A3 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71910-58210A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71910-58140A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71910-58210A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71910-58310A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71910-58320A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),LT.SHELL,TRIM0# |
1 | ||
| 71910-58320A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),LT.SHELL,TRIM0# |
1 | ||
| 71910-58310A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71930-44020A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ付,SHELL,TRIM0# |
1 | ||
| 71931-47010A7 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ無,SHELL,TRIM0# |
1 | ||
| 71930-44020A2 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDX)..CBU ﾛｯｸ付,SHELL,TRIM0# |
1 | ||
| 71931-47010A7 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDX)..CBU ﾛｯｸ無,SHELL,TRIM0# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71930-44020A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ付,SHELL,TRIM0# |
1 | ||
| 71931-47010A7 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ無,SHELL,TRIM0# |
1 | ||
| 71930-44020A2 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDX)..CBU ﾛｯｸ付,SHELL,TRIM0# |
1 | ||
| 71931-47010A7 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDX)..CBU ﾛｯｸ無,SHELL,TRIM0# |
1 | ||
| 71A49A - COVER, FRONT SEAT LEG(FOR LH SEAT) | ||||
| 71149-58040A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71149-58040A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71H75C - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT) | ||||
| 71876-48040A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71876-48040A2 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 71H75D - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT BACK F | ||||
| 71875-60140 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71875-60140 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 71H76C - COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT) | ||||
| 71876-60150A4 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71876-60150A4 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 71H76D - COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT BACK F | ||||
| 71876-60140 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 71876-60140 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 72076F - ARM SUB-ASSY, RECLINING ADJUSTER, LWR INNER LH | ||||
| 72076-58010 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 72076-58010 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 72095C - PLATE SUB-ASSY, RECLINING ADJUSTER ARM, NO.1 | ||||
| 72095-58010A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 72095-58010A0 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 72096A - PLATE SUB-ASSY, RECLINING ADJUSTER ARM, NO.2 | ||||
| 72096-58010A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 72096-58010A0 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 72810K - ARMREST ASSY, FRONT SEAT, RH(FOR LH SEAT) | ||||
| 72880-58520A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72880-58510A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 72880-58520A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 72880-58520A1 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 72880-58520A1 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 72880-58510A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 72880-58790A1 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 72880-58790A1 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 72848L - CAP, SEAT ARMREST, NO.1(FOR LH SEAT) | ||||
| 72848-28030A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 72848-28030A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 72996L - CAP, RECLINING ADJUSTER ARM COVER | ||||
| 72996-50120A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
2 | ||
| 72996-50120A2 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
2 | ||
| 72996L - CAP, RECLINING ADJUSTER ARM COVER | ||||
| 72996-50120A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
2 | ||
| 72996-50120A2 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
2 | ||
| 73920B - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 73920-58030 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 78988E - COVER, FRONT SEAT FOOTREST, NO.1 | ||||
| 78988-58010 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 78988-58010 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 78988F - COVER, FRONT SEAT FOOTREST, NO.2 | ||||
| 78988-58020A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 78988-58020A0 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 82F66 - HOLDER, CONNECTOR | ||||
| 82666-21060 |
ANH2#,GGH2#..CBU |
1 | ||
| 82666-21060 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 78899-50010 | ||||
| 90149-40012 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90179-08233 | ||||
| 90467-05145 | ||||
| 90467-10162 | ||||
| 91674-A1025 | ||||
| 93540-55012 | ||||
| 93560-54012 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(1110- )240G,24V,350G,35V
ｼﾞｮｼｭｾｷ-ｱﾘ(ﾊﾟﾜｰｼｰﾄ)&ﾅｼ(ｵｵｶﾞﾀ ﾌｯﾄﾚｽﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71120E - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-58110 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71120-58120 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 71120-58160 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71120-58110 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71120-58160 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71120-58120 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71120-58161 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71120-58161 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71120-58111 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71120-58110 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71120-58160 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 71120-58160 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71120-58160 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71120-58111 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71120-58161 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71120-58160 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71120-58161 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71120-58161 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71120-58161 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 71643B - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ANH2#,GGH2#..CBU |
2 | ||
| 71643-12011 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 71644A - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ANH2#,GGH2#..CBU |
2 | ||
| 71644-12030 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 72497F - COVER, VERTICAL ADJUSTER BRACKET, OUTER | ||||
| 72497-60010 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 72497-60010 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 72498G - COVER, VERTICAL ADJUSTER BRACKET, INNER | ||||
| 72498-60010 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 72498-60010 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 85822E - MOTOR ASSY, POWER SEAT SLIDE, LH | ||||
| 85801-28060 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 85801-28060 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 85822F - MOTOR ASSY, POWER SEAT RECLINING, LH | ||||
| 85801-28050 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 85801-28050 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
ILLUST NO. 1 OF 2(1110- )07S..240G,240S,24V,24Z,350G,350S,35V,35Z,HBDG,HBDSR,HBDV,HBDZR
ｼﾞｮｼｭｾｷ-ｱﾘ(ﾊﾟﾜｰｼｰﾄ & ｵｵｶﾞﾀ ﾌｯﾄﾚｽﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71072-58181A3 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71072-58180A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71072-58190A2 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71072-58190A2 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71072-58290A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),IVORY,TRIM0# |
1 | ||
| 71072-58190A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71072-58190A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71072-58181A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71072-58290A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),IVORY,TRIM0# |
1 | ||
| 71072-58290A3 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71072-58190A4 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71072-58190A4 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71072-58290A3 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71074-58350A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71074-58360A1 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71074-58350A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71074-58361A1 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71074-58480A0 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71074-58362A1 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71074-58540A1 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),IVORY,TRIM0# |
1 | ||
| 71074-58540A1 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),IVORY,TRIM0# |
1 | ||
| 71074-58362A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71074-58480A0 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71140A - LEG ASSY, FRONT SEAT, LH | ||||
| 71140-58030 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71140-58030 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71512 - PAD, FRONT SEAT CUSHION, LH | ||||
| 71502-58030 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71502-58030 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 71552A - PAD, FRONT SEAT BACK, LH | ||||
| 71552-58060 |
ANH2#,GGH2#..(240G,240S,24V,24Z,350G,350S,35V,35Z)..CBU |
1 | ||
| 71552-58070 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 71552-58070 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71552-58090 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71552-58060 |
ANH2#,GGH2#..(240G,240S,24V,24Z,350G,350S,35V,35Z)..CBU |
1 | ||
| 71552-58090 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71552-58090 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71552-58090 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 71691U - COVER, RECLINING ADJUSTER ARM, NO.1 | ||||
| 71691-50010A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71691-50010A2 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 71691V - COVER, RECLINING ADJUSTER ARM, NO.2 | ||||
| 71691-50020A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71691-50020A2 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 71793B - CLIP, FRONT SEAT BACK POCKET | ||||
| 71793-58010 |
ANH2#,GGH2#..CBU |
4 | ||
| 71793-58010 |
ANH2#,ATH20,GGH2#..CBU |
4 | ||
| 71812T - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-58080A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71812-58080A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71812-58090A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71812-58080A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71812-58080A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71812-58080A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71812-58090A0 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 71812-58080A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71849F - CAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT) | ||||
| 71848-33010 |
ANH2#,ATH20,GGH2#..(240G,240S,240X,24V,24X,24Z,350G,350S,35V,35Z,HBDX)..CBU |
2 | ||
| 71848-33010 |
ANH2#,GGH2#..CBU |
2 | ||
| 71862K - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-58050A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71862-58050A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71862-58050A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71862-58050A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71862-58060A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71862-58060A0 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 71862-58050A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71862-58050A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71867Z - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH(FOR LH SEAT) | ||||
| 71867-58010A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71867-58010A0 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 71868Q - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH(FOR LH SEAT) | ||||
| 71868-58010A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71868-58010A0 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 71898B - HOOK, FRONT SEAT COVER | ||||
| 71898-50010 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
2 | ||
| 71898-50010 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
2 | ||
| 71898B - HOOK, FRONT SEAT COVER | ||||
| 71898-50010 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
2 | ||
| 71898-50010 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
2 | ||
| 71910F - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-58150A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71910-58150A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71910-58150A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71910-58150A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71910-58140A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71910-58150A3 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71910-58150A3 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71910-58210A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71910-58140A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71910-58210A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71910-58310A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71910-58320A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),LT.SHELL,TRIM0# |
1 | ||
| 71910-58320A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),LT.SHELL,TRIM0# |
1 | ||
| 71910-58310A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71930-44020A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ付,SHELL,TRIM0# |
1 | ||
| 71931-47010A7 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ無,SHELL,TRIM0# |
1 | ||
| 71930-44020A2 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDX)..CBU ﾛｯｸ付,SHELL,TRIM0# |
1 | ||
| 71931-47010A7 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDX)..CBU ﾛｯｸ無,SHELL,TRIM0# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71930-44020A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ付,SHELL,TRIM0# |
1 | ||
| 71931-47010A7 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ無,SHELL,TRIM0# |
1 | ||
| 71930-44020A2 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDX)..CBU ﾛｯｸ付,SHELL,TRIM0# |
1 | ||
| 71931-47010A7 |
ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDX)..CBU ﾛｯｸ無,SHELL,TRIM0# |
1 | ||
| 71A49A - COVER, FRONT SEAT LEG(FOR LH SEAT) | ||||
| 71149-58040A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71149-58040A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71H75C - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT) | ||||
| 71876-48040A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71876-48040A2 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 71H75C - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT) | ||||
| 71876-48040A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71876-48040A2 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 71H75D - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT BACK F | ||||
| 71875-60140 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71875-60140 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 71H76C - COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT) | ||||
| 71876-60150A4 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71876-60150A4 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 71H76D - COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT BACK F | ||||
| 71876-60140 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 71876-60140 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71T76R - COVER, RECLINING ADJUSTER OUTSIDE, LH | ||||
| 71876-58180A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71876-58180A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71876-58180A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71876-58180A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71876-58180A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71876-58180A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 72076F - ARM SUB-ASSY, RECLINING ADJUSTER, LWR INNER LH | ||||
| 72076-58010 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 72076-58010 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 72095C - PLATE SUB-ASSY, RECLINING ADJUSTER ARM, NO.1 | ||||
| 72095-58010A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 72095-58010A0 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 72096A - PLATE SUB-ASSY, RECLINING ADJUSTER ARM, NO.2 | ||||
| 72096-58010A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 72096-58010A0 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 72668H - BEZEL, FRONT SEAT BACK LOCK, LOWER NO.1 | ||||
| 72668-58020A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72668-58020A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 72668-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
2 | ||
| 72668-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72668-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72668-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
2 | ||
| 72668J - BEZEL, FRONT SEAT BACK LOCK, LOWER NO.2 | ||||
| 72668-58030A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 72668-58030A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72668-58030A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72668-58030A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72668-58030A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
2 | ||
| 72668-58030A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
2 | ||
| 72810K - ARMREST ASSY, FRONT SEAT, RH(FOR LH SEAT) | ||||
| 72880-58520A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72880-58510A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 72880-58520A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 72880-58520A1 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 72880-58520A1 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 72880-58510A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 72880-58790A1 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 72880-58790A1 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 72848L - CAP, SEAT ARMREST, NO.1(FOR LH SEAT) | ||||
| 72848-28030A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 72848-28030A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 72996L - CAP, RECLINING ADJUSTER ARM COVER | ||||
| 72996-50120A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
2 | ||
| 72996-50120A2 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
2 | ||
| 72996L - CAP, RECLINING ADJUSTER ARM COVER | ||||
| 72996-50120A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
2 | ||
| 72996-50120A2 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
2 | ||
| 73920B - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 73920-58030 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 78988E - COVER, FRONT SEAT FOOTREST, NO.1 | ||||
| 78988-58010 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 78988-58010 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 78988F - COVER, FRONT SEAT FOOTREST, NO.2 | ||||
| 78988-58020A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 78988-58020A0 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
1 | ||
| 82F66 - HOLDER, CONNECTOR | ||||
| 82666-21060 |
ANH2#,GGH2#..CBU |
1 | ||
| 82666-21060 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 78899-50010 | ||||
| 90149-40012 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90179-08233 | ||||
| 90467-05145 | ||||
| 90467-10162 | ||||
| 91674-A1025 | ||||
| 93530-54010 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(1110- )ANH20,ATH20,GGH2#..07S..240G,240S,24V,24Z,350G,350S,35V,35Z,HBDG,HBDSR,H
ｼﾞｮｼｭｾｷ-ｱﾘ(ﾊﾟﾜｰｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71099B - COVER SUB-ASSY, FRONT SEAT BACK, LOWER LH | ||||
| 71099-58010A2 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71099-58010A2 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71099-58010A2 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71099-58010A2 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71099-58010A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71099-58010A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71099-58010A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71099-58010A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71099-58010A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71099-58010A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71099-58010A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71099-58010A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71120E - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-58110 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71120-58110 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71120-58120 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 71120-58120 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 71120-58160 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71120-58160 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71120-58110 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71120-58110 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71120-58160 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71120-58160 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71120-58120 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71120-58120 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71120-58161 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71120-58161 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71120-58161 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71120-58161 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71120-58111 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71120-58111 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71120-58110 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71120-58110 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71120-58160 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 71120-58160 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 71120-58160 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71120-58160 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71120-58160 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71120-58160 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71120-58111 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71120-58111 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71120-58161 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71120-58161 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71120-58160 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71120-58160 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71120-58161 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71120-58161 |
GGH2#..(350G,35V)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71120-58161 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71120-58161 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71120-58161 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 71120-58161 |
GGH2#..(350G,35V)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 71160D - FRAME ASSY, FRONT SEAT BACK, LOWER LH | ||||
| 71160-58010 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 71160-58010 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 71160-58010 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71160-58010 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71160-58010 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71160-58010 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71160-58010 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71160-58010 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 71160-58010 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71160-58010 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L) |
1 | ||
| 71160-58010 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 71160-58010 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 71318C - HOOK, FRONT SEAT BACK LOCK | ||||
| 71318-58010A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 71318-58010A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 71318-58010A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 71318-58010A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 71318-58010A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
2 | ||
| 71318-58010A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
2 | ||
| 71318-58010A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
2 | ||
| 71318-58010A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
2 | ||
| 71318-58010A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 71318-58010A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 71318-58010A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 71318-58010A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 71587L - PROTECTOR, FRONT SEAT BACK EDGE, LH | ||||
| 71587-58020A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71587-58020A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71587-58020A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71587-58020A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71587-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71587-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71587-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71587-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71587-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71587-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71587-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71587-58020A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71587N - PROTECTOR, FRONT SEAT BACK EDGE, NO.2 | ||||
| 71587-58030A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 71587-58030A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 71587-58030A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 71587-58030A1 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 71587-58030A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 71587-58030A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 71587-58030A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
2 | ||
| 71587-58030A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
2 | ||
| 71587-58030A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 71587-58030A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 71587-58030A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
2 | ||
| 71587-58030A1 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
2 | ||
| 71643B - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ANH2#,GGH2#..CBU |
2 | ||
| 71643-12011 |
ANH2#,GGH2#..CBU |
2 | ||
| 71643-12011 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 71643-12011 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 71644A - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ANH2#,GGH2#..CBU |
2 | ||
| 71644-12030 |
ANH2#,GGH2#..CBU |
2 | ||
| 71644-12030 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 71644-12030 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 71705G - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71701-58030A2 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71701-58030A2 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71701-58030A2 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71701-58030A2 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71701-58030A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71701-58030A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71701-58030A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71701-58030A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71701-58030A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71701-58030A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71701-58030A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71701-58030A2 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71759F - HOOK, FRONT SEAT BACK, LH | ||||
| 71318-58030A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71318-58030A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71318-58030A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71318-58030A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71318-58030A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71318-58030A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
1 | ||
| 71318-58030A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71318-58030A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71318-58030A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71318-58030A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 71318-58030A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 71318-58030A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
1 | ||
| 72345K - CAP, SEAT STAND FRAME, LH | ||||
| 72345-58040A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
3 | ||
| 72345-58040A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
3 | ||
| 72345-58040A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
3 | ||
| 72345-58040A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
3 | ||
| 72345-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
3 | ||
| 72345-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
3 | ||
| 72345-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
3 | ||
| 72345-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
3 | ||
| 72345-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
3 | ||
| 72345-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
3 | ||
| 72345-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
3 | ||
| 72345-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
3 | ||
| 72497F - COVER, VERTICAL ADJUSTER BRACKET, OUTER | ||||
| 72497-60010 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 72497-60010 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 72497-60010 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 72497-60010 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 72498G - COVER, VERTICAL ADJUSTER BRACKET, INNER | ||||
| 72498-60010 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 72498-60010 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 72498-60010 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 72498-60010 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 72525H - HANDLE, FRONT SEAT BACK LOCK | ||||
| 72525-58090A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 72525-58090A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 72525-58090A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72525-58090A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72525-58090A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
2 | ||
| 72525-58090A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
2 | ||
| 72525-58090A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72525-58090A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72525-58090A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72525-58090A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72525-58090A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
2 | ||
| 72525-58090A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
2 | ||
| 72526P - HANDLE, RECLINING ADJUSTER RELEASE, LH NO.1 | ||||
| 72526-58110A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 72526-58110A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 72526-58110A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72526-58110A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72526-58110A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72526-58110A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72526-58110A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
2 | ||
| 72526-58110A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
2 | ||
| 72526-58110A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
2 | ||
| 72526-58110A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
2 | ||
| 72526-58110A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72526-58110A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72526Q - HANDLE, RECLINING ADJUSTER RELEASE, LH NO.2 | ||||
| 72526-58100A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72526-58100A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72526-58100A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 72526-58100A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 72526-58100A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
2 | ||
| 72526-58100A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
2 | ||
| 72526-58100A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
2 | ||
| 72526-58100A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
2 | ||
| 72526-58100A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72526-58100A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72526-58100A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72526-58100A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 72668K - BEZEL, FRONT SEAT BACK LOCK, LOWER NO.3 | ||||
| 72668-58040A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
4 | ||
| 72668K - BEZEL, FRONT SEAT BACK LOCK, LOWER NO.3 | ||||
| 72668-58040A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
GGH2#..07S..(350G,35V)..CBU Lｴﾃﾞｨｼｮﾝ or Lﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “L EDITION”*(L) or “Lﾊﾟｯｹｰｼﾞ”*(L)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
4 | ||
| 72668-58040A0 |
ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P),SHELL,TRIM0# |
4 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90168-40061 | ||||
| 91551-80816 | ||||
| 93568-54512 | ||||
(1110- )
ﾌﾛﾝﾄｼｰﾄ ﾌｨｯﾃｨﾝｸﾞ ﾊﾟｰﾂ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71139T - COVER, FRONT SEAT LEG, REAR RH | ||||
| 71139-58120A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71139-58120A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71139U - COVER, FRONT SEAT LEG, REAR LH | ||||
| 71149-58060A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71149-58060A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| Common parts | ||||
| 90119-10927 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
