GGH25W-NFTQK (2011)
Toyota Alphard/Vellfire/Hv

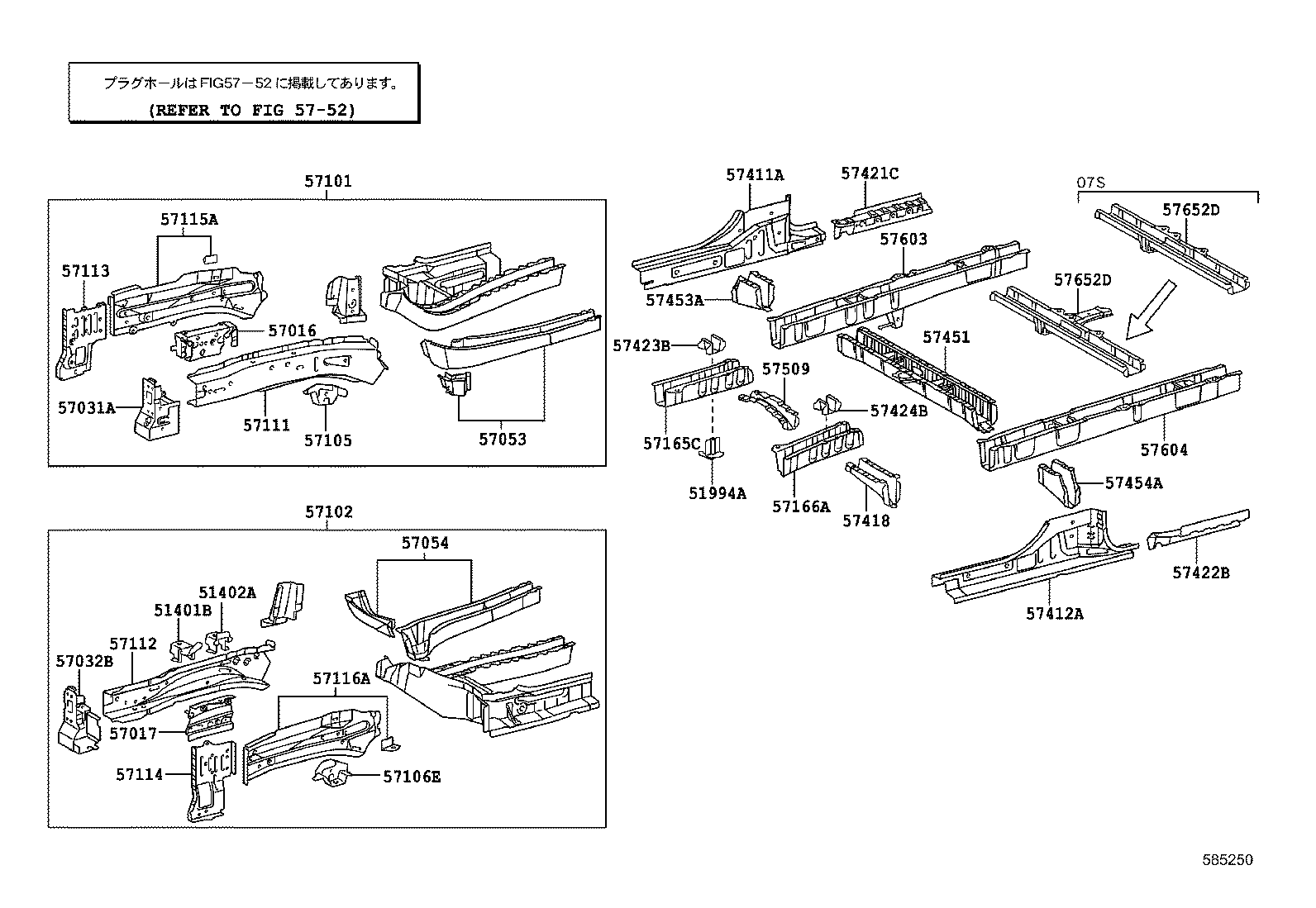

ILLUST NO. 1 OF 2(0804-1405)ANH2#,GGH2#
ﾌﾛｱ ﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51401B - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING | ||||
| 51401-28070 |
ANH2#,GGH2#..CBU |
1 | ||
| 51401-28070 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 51402A - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-28060 |
ANH2#,GGH2#..CBU |
1 | ||
| 51402-28060 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 51681C - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH | ||||
| 51681-12080 |
ANH2#,GGH2#..CBU |
1 | ||
| 51681-12080 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 51682E - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH | ||||
| 51682-12080 |
ANH2#,GGH2#..CBU |
1 | ||
| 51682-12080 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 51994A - HANGER, EXHAUST PIPE, SUPPORT, NO.4 | ||||
| 51992-28060 |
ANH2#,GGH2#..CBU |
1 | ||
| 51992-28060 |
ANH2#,GGH2#..CBU |
1 | ||
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-12110 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57016-12110 |
ANH2#,GGH2#..CBU |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-12070 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57017-12070 |
ANH2#,GGH2#..CBU |
1 | ||
| 57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57031-12010 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57031-12010 |
ANH2#,GGH2#..CBU |
1 | ||
| 57032B - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57032-12010 |
ANH2#,GGH2#..CBU |
1 | ||
| 57032-12010 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-28010 |
ANH2#,GGH2#..CBU |
1 | ||
| 57053-28010 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57054 - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.5 | ||||
| 57054-28010 |
ANH2#,GGH2#..CBU |
1 | ||
| 57054-28010 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-58021 |
ANH2#,GGH2#..CBU |
1 | ||
| 57101-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-58040 |
ANH2#,GGH2#..CBU |
1 | ||
| 57102-58041 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57105-12160 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57105-12160 |
ANH2#,GGH2#..CBU |
1 | ||
| 57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57106-12150 |
ANH2#,GGH2#..CBU |
1 | ||
| 57106-12150 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-12230 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57111-42060 |
ANH2#,GGH2#..CBU |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-28270 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57112-28270 |
ANH2#,GGH2#..CBU |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-12220 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57113-12220 |
ANH2#,GGH2#..CBU |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-12191 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57114-12190 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57114-12190 |
ANH2#,GGH2#..CBU |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-12090 |
ANH2#,GGH2#..CBU |
1 | ||
| 57025-12010 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57115-12090 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-42030 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57116-12091 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57026-12020 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57116-42030 |
ANH2#,GGH2#..CBU |
1 | ||
| 57165C - GUSSET, FLOOR MEMBER, RH | ||||
| 57165-28031 |
ANH2#,GGH2#..CBU |
1 | ||
| 57165-28031 |
ANH2#,GGH2#..CBU |
1 | ||
| 57166A - GUSSET, FLOOR MEMBER, LH | ||||
| 57166-28021 |
ANH2#,GGH2#..CBU |
1 | ||
| 57166-28021 |
ANH2#,GGH2#..CBU |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57411-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 57411-58020 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57412-58020 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57412-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57418-28040 |
ANH2#,GGH2#..CBU |
1 | ||
| 57418-28040 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57421C - PLATE, FLOOR SIDE RAIL, RH | ||||
| 57421-28130 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57421-28130 |
ANH2#,GGH2#..CBU |
1 | ||
| 57422B - PLATE, FLOOR SIDE RAIL, LH | ||||
| 57422-28100 |
ANH2#,GGH2#..CBU |
1 | ||
| 57422-28100 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57423B - REINFORCEMENT, FRONT FLOOR UNDER, INNER RH | ||||
| 57423-28050 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57423-28050 |
ANH2#,GGH2#..CBU |
1 | ||
| 57424B - REINFORCEMENT, FRONT FLOOR UNDER, INNER LH | ||||
| 57424-28040 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57424-28040 |
ANH2#,GGH2#..CBU |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57408-28130 |
ANH25,GGH25..CBU |
1 | ||
| 57408-28130 |
ANH25,GGH25 |
1 | ||
| 57453A - REINFORCEMENT, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57453-28050 |
ANH2#,GGH2#..CBU |
1 | ||
| 57453-28050 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57454A - REINFORCEMENT, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57454-28020 |
ANH2#,GGH2#..CBU |
1 | ||
| 57454-28020 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER | ||||
| 57509-28040 |
ANH2#,GGH2#..CBU |
1 | ||
| 57509-28040 |
ANH2#,GGH2#..CBU |
1 | ||
| 57603 - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH | ||||
| 57603-28090 |
ANH2#,GGH2#..CBU |
1 | ||
| 57603-28090 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57604 - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH | ||||
| 57604-28060 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57604-28060 |
ANH2#,GGH2#..CBU |
1 | ||
| 57652D - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-28150 |
ANH2#,GGH2#..07S..CBU |
1 | ||
| 57652-28150 |
ANH2#,ATH20,GGH2#..07S..CBU |
1 | ||
| 57652D - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-28150 |
ANH2#,GGH2#..07S..CBU |
1 | ||
| 57652-28150 |
ANH2#,ATH20,GGH2#..07S..CBU |
1 | ||
ILLUST NO. 1 OF 2(1405- )ANH2#,GGH2#
ﾌﾛｱ ﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51401B - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING | ||||
| 51401-28070 |
ANH2#,GGH2#..CBU |
1 | ||
| 51401-28070 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 51402A - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-28060 |
ANH2#,GGH2#..CBU |
1 | ||
| 51402-28060 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 51994A - HANGER, EXHAUST PIPE, SUPPORT, NO.4 | ||||
| 51992-28060 |
ANH2#,GGH2#..CBU |
1 | ||
| 51992-28060 |
ANH2#,GGH2#..CBU |
1 | ||
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-12110 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57016-12110 |
ANH2#,GGH2#..CBU |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-12070 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57017-12070 |
ANH2#,GGH2#..CBU |
1 | ||
| 57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57031-12010 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57031-12010 |
ANH2#,GGH2#..CBU |
1 | ||
| 57032B - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57032-12010 |
ANH2#,GGH2#..CBU |
1 | ||
| 57032-12010 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-28010 |
ANH2#,GGH2#..CBU |
1 | ||
| 57053-28010 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57054 - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.5 | ||||
| 57054-28010 |
ANH2#,GGH2#..CBU |
1 | ||
| 57054-28010 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-58021 |
ANH2#,GGH2#..CBU |
1 | ||
| 57101-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-58040 |
ANH2#,GGH2#..CBU |
1 | ||
| 57102-58041 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57105-12160 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57105-12160 |
ANH2#,GGH2#..CBU |
1 | ||
| 57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57106-12150 |
ANH2#,GGH2#..CBU |
1 | ||
| 57106-12150 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-12230 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57111-42060 |
ANH2#,GGH2#..CBU |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-28270 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57112-28270 |
ANH2#,GGH2#..CBU |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-12220 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57113-12220 |
ANH2#,GGH2#..CBU |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-12191 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57114-12190 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57114-12190 |
ANH2#,GGH2#..CBU |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-12090 |
ANH2#,GGH2#..CBU |
1 | ||
| 57025-12010 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57115-12090 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-42030 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57116-12091 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57026-12020 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57116-42030 |
ANH2#,GGH2#..CBU |
1 | ||
| 57165C - GUSSET, FLOOR MEMBER, RH | ||||
| 57165-28031 |
ANH2#,GGH2#..CBU |
1 | ||
| 57165-28031 |
ANH2#,GGH2#..CBU |
1 | ||
| 57166A - GUSSET, FLOOR MEMBER, LH | ||||
| 57166-28021 |
ANH2#,GGH2#..CBU |
1 | ||
| 57166-28021 |
ANH2#,GGH2#..CBU |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57411-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 57411-58020 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57412-58020 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57412-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57418-28040 |
ANH2#,GGH2#..CBU |
1 | ||
| 57418-28040 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57421C - PLATE, FLOOR SIDE RAIL, RH | ||||
| 57421-28130 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57421-28130 |
ANH2#,GGH2#..CBU |
1 | ||
| 57422B - PLATE, FLOOR SIDE RAIL, LH | ||||
| 57422-28100 |
ANH2#,GGH2#..CBU |
1 | ||
| 57422-28100 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57423B - REINFORCEMENT, FRONT FLOOR UNDER, INNER RH | ||||
| 57423-28050 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57423-28050 |
ANH2#,GGH2#..CBU |
1 | ||
| 57424B - REINFORCEMENT, FRONT FLOOR UNDER, INNER LH | ||||
| 57424-28040 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57424-28040 |
ANH2#,GGH2#..CBU |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57408-28130 |
ANH25,GGH25..CBU |
1 | ||
| 57408-28130 |
ANH25,GGH25 |
1 | ||
| 57453A - REINFORCEMENT, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57453-28050 |
ANH2#,GGH2#..CBU |
1 | ||
| 57453-28050 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57454A - REINFORCEMENT, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57454-28020 |
ANH2#,GGH2#..CBU |
1 | ||
| 57454-28020 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER | ||||
| 57509-28040 |
ANH2#,GGH2#..CBU |
1 | ||
| 57509-28040 |
ANH2#,GGH2#..CBU |
1 | ||
| 57603 - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH | ||||
| 57603-28090 |
ANH2#,GGH2#..CBU |
1 | ||
| 57603-28090 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57604 - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH | ||||
| 57604-28060 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 57604-28060 |
ANH2#,GGH2#..CBU |
1 | ||
| 57652D - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-28150 |
ANH2#,GGH2#..07S..CBU |
1 | ||
| 57652-28150 |
ANH2#,ATH20,GGH2#..07S..CBU |
1 | ||
| 57652D - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-28150 |
ANH2#,GGH2#..07S..CBU |
1 | ||
| 57652-28150 |
ANH2#,ATH20,GGH2#..07S..CBU |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
