GGH25W-NFTQK (2011)
Toyota Alphard/Vellfire/Hv
(1110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

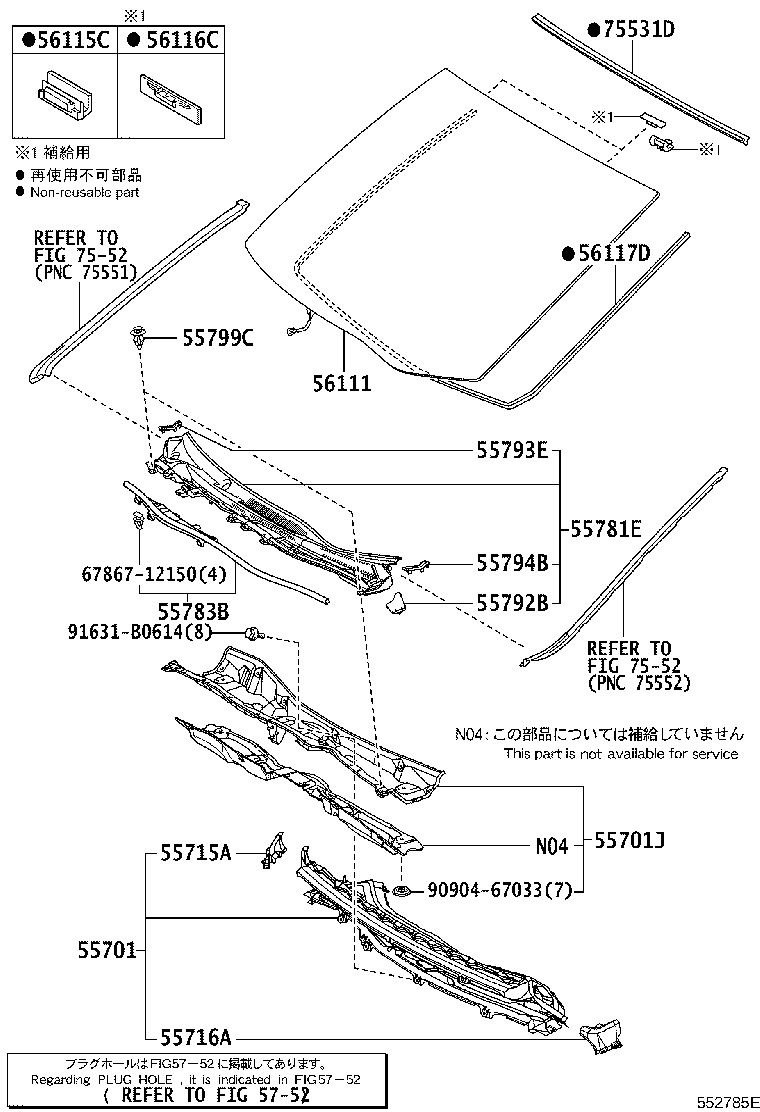

| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-58021 |
ANH2#,GGH2#..CBU |
1 | ||
| 55700-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 55701J - PANEL SUB-ASSY, COWL TOP, OUTER | ||||
| 55701-58033 |
ANH2#,GGH2#..CBU |
1 | ||
| 55701-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 55715A - BRACE, COWL TOP TO APRON, RH | ||||
| 55715-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 55715-58011 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 55716A - BRACE, COWL TOP TO APRON, LH | ||||
| 55716-58011 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 55716-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-58070 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 55708-58050 |
ANH2#,GGH2#..CBU |
1 | ||
| 55708-58060 |
ANH2#,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 55708-58080 |
ANH2#,ATH20,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1 | ||||
| 55709-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 55709-58010 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 55792B - COVER, COWL REINFORCEMENT, UPPER LH | ||||
| 55792-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 55792-58010 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 55793E - COVER, COWL REINFORCEMENT, UPPER NO.2 RH | ||||
| 55793-58030 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 55794B - COVER, COWL REINFORCEMENT, UPPER NO.2 LH | ||||
| 55794-58040 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 55799C - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 55799-28020 |
ANH2#,GGH2#..CBU |
2 | ||
| 55799-28020 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-58903 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ |
1 | ||
| 56101-58905 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,寒冷地仕様 |
1 | ||
| 56101-58906 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,寒冷地仕様&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56101-58910 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ,ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56101-58907 |
GGH2#..(350G,35V)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚ[ﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56101-58909 |
GGH2#..(350G,35V)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞ戟[ｷ制御付き) |
1 | ||
| 56101-58907 |
GGH2#..(350G,35V)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚ[ﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 56101-58909 |
GGH2#..(350G,35V)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞ戟[ｷ制御付き)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56101-58937 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚ[ﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 56101-58934 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ |
1 | ||
| 56101-58935 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,寒冷地仕様 |
1 | ||
| 56101-58936 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,寒冷地仕様&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56101-58938 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞ戟[ｷ制御付き) |
1 | ||
| 56101-58938 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞ戟[ｷ制御付き)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56101-58937 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚ[ﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56101-58939 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ,ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56101-58944 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ |
1 | ||
| 56101-58949 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚ[ﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 56101-58948 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,寒冷地仕様&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56101-58947 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,寒冷地仕様 |
1 | ||
| 56101-58949 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚ[ﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56101-58952 |
ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ,ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56101-58951 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞ戟[ｷ制御付き)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56101-58951 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞ戟[ｷ制御付き) |
1 | ||
| 56115C - STOPPER, WINDSHIELD GLASS | ||||
| 56115-30100 |
ANH2#,GGH2#..CBU |
2 | ||
| 56115-30100 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
ANH2#,GGH2#..CBU |
2 | ||
| 56116-22050 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 56117D - DAM, WINDSHIELD GLASS ADHESIVE | ||||
| 56117-58020 |
ANH2#,GGH2#..CBU 長さ=3408 |
1 | ||
| 56117-58020 |
ANH2#,GGH2#..CBU 長さ=3408,寒冷地仕様 |
1 | ||
| 56117-58020 |
GGH2#..(350G,35V)..CBU 長さ=3408,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&fｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56117-58020 |
GGH2#..(350G,35V)..CBU 長さ=3408,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 56117-58020 |
GGH2#..(350G,35V)..CBU 長さ=3408,寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷｧ御付き) |
1 | ||
| 56117-58020 |
GGH2#..(350G,35V)..CBU 長さ=3408,寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷｧ御付き)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56117-58020 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) 長さ=3408,寒冷地仕様&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56117-58020 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) 長さ=3408,ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56117-58020 |
ANH2#,ATH20,GGH2#..CBU 長さ=3408 |
1 | ||
| 56117-58020 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU 長さ=3408,寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷｧ御付き) |
1 | ||
| 56117-58020 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU 長さ=3408,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 56117-58020 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU 長さ=3408,寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷｧ御付き)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56117-58020 |
ANH2#,ATH20,GGH2#..CBU 長さ=3408,寒冷地仕様 |
1 | ||
| 56117-58020 |
ANH2#,ATH20,GGH2#..CBU 長さ=3408,寒冷地仕様&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56117-58020 |
ATH20,GGH2#..(350G,35V,HBDG,HBDSR,HBDV,HBDZR)..CBU 長さ=3408,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&fｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56117-58020 |
ANH2#,ATH20,GGH2#..CBU 長さ=3408,ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 75531D - MOULDING, WINDSHIELD, OUTSIDE UPPER | ||||
| 75531-58011 |
ANH2#,GGH2#..CBU |
1 | ||
| 75531-58011 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 67867-12150 | ||||
| 90904-67033 | ||||
| 91631-B0614 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 7552 | ||||
