GGH25W-NFTQK (2011)
Toyota Alphard/Vellfire/Hv

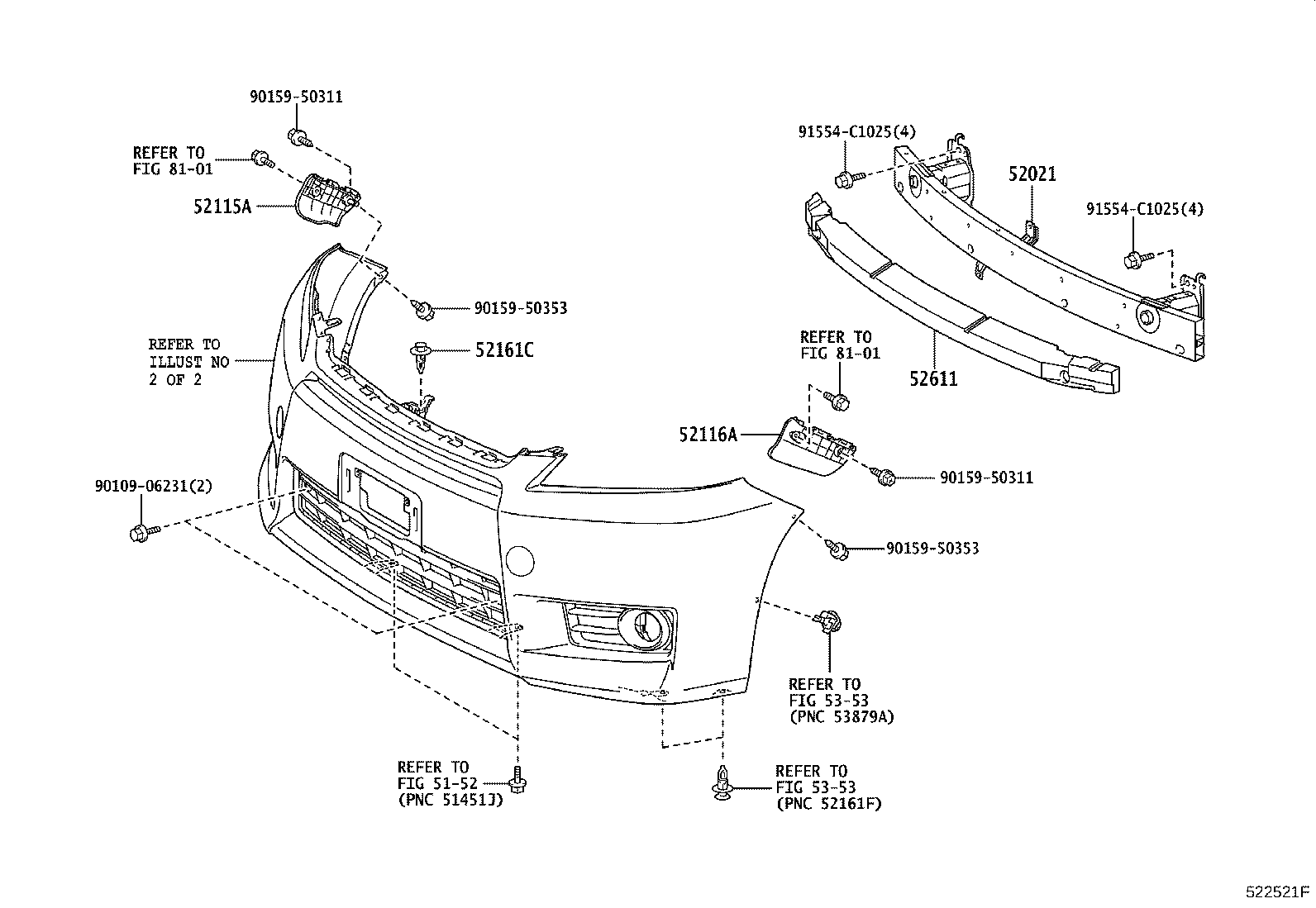

ILLUST NO. 1 OF 2(1110- )VFIRE..24V,24X,35V,HBDV,HBDX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 52021-58020 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-58030 |
ANH2#,GGH2#..VFIRE..CBU |
1 | ||
| 52115-58050 |
ANH2#,ATH20,GGH2#..VFIRE..CBU |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-58030 |
ANH2#,GGH2#..VFIRE..CBU |
1 | ||
| 52116-58050 |
ANH2#,ATH20,GGH2#..VFIRE..CBU |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANH2#,GGH2#..VFIRE..CBU |
1 | ||
| 52161-16010 |
ANH2#,ATH20,GGH2#..VFIRE..CBU |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 52611-58030 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 90109-06231 | ||||
| 90159-50311 | ||||
| 90159-50353 | ||||
| 91554-C1025 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5353 | ||||
| 8101 | ||||

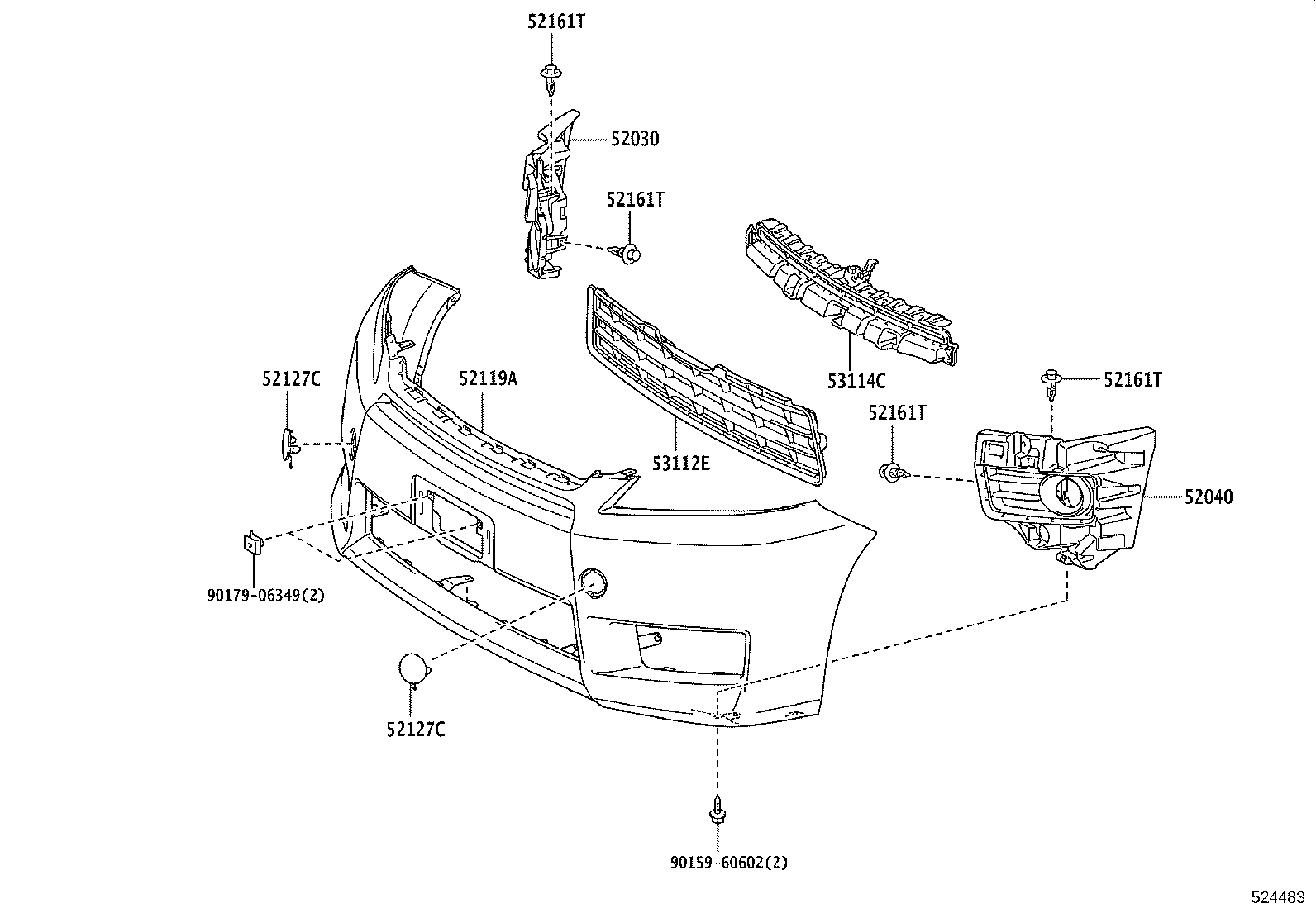

ILLUST NO. 2 OF 2(1110- )VFIRE..24V,24X,35V,HBDV,HBDX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 52030-58030 |
ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU ﾒｯｷ |
1 | ||
| 52040 - COVER ASSY, FRONT BUMPER HOLE, LH | ||||
| 52040-58030 |
ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU ﾒｯｷ |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-58230C0 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU BLACK,202 |
1 | ||
| 52119-58230A0 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52119-58230E0 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU BEIGE ME.,4T8 |
1 | ||
| 52119-58240C0 |
ANH25..07S..24V;ANH25..08S..(24V,24X)..CBU;ANH20,GGH2#..(24V,24X,35V,35X)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),BLACK,202 |
1 | ||
| 52119-58230D0 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52119-58240A0 |
ANH25..07S..24V;ANH25..08S..(24V,24X)..CBU;ANH20,GGH2#..(24V,24X,35V,35X)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 52119-58240B0 |
ANH25..07S..24V;ANH25..08S..(24V,24X)..CBU;ANH20,GGH2#..(24V,24X,35V,35X)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),SILVER ME.,1F7 |
1 | ||
| 52119-58230B0 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU SILVER ME.,1F7 |
1 | ||
| 52119-58240E0 |
ANH25..07S..24V;ANH25..08S..(24V,24X)..CBU;ANH20,GGH2#..(24V,24X,35V,35X)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),BEIGE ME.,4T8 |
1 | ||
| 52119-58240D0 |
ANH25..07S..24V;ANH25..08S..(24V,24X)..CBU;ANH20,GGH2#..(24V,24X,35V,35X)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),DEEP RED M.M.,3R9 |
1 | ||
| 52119-58380D0 |
ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52119-58380B1 |
ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU SILVER ME.,1F7 |
1 | ||
| 52119-58380C0 |
ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU BLACK,202 |
1 | ||
| 52119-58380J0 |
ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
1 | ||
| 52119-58380A0 |
ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-58110C0 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU BLACK,202 |
1 | ||
| 52127-58110B0 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU SILVER ME.,1F7 |
1 | ||
| 52127-58110E0 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU BEIGE ME.,4T8 |
1 | ||
| 52127-58110D0 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52127-58110A0 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52127-58210B1 |
ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU SILVER ME.,1F7 |
2 | ||
| 52127-58210D0 |
ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU DEEP RED M.M.,3R9 |
2 | ||
| 52127-58210J0 |
ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
2 | ||
| 52127-58210A0 |
ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU WHITE PEARL CS.,070 |
2 | ||
| 52127-58210C0 |
ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU BLACK,202 |
2 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-58110C0 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU BLACK,202 |
1 | ||
| 52127-58110B0 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU SILVER ME.,1F7 |
1 | ||
| 52127-58110E0 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU BEIGE ME.,4T8 |
1 | ||
| 52127-58110D0 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52127-58110A0 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52127-58210B1 |
ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU SILVER ME.,1F7 |
2 | ||
| 52127-58210D0 |
ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU DEEP RED M.M.,3R9 |
2 | ||
| 52127-58210J0 |
ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
2 | ||
| 52127-58210A0 |
ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU WHITE PEARL CS.,070 |
2 | ||
| 52127-58210C0 |
ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU BLACK,202 |
2 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANH2#,ATH20,GGH2#..CBU |
4 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANH2#,ATH20,GGH2#..CBU |
4 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANH2#,ATH20,GGH2#..CBU |
4 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANH2#,ATH20,GGH2#..CBU |
4 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-58090 |
ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU 塗装不要 |
1 | ||
| 53114C - GRILLE, RADIATOR, INNER | ||||
| 53114-58020 |
ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU |
1 | ||
| Common parts | ||||
| 90159-60602 | ||||
| 90179-06349 | ||||
