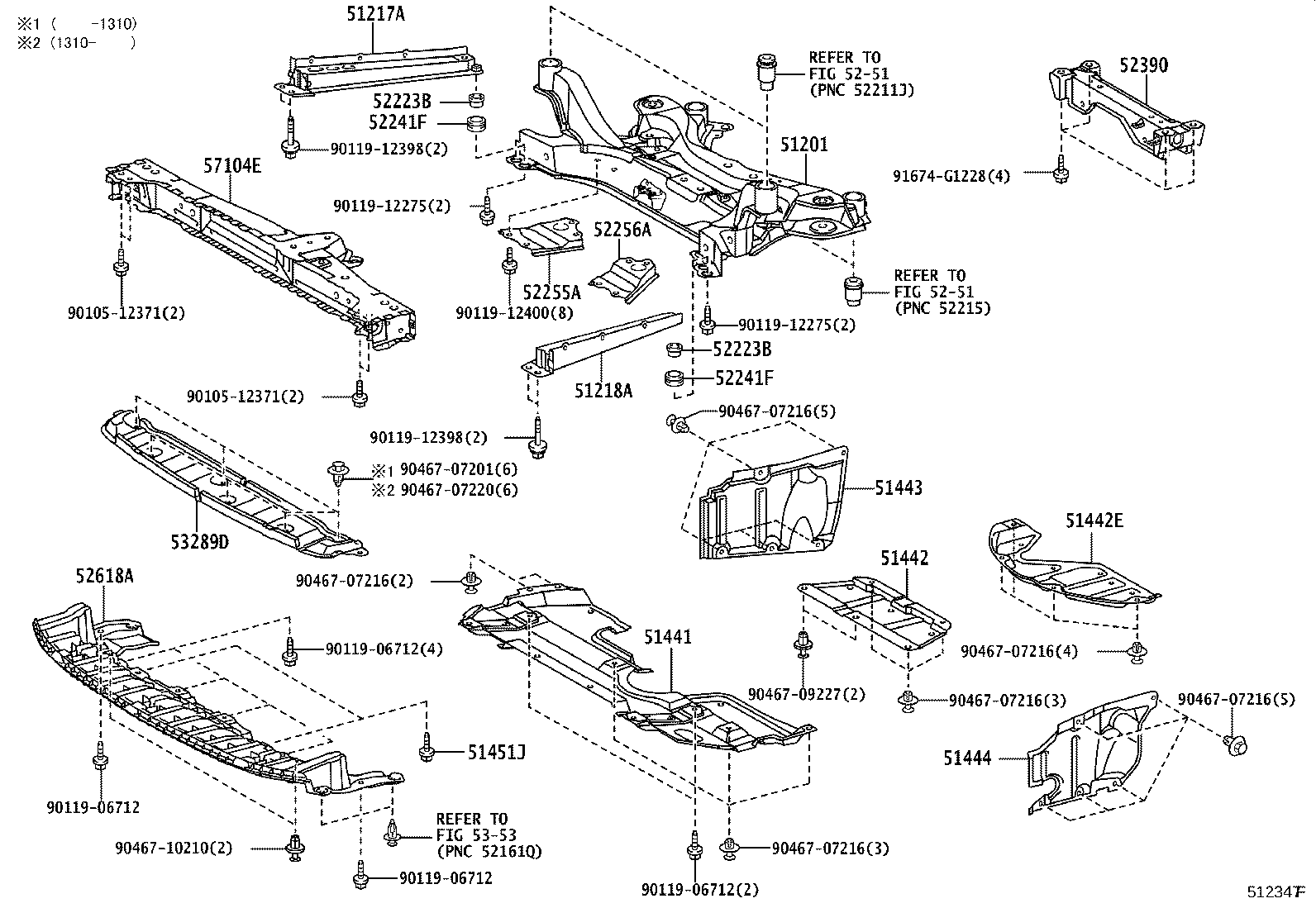

Toyota Alphard/vellfire/hv GGH25 SUSPENSION CROSSMEMBER & UNDER COVER

Part #	Description	Period	Qty
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-28281	ANH2#,ATH20,GGH2#..CBU	10/2011 - 01/2015	1
51201-28281	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH
51107-28020	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
51107-28020	ANH2#,GGH2#..CBU	10/2011 - 01/2015	1
51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH
51108-28040	ANH2#,GGH2#..CBU	10/2011 - 12/2999	1
51108-28040	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
51441 - COVER, ENGINE UNDER, NO.1
51441-12230	ANH2#,ATH20,GGH2#..CBU	10/2011 - 04/2014	1
51441-12230	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
51441-12270	ANH2#,ATH20,GGH2#..CBU	04/2014 - 12/2999	1
51442 - COVER, ENGINE UNDER, NO.2
51442-42080	ANH2#,ATH20,GGH2#..CBU	10/2011 - 09/2013	1
51442-12270	ANH2#,ATH20,GGH2#..CBU	10/2013 - 12/2999	1
51442-42080	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
51442E - COVER, ENGINE UNDER, NO.2
51442-12210	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
51442-12210	ANH2#,ATH20,GGH2#..CBU	10/2011 - 12/2999	1
51443 - COVER, ENGINE UNDER, REAR RH
51443-12080	ANH2#,GGH2#..CBU	04/2008 - 11/2009	1
51443-58010	ANH2#,GGH2#..CBU	10/2011 - 12/2999	1
51444 - COVER, ENGINE UNDER, REAR LH
51444-58010	ANH2#,GGH2#..CBU	10/2011 - 12/2999	1
51444-28040	ANH2#,GGH2#..CBU	04/2008 - 11/2009	1
51451J - BOLT, NO.1
90119-06712	ANH2#,GGH2#..CBU	04/2008 - 10/2011	2
90119-06712	ANH2#,ATH20,GGH2#..CBU	10/2011 - 01/2015	2
52223B - SPACER, FRONT SUSPENSION MEMBER MOUNTIONG, LOWER
52223-28010	ANH2#,GGH2#..CBU	04/2008 - 10/2011	4
52223-28010	ANH2#,ATH20,GGH2#..CBU	10/2011 - 12/2999	4
52223B - SPACER, FRONT SUSPENSION MEMBER MOUNTIONG, LOWER
52223-28010	ANH2#,GGH2#..CBU	04/2008 - 10/2011	4
52223-28010	ANH2#,ATH20,GGH2#..CBU	10/2011 - 12/2999	4
52241F - CUSHION, FRONT SUSPENSION MEMBER MOUNTING, LWR
52241-28010	ANH2#,ATH20,GGH2#..CBU	10/2011 - 12/2999	4
52241-28010	ANH2#,GGH2#..CBU	04/2008 - 10/2011	4
52241F - CUSHION, FRONT SUSPENSION MEMBER MOUNTING, LWR
52241-28010	ANH2#,ATH20,GGH2#..CBU	10/2011 - 12/2999	4
52241-28010	ANH2#,GGH2#..CBU	04/2008 - 10/2011	4
52255A - BRACE, FRONT SUSPENSION MEMBER, FRONT RH
52255-28030	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
52255-28030	ANH2#,ATH20,GGH2#..CBU	10/2011 - 12/2999	1
52256A - BRACE, FRONT SUSPENSION MEMBER, FRONT LH
52256-28030	ANH2#,ATH20,GGH2#..CBU	10/2011 - 12/2999	1
52256-28030	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
52390 - SUPPORT ASSY, FRONT DIFFERENTIAL, REAR
52390-58020	ANH25,GGH25	10/2011 - 12/2999	1
52390-58020	ANH25,GGH25	04/2008 - 10/2011	1
52618A - ABSORBER, FRONT BUMPER, LOWER
52618-58010	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
52618-58011	ANH2#,ATH20,GGH2#..CBU	04/2014 - 12/2999	1
52618-58010	ANH2#,ATH20,GGH2#..CBU	10/2011 - 04/2014	1
53289D - COVER, RADIATOR SUPPORT OPENING
53289-58050	ANH2#,ATH20,GGH2#..CBU	10/2011 - 12/2999	1
57104E - MEMBER SUB-ASSY, FRONT CROSS
57104-12270	ANH2#,ATH20,GGH2#..CBU	10/2011 - 12/2999	1
57104-12270	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
Common parts
90105-12371
90119-06712
90119-12275
90119-12398
90119-12400
90467-07201
90467-07216
90467-07220
90467-09227
90467-10210
91674-G1228
Linked diagrams
5251
5353

GGH25W-NFTQK (2011)

(1110- )ANH25,GGH25
