GGH20W-PRTGK (2008)
Toyota Alphard/Vellfire/Hv

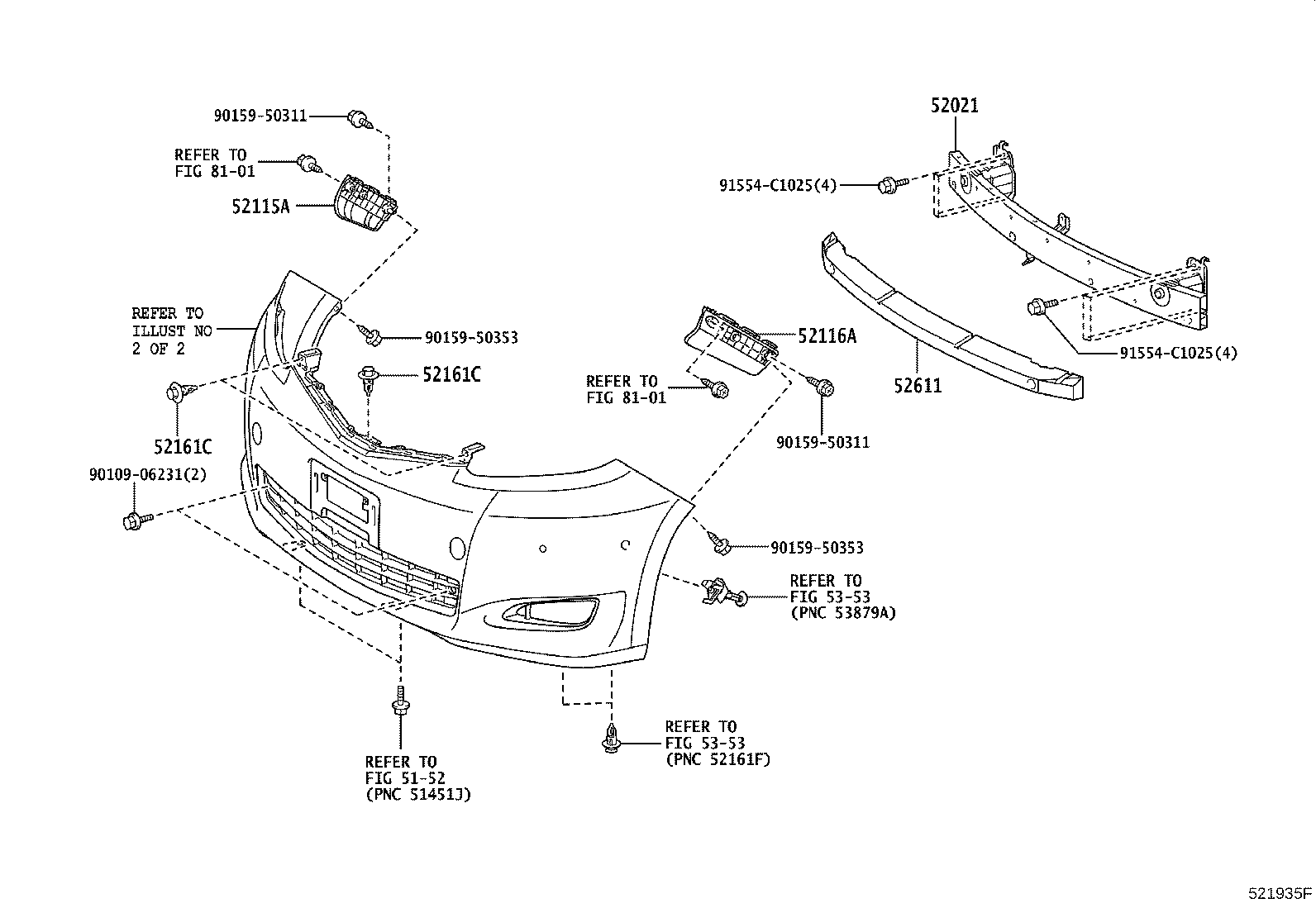

ILLUST NO. 1 OF 2(0804-1110)240G,240X,350G,350X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-58020 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-58020 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANH2#,GGH2#..ALPHD..CBU |
3 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANH2#,GGH2#..ALPHD..CBU |
3 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 90109-06231 | ||||
| 90159-50311 | ||||
| 90159-50353 | ||||
| 91554-C1025 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5353 | ||||
| 8101 | ||||

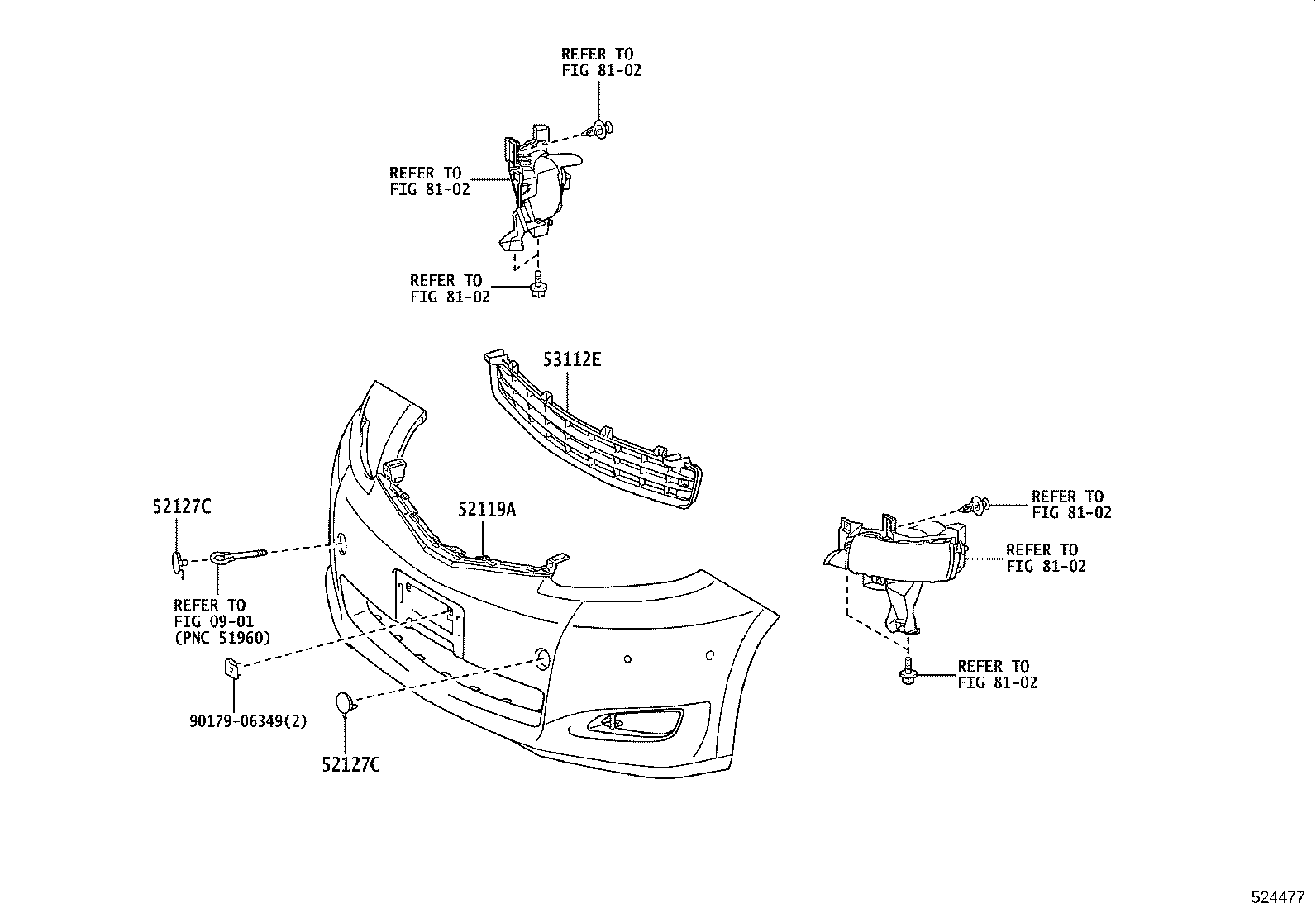

ILLUST NO. 2 OF 2(0804-1110)240G,240X,350G,350X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-58170J0 |
ANH2#,GGH2#..(240G,240X,350G,350X)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 52119-58170C0 |
ANH2#,GGH2#..(240G,240X,350G,350X)..CBU BLACK,202 |
1 | ||
| 52119-58190B0 |
ANH25..240G..CBU;ANH25..08S..240X..CBU;ANH20,GGH2#..(240G,240X,350G,350X)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),SILVER ME.,1F7 |
1 | ||
| 52119-58190J0 |
ANH25..240G..CBU;ANH25..08S..240X..CBU;ANH20,GGH2#..(240G,240X,350G,350X)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),DK.BLUE MC.,8S6 |
1 | ||
| 52119-58170E0 |
ANH2#,GGH2#..(240G,240X,350G,350X)..CBU BEIGE ME.,4T8 |
1 | ||
| 52119-58170E1 |
ANH2#,GGH2#..(240G,240X,350G,350X)..CBU GOLD PEARL CS.,4U1 |
1 | ||
| 52119-58190E0 |
ANH25..240G..CBU;ANH25..08S..240X..CBU;ANH20,GGH2#..(240G,240X,350G,350X)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),BEIGE ME.,4T8 |
1 | ||
| 52119-58170B0 |
ANH2#,GGH2#..(240G,240X,350G,350X)..CBU SILVER ME.,1F7 |
1 | ||
| 52119-58170A0 |
ANH2#,GGH2#..(240G,240X,350G,350X)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52119-58190E1 |
ANH25..240G..CBU;ANH25..08S..240X..CBU;ANH20,GGH2#..(240G,240X,350G,350X)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),GOLD PEARL CS.,4U1 |
1 | ||
| 52119-58190A0 |
ANH25..240G..CBU;ANH25..08S..240X..CBU;ANH20,GGH2#..(240G,240X,350G,350X)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 52119-58190C0 |
ANH25..240G..CBU;ANH25..08S..240X..CBU;ANH20,GGH2#..(240G,240X,350G,350X)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),BLACK,202 |
1 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-58090A0 |
ANH2#,GGH2#..(240G,240X,350G,350X)..CBU WHITE PEARL CS.,070 |
2 | ||
| 52127-58090C0 |
ANH2#,GGH2#..(240G,240X,350G,350X)..CBU BLACK,202 |
2 | ||
| 52127-58090E1 |
ANH2#,GGH2#..(240G,240X,350G,350X)..CBU GOLD PEARL CS.,4U1 |
2 | ||
| 52127-58090J0 |
ANH2#,GGH2#..(240G,240X,350G,350X)..CBU DK.BLUE MC.,8S6 |
2 | ||
| 52127-58090E0 |
ANH2#,GGH2#..(240G,240X,350G,350X)..CBU BEIGE ME.,4T8 |
2 | ||
| 52127-58090B0 |
ANH2#,GGH2#..(240G,240X,350G,350X)..CBU SILVER ME.,1F7 |
2 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-58090A0 |
ANH2#,GGH2#..(240G,240X,350G,350X)..CBU WHITE PEARL CS.,070 |
2 | ||
| 52127-58090C0 |
ANH2#,GGH2#..(240G,240X,350G,350X)..CBU BLACK,202 |
2 | ||
| 52127-58090E1 |
ANH2#,GGH2#..(240G,240X,350G,350X)..CBU GOLD PEARL CS.,4U1 |
2 | ||
| 52127-58090J0 |
ANH2#,GGH2#..(240G,240X,350G,350X)..CBU DK.BLUE MC.,8S6 |
2 | ||
| 52127-58090E0 |
ANH2#,GGH2#..(240G,240X,350G,350X)..CBU BEIGE ME.,4T8 |
2 | ||
| 52127-58090B0 |
ANH2#,GGH2#..(240G,240X,350G,350X)..CBU SILVER ME.,1F7 |
2 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-58010 |
ANH2#,GGH2#..(240G,240X,350G,350X)..CBU 塗装不要 |
1 | ||
| Common parts | ||||
| 90179-06349 | ||||
| Linked diagrams | ||||
| 0901 | ||||
| 8102 | ||||
