GGH20W-PFTSK (2011)
Toyota Alphard/Vellfire/Hv

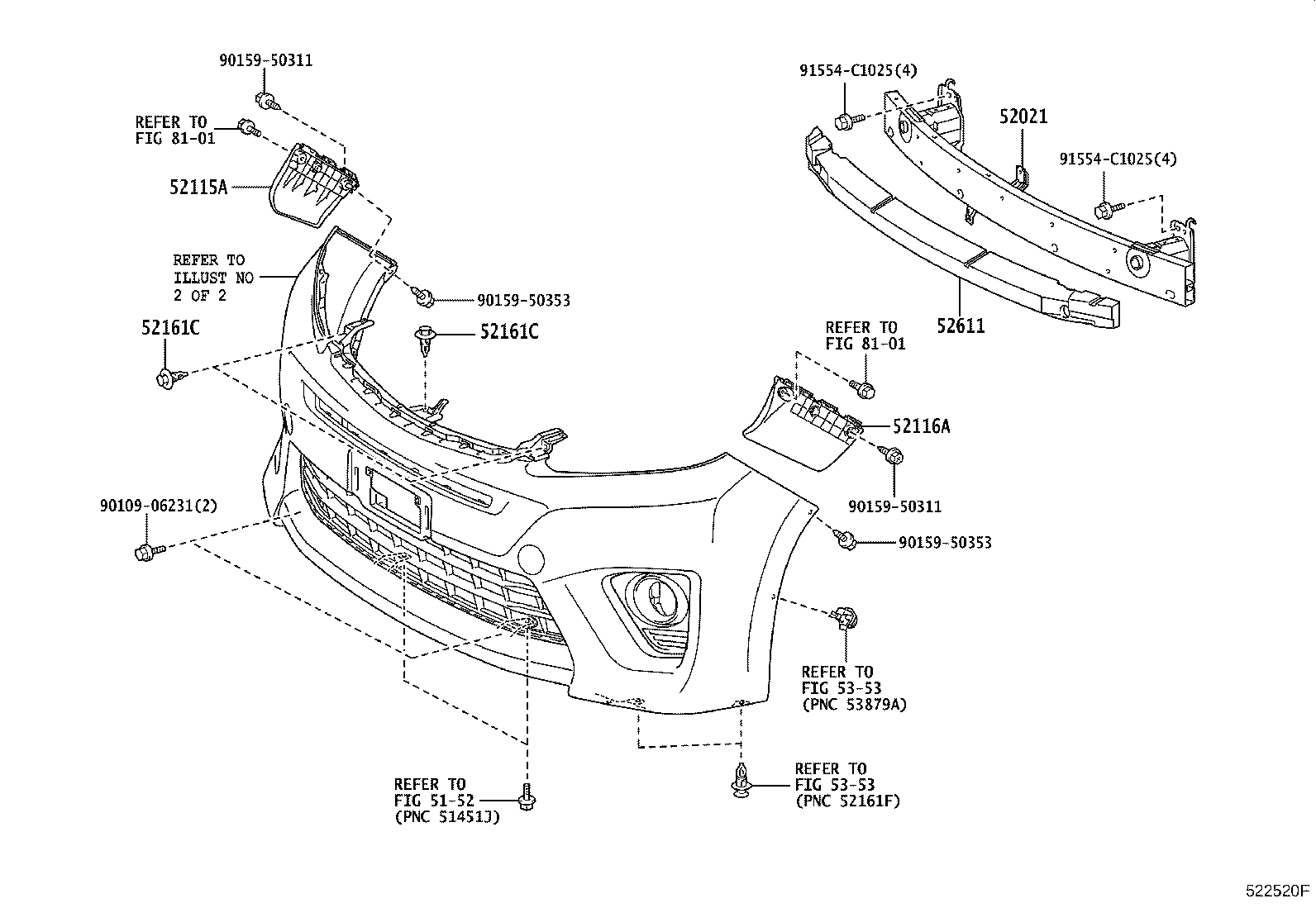

ILLUST NO. 1 OF 2(1110- )240S,350S,HBDSR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 52021-58020 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-58020 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 52115-58040 |
ANH2#,ATH20,GGH2#..ALPHD..CBU |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-58040 |
ANH2#,ATH20,GGH2#..ALPHD..CBU |
1 | ||
| 52116-58020 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANH2#,ATH20,GGH2#..ALPHD..CBU |
3 | ||
| 52161-16010 |
ANH2#,GGH2#..ALPHD..CBU |
3 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANH2#,ATH20,GGH2#..ALPHD..CBU |
3 | ||
| 52161-16010 |
ANH2#,GGH2#..ALPHD..CBU |
3 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 52611-58030 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 90109-06231 | ||||
| 90159-50311 | ||||
| 90159-50353 | ||||
| 91554-C1025 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5353 | ||||
| 8101 | ||||

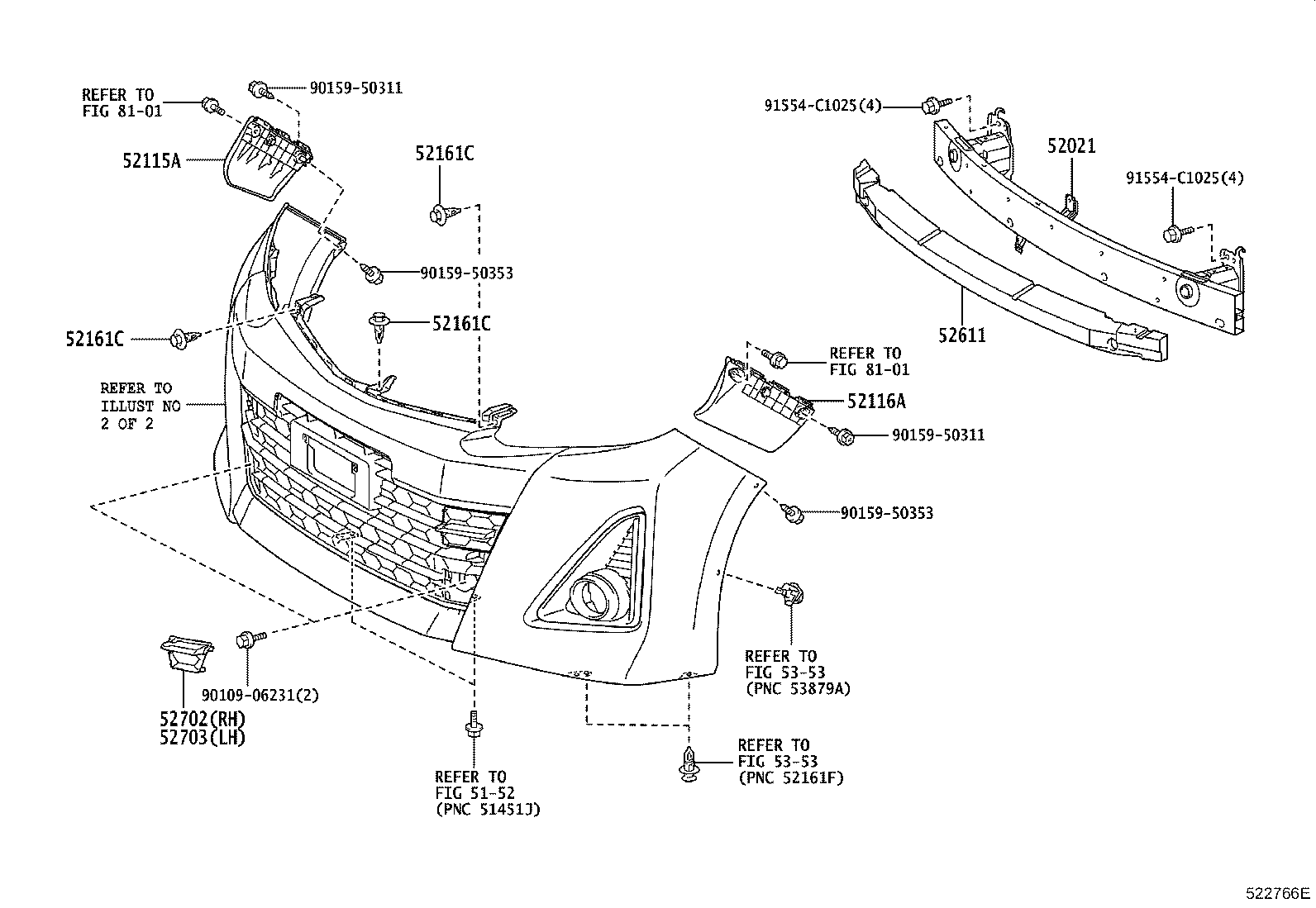

ILLUST NO. 1 OF 2(1211- )ANH20,GGH20..07S..240S,350S
G'S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 52021-58020 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-58020 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 52115-58040 |
ANH2#,ATH20,GGH2#..ALPHD..CBU |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-58040 |
ANH2#,ATH20,GGH2#..ALPHD..CBU |
1 | ||
| 52116-58020 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANH2#,ATH20,GGH2#..ALPHD..CBU |
3 | ||
| 52161-16010 |
ANH2#,GGH2#..ALPHD..CBU |
3 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANH2#,ATH20,GGH2#..ALPHD..CBU |
3 | ||
| 52161-16010 |
ANH2#,GGH2#..ALPHD..CBU |
3 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANH2#,ATH20,GGH2#..ALPHD..CBU |
3 | ||
| 52161-16010 |
ANH2#,GGH2#..ALPHD..CBU |
3 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 52611-58030 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 52702 - MOULDING SUB-ASSY, FRONT BUMPER SIDE, RH | ||||
| 52702-58010 |
ANH20,GGH20..07S..(240S,350S)..CBU G’s |
1 | ||
| 52703 - MOULDING SUB-ASSY, FRONT BUMPER SIDE, LH | ||||
| 52703-58010 |
ANH20,GGH20..07S..(240S,350S)..CBU G’s |
1 | ||
| Common parts | ||||
| 90109-06231 | ||||
| 90159-50311 | ||||
| 90159-50353 | ||||
| 91554-C1025 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5353 | ||||
| 8101 | ||||

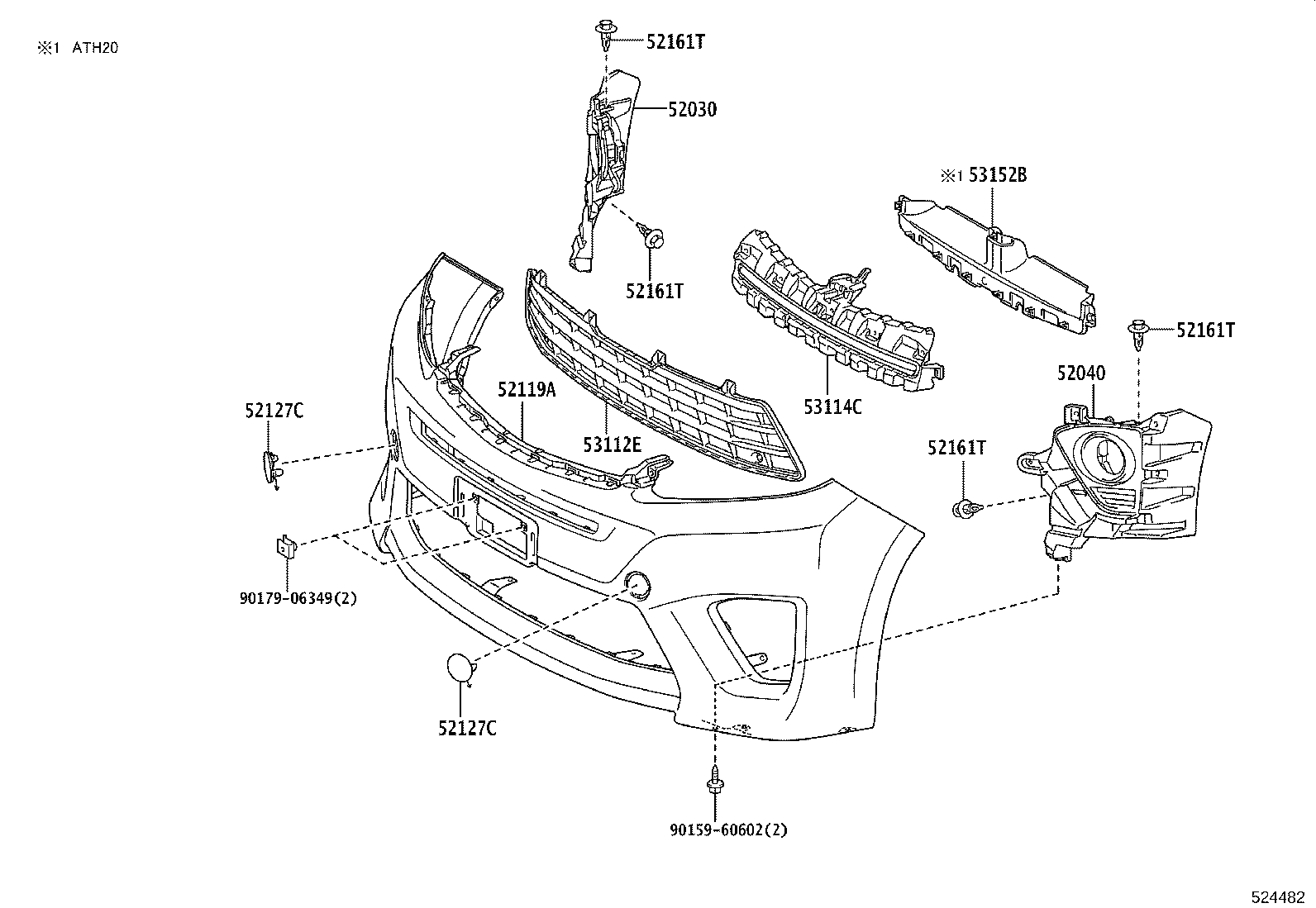

ILLUST NO. 2 OF 2(1110- )240S,350S,HBDSR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 52030-58060 |
ANH2#,GGH2#..07S..(240S,350S)..CBU ﾒｯｷ,*365 or *366 |
1 | ||
| 52030-58080 |
ANH20,GGH20..07S..(240S,350S)..CBU ﾒｯｷ,G’s |
1 | ||
| 52030-58020 |
ANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU ﾒｯｷ |
1 | ||
| 52040 - COVER ASSY, FRONT BUMPER HOLE, LH | ||||
| 52040-58020 |
ANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU ﾒｯｷ |
1 | ||
| 52040-58080 |
ANH20,GGH20..07S..(240S,350S)..CBU ﾒｯｷ,G’s |
1 | ||
| 52040-58060 |
ANH2#,GGH2#..07S..(240S,350S)..CBU ﾒｯｷ,*365 or *366 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-58200J0 |
ANH2#,GGH2#..(240S,350S)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 52119-58200A0 |
ANH2#,GGH2#..(240S,350S)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52119-58220C0 |
ANH2#,GGH2#..(240S,350S)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),BLACK,202 |
1 | ||
| 52119-58200C0 |
ANH2#,GGH2#..(240S,350S)..CBU BLACK,202 |
1 | ||
| 52119-58200B0 |
ANH2#,GGH2#..(240S,350S)..CBU SILVER ME.,1E4 |
1 | ||
| 52119-58220B0 |
ANH2#,GGH2#..(240S,350S)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),SILVER ME.,1E4 |
1 | ||
| 52119-58220A0 |
ANH2#,GGH2#..(240S,350S)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 52119-58220E0 |
ANH2#,GGH2#..(240S,350S)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),GOLD PEARL CS.,4U1 |
1 | ||
| 52119-58220J0 |
ANH2#,GGH2#..(240S,350S)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),DK.BLUE MC.,8S6 |
1 | ||
| 52119-58200E0 |
ANH2#,GGH2#..(240S,350S)..CBU GOLD PEARL CS.,4U1 |
1 | ||
| 52119-58360B0 |
ANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU SILVER ME.,1E4 |
1 | ||
| 52119-58360A0 |
ANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52119-58360C0 |
ANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU BLACK,202 |
1 | ||
| 52119-58360K0 |
ANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU DK.VIOLET M.M.,9AF |
1 | ||
| 52119-58420B0 |
ANH20,GGH20..07S..(240S,350S)..CBU G’s,SILVER ME.,1E4 |
1 | ||
| 52119-58360E0 |
ANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU GOLD PEARL CS.,4U1 |
1 | ||
| 52119-58420A0 |
ANH20,GGH20..07S..(240S,350S)..CBU G’s,WHITE PEARL CS.,070 |
1 | ||
| 52119-58420E0 |
ANH20,GGH20..07S..(240S,350S)..CBU G’s,GOLD PEARL CS.,4U1 |
1 | ||
| 52119-58420K0 |
ANH20,GGH20..07S..(240S,350S)..CBU G’s,DK.VIOLET M.M.,9AF |
1 | ||
| 52119-58420C0 |
ANH20,GGH20..07S..(240S,350S)..CBU G’s,BLACK,202 |
1 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-58100B0 |
ANH2#,GGH2#..(240S,350S)..CBU SILVER ME.,1E4 |
2 | ||
| 52127-58100C0 |
ANH2#,GGH2#..(240S,350S)..CBU BLACK,202 |
2 | ||
| 52127-58100E0 |
ANH2#,GGH2#..(240S,350S)..CBU GOLD PEARL CS.,4U1 |
2 | ||
| 52127-58100A0 |
ANH2#,GGH2#..(240S,350S)..CBU WHITE PEARL CS.,070 |
2 | ||
| 52127-58100J0 |
ANH2#,GGH2#..(240S,350S)..CBU DK.BLUE MC.,8S6 |
2 | ||
| 52127-58200E0 |
ANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU GOLD PEARL CS.,4U1 |
2 | ||
| 52127-58200C0 |
ANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU BLACK,202 |
2 | ||
| 52127-58200A0 |
ANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU WHITE PEARL CS.,070 |
2 | ||
| 52127-58200K0 |
ANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU DK.VIOLET M.M.,9AF |
2 | ||
| 52127-58200B0 |
ANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU SILVER ME.,1E4 |
2 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-58100B0 |
ANH2#,GGH2#..(240S,350S)..CBU SILVER ME.,1E4 |
2 | ||
| 52127-58100C0 |
ANH2#,GGH2#..(240S,350S)..CBU BLACK,202 |
2 | ||
| 52127-58100E0 |
ANH2#,GGH2#..(240S,350S)..CBU GOLD PEARL CS.,4U1 |
2 | ||
| 52127-58100A0 |
ANH2#,GGH2#..(240S,350S)..CBU WHITE PEARL CS.,070 |
2 | ||
| 52127-58100J0 |
ANH2#,GGH2#..(240S,350S)..CBU DK.BLUE MC.,8S6 |
2 | ||
| 52127-58200E0 |
ANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU GOLD PEARL CS.,4U1 |
2 | ||
| 52127-58200C0 |
ANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU BLACK,202 |
2 | ||
| 52127-58200A0 |
ANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU WHITE PEARL CS.,070 |
2 | ||
| 52127-58200K0 |
ANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU DK.VIOLET M.M.,9AF |
2 | ||
| 52127-58200B0 |
ANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU SILVER ME.,1E4 |
2 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANH2#,ATH20,GGH2#..CBU |
4 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANH2#,ATH20,GGH2#..CBU |
4 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANH2#,ATH20,GGH2#..CBU |
4 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANH2#,ATH20,GGH2#..CBU |
4 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-58020 |
ANH2#,GGH2#..(240S,350S)..CBU 塗装不要 |
1 | ||
| 53112-58080 |
ANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU 塗装不要 |
1 | ||
| 53103-58040 |
ANH20,GGH20..07S..(240S,350S)..CBU ﾒｯｷ,G’s |
1 | ||
| 53114C - GRILLE, RADIATOR, INNER | ||||
| 53103-58030 |
ANH2#,GGH2#..07S..(240S,350S)..CBU *365 or *366 |
1 | ||
| 53103-58010 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| Common parts | ||||
| 90159-60602 | ||||
| 90179-06349 | ||||

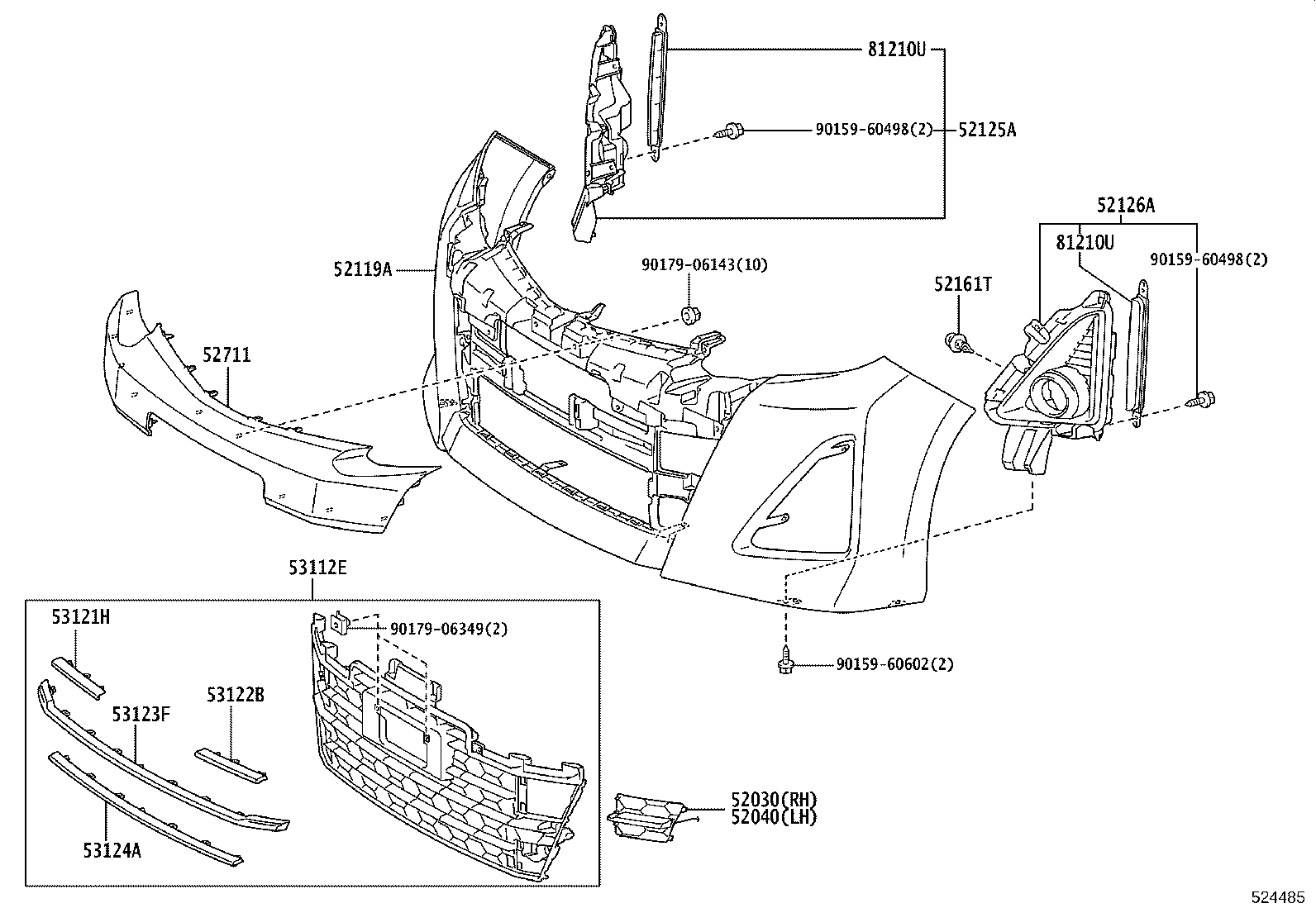

ILLUST NO. 2 OF 2(1211- )ANH20,GGH20..07S..240S,350S
G'S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 52030-58060 |
ANH2#,GGH2#..07S..(240S,350S)..CBU ﾒｯｷ,*365 or *366 |
1 | ||
| 52030-58080 |
ANH20,GGH20..07S..(240S,350S)..CBU ﾒｯｷ,G’s |
1 | ||
| 52030-58020 |
ANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU ﾒｯｷ |
1 | ||
| 52040 - COVER ASSY, FRONT BUMPER HOLE, LH | ||||
| 52040-58020 |
ANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU ﾒｯｷ |
1 | ||
| 52040-58080 |
ANH20,GGH20..07S..(240S,350S)..CBU ﾒｯｷ,G’s |
1 | ||
| 52040-58060 |
ANH2#,GGH2#..07S..(240S,350S)..CBU ﾒｯｷ,*365 or *366 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-58200A0 |
ANH2#,GGH2#..(240S,350S)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52119-58200J0 |
ANH2#,GGH2#..(240S,350S)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 52119-58220C0 |
ANH2#,GGH2#..(240S,350S)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),BLACK,202 |
1 | ||
| 52119-58200C0 |
ANH2#,GGH2#..(240S,350S)..CBU BLACK,202 |
1 | ||
| 52119-58200B0 |
ANH2#,GGH2#..(240S,350S)..CBU SILVER ME.,1E4 |
1 | ||
| 52119-58220B0 |
ANH2#,GGH2#..(240S,350S)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),SILVER ME.,1E4 |
1 | ||
| 52119-58220A0 |
ANH2#,GGH2#..(240S,350S)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 52119-58220E0 |
ANH2#,GGH2#..(240S,350S)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),GOLD PEARL CS.,4U1 |
1 | ||
| 52119-58220J0 |
ANH2#,GGH2#..(240S,350S)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),DK.BLUE MC.,8S6 |
1 | ||
| 52119-58200E0 |
ANH2#,GGH2#..(240S,350S)..CBU GOLD PEARL CS.,4U1 |
1 | ||
| 52119-58360B0 |
ANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU SILVER ME.,1E4 |
1 | ||
| 52119-58360A0 |
ANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52119-58360C0 |
ANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU BLACK,202 |
1 | ||
| 52119-58360K0 |
ANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU DK.VIOLET M.M.,9AF |
1 | ||
| 52119-58420B0 |
ANH20,GGH20..07S..(240S,350S)..CBU G’s,SILVER ME.,1E4 |
1 | ||
| 52119-58360E0 |
ANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU GOLD PEARL CS.,4U1 |
1 | ||
| 52119-58420A0 |
ANH20,GGH20..07S..(240S,350S)..CBU G’s,WHITE PEARL CS.,070 |
1 | ||
| 52119-58420E0 |
ANH20,GGH20..07S..(240S,350S)..CBU G’s,GOLD PEARL CS.,4U1 |
1 | ||
| 52119-58420K0 |
ANH20,GGH20..07S..(240S,350S)..CBU G’s,DK.VIOLET M.M.,9AF |
1 | ||
| 52119-58420C0 |
ANH20,GGH20..07S..(240S,350S)..CBU G’s,BLACK,202 |
1 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 54180-58010 |
ANH20,GGH20..07S..(240S,350S)..CBU G’s |
1 | ||
| 52126A - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 54190-58010 |
ANH20,GGH20..07S..(240S,350S)..CBU G’s |
1 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANH2#,ATH20,GGH2#..CBU |
4 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-58040 |
ANH20,GGH20..07S..(240S,350S)..CBU ﾒｯｷ,G’s |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-58020 |
ANH2#,GGH2#..(240S,350S)..CBU 塗装不要 |
1 | ||
| 53112-58080 |
ANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU 塗装不要 |
1 | ||
| 53103-58040 |
ANH20,GGH20..07S..(240S,350S)..CBU ﾒｯｷ,G’s |
1 | ||
| 53121H - MOULDING, RADIATOR GRILLE, NO.1 | ||||
| 53121-58150 |
ANH20,GGH20..07S..(240S,350S)..CBU G’s |
1 | ||
| 53122B - MOULDING, RADIATOR GRILLE, NO.2 | ||||
| 53122-58150 |
ANH20,GGH20..07S..(240S,350S)..CBU G’s |
1 | ||
| 53123F - MOULDING, RADIATOR GRILLE, NO.3 | ||||
| 53123-58180 |
ANH20,GGH20..07S..(240S,350S)..CBU G’s |
1 | ||
| 53124A - MOULDING, RADIATOR GRILLE, NO.4 | ||||
| 53124-58160 |
ANH20,GGH20..07S..(240S,350S)..CBU G’s |
1 | ||
| 81210U - LED ILLUMINATION BEAM ASSY | ||||
| 8121A-58010 |
ANH20,GGH20..07S..(240S,24Z,350S,35Z)..CBU G’s |
2 | ||
| 81210U - LED ILLUMINATION BEAM ASSY | ||||
| 8121A-58010 |
ANH20,GGH20..07S..(240S,24Z,350S,35Z)..CBU G’s |
2 | ||
| Common parts | ||||
| 90159-60498 | ||||
| 90159-60602 | ||||
| 90179-06143 | ||||
| 90179-06349 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
