GGH20W-NRTSK (2011)
Toyota Alphard/Vellfire/Hv

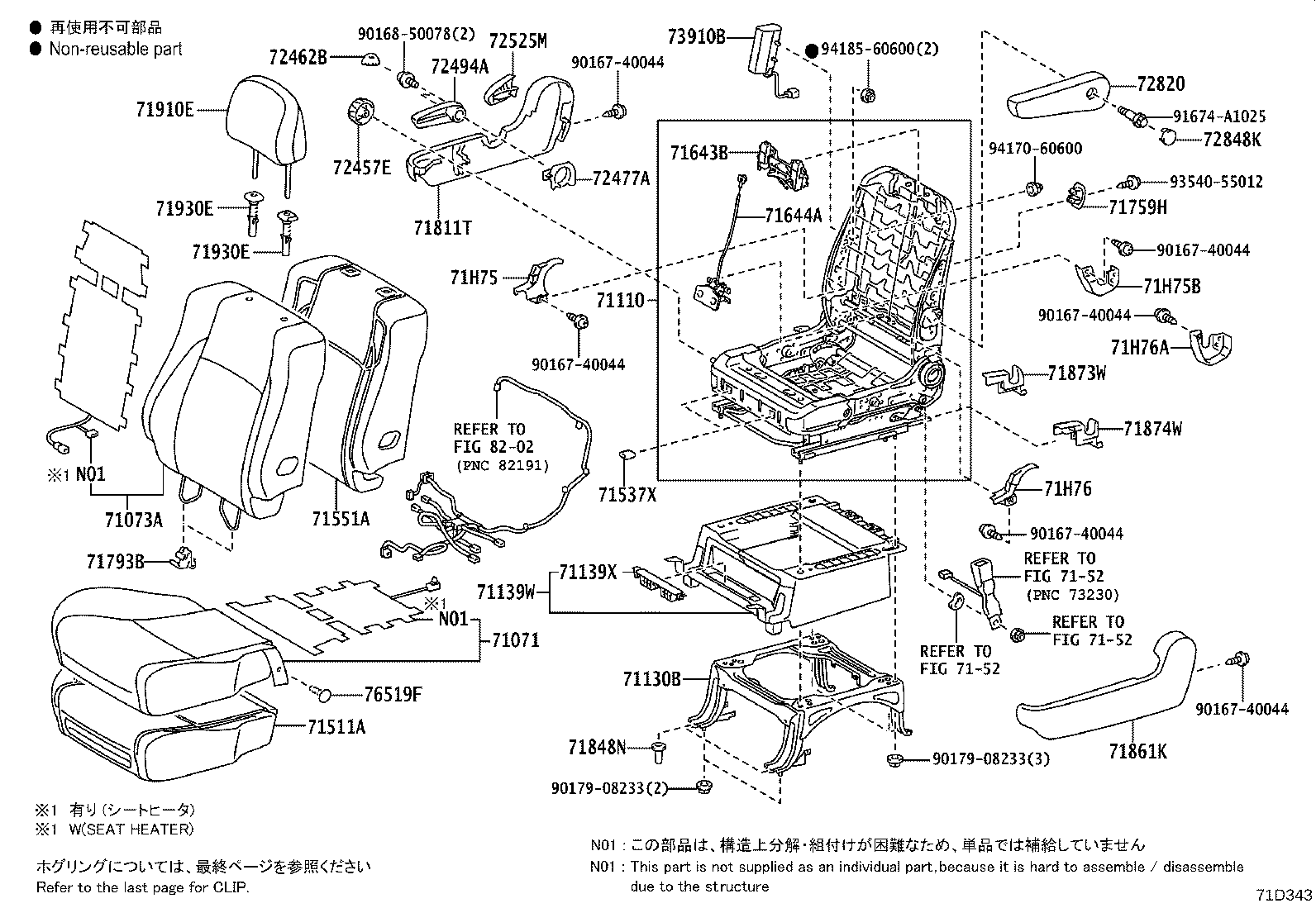

(1110- )240S,240X,24X,24Z,350S,35Z,HBDX
ｳﾝﾃﾝｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71071-58150B0 |
ANH2#,GGH2#..(24Z,35Z)..CBU DARK GRAY,TRIM1# |
1 | ||
| 71071-58240B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DARK GRAY,TRIM1# |
1 | ||
| 71071-58241B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DARK GRAY,TRIM1# |
1 | ||
| 71071-58241B1 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DARK GRAY,TRIM1# |
1 | ||
| 71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71073-58290B2 |
ANH2#,GGH2#..(24Z,35Z)..CBU DARK GRAY,TRIM1# |
1 | ||
| 71073-58430B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DARK GRAY,TRIM1# |
1 | ||
| 71073-58430B1 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DARK GRAY,TRIM1# |
1 | ||
| 71110 - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-58090 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
1 | ||
| 71110-58090 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,35Z)..CBU |
1 | ||
| 71110-58091 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,35Z)..CBU |
1 | ||
| 71110-58091 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,35Z)..CBU |
1 | ||
| 71110-58092 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,35Z)..CBU |
1 | ||
| 71110-58092 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,35Z)..CBU |
1 | ||
| 71110-58093 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,35Z)..CBU |
1 | ||
| 71130B - LEG ASSY, FRONT SEAT, RH | ||||
| 71130-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 71130-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 71139W - COVER, FRONT SEAT LEG(FOR RH SEAT) | ||||
| 71139-58140C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 71139-58140C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 71139X - COVER, FRONT SEAT LEG NO.2 | ||||
| 71139-58130C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 71139-58130C0 |
ANH2#,ATH20,GGH2#..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU BLACK,TRIM1# |
1 | ||
| 71511A - PAD, FRONT SEAT CUSHION, RH | ||||
| 71511-58050 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU |
1 | ||
| 71511-58050 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU |
1 | ||
| 71537X - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-26010 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 71537-26010 |
ANH2#,GGH2#..CBU |
2 | ||
| 71551A - PAD, FRONT SEAT BACK, RH | ||||
| 71551-58090 |
ANH2#,GGH2#..(240G,240S,24V,24Z,350G,350S,35V,35Z)..CBU |
1 | ||
| 71551-58090 |
ANH2#,GGH2#..(240G,240S,24V,24Z,350G,350S,35V,35Z)..CBU |
1 | ||
| 71643B - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ANH2#,GGH2#..CBU |
2 | ||
| 71643-12011 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 71644A - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ANH2#,GGH2#..CBU |
2 | ||
| 71644-12030 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 71759H - HOOK, FRONT SEAT BACK | ||||
| 71759-28050C0 |
ANH2#,ATH20,GGH2#..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU BLACK,TRIM1# |
2 | ||
| 71759-28050C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
2 | ||
| 71793B - CLIP, FRONT SEAT BACK POCKET | ||||
| 71793-58010 |
ANH2#,GGH2#..CBU |
4 | ||
| 71793-58010 |
ANH2#,ATH20,GGH2#..CBU |
4 | ||
| 71811T - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-28340C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 71811-28340C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1 | ||||
| 71848-33010 |
ANH2#,GGH2#..CBU |
2 | ||
| 71848-33010 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 71861K - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-58050C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 71861-58050C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 71873W - SHIELD, FRONT SEAT CUSHION, LOWER RH, OUTER | ||||
| 71873-28010 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
1 | ||
| 71873-28010 |
ANH2#,ATH20,GGH2#..(240S,240X,24X,24Z,350S,35Z,HBDX)..CBU |
1 | ||
| 71874W - SHIELD, FRONT SEAT CUSHION, LOWER LH, INNER | ||||
| 71874-28010 |
ANH2#,ATH20,GGH2#..(240S,240X,24X,24Z,350S,35Z,HBDX)..CBU |
1 | ||
| 71874-28010 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
1 | ||
| 71910E - HEADREST ASSY, FRONT SEAT, RH | ||||
| 71910-58120B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DARK GRAY,TRIM1# |
1 | ||
| 71910-58180B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DARK GRAY,TRIM1# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71930-44020C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ﾛｯｸ付,BLACK,TRIM1# |
1 | ||
| 71931-47010C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ﾛｯｸ無,BLACK,TRIM1# |
1 | ||
| 71930-44020C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ﾛｯｸ付,BLACK,TRIM1# |
1 | ||
| 71931-47010C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ﾛｯｸ無,BLACK,TRIM1# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71930-44020C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ﾛｯｸ付,BLACK,TRIM1# |
1 | ||
| 71931-47010C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ﾛｯｸ無,BLACK,TRIM1# |
1 | ||
| 71930-44020C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ﾛｯｸ付,BLACK,TRIM1# |
1 | ||
| 71931-47010C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ﾛｯｸ無,BLACK,TRIM1# |
1 | ||
| 71H75 - COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT) | ||||
| 71875-58040C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 71875-58040C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 71H75B - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT BACK F | ||||
| 71875-58060 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
1 | ||
| 71875-58060 |
ANH2#,ATH20,GGH2#..(240S,240X,24X,24Z,350S,35Z,HBDX)..CBU |
1 | ||
| 71H76 - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT) | ||||
| 71876-58040C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 71876-58040C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 71H76A - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT BACK F | ||||
| 71876-58060 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
1 | ||
| 71876-58060 |
ANH2#,ATH20,GGH2#..(240S,240X,24X,24Z,350S,35Z,HBDX)..CBU |
1 | ||
| 72457E - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-58010C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 72457-58010C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 72462B - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-60010C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 72462-60010C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 72477A - SPACER, VERTICAL ADJUSTER | ||||
| 72477-52010C0 |
ANH2#,ATH20,GGH2#..(240S,240X,24X,24Z,350S,35Z,HBDX)..CBU BLACK |
1 | ||
| 72477-52010C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 72494A - HANDLE, FRONT SEAT VERTICAL ADJUSTER, RH | ||||
| 72494-60020C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 72494-58040C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 72525M - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58030C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 72525-58030C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 72820 - ARMREST ASSY, FRONT SEAT, LH(FOR RH SEAT) | ||||
| 72890-58490B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DARK GRAY,TRIM1# |
1 | ||
| 72890-58620B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DARK GRAY,TRIM1# |
1 | ||
| 72848K - CAP, SEAT ARMREST, NO.1(FOR RH SEAT) | ||||
| 72848-28030C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 72848-28030C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73910B - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 73910-58030 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 76519F - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
ANH2#,ATH20,GGH2#..(240S,240X,24X,24Z,350S,35Z,HBDX)..CBU |
4 | ||
| 76519-42010 |
ANH2#,GGH2#..CBU |
4 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90179-08233 | ||||
| 91674-A1025 | ||||
| 93540-55012 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||

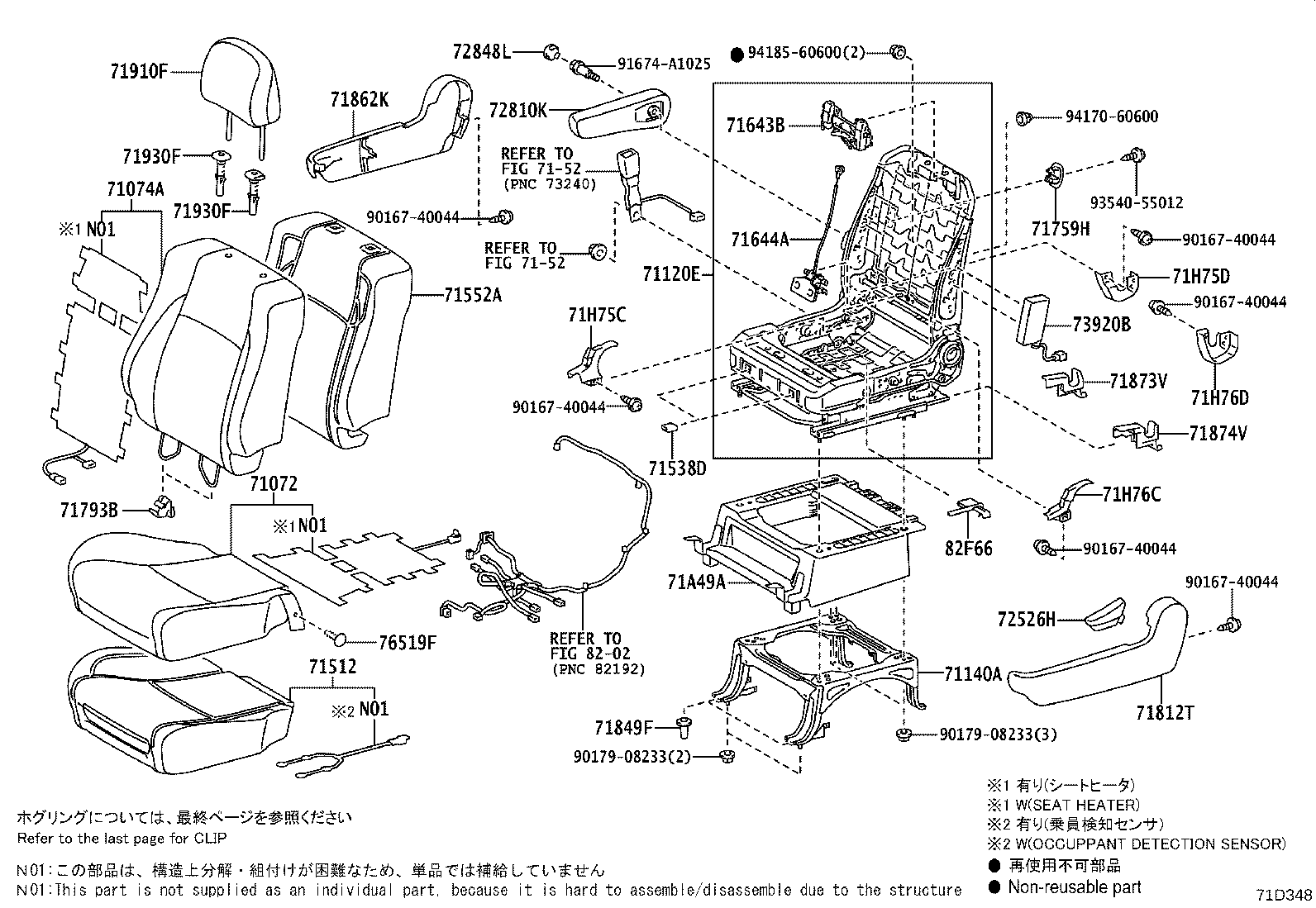

(1110- )240S,240X,24X,24Z,350S,35Z,HBDX
ｼﾞｮｼｭｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71072-58150B0 |
ANH2#,GGH2#..(24Z,35Z)..CBU DARK GRAY,TRIM1# |
1 | ||
| 71072-58240B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DARK GRAY,TRIM1# |
1 | ||
| 71072-58241B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DARK GRAY,TRIM1# |
1 | ||
| 71072-58241B1 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DARK GRAY,TRIM1# |
1 | ||
| 71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71074-58310B2 |
ANH2#,GGH2#..(24Z,35Z)..CBU DARK GRAY,TRIM1# |
1 | ||
| 71074-58440B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DARK GRAY,TRIM1# |
1 | ||
| 71074-58440B1 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DARK GRAY,TRIM1# |
1 | ||
| 71120E - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-58100 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,35Z)..CBU |
1 | ||
| 71120-58100 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
1 | ||
| 71120-58101 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,35Z)..CBU |
1 | ||
| 71120-58100 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,35Z)..CBU |
1 | ||
| 71120-58101 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,35Z)..CBU |
1 | ||
| 71140A - LEG ASSY, FRONT SEAT, LH | ||||
| 71140-58020 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
1 | ||
| 71140-58020 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,35Z)..CBU |
1 | ||
| 71512 - PAD, FRONT SEAT CUSHION, LH | ||||
| 71502-58020 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU |
1 | ||
| 71502-58020 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU |
1 | ||
| 71538D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71537-26010 |
ANH2#,ATH20,GGH2#..(240S,240X,24X,24Z,350S,35Z,HBDX)..CBU |
2 | ||
| 71537-26010 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
2 | ||
| 71552A - PAD, FRONT SEAT BACK, LH | ||||
| 71552-58060 |
ANH2#,GGH2#..(240G,240S,24V,24Z,350G,350S,35V,35Z)..CBU |
1 | ||
| 71552-58060 |
ANH2#,GGH2#..(240G,240S,24V,24Z,350G,350S,35V,35Z)..CBU |
1 | ||
| 71643B - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ANH2#,GGH2#..CBU |
2 | ||
| 71643-12011 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 71644A - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ANH2#,GGH2#..CBU |
2 | ||
| 71644-12030 |
ANH2#,ATH20,GGH2#..CBU |
2 | ||
| 71759H - HOOK, FRONT SEAT BACK | ||||
| 71759-28050C0 |
ANH2#,ATH20,GGH2#..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU BLACK,TRIM1# |
2 | ||
| 71759-28050C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
2 | ||
| 71793B - CLIP, FRONT SEAT BACK POCKET | ||||
| 71793-58010 |
ANH2#,GGH2#..CBU |
4 | ||
| 71793-58010 |
ANH2#,ATH20,GGH2#..CBU |
4 | ||
| 71812T - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-28340C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 71812-28340C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 71849F - CAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT) | ||||
| 71848-33010 |
ANH2#,ATH20,GGH2#..(240G,240S,240X,24V,24X,24Z,350G,350S,35V,35Z,HBDX)..CBU |
2 | ||
| 71848-33010 |
ANH2#,GGH2#..CBU |
2 | ||
| 71862K - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-58040C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 71862-58040C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-28010 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
1 | ||
| 71873-28010 |
ANH2#,ATH20,GGH2#..(240S,240X,24X,24Z,350S,35Z,HBDX)..CBU |
1 | ||
| 71874V - SHIELD, FRONT SEAT CUSHION, LOWER LH, OUTER | ||||
| 71874-28010 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
1 | ||
| 71874-28010 |
ANH2#,ATH20,GGH2#..(240S,240X,24X,24Z,350S,35Z,HBDX)..CBU |
1 | ||
| 71910F - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-58120B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DARK GRAY,TRIM1# |
1 | ||
| 71910-58180B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DARK GRAY,TRIM1# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71930-44020C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ﾛｯｸ付,BLACK,TRIM1# |
1 | ||
| 71931-47010C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ﾛｯｸ無,BLACK,TRIM1# |
1 | ||
| 71931-47010C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ﾛｯｸ無,BLACK,TRIM1# |
1 | ||
| 71930-44020C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ﾛｯｸ付,BLACK,TRIM1# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71930-44020C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ﾛｯｸ付,BLACK,TRIM1# |
1 | ||
| 71931-47010C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ﾛｯｸ無,BLACK,TRIM1# |
1 | ||
| 71931-47010C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ﾛｯｸ無,BLACK,TRIM1# |
1 | ||
| 71930-44020C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ﾛｯｸ付,BLACK,TRIM1# |
1 | ||
| 71A49A - COVER, FRONT SEAT LEG(FOR LH SEAT) | ||||
| 71149-58030C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 71149-58030C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 71H75C - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT) | ||||
| 71875-58040C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 71875-58040C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 71H75D - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT BACK F | ||||
| 71875-58060 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
1 | ||
| 71875-58060 |
ANH2#,ATH20,GGH2#..(240S,240X,24X,24Z,350S,35Z,HBDX)..CBU |
1 | ||
| 71H76C - COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT) | ||||
| 71876-58040C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 71876-58040C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 71H76D - COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT BACK F | ||||
| 71876-58060 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
1 | ||
| 71876-58060 |
ANH2#,ATH20,GGH2#..(240S,240X,24X,24Z,350S,35Z,HBDX)..CBU |
1 | ||
| 72526H - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58040C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 72526-58040C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 72810K - ARMREST ASSY, FRONT SEAT, RH(FOR LH SEAT) | ||||
| 72880-58490B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DARK GRAY,TRIM1# |
1 | ||
| 72880-58700B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DARK GRAY,TRIM1# |
1 | ||
| 72848L - CAP, SEAT ARMREST, NO.1(FOR LH SEAT) | ||||
| 72848-28030C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 72848-28030C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73920B - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 73920-58030 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 76519F - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
ANH2#,ATH20,GGH2#..(240S,240X,24X,24Z,350S,35Z,HBDX)..CBU |
4 | ||
| 76519-42010 |
ANH2#,GGH2#..CBU |
4 | ||
| 82F66 - HOLDER, CONNECTOR | ||||
| 82666-21060 |
ANH2#,GGH2#..CBU |
1 | ||
| 82666-21060 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90179-08233 | ||||
| 91674-A1025 | ||||
| 93540-55012 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
(1110- )
ﾌﾛﾝﾄｼｰﾄ ﾌｨｯﾃｨﾝｸﾞ ﾊﾟｰﾂ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71139T - COVER, FRONT SEAT LEG, REAR RH | ||||
| 71139-58110C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 71139-58110C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 71139U - COVER, FRONT SEAT LEG, REAR LH | ||||
| 71149-58050C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 71149-58050C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10927 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
