GGH20W-NRTSK (2011)
Toyota Alphard/Vellfire/Hv

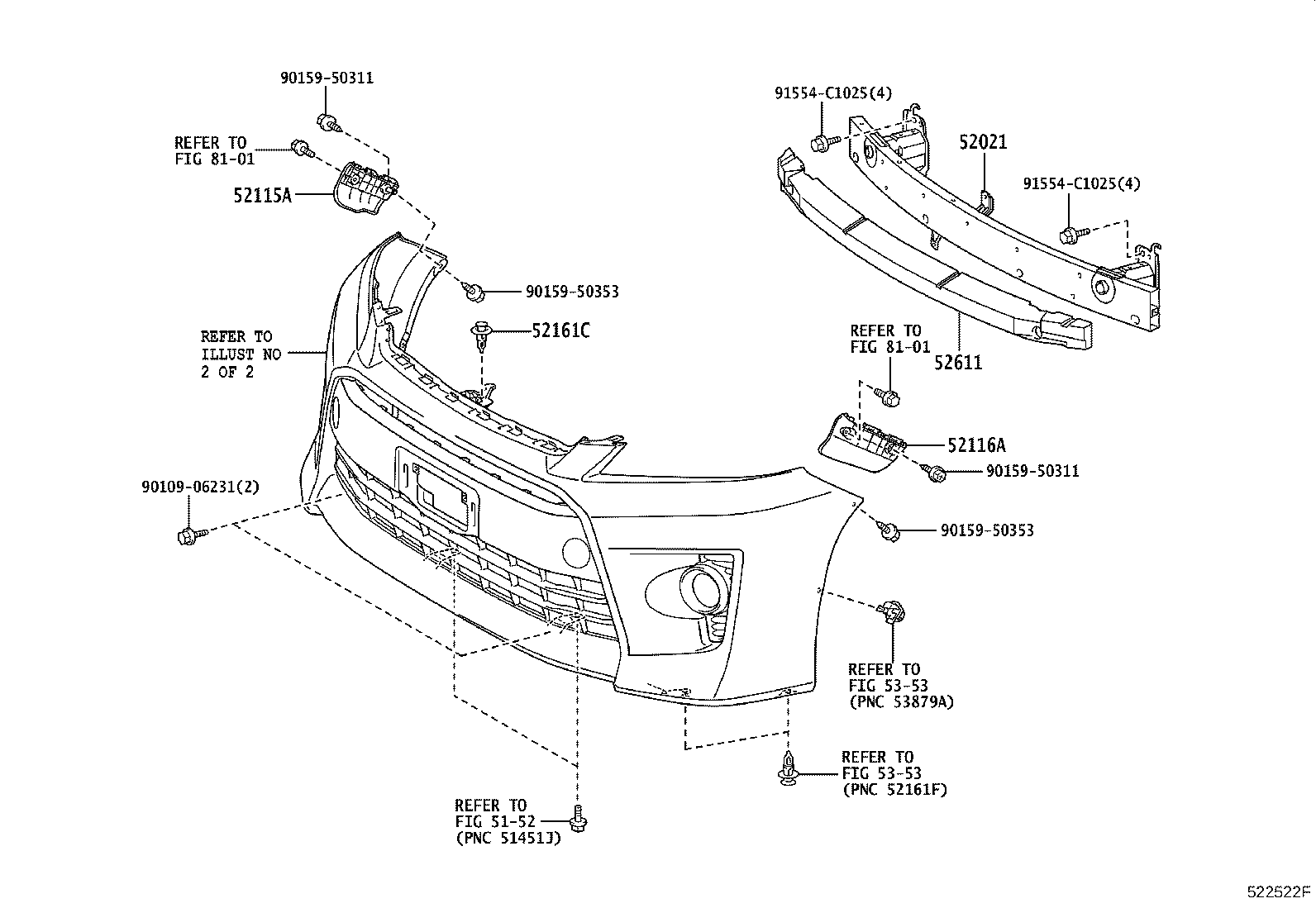

ILLUST NO. 1 OF 2(1110- )24Z,35Z,HBDZR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 52021-58020 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-58030 |
ANH2#,GGH2#..VFIRE..CBU |
1 | ||
| 52115-58050 |
ANH2#,ATH20,GGH2#..VFIRE..CBU |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-58030 |
ANH2#,GGH2#..VFIRE..CBU |
1 | ||
| 52116-58050 |
ANH2#,ATH20,GGH2#..VFIRE..CBU |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANH2#,GGH2#..VFIRE..CBU |
1 | ||
| 52161-16010 |
ANH2#,ATH20,GGH2#..VFIRE..CBU |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 52611-58030 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 90109-06231 | ||||
| 90159-50311 | ||||
| 90159-50353 | ||||
| 91554-C1025 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5353 | ||||
| 8101 | ||||

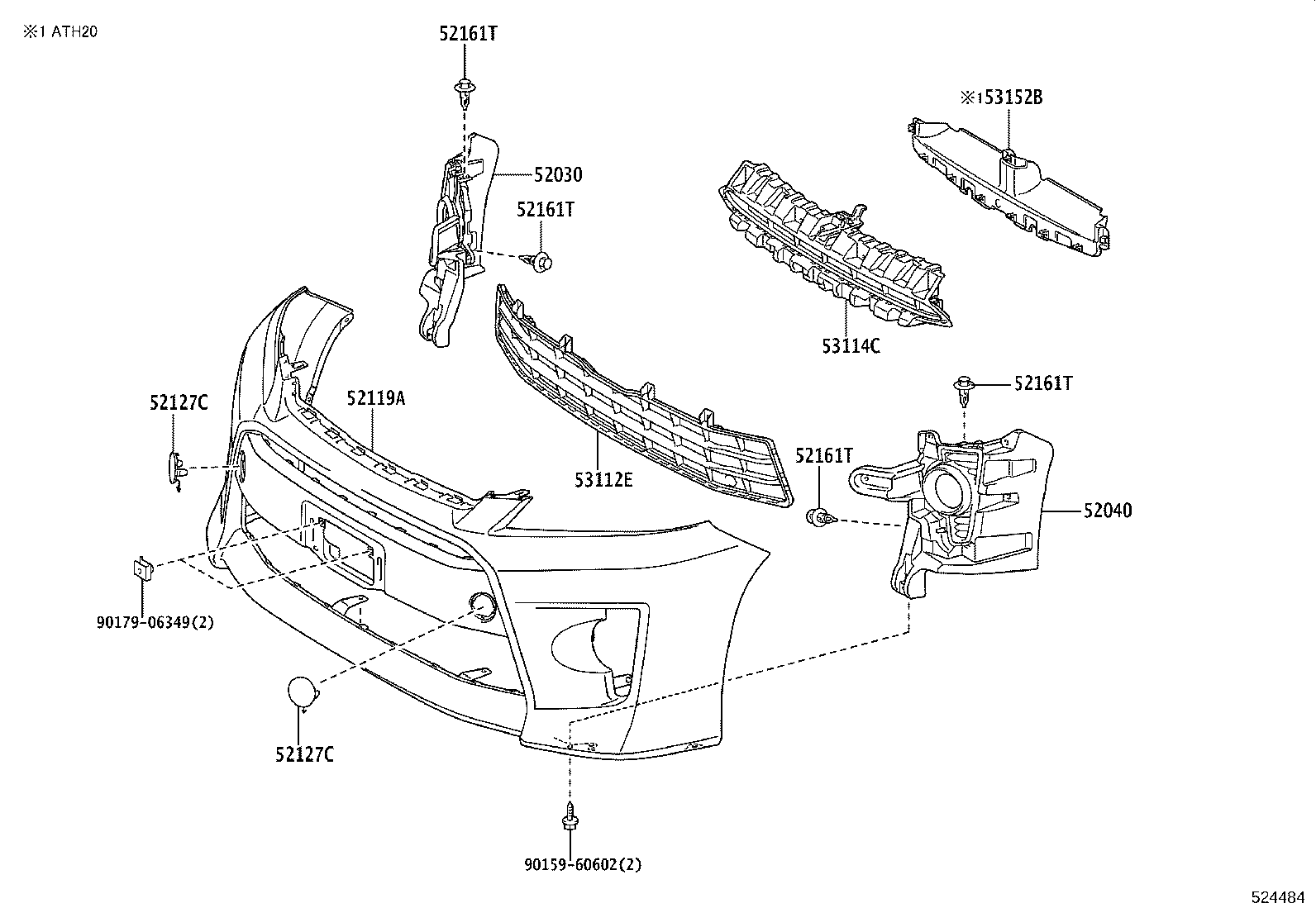

ILLUST NO. 2 OF 2(1110- )24Z,35Z,HBDZR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 52030-58040 |
ANH2#,ATH20,GGH2#..(24Z,35Z,HBDZR)..CBU ﾒｯｷ |
1 | ||
| 52040 - COVER ASSY, FRONT BUMPER HOLE, LH | ||||
| 52040-58040 |
ANH2#,ATH20,GGH2#..(24Z,35Z,HBDZR)..CBU ﾒｯｷ |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-58250A0 |
ANH2#,GGH2#..(24Z,35Z)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52119-58250C0 |
ANH2#,GGH2#..(24Z,35Z)..CBU BLACK,202 |
1 | ||
| 52119-58250B0 |
ANH2#,GGH2#..(24Z,35Z)..CBU SILVER ME.,1E4 |
1 | ||
| 52119-58250J0 |
ANH2#,GGH2#..(24Z,35Z)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 52119-58260B0 |
ANH2#,GGH2#..(24Z,35Z)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),SILVER ME.,1E4 |
1 | ||
| 52119-58260B1 |
ANH2#,GGH2#..(24Z,35Z)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),SILVER ME.,1F7 |
1 | ||
| 52119-58250D0 |
ANH2#,GGH2#..(24Z,35Z)..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52119-58260A0 |
ANH2#,GGH2#..(24Z,35Z)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 52119-58260C0 |
ANH2#,GGH2#..(24Z,35Z)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),BLACK,202 |
1 | ||
| 52119-58260J0 |
ANH2#,GGH2#..(24Z,35Z)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),DK.BLUE MC.,8S6 |
1 | ||
| 52119-58260D0 |
ANH2#,GGH2#..(24Z,35Z)..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ),DEEP RED M.M.,3R9 |
1 | ||
| 52119-58250B1 |
ANH2#,GGH2#..(24Z,35Z)..CBU SILVER ME.,1F7 |
1 | ||
| 52119-58400A0 |
ANH2#,ATH20,GGH2#..(24Z,35Z,HBDZR)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52119-58400C0 |
ANH2#,ATH20,GGH2#..(24Z,35Z,HBDZR)..CBU BLACK,202 |
1 | ||
| 52119-58400K0 |
ANH2#,ATH20,GGH2#..(24Z,35Z,HBDZR)..CBU DK.VIOLET M.M.,9AF |
1 | ||
| 52119-58400D0 |
ANH2#,ATH20,GGH2#..(24Z,35Z,HBDZR)..CBU BORDEAUX M.M.,3R9 |
1 | ||
| 52119-58400J0 |
ANH2#,ATH20,GGH2#..(24Z,35Z,HBDZR)..CBU DARK BLUE MC.,8P8 |
1 | ||
| 52119-58400B1 |
ANH2#,ATH20,GGH2#..(24Z,35Z,HBDZR)..CBU SILVER ME.,1E4 |
1 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-58120B0 |
ANH2#,GGH2#..(24Z,35Z)..CBU SILVER ME.,1E4 |
1 | ||
| 52127-58120B1 |
ANH2#,GGH2#..(24Z,35Z)..CBU SILVER ME.,1F7 |
1 | ||
| 52127-58120D0 |
ANH2#,GGH2#..(24Z,35Z)..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52127-58120A0 |
ANH2#,GGH2#..(24Z,35Z)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52127-58120C0 |
ANH2#,GGH2#..(24Z,35Z)..CBU BLACK,202 |
1 | ||
| 52127-58120J0 |
ANH2#,GGH2#..(24Z,35Z)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 52127-58220D0 |
ANH2#,ATH20,GGH2#..(24Z,35Z,HBDZR)..CBU DEEP RED M.M.,3R9 |
2 | ||
| 52127-58220B1 |
ANH2#,ATH20,GGH2#..(24Z,35Z,HBDZR)..CBU SILVER ME.,1E4 |
2 | ||
| 52127-58220C0 |
ANH2#,ATH20,GGH2#..(24Z,35Z,HBDZR)..CBU BLACK,202 |
2 | ||
| 52127-58220K0 |
ANH2#,ATH20,GGH2#..(24Z,35Z,HBDZR)..CBU DK.VIOLET M.M.,9AF |
2 | ||
| 52127-58220J0 |
ANH2#,ATH20,GGH2#..(24Z,35Z,HBDZR)..CBU DARK BLUE MC.,8P8 |
2 | ||
| 52127-58220A0 |
ANH2#,ATH20,GGH2#..(24Z,35Z,HBDZR)..CBU WHITE PEARL CS.,070 |
2 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-58120B0 |
ANH2#,GGH2#..(24Z,35Z)..CBU SILVER ME.,1E4 |
1 | ||
| 52127-58120B1 |
ANH2#,GGH2#..(24Z,35Z)..CBU SILVER ME.,1F7 |
1 | ||
| 52127-58120D0 |
ANH2#,GGH2#..(24Z,35Z)..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52127-58120A0 |
ANH2#,GGH2#..(24Z,35Z)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52127-58120C0 |
ANH2#,GGH2#..(24Z,35Z)..CBU BLACK,202 |
1 | ||
| 52127-58120J0 |
ANH2#,GGH2#..(24Z,35Z)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 52127-58220D0 |
ANH2#,ATH20,GGH2#..(24Z,35Z,HBDZR)..CBU DEEP RED M.M.,3R9 |
2 | ||
| 52127-58220B1 |
ANH2#,ATH20,GGH2#..(24Z,35Z,HBDZR)..CBU SILVER ME.,1E4 |
2 | ||
| 52127-58220C0 |
ANH2#,ATH20,GGH2#..(24Z,35Z,HBDZR)..CBU BLACK,202 |
2 | ||
| 52127-58220K0 |
ANH2#,ATH20,GGH2#..(24Z,35Z,HBDZR)..CBU DK.VIOLET M.M.,9AF |
2 | ||
| 52127-58220J0 |
ANH2#,ATH20,GGH2#..(24Z,35Z,HBDZR)..CBU DARK BLUE MC.,8P8 |
2 | ||
| 52127-58220A0 |
ANH2#,ATH20,GGH2#..(24Z,35Z,HBDZR)..CBU WHITE PEARL CS.,070 |
2 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANH2#,ATH20,GGH2#..CBU |
4 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANH2#,ATH20,GGH2#..CBU |
4 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANH2#,ATH20,GGH2#..CBU |
4 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANH2#,ATH20,GGH2#..CBU |
4 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-58040 |
ANH2#,GGH2#..(24Z,35Z)..CBU 塗装不要 |
1 | ||
| 53112-58100 |
ANH2#,ATH20,GGH2#..(24Z,35Z,HBDZR)..CBU 塗装不要 |
1 | ||
| 53114C - GRILLE, RADIATOR, INNER | ||||
| 53114-58030 |
ANH2#,ATH20,GGH2#..(24Z,35Z,HBDZR)..CBU |
1 | ||
| Common parts | ||||
| 90159-60602 | ||||
| 90179-06349 | ||||
