GGH20W-NFTQK (2011)
Toyota Alphard/Vellfire/Hv
(1110- )VFIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53039 - SEAL, RADIATOR, UPPER | ||||
| 53039-58050 |
ANH2#,GGH2#..VFIRE..CBU |
1 | ||
| 53039-58050 |
ANH2#,ATH20,GGH2#..VFIRE..CBU |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-58150 |
GGH2#..35V..CBU ﾒｯｷ,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾊﾞｯｸﾓjﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 53101-58140 |
ANH2#,GGH2#..VFIRE..CBU ﾒｯｷ |
1 | ||
| 53101-58180 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ﾒｯｷ |
1 | ||
| 53101-58190 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ﾒｯｷ,ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53101-58150 |
ANH25..07S..(24V,24Z);ANH25..VFIRE..08S..CBU;ANH20,GGH2#..VFIRE..CBU ﾒｯｷ,ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞcjﾀ) |
1 | ||
| 53101-58190 |
ATH20,GGH2#..(35V,HBDV,HBDZR)..CBU ﾒｯｷ,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾊﾞｯｸﾓjﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53101-58181 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ﾒｯｷ |
1 | ||
| 53101-58191 |
ATH20,GGH2#..(35V,HBDV,HBDZR)..CBU ﾒｯｷ,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾊﾞｯｸﾓjﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53101-58191 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ﾒｯｷ,ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53121A - MOULDING, RADIATOR GRILLE | ||||
| 53121-58030 |
ANH2#,GGH2#..VFIRE..CBU |
1 | ||
| 53121-58090 |
ANH2#,ATH20,GGH2#..VFIRE..CBU |
1 | ||
| 53121B - MOULDING, RADIATOR GRILLE, UPPER | ||||
| 53121-58100 |
ANH2#,ATH20,GGH2#..VFIRE..CBU |
1 | ||
| 53121F - MOULDING, RADIATOR GRILLE, UPPER RH | ||||
| 53121-58040 |
ANH2#,GGH2#..VFIRE..CBU |
1 | ||
| 53121-58110 |
ANH2#,ATH20,GGH2#..VFIRE..CBU |
1 | ||
| 53122A - MOULDING, RADIATOR GRILLE, LOWER | ||||
| 53122-58080 |
ANH2#,ATH20,GGH2#..VFIRE..CBU |
1 | ||
| 53122-58040 |
ANH2#,GGH2#..VFIRE..CBU |
1 | ||
| 53123B - MOULDING, RADIATOR GRILLE SIDE, RH | ||||
| 53123-58110 |
ANH2#,ATH20,GGH2#..VFIRE..CBU |
1 | ||
| 53123B - MOULDING, RADIATOR GRILLE SIDE, RH | ||||
| 53123-58110 |
ANH2#,ATH20,GGH2#..VFIRE..CBU |
1 | ||
| 53123E - MOULDING, RADIATOR GRILLE, LOWER RH | ||||
| 53123-58080 |
GGH2#..35V..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 53123-58120 |
ATH20,GGH2#..(35V,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53123-58080 |
ANH25..07S..(24V,24Z);ANH25..VFIRE..08S..CBU;ANH20,GGH2#..VFIRE..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 53123-58120 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53124B - MOULDING, RADIATOR GRILLE SIDE, LH | ||||
| 53124-58100 |
ANH2#,ATH20,GGH2#..VFIRE..CBU |
1 | ||
| 53124B - MOULDING, RADIATOR GRILLE SIDE, LH | ||||
| 53124-58100 |
ANH2#,ATH20,GGH2#..VFIRE..CBU |
1 | ||
| 53124C - MOULDING, RADIATOR GRILLE, UPPER LH | ||||
| 53124-58090 |
ANH2#,ATH20,GGH2#..VFIRE..CBU |
1 | ||
| 53124E - MOULDING, RADIATOR GRILLE, LOWER LH | ||||
| 53124-58080 |
ANH25..07S..(24V,24Z);ANH25..VFIRE..08S..CBU;ANH20,GGH2#..VFIRE..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 53124-58110 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53124-58110 |
ATH20,GGH2#..(35V,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53124-58080 |
GGH2#..35V..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 53125A - MOULDING, RADIATOR GRILLE, CENTER RH | ||||
| 53125-58010 |
ANH2#,GGH2#..VFIRE..CBU |
1 | ||
| 53125-58050 |
ATH20,GGH2#..(35V,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53125-58050 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53125C - MOULDING, RADIATOR GRILLE, NO.5 | ||||
| 53125-58040 |
ANH2#,ATH20,GGH2#..VFIRE..CBU |
1 | ||
| 53126A - MOULDING, RADIATOR GRILLE, CENTER LH | ||||
| 53126-58050 |
ATH20,GGH2#..(35V,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53126-58050 |
ANH2#,ATH20,GGH2#..VFIRE..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53126C - MOULDING, RADIATOR GRILLE, NO.6 | ||||
| 53126-58040 |
ANH2#,ATH20,GGH2#..VFIRE..CBU |
1 | ||
| 53127B - MOULDING, RADIATOR GRILLE, NO.7 | ||||
| 53127-58010 |
ANH2#,ATH20,GGH2#..VFIRE..CBU |
1 | ||
| 53127B - MOULDING, RADIATOR GRILLE, NO.7 | ||||
| 53127-58010 |
ANH2#,ATH20,GGH2#..VFIRE..CBU |
1 | ||
| 53145B - CLIP, RADIATOR GRILLE GARNISH | ||||
| 53145-60030 |
ANH2#,ATH20,GGH2#..VFIRE..CBU |
15 | ||
| 53145-60030 |
ANH2#,GGH2#..VFIRE..CBU |
15 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90167-30018 | ||||
| 90189-05142 | ||||

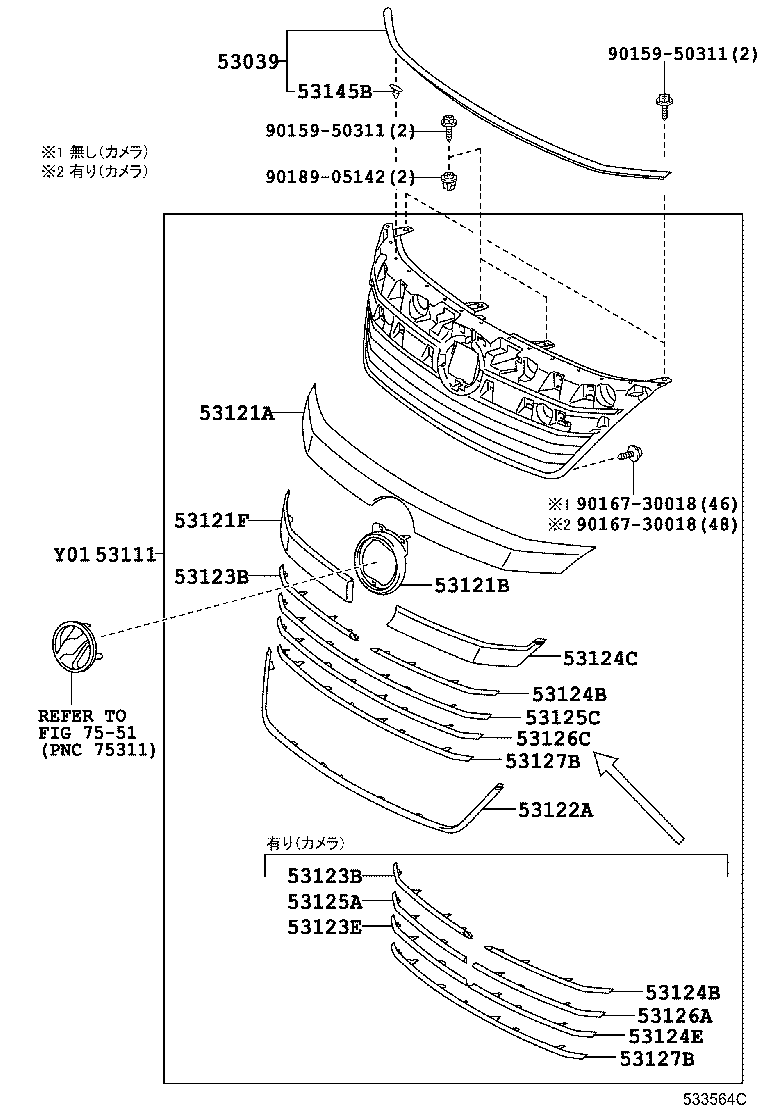

| Linked diagrams | ||||
| 7551 | ||||
