GGH20W-NFTQK (2008)
Toyota Alphard/Vellfire/Hv
(0804- )VFIRE

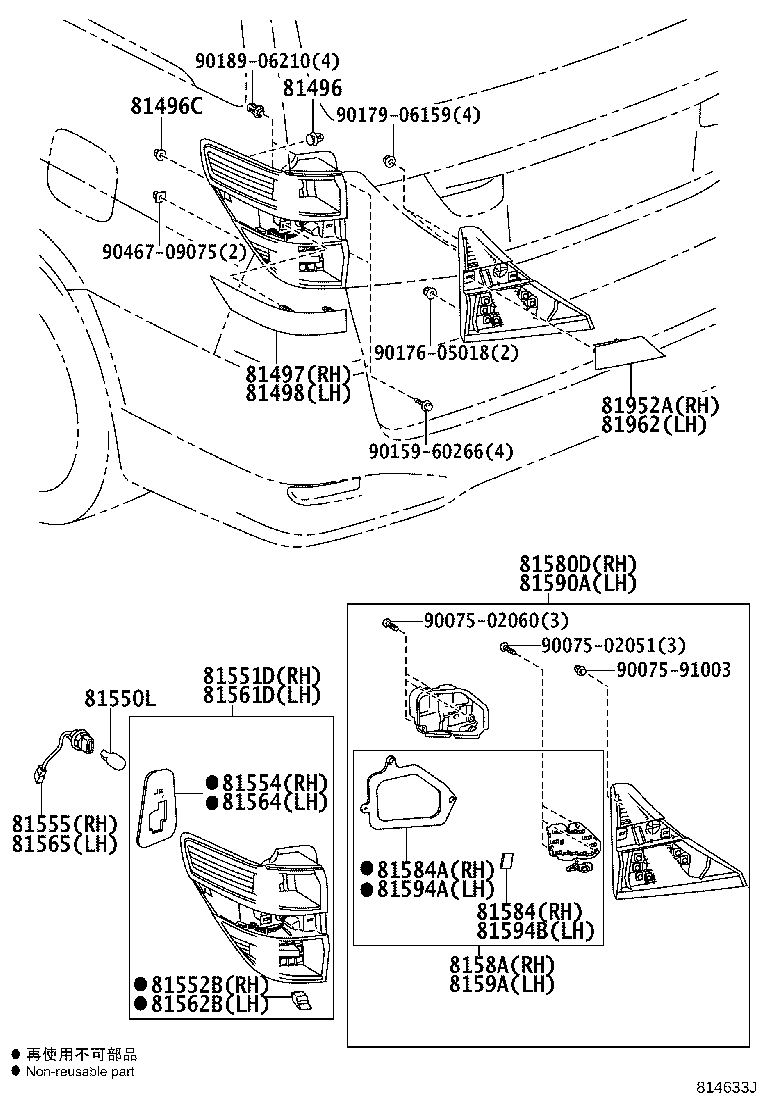

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-28010 |
ANH2#,GGH2#..CBU |
2 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-58010 |
ANH2#,GGH2#..CBU |
2 | ||
| 81497 - COVER, REAR COMBINATION LAMP, RH | ||||
| 81497-58010A0 |
ANH2#,GGH2#..VFIRE..CBU WHITE PEARL CS.,070 |
1 | ||
| 81497-58010C0 |
ANH2#,GGH2#..VFIRE..CBU BLACK,202 |
1 | ||
| 81497-58010D0 |
ANH2#,GGH2#..VFIRE..CBU DEEP RED M.M.,3R9 |
1 | ||
| 81497-58010B1 |
ANH2#,GGH2#..VFIRE..CBU SILVER ME.,1F7 |
1 | ||
| 81497-58010E0 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU BEIGE ME.,4T8 |
1 | ||
| 81498 - COVER, REAR COMBINATION LAMP, LH | ||||
| 81498-58010A0 |
ANH2#,GGH2#..VFIRE..CBU WHITE PEARL CS.,070 |
1 | ||
| 81498-58010C0 |
ANH2#,GGH2#..VFIRE..CBU BLACK,202 |
1 | ||
| 81498-58010D0 |
ANH2#,GGH2#..VFIRE..CBU DEEP RED M.M.,3R9 |
1 | ||
| 81498-58010B1 |
ANH2#,GGH2#..VFIRE..CBU SILVER ME.,1F7 |
1 | ||
| 81498-58010E0 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU BEIGE ME.,4T8 |
1 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15021 |
ANH2#,GGH2#..CBU |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-58080 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU |
1 | ||
| 81551-58081 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU |
1 | ||
| 81552B - PACKING, REAR COMBINATION LAMP BODY, RH | ||||
| 81552-58080 |
ANH2#,GGH2#..VFIRE..CBU |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-58080 |
ANH2#,GGH2#..VFIRE..CBU |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-58090 |
ANH2#,GGH2#..VFIRE..CBU |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-58080 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU |
1 | ||
| 81561-58081 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU |
1 | ||
| 81562B - PACKING, REAR COMBINATION LAMP BODY, LH | ||||
| 81552-58080 |
ANH2#,GGH2#..VFIRE..CBU |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81564-58080 |
ANH2#,GGH2#..VFIRE..CBU |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-58090 |
ANH2#,GGH2#..VFIRE..CBU |
1 | ||
| 81580D - LAMP ASSY, REAR, RH | ||||
| 81580-58140 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU |
1 | ||
| 81584 - PACKING, REAR LAMP RH | ||||
| 81582-58140 |
ANH2#,GGH2#..VFIRE..CBU |
1 | ||
| 81584A - GASKET, REAR LAMP RH | ||||
| 81584-58140 |
ANH2#,GGH2#..VFIRE..CBU |
1 | ||
| 8158A - LED, REAR LAMP | ||||
| 8158A-58140 |
ANH2#,GGH2#..VFIRE..CBU |
1 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81590-58140 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81594-58140 |
ANH2#,GGH2#..VFIRE..CBU |
1 | ||
| 81594B - PACKING, REAR LAMP LH | ||||
| 81582-58140 |
ANH2#,GGH2#..VFIRE..CBU |
1 | ||
| 8159A - LED, REAR LAMP, LH | ||||
| 8159A-58140 |
ANH2#,GGH2#..VFIRE..CBU |
1 | ||
| 81952A - COVER, REAR LAMP, RH | ||||
| 81952-58010B1 |
ANH2#,GGH2#..VFIRE..CBU SILVER ME.,1F7 |
1 | ||
| 81952-58010A0 |
ANH2#,GGH2#..VFIRE..CBU WHITE PEARL CS.,070 |
1 | ||
| 81952-58010C0 |
ANH2#,GGH2#..VFIRE..CBU BLACK,202 |
1 | ||
| 81952-58010D0 |
ANH2#,GGH2#..VFIRE..CBU DEEP RED M.M.,3R9 |
1 | ||
| 81952-58010E0 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU BEIGE ME.,4T8 |
1 | ||
| 81962 - COVER, REAR LAMP, LH | ||||
| 81962-58010A0 |
ANH2#,GGH2#..VFIRE..CBU WHITE PEARL CS.,070 |
1 | ||
| 81962-58010C0 |
ANH2#,GGH2#..VFIRE..CBU BLACK,202 |
1 | ||
| 81962-58010D0 |
ANH2#,GGH2#..VFIRE..CBU DEEP RED M.M.,3R9 |
1 | ||
| 81962-58010B1 |
ANH2#,GGH2#..VFIRE..CBU SILVER ME.,1F7 |
1 | ||
| 81962-58010E0 |
ANH2#,GGH2#..(24V,24X,35V,35X)..CBU BEIGE ME.,4T8 |
1 | ||
| Common parts | ||||
| 90075-02051 | ||||
| 90075-02060 | ||||
| 90075-91003 | ||||
| 90159-60266 | ||||
| 90176-05018 | ||||
| 90179-06159 | ||||
| 90189-06210 | ||||
| 90467-09075 | ||||
