AYH30W-PFXVB (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

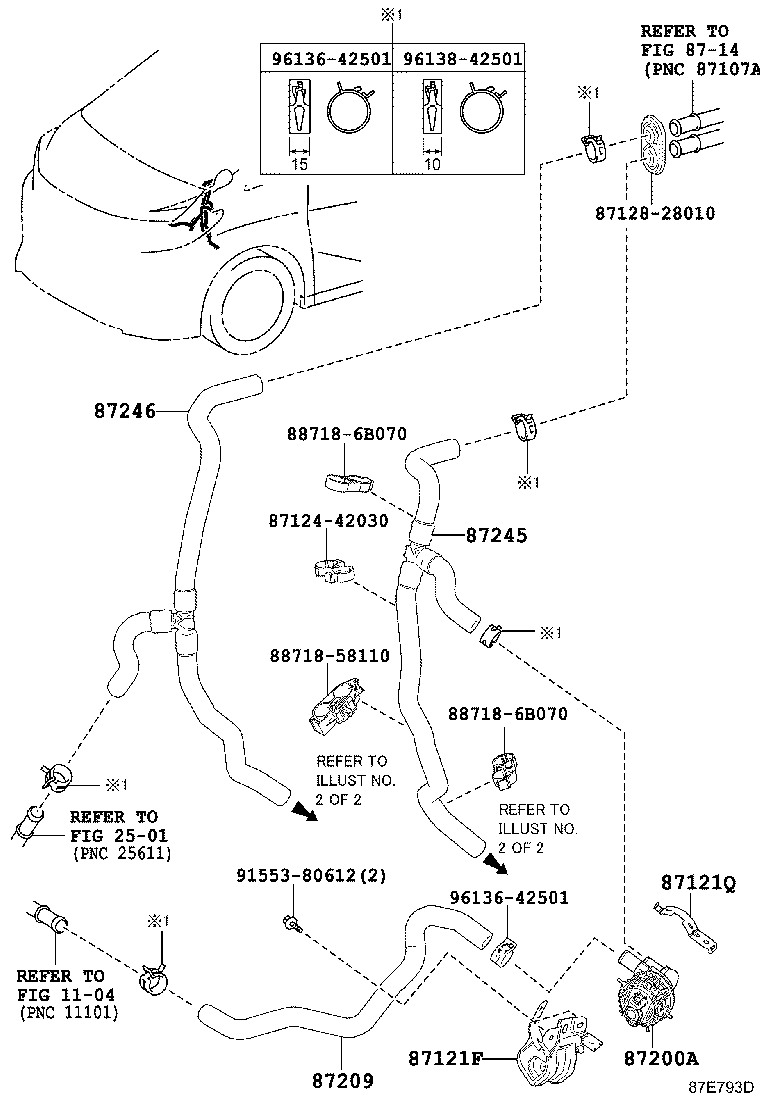

ILLUST NO. 1 OF 2(1501-1907)AYH30

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 1104 2501 87121F 87121Q 8712442030 8712828010 8714 87200A 87209 87245 87246 8871858110 887186B070 887186B070 9155380612 9613642501 9613642501 9613842501
Part # Description Qty Price
87121F - BRACKET, HEATER
87121-58050

AYH30

 1
87121Q - BRACKET, HEATER NO.2
87121-58060

AYH30

 1
87200A - PUMP ASSY, WATER(FOR HEATER)
87200-58030

AYH30

 1
87209 - HOSE SUB-ASSY, WATER
87245-58210

AYH30

 1
87245 - HOSE, HEATER WATER, INLET
87209-58390

AYH30

 1
87246 - HOSE, HEATER WATER, OUTLET
87209-58400

AYH30

 1
Common parts
87124-42030
87128-28010
88718-58110
88718-6B070
91553-80612
96136-42501
96138-42501
Linked diagrams
1104
2501
8714

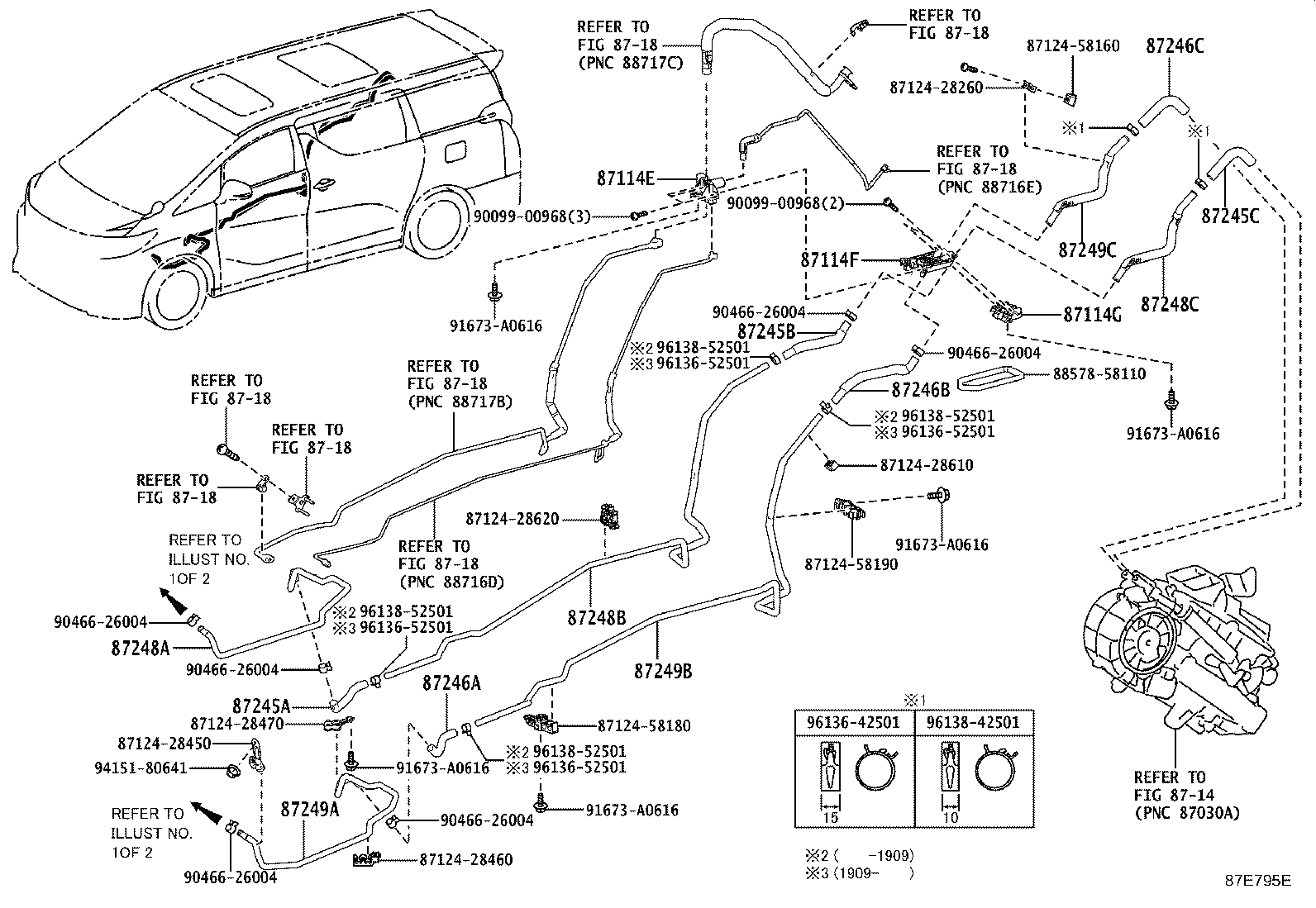

ILLUST NO. 2 OF 2(1501-2001)AYH30

Click highlighted areas on diagram

ﾘﾔ

diagram 87114E 87114F 87114G 8712428260 8712428450 8712428460 8712428470 8712428610 8712428620 8712458160 8712458180 8712458190 8714 8718 8718 8718 8718 8718 8718 8718 8718 87245A 87245B 87245C 87246A 87246B 87246C 87248A 87248B 87248C 87249A 87249B 87249C 8857858110 9009900968 9009900968 9046626004 9046626004 9046626004 9046626004 9046626004 9046626004 91673A0616 91673A0616 91673A0616 91673A0616 91673A0616 9415180641 9613642501 9613652501 9613652501 9613652501 9613652501 9613842501 9613852501 9613852501 9613852501 9613852501
Part # Description Qty Price
87114E - COVER, HEATER, NO.1
87114-58040

AGH3#,AYH30,GGH3#

 1
87114F - COVER, HEATER, NO.2
87114-58020

AGH3#,AYH30,GGH3#

 1
87114G - COVER, HEATER, NO.3
87114-58030

AGH3#,AYH30,GGH3#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-58220

AGH3#,AYH30,GGH3#

 1
87245B - HOSE, HEATER WATER, INLET B
87245-58230

AGH3#,AYH30,GGH3#

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-58180

AGH3#,AYH30,GGH3#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-58240

AGH3#,AYH30,GGH3#

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-58250

AGH3#,AYH30,GGH3#

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-58180

AGH3#,AYH30,GGH3#

 1
87248A - PIPE, HEATER WATER INLET, A
87248-58190

AYH30

 1
87248B - PIPE, HEATER WATER INLET, B
87248-58210

AGH3#,AYH30,GGH3#

 1
87248C - PIPE, HEATER WATER INLET, C
87248-58150

AGH3#,AYH30,GGH3#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-58200

AYH30

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-58220

AGH3#,AYH30,GGH3#

 1
87249C - PIPE, HEATER WATER OUTLET, C
87248-58160

AGH3#,AYH30,GGH3#

 1
Common parts
87124-28260
87124-28450
87124-28460
87124-28470
87124-28610
87124-28620
87124-58160
87124-58180
87124-58190
88578-58110
90099-00968
90466-26004
91673-A0616
94151-80641
96136-42501
96136-52501
96138-42501
96138-52501
Linked diagrams
8714
8718
