AYH30W-PFXVB (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )

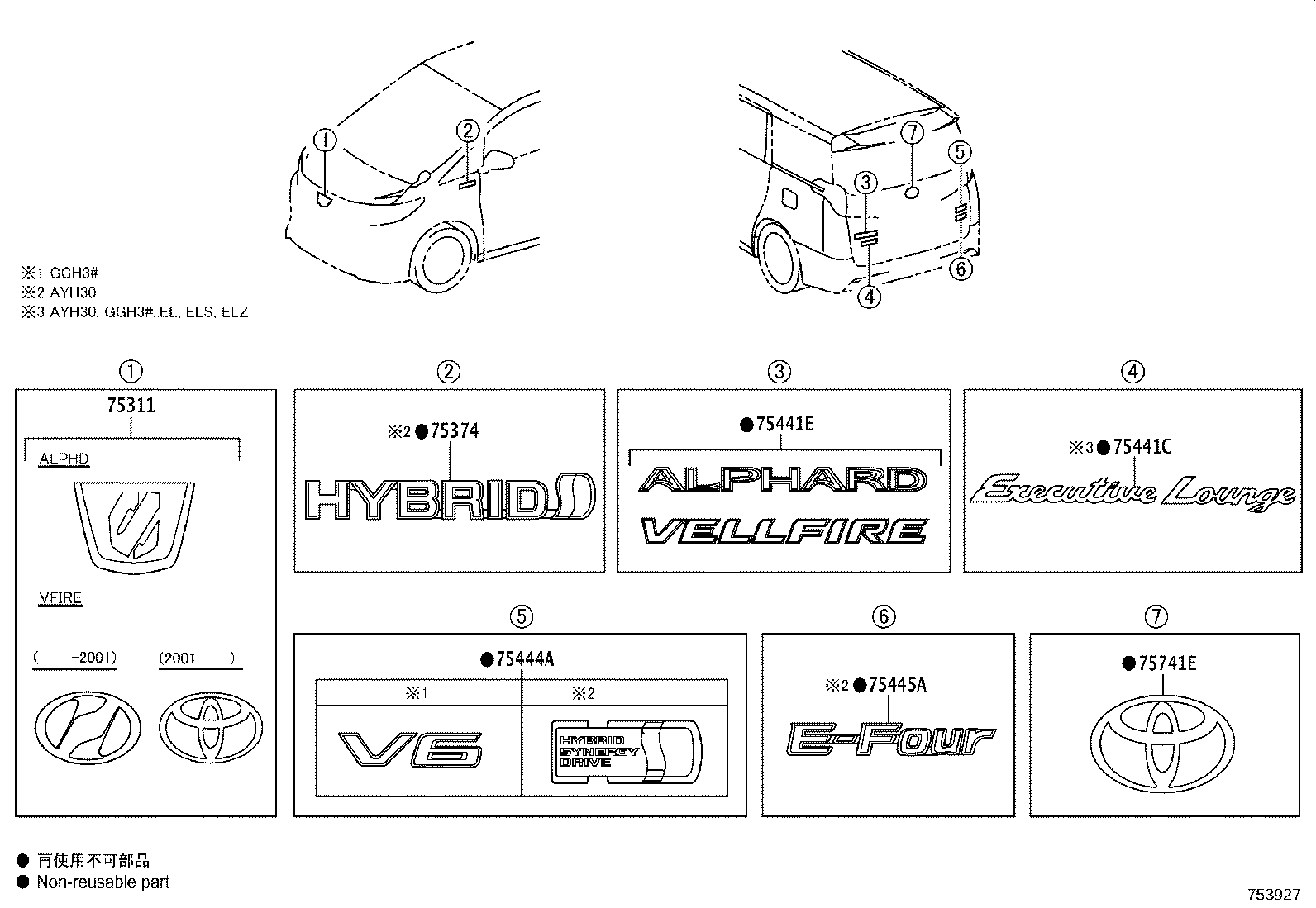

Click highlighted areas on diagram

diagram 75311 75374 75441C 75441E 75444A 75445A 75741E
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-58220

AYH30..ALPHD..(G,SR,X)

 1
75301-58320

AYH30..ALPHD..(G,SR,X)

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ)

 1
75301-58320

AYH30..ALPHD..(G,SR,X)

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)

 1
75301-58320

AYH30..ALPHD..EL

 1
75301-58320

AYH30..ALPHD..(G,SR,X)

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))

 1
75374 - EMBLEM, SIDE PANEL
75374-58060

AYH30

 2
75441C - PLATE, BACK DOOR NAME
75445-58050

AYH30,GGH3#..EL

EXCECUTIVE LAUNGE

 1
75441E - PLATE, BACK DOOR NAME, NO.1
75441-58070

AGH3#,AYH30,GGH3#..ALPHD

ALPHARD

 1
75444A - PLATE, BACK DOOR NAME, NO.4
75444-58080

AYH30

HYBRID SYNERGY DRIVE

 1
75445A - PLATE, BACK DOOR NAME, NO.5
75444-58110

AYH30

E−FOUR

 1
75741E - EMBLEM, SYMBOL
75403-58040

AYH30

 1
