AYH30W-PFXVB (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

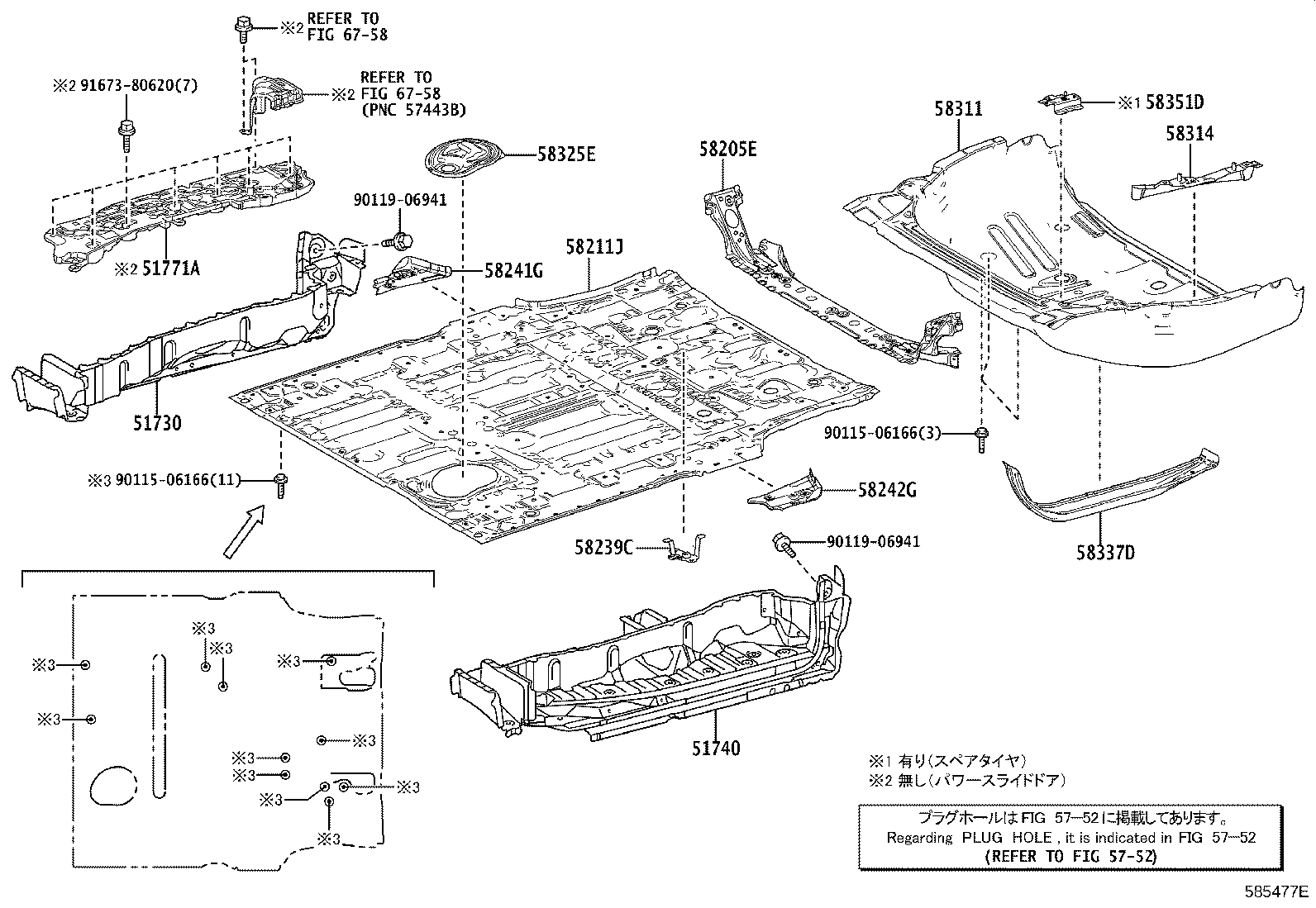

ILLUST NO. 2 OF 2(1501- )AYH30

Click highlighted areas on diagram

ﾌﾛｱﾊﾟﾈﾙ

diagram 51730 51740 51771A 5752 58205E 58211J 58239C 58241G 58242G 58311 58314 58325E 58337D 58351D 6758 6758 9011506166 9011506166 9011906941 9011906941 9167380620
Part # Description Qty Price
51730 - STEP ASSY, REAR FLOOR, RH
51730-58070

AGH3#,AYH30,GGH3#

 1
51740 - STEP ASSY, REAR FLOOR, LH
51740-58080

AGH3#,AYH30,GGH3#

 1
51771A - STEP, RH
51730-58050

AGH3#,AYH30..S,X,Z

 1
58205E - REINFORCE SUB-ASSY, REAR SEAT HINGE
58205-58010

AGH3#,AYH30,GGH3#

 1
58211J - PAN, CENTER FLOOR
58211-58190

AYH30..07S..(G,SR,V,X,ZR)

 1
58211-58210

AYH30..G,V

“Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ﾒｰﾃﾞｰｼｽﾃﾑ−有り

 1
58211-58210

AYH30..EL

 1
58211-58240

AYH30..EL

ﾛｲﾔﾙﾗｳﾝｼﾞ

 1
58211-58260

AYH30..G,V

“Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL

 1
58239C - BRACKET, CABLE CLAMP
58239-58010

AYH30

 1
58241G - PANEL, FLOOR SIDE, RH
58241-58010

AGH3#,AYH30,GGH3#

 1
58242G - PANEL, FLOOR SIDE, LH
58242-58010

AGH3#,AYH30,GGH3#

 1
58311 - PAN, REAR FLOOR
58311-58100

AGH3#,AYH30,GGH3#

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-58020

AYH30

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-58010

AGH3#,AYH30,GGH3#

 1
58337D - REINFORCEMENT, REAR FLOOR PAN, LH
58337-58010

AGH3#,AYH30,GGH3#

 1
58351D - REINFORCEMENT, REAR FLOOR PANEL
58351-58030

AGH3#,AYH30,GGH3#

ｽﾍﾟｱﾀｲﾔ−T155/80D17(ﾃﾝﾊﾟ)

 1
Common parts
90115-06166
90119-06941
91673-80620
Linked diagrams
5752
6758

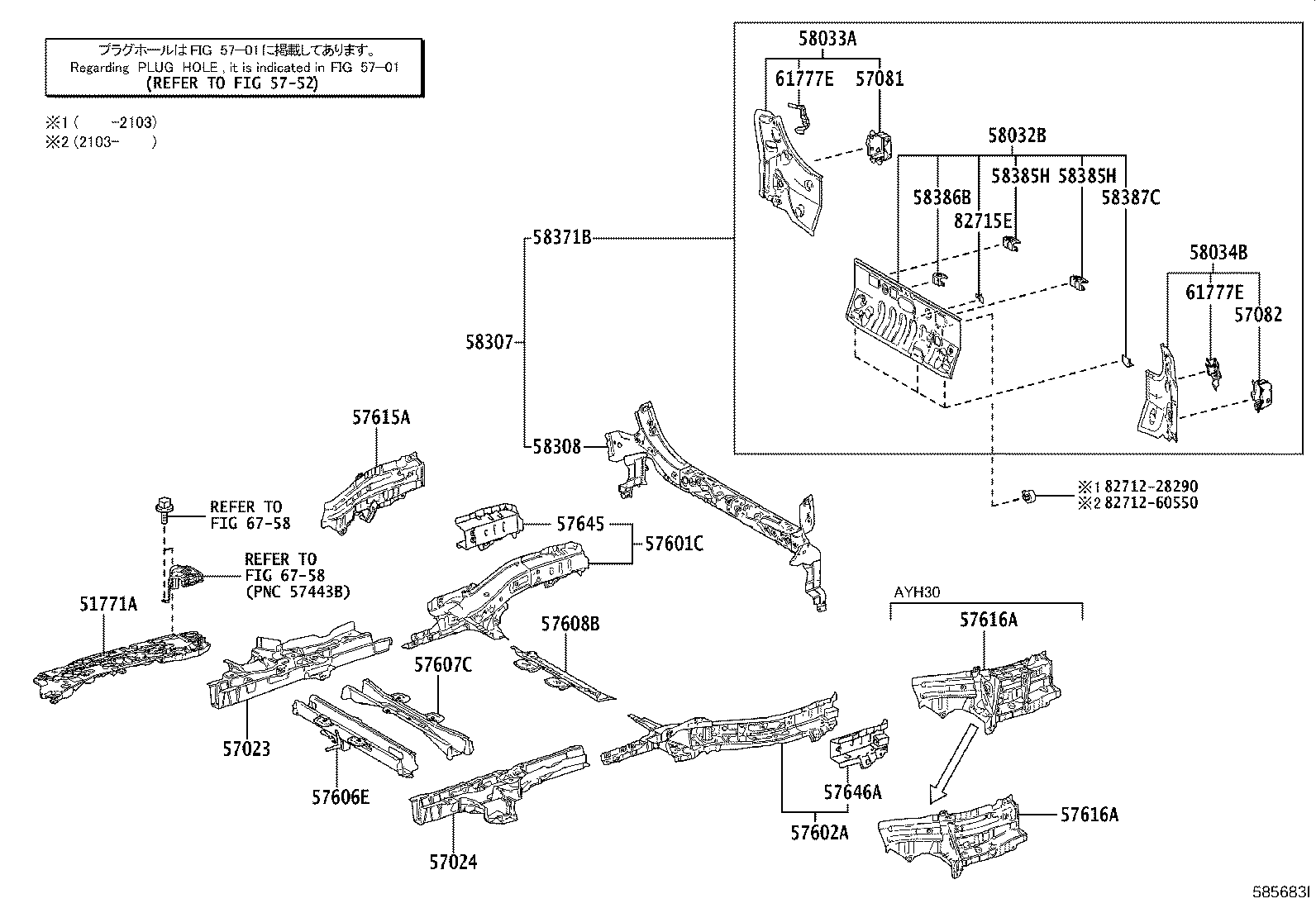

ILLUST NO. 1 OF 2(1501- )07S

Click highlighted areas on diagram

ﾌﾛｱﾒﾝﾊﾞ

diagram 51771A 57023 57024 57081 57082 5752 57601C 57602A 57606E 57607C 57608B 57615A 57616A 57616A 57645 57646A 58032B 58033A 58034B 58307 58308 58371B 58385H 58385H 58386B 58387C 61777E 61777E 6758 6758 8271228290 8271260550 82715E
Part # Description Qty Price
51771A - STEP, RH
51730-58050

AGH3#,AYH30..S,X,Z

 1
57023 - MEMBER SUB-ASSY, REAR SIDE, RH
57023-58050

AGH3#,AYH30,GGH3#

 1
57024 - MEMBER SUB-ASSY, REAR SIDE, LH
57024-58050

AGH3#,AYH30,GGH3#

 1
57081 - BRACKET SUB-ASSY, REAR BUMPER MOUNTING
57081-58030

AGH3#,AYH30,GGH3#

 1
57082 - BRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, LH
57082-58030

AGH3#,AYH30,GGH3#

 1
57601C - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-58080

AYH30

 1
57602A - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-58110

AGH3#,AYH30,GGH3#

 1
57606E - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-58110

AGH3#,AYH30,GGH3#..07S

 1
57607C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57607-58100

AGH3#,AYH30,GGH3#..07S

 1
57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57608-58130

AGH3#,AYH30,GGH3#

 1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57061-58010

AGH3#,AYH30,GGH3#

 1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57062-58020

AYH30

 1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57062-58020

AYH30

 1
57645 - REINFORCEMENT, REAR SIDE MEMBER, RH
57645-58010

AYH30

 1
57646A - REINFORCEMENT, REAR SIDE MEMBER, LH
57646-58030

AGH3#,AYH30,GGH3#

 1
58032B - PANEL SUB-ASSY, REAR FLOOR, CENTER
58032-58010

AGH3#,AYH30,GGH3#

 1
58033A - REINFORCE SUB-ASSY, BODY LOWER BACK, RH
58033-58010

AGH3#,AYH30,GGH3#

 1
58034B - REINFORCE SUB-ASSY, BODY LOWER BACK, LH
58034-58010

AGH3#,AYH30,GGH3#

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-58070

AGH3#,AYH30,GGH3#

 1
58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER
58308-58010

AGH3#,AYH30,GGH3#

 1
58371B - PANEL, BODY LOWER BACK, OUTER
58302-58020

AGH3#,AYH30,GGH3#

 1
58385H - BRACKET, REAR BUMPER COVER, NO.1
58386-12020

AGH3#,AYH30,GGH3#

 2
58385H - BRACKET, REAR BUMPER COVER, NO.1
58386-12020

AGH3#,AYH30,GGH3#

 2
58386B - BRACKET, REAR BUMPER COVER, NO.2
58386-28050

AGH3#,AYH30,GGH3#

 1
58387C - PLATE, REAR FLOOR FINISH
58348-58020

AGH3#,AYH30,GGH3#

 3
61777E - RETAINER, LOWER BACK PANEL
61777-58030

AGH3#,AYH30,GGH3#

 2
61777E - RETAINER, LOWER BACK PANEL
61777-58030

AGH3#,AYH30,GGH3#

 2
82715E - BRACKET, WIRING HARNESS CLAMP
82715-28J10

AGH3#,AYH30,GGH3#

 1
Common parts
82712-28290
82712-60550
Linked diagrams
5752
6758
