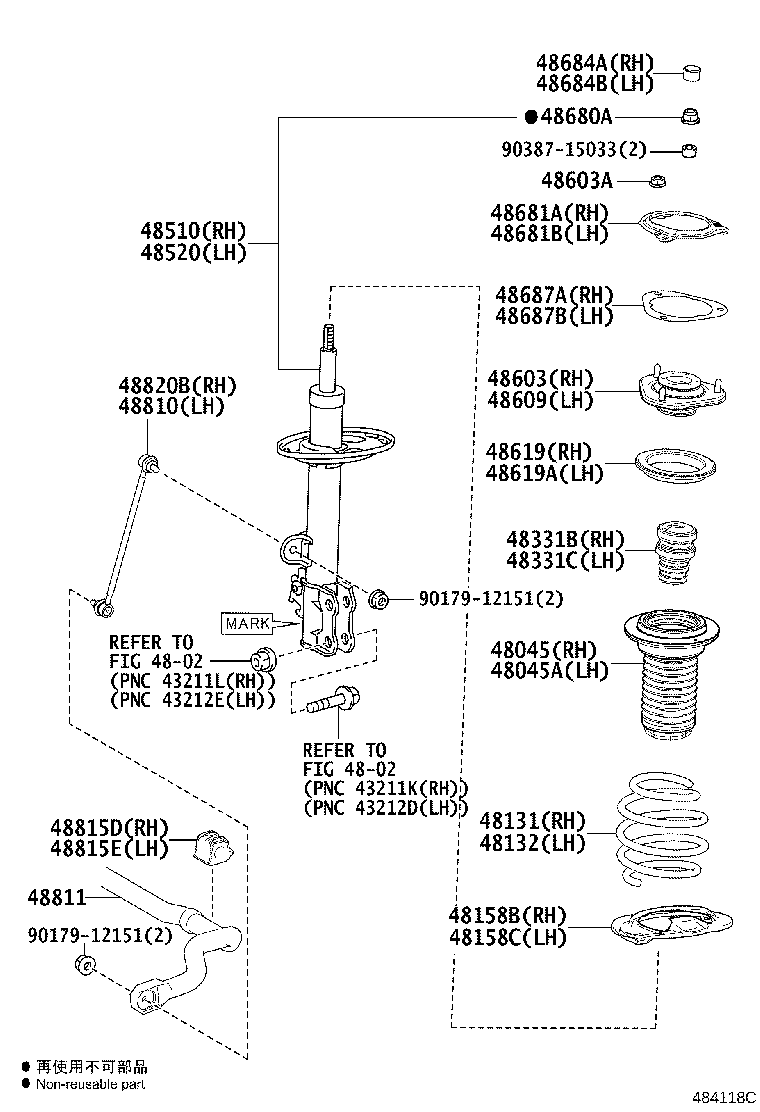

AYH30W-PFXVB (2015)
Toyota Alphard/Vellfire/Hv
(1501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48045 - SEAT SUB-ASSY, FRONT SPRING RH, W/INSULATOR | ||||
| 48045-42010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 48045A - SEAT SUB-ASSY, FRONT SPRING LH, W/INSULATOR | ||||
| 48045-42010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-58320 |
AYH30..G,SR,V,X,ZR |
1 | ||
| 48131-58320 |
AYH30..EL |
1 | ||
| 48131-58360 |
AYH30..G,SR,V,X,ZR |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-58360 |
AYH30..G,SR,V,X,ZR |
1 | ||
| 48131-58320 |
AYH30..G,SR,V,X,ZR |
1 | ||
| 48131-58320 |
AYH30..EL |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80747 |
AYH30..G,SR,V,X,ZR ﾏｰｸ 48510−58210 |
1 | ||
| 48510-80747 |
AYH30..EL ﾏｰｸ 48510−58210 |
1 | ||
| 48510-80844 |
AYH30..G,SR,V,X,ZR ﾏｰｸ 48510−58250 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-80516 |
AYH30..G,SR,V,X,ZR ﾏｰｸ 48520−58250 |
1 | ||
| 48520-80425 |
AYH30..EL ﾏｰｸ 48520−58210 |
1 | ||
| 48520-80425 |
AYH30..G,SR,V,X,ZR ﾏｰｸ 48520−58210 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10011 |
AGH3#,AYH30,GGH3# |
6 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 48619 - BEARING, STRUT MOUNTING, RH | ||||
| 48619-28010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 48619A - BEARING, STRUT MOUNTING, LH | ||||
| 48619-28010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 90177-14005 |
AGH3#,AYH30,GGH3# |
2 | ||
| 48681A - GASKET, FRONT SUSPENSION SUPPORT, RH | ||||
| 48681-28020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 48681B - GASKET, FRONT SUSPENSION SUPPORT, LH | ||||
| 48681-28020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-42010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-42010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 48687A - PLATE, FRONT SUSPENSION SUPPORT, RH | ||||
| 48687-28010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 48687B - PLATE, FRONT SUSPENSION SUPPORT, LH | ||||
| 48687-28010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-42030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-58070 |
AGH3#,AYH30,GGH3#..EL,G,S,SR,V,X,Z,ZR |
1 | ||
| 48815D - BUSH, FRONT STABILIZER BAR, RH | ||||
| 48815-58031 |
AYH30,GGH3#..EL,G,SR,V,X,ZR |
1 | ||
| 48815E - BUSH, FRONT STABILIZER BAR, LH | ||||
| 48815-58021 |
AYH30,GGH3#..EL,G,SR,V,X,ZR |
1 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-42030 |
AGH3#,AYH30,GGH3# |
1 | ||
| Common parts | ||||
| 90179-12151 | ||||
| 90387-15033 | ||||
| Linked diagrams | ||||
| 4802 | ||||
