AYH30W-PFXVB (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )

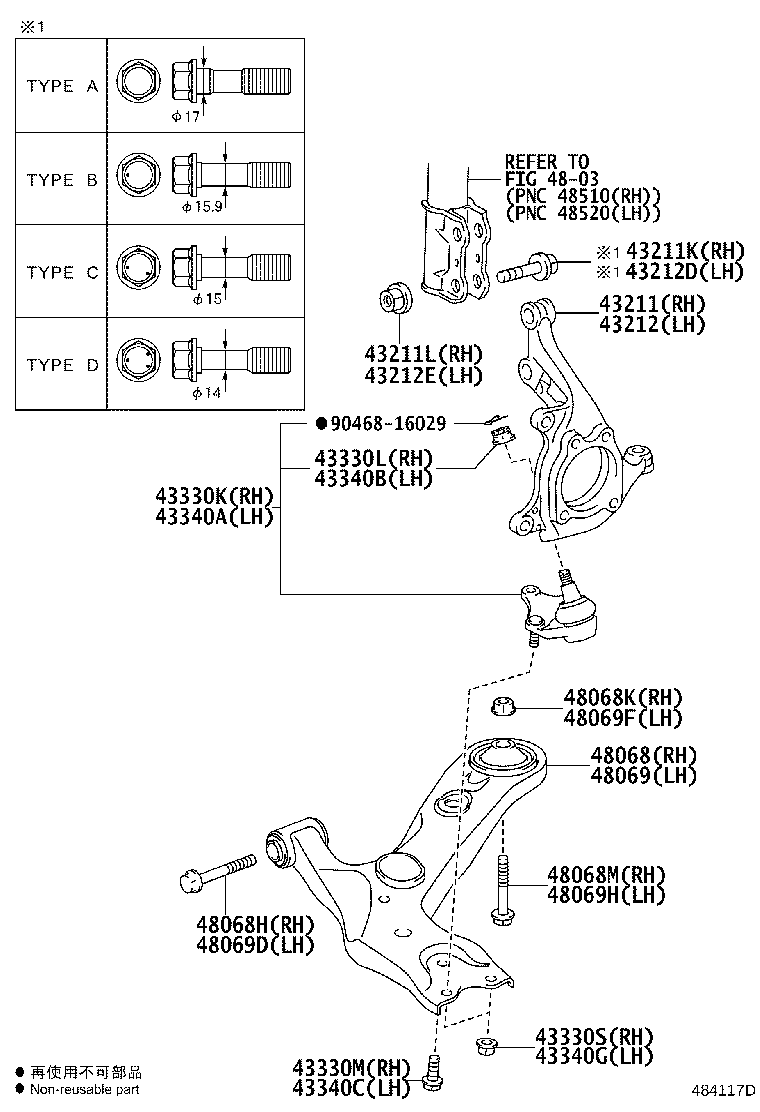

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43330M 43330S 43340A 43340B 43340C 43340G 4803 48068 48068H 48068K 48068M 48069 48069D 48069F 48069H 9046816029
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-78010

AGH3#,AYH30,GGH3#

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17014

AGH3#,AYH30,GGH3#

外径=15,TYPE C:ｲﾗｽﾄ参照

 2
90105-17015

AGH3#,AYH30,GGH3#

外径=14,TYPE D:ｲﾗｽﾄ参照

 2
90105-17008

AGH3#,AYH30,GGH3#

外径=17,TYPE A:ｲﾗｽﾄ参照

 2
90105-17013

AGH3#,AYH30,GGH3#

外径=15.9,TYPE B:ｲﾗｽﾄ参照

 2
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-17001

AGH3#,AYH30,GGH3#

 2
43212 - KNUCKLE, STEERING, LH
43212-78010

AGH3#,AYH30,GGH3#

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17013

AGH3#,AYH30,GGH3#

外径=15.9,TYPE B:ｲﾗｽﾄ参照

 2
90105-17014

AGH3#,AYH30,GGH3#

外径=15,TYPE C:ｲﾗｽﾄ参照

 2
90105-17008

AGH3#,AYH30,GGH3#

外径=17,TYPE A:ｲﾗｽﾄ参照

 2
90105-17015

AGH3#,AYH30,GGH3#

外径=14,TYPE D:ｲﾗｽﾄ参照

 2
43212E - NUT (FOR STEERING KNUCKLE LH)
90178-17001

AGH3#,AYH30,GGH3#

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-59155

AGH3#,AYH30,GGH3#

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14011

AGH3#,AYH30,GGH3#

 1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
90105-12346

AGH3#,AYH30,GGH3#

 1
43330S - NUT (FOR FRONT LOWER BALL JOINT RH)
90178-12019

AGH3#,AYH30,GGH3#

 2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-59155

AGH3#,AYH30,GGH3#

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14011

AGH3#,AYH30,GGH3#

 1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-12346

AGH3#,AYH30,GGH3#

 1
43340G - NUT (FOR FRONT LOWER BALL JOINT LH)
90178-12019

AGH3#,AYH30,GGH3#

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-28140

AGH3#,AYH30,GGH3#

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90105-16090

AGH3#,AYH30,GGH3#

 1
48068K - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90178-16006

AGH3#,AYH30,GGH3#

 1
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90105-16090

AGH3#,AYH30,GGH3#

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-28140

AGH3#,AYH30,GGH3#

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90105-16090

AGH3#,AYH30,GGH3#

 1
48069F - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90178-16006

AGH3#,AYH30,GGH3#

 1
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90105-16090

AGH3#,AYH30,GGH3#

 1
Common parts
90468-16029
Linked diagrams
4803
