AYH30W-PFXVB (2015)
Toyota Alphard/Vellfire/Hv
Production
Jan 2015
-
Jan 2018
Engine
2ARFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1501- )AYH30

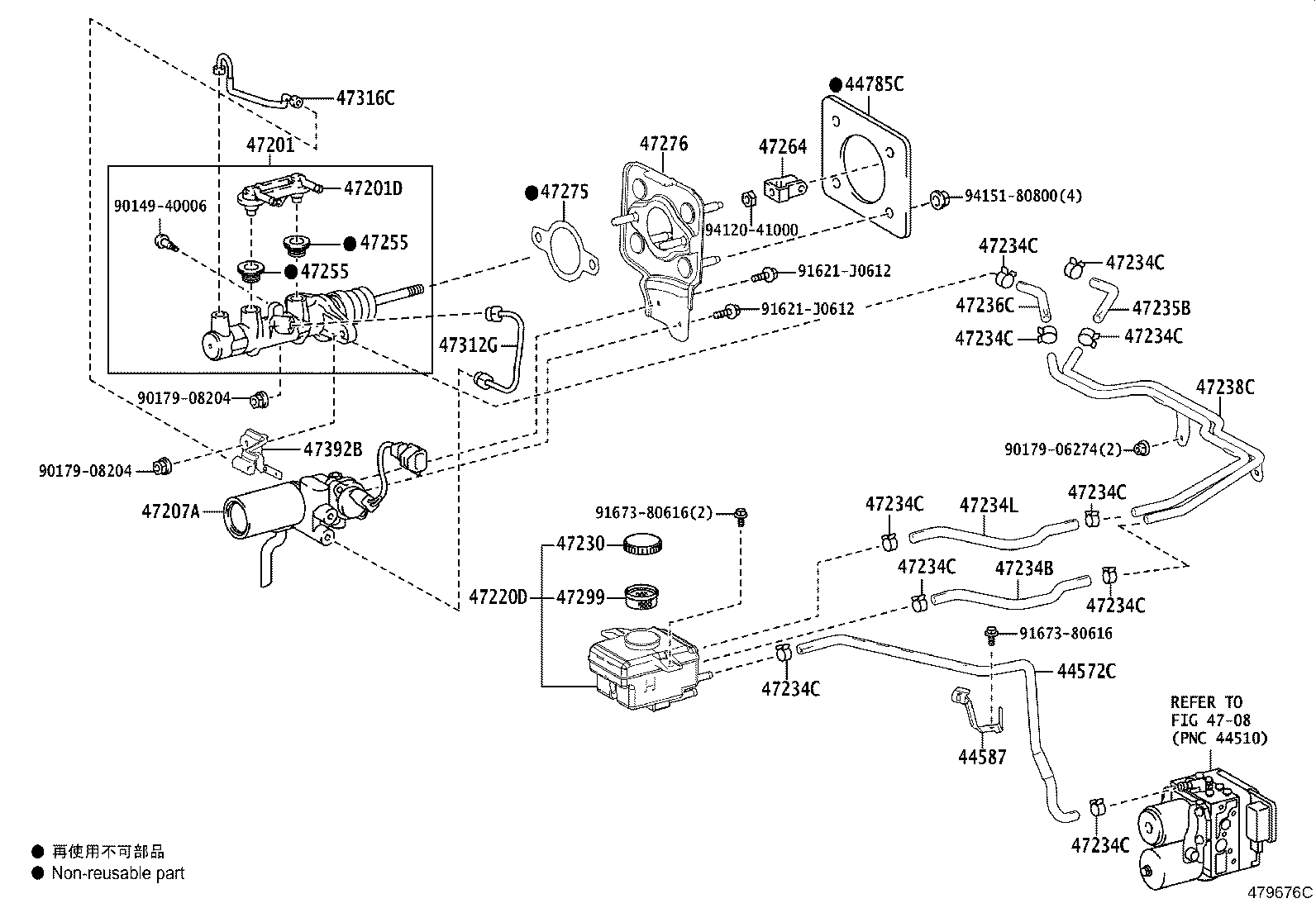

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44572C - HOSE, BRAKE ACTUATOR, NO.2 | ||||
| 44572-58030 |
AYH30 |
1 | ||
| 44587 - CLAMP, BRAKE ACTUATOR HOSE | ||||
| 44587-58010 |
AYH30 |
1 | ||
| 44785C - GASKET, BRAKE BOOSTER | ||||
| 44785-47010 |
AYH30 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-58090 |
AYH30 |
1 | ||
| 47201D - UNION, BRAKE MASTER CYLINDER, NO.1 | ||||
| 90015-AM004 |
AYH30 |
1 | ||
| 47207A - CYLINDER SUB-ASSY, BRAKE STROKE SIMULATOR | ||||
| 47207-48080 |
AYH30 |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-58060 |
AYH30 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-11010 |
AYH30 |
1 | ||
| 47230-47090 |
AYH30 |
1 | ||
| 47230-58010 |
AYH30 |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-58110 |
AYH30 |
1 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 96137-41501 |
AYH30 |
10 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 96137-41501 |
AYH30 |
10 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 96137-41501 |
AYH30 |
10 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 96137-41501 |
AYH30 |
10 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 96137-41501 |
AYH30 |
10 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 96137-41501 |
AYH30 |
10 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 96137-41501 |
AYH30 |
10 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 96137-41501 |
AYH30 |
10 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 96137-41501 |
AYH30 |
10 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 96137-41501 |
AYH30 |
10 | ||
| 47234L - HOSE, RESERVOIR, NO.1 | ||||
| 47234-58120 |
AYH30 |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-58040 |
AYH30 |
1 | ||
| 47236C - HOSE, RESERVOIR TUBE | ||||
| 47236-58020 |
AYH30 |
1 | ||
| 47238C - TUBE, RESERVOIR | ||||
| 47238-58020 |
AYH30 |
1 | ||
| 47238-58021 |
AYH30 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
AYH30 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
AYH30 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-63010 |
AYH30 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-48010 |
AYH30 |
1 | ||
| 47276 - BRACKET, BRAKE MASTER CYLINDER | ||||
| 47276-58020 |
AYH30 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-30190 |
AYH30 |
1 | ||
| 47312G - TUBE, BRAKE STROKE SIMULATOR | ||||
| 44255-58020 |
AYH30 |
1 | ||
| 47316C - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-58050 |
AYH30 |
1 | ||
| 47392B - WAY, BRAKE TUBE, NO.2 | ||||
| 47392-58020 |
AYH30 |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-06274 | ||||
| 90179-08204 | ||||
| 91621-J0612 | ||||
| 91673-80616 | ||||
| 94120-41000 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4708 | ||||
