AYH30W-PFXVB (2015)
Toyota Alphard/Vellfire/Hv
Production
Jan 2015
-
Jan 2018
Engine
2ARFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1501- )AYH30

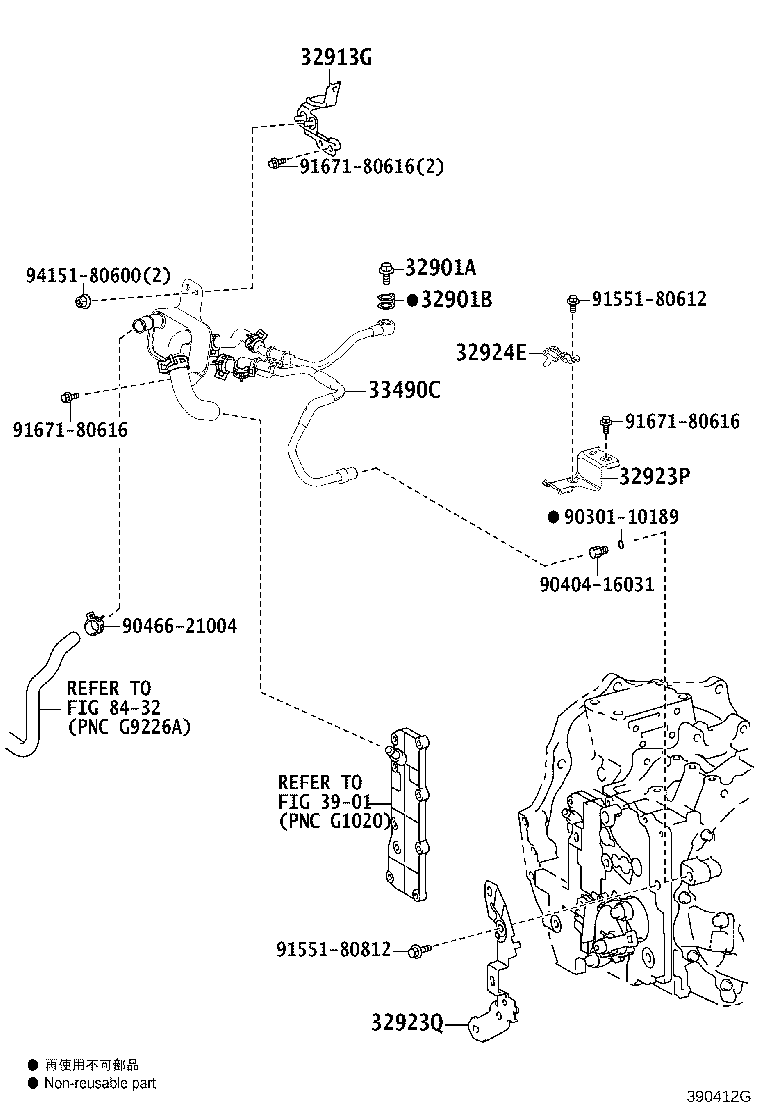

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32901A - BOLT, UNION(FOR OIL COOLER) | ||||
| 90401-12039 |
AYH30 |
1 | ||
| 32901B - GASKET(FOR OIL COOLER UNION) | ||||
| 90430-12037 |
AYH30 |
1 | ||
| 32913G - BRACKET, TRANSMISSION OIL COOLER | ||||
| 32913-58020 |
AYH30 |
1 | ||
| 32923P - CLAMP, OIL COOLER TUBE, NO.1 | ||||
| 32925-48010 |
AYH30 |
1 | ||
| 32923Q - CLAMP, OIL COOLER TUBE | ||||
| 32923-48040 |
AYH30 |
1 | ||
| 32924E - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32927-48010 |
AYH30 |
1 | ||
| 33490C - COOLER ASSY, TRANSMISSION OIL | ||||
| 33490-48010 |
AYH30 |
1 | ||
| Common parts | ||||
| 90301-10189 | ||||
| 90404-16031 | ||||
| 90466-21004 | ||||
| 91551-80612 | ||||
| 91551-80812 | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 3901 | ||||
| 8432 | ||||
