AYH30W-PFXVB (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )2AR#

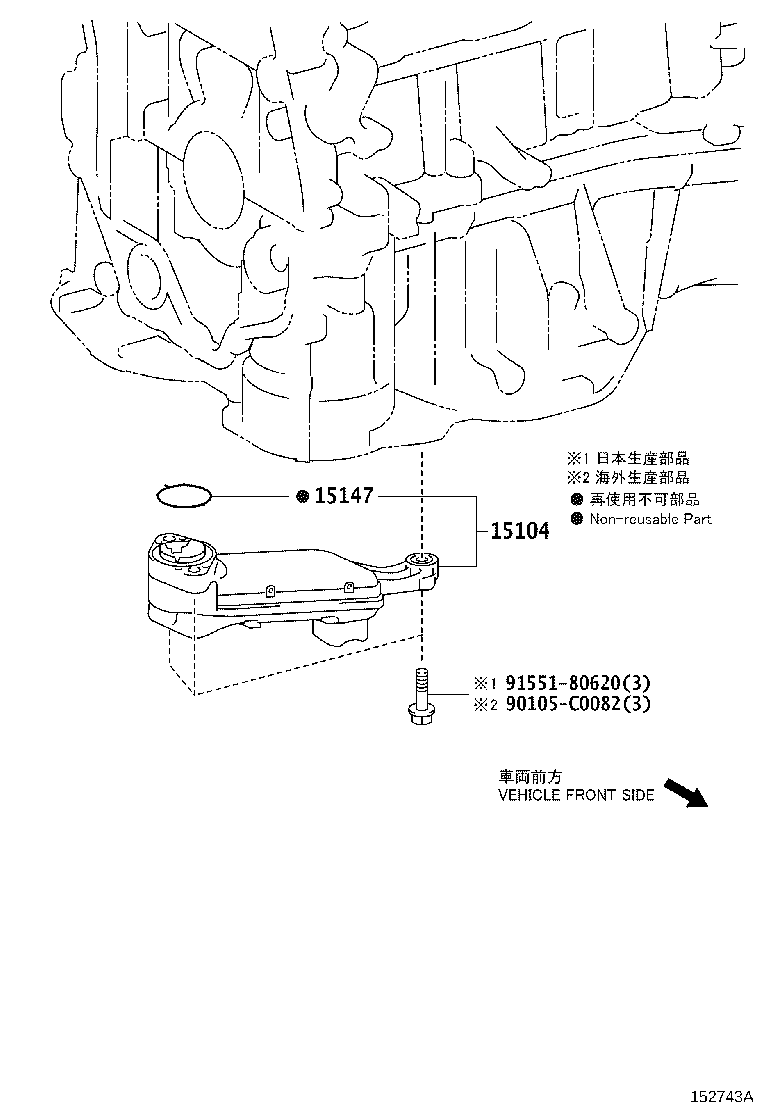

Click highlighted areas on diagram

diagram 15104 15147 90105C0082 9155180620
Part # Description Qty Price
15104 - STRAINER SUB-ASSY, OIL
15104-0V020

2AR#..AGH3#,AYH30

(L),*347

 1
15104-36030

2AR#..AGH3#,AYH30

(J),*347

 1
15147 - GASKET, OIL STRAINER
15147-0V010

2AR#..AGH3#,AYH30

(L),*347

 1
15147-36010

2AR#..AGH3#,AYH30

(J),*347

 1
Common parts
90105-C0082
91551-80620
