AYH30W-NFXVB (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1501-1801)VFIRE

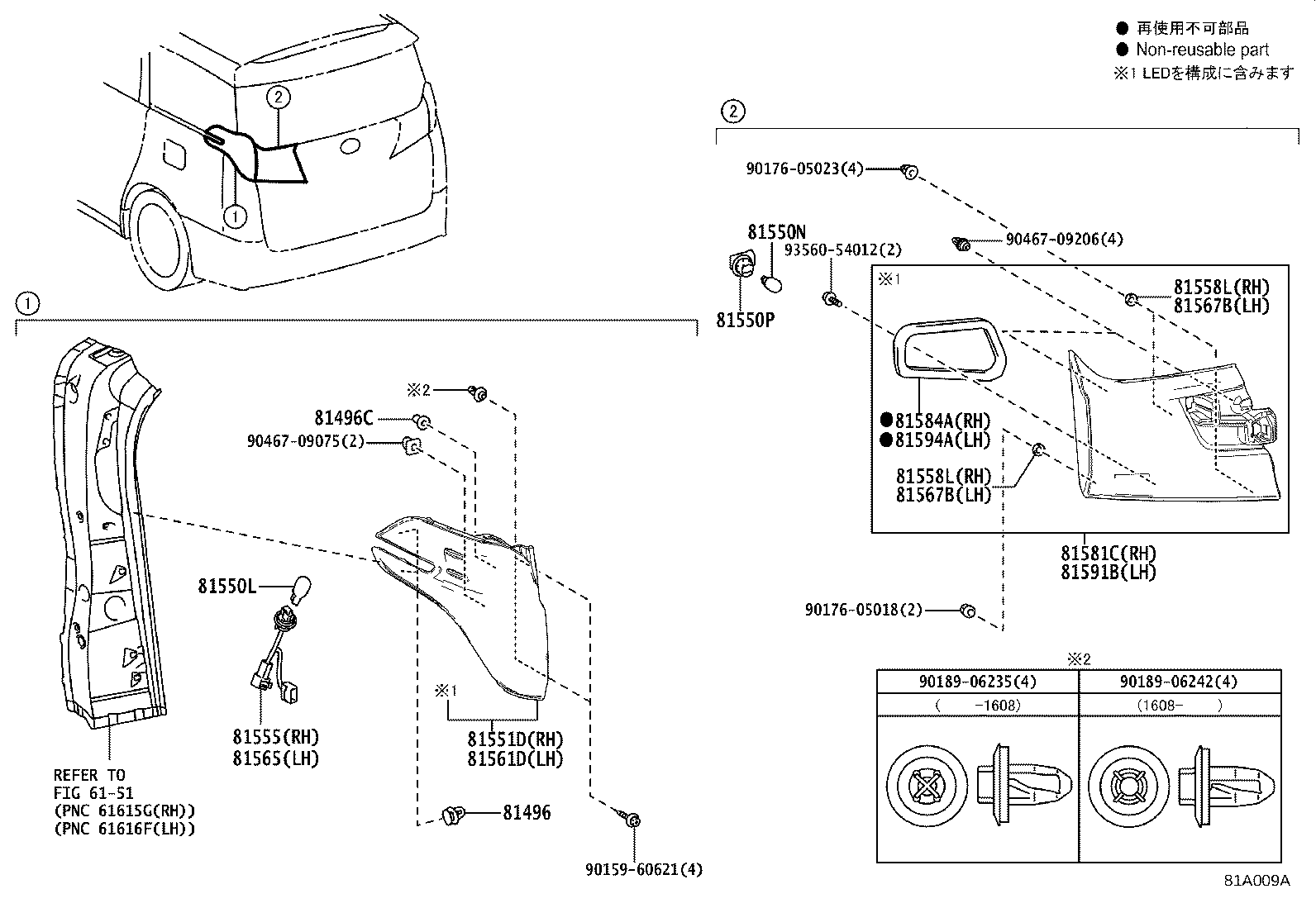

Click highlighted areas on diagram

diagram 6151 81496 81496C 81550L 81550N 81550P 81551D 81555 81558L 81558L 81561D 81565 81567B 81567B 81581C 81584A 81591B 81594A 9015960621 9017605018 9017605023 9018906235 9018906242 9046709075 9046709206 9356054012
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-50010

AGH3#,AYH30,GGH3#

 4
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-58010

AGH3#,AYH30,GGH3#

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15021

AGH3#,AYH30,GGH3#

12V 21W,ｱﾝﾊﾞｰ

 2
81550N - BULB, BACK UP LAMP
90981-11059

AGH3#,AYH30,GGH3#

12V 16W

 2
81550P - SOCKET, BACK UP LAMP
90075-60065

AGH3#,AYH30,GGH3#

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-58130

AGH3#,AYH30,GGH3#..S,SA,SR

ﾏｰｸ=3

 1
81551-58140

AGH3#,AYH30,GGH3#..VFIRE

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-58140

AGH3#,AYH30,GGH3#..VFIRE

 1
81558L - PROTECTOR, REAR COMBINATION LAMP, RH
81558-24040

AGH3#,AYH30,GGH3#

 3
81558L - PROTECTOR, REAR COMBINATION LAMP, RH
81558-24040

AGH3#,AYH30,GGH3#

 3
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-58130

AGH3#,AYH30,GGH3#..S,SA,SR

 1
81561-58140

AGH3#,AYH30,GGH3#..VFIRE

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-58140

AGH3#,AYH30,GGH3#..VFIRE

 1
81567B - PROTECTOR, REAR COMBINATION LAMP, LH
81558-24040

AGH3#,AYH30,GGH3#

 3
81567B - PROTECTOR, REAR COMBINATION LAMP, LH
81558-24040

AGH3#,AYH30,GGH3#

 3
81581C - LENS AND BODY, REAR LAMP, RH
81581-58270

AGH3#,AYH30,GGH3#..S,SA,SR

寒冷地仕様

 1
81581-58230

AGH3#,AYH30,GGH3#..VFIRE

 1
81581-58260

AGH3#,AYH30,GGH3#..S,SA,SR

 1
81581-58240

AGH3#,AYH30,GGH3#..VFIRE

寒冷地仕様

 1
81584A - GASKET, REAR LAMP RH
81584-58230

AGH3#,AYH30,GGH3#

 1
81591B - LENS AND BODY, REAR LAMP, LH
81591-58260

AGH3#,AYH30,GGH3#..S,SA,SR

 1
81591-58240

AGH3#,AYH30,GGH3#..VFIRE

寒冷地仕様

 1
81591-58270

AGH3#,AYH30,GGH3#..S,SA,SR

寒冷地仕様

 1
81591-58230

AGH3#,AYH30,GGH3#..VFIRE

 1
81594A - GASKET, REAR LAMP LH
81594-58230

AGH3#,AYH30,GGH3#

 1
Common parts
90159-60621
90176-05018
90176-05023
90189-06235
90189-06242
90467-09075
90467-09206
93560-54012
Linked diagrams
6151
