AYH30W-NFXVB (2015)
Toyota Alphard/Vellfire/Hv

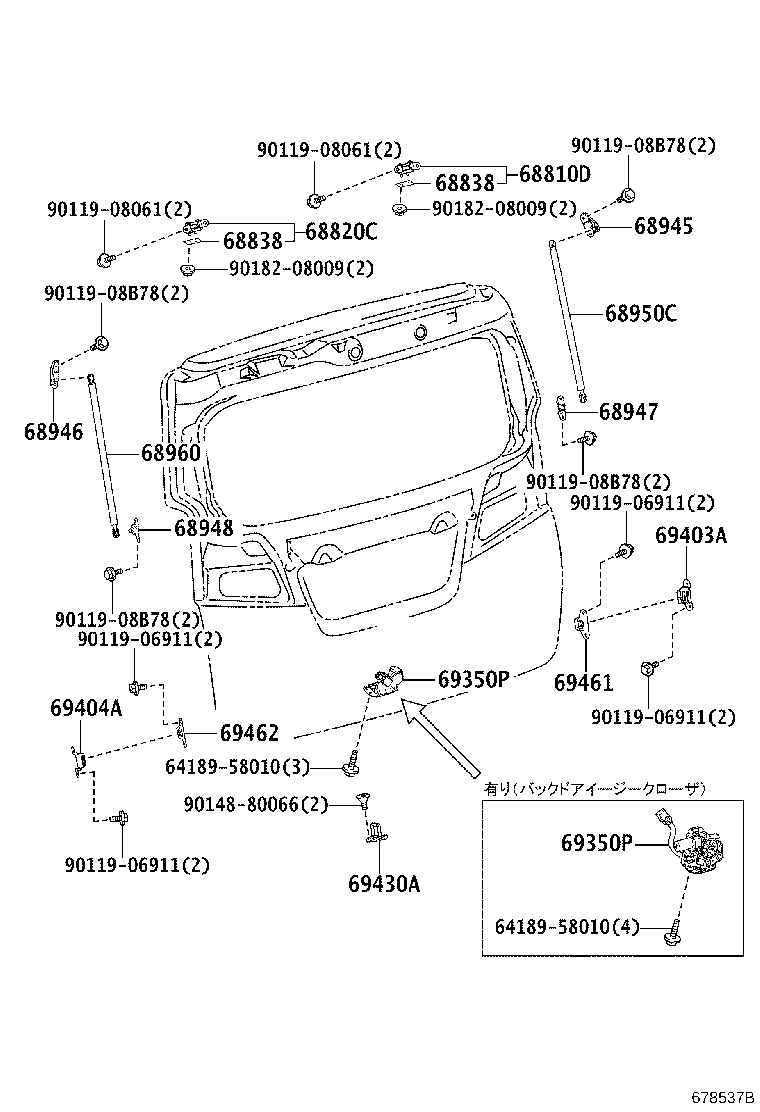

ILLUST NO. 1 OF 2(1501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68810D - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-26010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 68810-26011 |
AGH3#,AYH30,GGH3# |
1 | ||
| 68820C - HINGE ASSY, BACK DOOR, LH | ||||
| 68820-26011 |
AGH3#,AYH30,GGH3# |
1 | ||
| 68820-26010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-26030 |
AGH3#,AYH30,GGH3# 厚さ=1.1 |
2 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-26030 |
AGH3#,AYH30,GGH3# 厚さ=1.1 |
2 | ||
| 68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH | ||||
| 68945-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH | ||||
| 68946-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH | ||||
| 68947-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH | ||||
| 68948-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-58180 |
AYH30..G,SR,V,X,ZR;AGH3#,GGH3#..GF,S,SA,VL,X,Z,ZA ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 68950-58190 |
AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 68950-58180 |
AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 68950-58170 |
AYH30..G,SR,V,X,ZR;AGH3#,GGH3#..GF,S,SA,VL,X,Z,ZA |
1 | ||
| 68950-58190 |
AYH30,GGH3#..EL |
1 | ||
| 68950-58181 |
AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 68950-58191 |
AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 68950-58171 |
AYH30..G,SR,V,X,ZR;AGH3#,GGH3#..GF,S,SA,VL,X,Z,ZA |
1 | ||
| 68950-58181 |
AYH30..G,SR,V,X,ZR;AGH3#,GGH3#..GF,S,SA,VL,X,Z,ZA ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 68950-58191 |
AYH30,GGH3#..EL |
1 | ||
| 68960 - STAY ASSY, BACK DOOR, LH | ||||
| 68960-58180 |
AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 68960-58180 |
AYH30..G,SR,V,X,ZR;AGH3#,GGH3#..GF,S,SA,VL,X,Z,ZA ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 68960-58170 |
AYH30..G,SR,V,X,ZR;AGH3#,GGH3#..GF,S,SA,VL,X,Z,ZA |
1 | ||
| 68960-58190 |
AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 68960-58190 |
AYH30,GGH3#..EL |
1 | ||
| 68960-58181 |
AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 68960-58191 |
AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 68960-58171 |
AYH30..G,SR,V,X,ZR;AGH3#,GGH3#..GF,S,SA,VL,X,Z,ZA |
1 | ||
| 68960-58181 |
AYH30..G,SR,V,X,ZR;AGH3#,GGH3#..GF,S,SA,VL,X,Z,ZA ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 68960-58191 |
AYH30,GGH3#..EL |
1 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-58030 |
AGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR |
1 | ||
| 69350-58040 |
AGH3#,AYH30..S,X,Z |
1 | ||
| 69350-58030 |
AGH3#,AYH30..S,X,Z 有り(*POSD(運転席側,助手席側)&*BDC) |
1 | ||
| 69350-58031 |
AGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR |
1 | ||
| 69350-58031 |
AGH3#,AYH30..S,X,Z 有り(*POSD(運転席側,助手席側)&*BDC) |
1 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-58030 |
AGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR |
1 | ||
| 69350-58040 |
AGH3#,AYH30..S,X,Z |
1 | ||
| 69350-58030 |
AGH3#,AYH30..S,X,Z 有り(*POSD(運転席側,助手席側)&*BDC) |
1 | ||
| 69350-58031 |
AGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR |
1 | ||
| 69350-58031 |
AGH3#,AYH30..S,X,Z 有り(*POSD(運転席側,助手席側)&*BDC) |
1 | ||
| 69403A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH | ||||
| 67293-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH | ||||
| 67293-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 69430A - STRIKER ASSY, BACK DOOR LOWER LOCK | ||||
| 69430-48030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 69461 - STOPPER, BACK DOOR SIDE MALE, RH | ||||
| 67281-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 69462 - STOPPER, BACK DOOR SIDE MALE, LH | ||||
| 67281-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| Common parts | ||||
| 64189-58010 | ||||
| 90119-06911 | ||||
| 90119-08061 | ||||
| 90119-08B78 | ||||
| 90148-80066 | ||||
| 90182-08009 | ||||

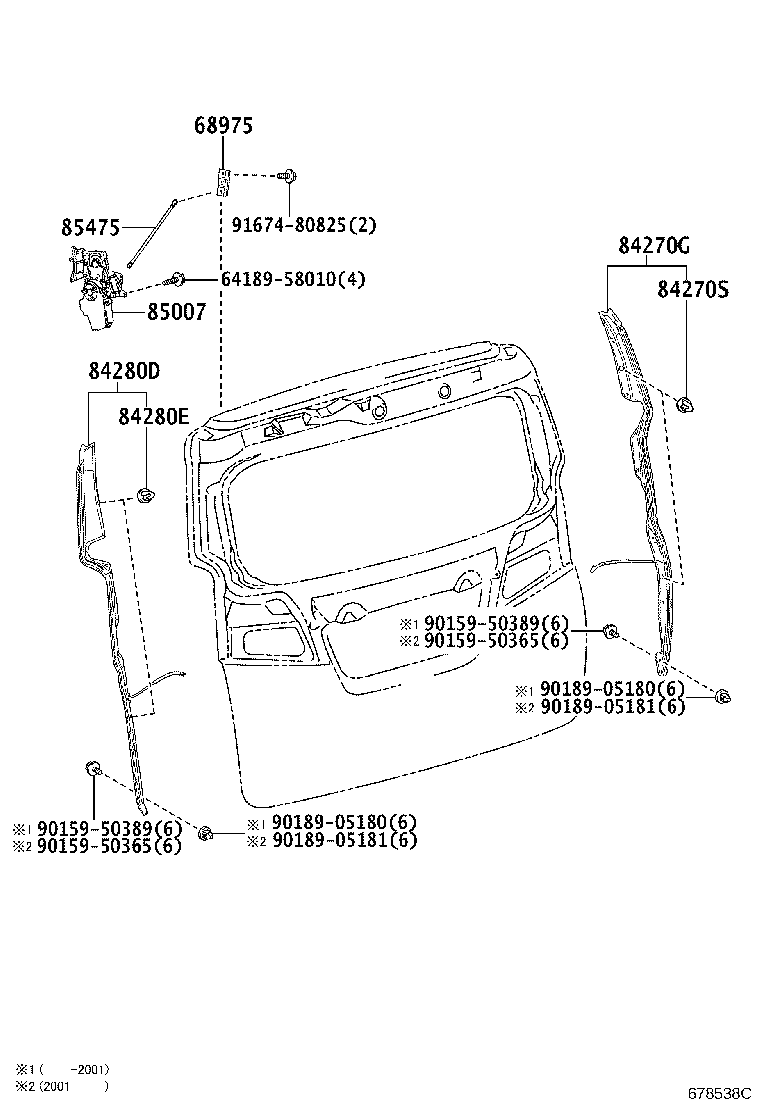

ILLUST NO. 2 OF 2(1501- )
ｱﾘ(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68975 - PLATE, BACK DOOR STAY | ||||
| 68975-58020 |
AYH30,GGH3#..EL |
1 | ||
| 68975-58020 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 84270G - SENSOR ASSY, POWER BACK DOOR, RH | ||||
| 84270-58040 |
AYH30,GGH3#..EL |
1 | ||
| 84270-58040 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 84270-58041 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 84270-58041 |
AYH30,GGH3#..EL |
1 | ||
| 84270S - CLIP(POWER BACK DOOR SENSOR, RH) | ||||
| 61617-42040 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
2 | ||
| 61617-42040 |
AYH30,GGH3#..EL |
2 | ||
| 84280D - SENSOR ASSY, POWER BACK DOOR, LH | ||||
| 84280-58041 |
AYH30,GGH3#..EL |
1 | ||
| 84280-58040 |
AYH30,GGH3#..EL |
1 | ||
| 84280-58040 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 84280-58041 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 84280E - CLIP (FOR POWER BACK DOOR SENSOR, LH) | ||||
| 61617-42040 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
2 | ||
| 61617-42040 |
AYH30,GGH3#..EL |
2 | ||
| 85007 - MOTOR UNIT, BACK DOOR | ||||
| 85007-58041 |
AYH30,GGH3#..EL |
1 | ||
| 85007-58040 |
AYH30,GGH3#..EL |
1 | ||
| 85007-58042 |
AYH30,GGH3#..EL |
1 | ||
| 85007-58040 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 85007-58041 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 85007-58042 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 85475 - ROD, POWER BACK DOOR | ||||
| 85475-58030 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 85475-58030 |
AYH30,GGH3#..EL |
1 | ||
| Common parts | ||||
| 64189-58010 | ||||
| 90159-50365 | ||||
| 90159-50389 | ||||
| 90189-05180 | ||||
| 90189-05181 | ||||
| 91674-80825 | ||||
