AYH30W-NFXSB (2020)
Toyota Alphard/Vellfire/Hv
(2001- )ELS,S,SC,SR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53039 - SEAL, RADIATOR, UPPER | ||||
| 53039-58090 |
AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR) |
1 | ||
| 53039-58090 |
AGH3#,AYH30..07S..Z |
1 | ||

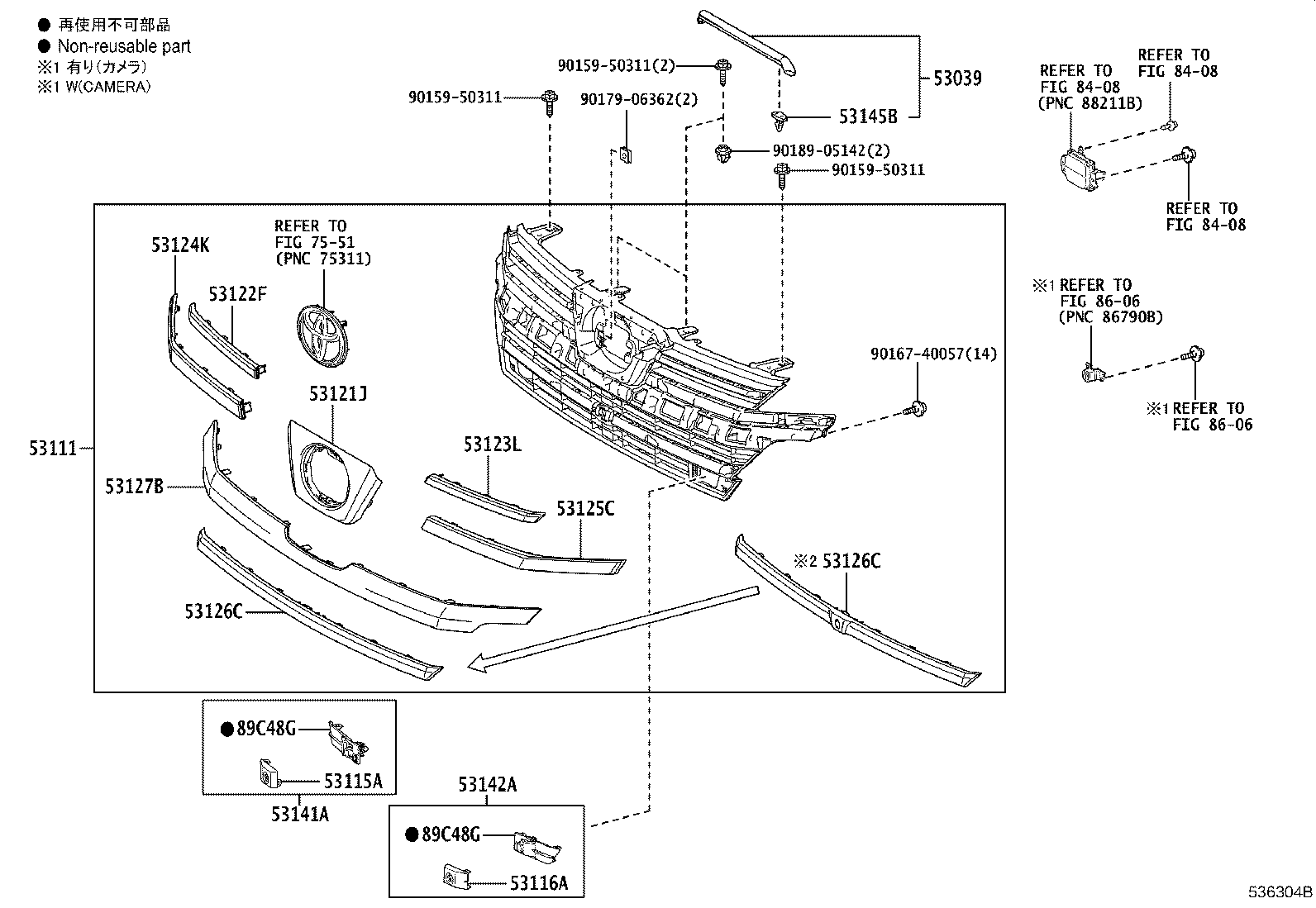

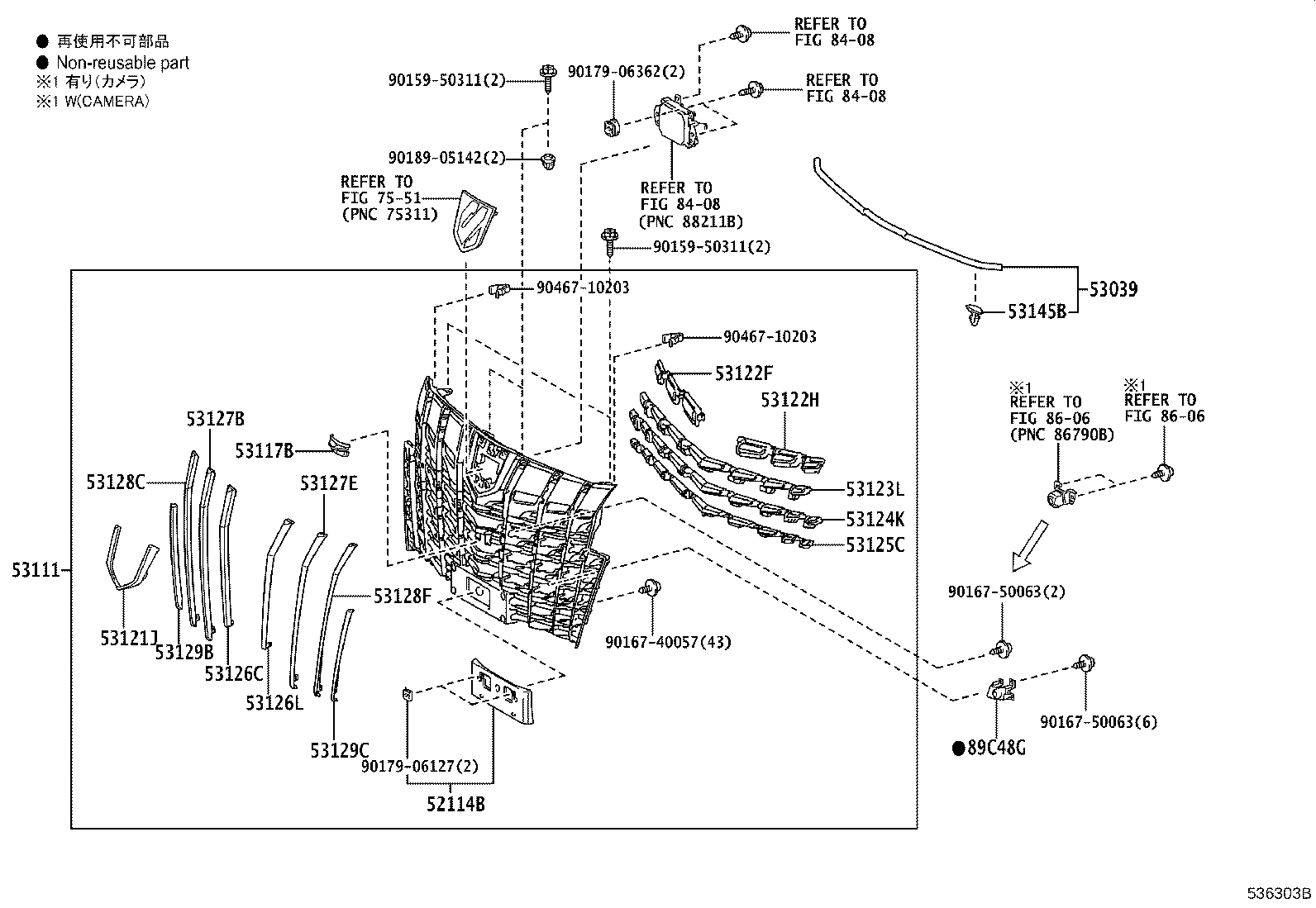

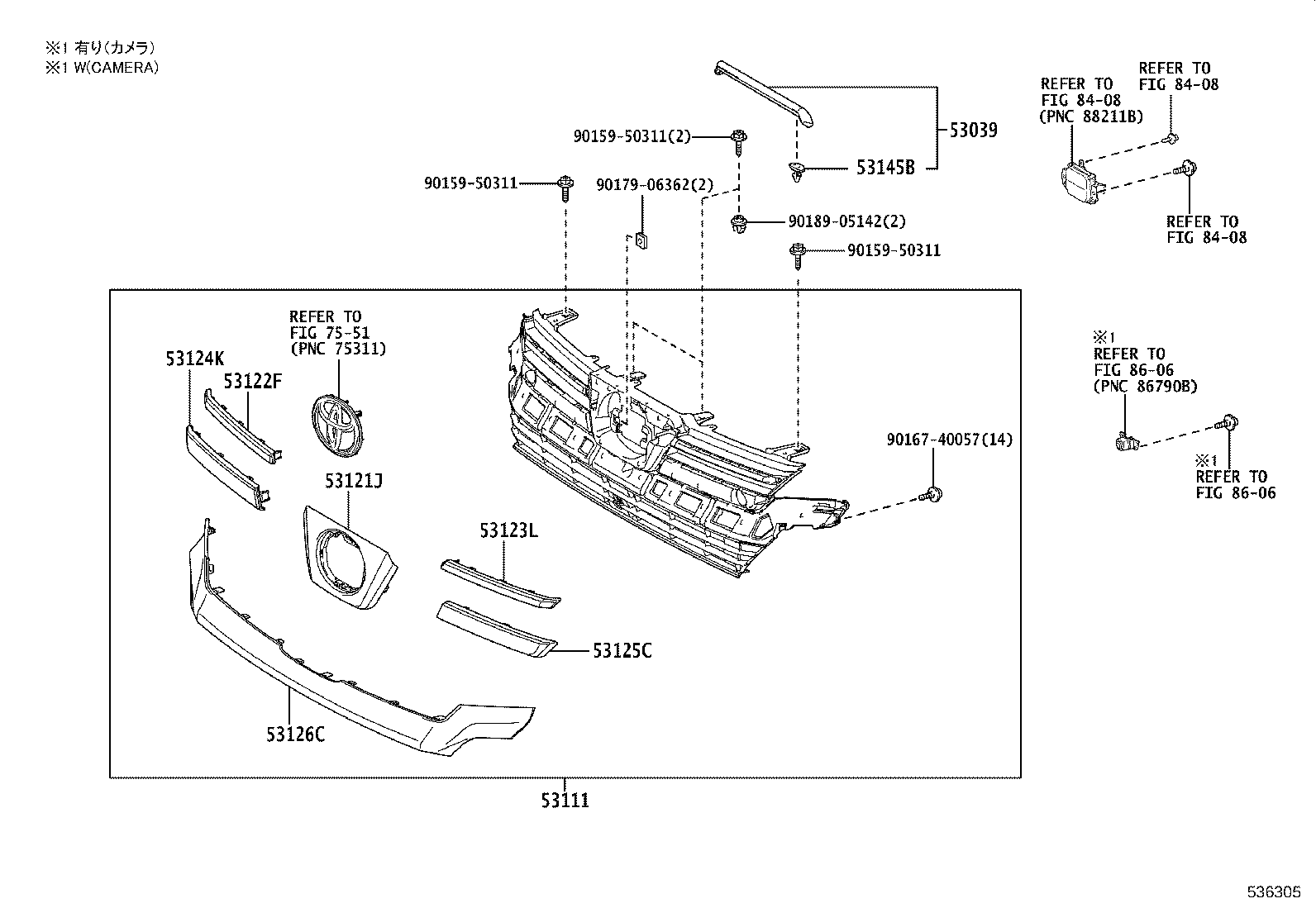

| 53111 - GRILLE, RADIATOR | ||||
| 53101-58580C0 |
AYH30..VFIRE..(V,X) BLACK,202 |
1 | ||
| 53101-58580C1 |
AYH30..VFIRE..(V,X) BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58580A0 |
AYH30..VFIRE..(V,X) WHITE PEARL CS.,070 |
1 | ||
| 53101-58590C1 |
AYH30..VFIRE..(V,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58590A0 |
AYH30..VFIRE..(V,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,WHITE PEARL CS.,070 |
1 | ||
| 53101-58590E0 |
AYH30..VFIRE..(V,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,STEEL BLONDE ME.,4X1 |
1 | ||
| 53101-58580E0 |
AYH30..VFIRE..(V,X) GRAPHITE ME.,4X7 |
1 | ||
| 53101-58590C0 |
AYH30..VFIRE..(V,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,BLACK,202 |
1 | ||
| 53101-58590E1 |
AYH30..VFIRE..(V,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,GRAPHITE ME.,4X7 |
1 | ||
| 53101-58580E1 |
AYH30..VFIRE..(V,X) STEEL BLONDE ME.,4X1 |
1 | ||
| 53101-58700C2 |
AYH30..Z BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58700E0 |
AYH30..Z GRAPHITE ME.,4X7 |
1 | ||
| 53101-58700C0 |
AYH30..Z BLACK,202 |
1 | ||
| 53101-58710C2 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58700C1 |
AYH30..Z SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53101-58710D0 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,DK. RED M.M.,3Q3 |
1 | ||
| 53101-58700A0 |
AYH30..Z WHITE PEARL CS.,070 |
1 | ||
| 53101-58710A0 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,WHITE PEARL CS.,070 |
1 | ||
| 53101-58700D0 |
AYH30..Z DK. RED M.M.,3Q3 |
1 | ||
| 53101-58510 |
AGH3#,AYH30..07S..S ﾒｯｷ,“TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53101-58710E0 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,GRAPHITE ME.,4X7 |
1 | ||
| 53101-58710C0 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,BLACK,202 |
1 | ||
| 53101-58710C1 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53101-58670 |
AGH3#,AYH30..07S..S ﾒｯｷ,“TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰfｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53101-58750A0 |
AYH30..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,WHITE PEARL CS.,070 |
1 | ||
| 53101-58750C0 |
AYH30..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,BLACK,202 |
1 | ||
| 53101-58740C0 |
AYH30..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G),BLACK,202 |
1 | ||
| 53101-58740A0 |
AYH30..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G),WHITE PEARL CS.,070 |
1 | ||
| 53101-58740C2 |
AYH30..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G),BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58740C1 |
AYH30..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53101-58750C1 |
AYH30..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53101-58660 |
AGH3#,AYH30,GGH3#..S,SC,SR ﾒｯｷ,ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53101-58750C2 |
AYH30..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58740C1 |
AYH30..Z SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53101-58510 |
AGH3#,AYH30..07S..S ﾒｯｷ,“Type Gold 2”*(H) |
1 | ||
| 53101-58670 |
AGH3#,AYH30..07S..S ﾒｯｷ,“Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 1VSP JBL |
1 | ||
| 53101-58440 |
AGH3#,AYH30,GGH3#..S,SC,SR ﾒｯｷ |
1 | ||
| 53101-58750C1 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53101-58740A0 |
AYH30..Z WHITE PEARL CS.,070 |
1 | ||
| 53101-58740C2 |
AYH30..Z BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58750C0 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,BLACK,202 |
1 | ||
| 53101-58740C0 |
AYH30..Z BLACK,202 |
1 | ||
| 53101-58750C2 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58750A0 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,WHITE PEARL CS.,070 |
1 | ||
| 53117B - BRACKET, RADIATOR GRILLE, LOWER | ||||
| 53117-58110 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 53117-58130 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53117-58130 |
AGH3#,AYH30,GGH3#..S,SC,SR ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53117-58130 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53121J - MOULDING, RADIATOR GRILLE, NO.1 | ||||
| 53121-58320 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53121-58330 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53121-58290 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) |
1 | ||
| 53121-58270 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53121-58270 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53121-58330 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53121-58270 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53121-58330 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53121-58270 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53122F - MOULDING, RADIATOR GRILLE, NO.2 | ||||
| 53122-58290 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53122-58250 |
AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR) |
1 | ||
| 53122-58250 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53122-58290 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53122-58310 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53122-58290 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53122-58290 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53122-58310 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53122-58310 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53122H - MOULDING, RADIATOR GRILLE, NO.2 | ||||
| 53122-58300 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53122-58300 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53122-58300 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53122-58300 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53123L - MOULDING, RADIATOR GRILLE, NO.3 | ||||
| 53123-58060 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53123-58330 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53123-58060 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53123-58350 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53123-58060 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53123-58350 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53123-58330 |
AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR) |
1 | ||
| 53123-58350 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53123-58350 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53124K - MOULDING, RADIATOR GRILLE, NO.4 | ||||
| 53124-58260 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) |
1 | ||
| 53124-58320 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53124-58330 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53124-58320 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53124-58300 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53124-58320 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53124-58330 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53124-58310 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR |
1 | ||
| 53124-58330 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53124-58330 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53125C - MOULDING, RADIATOR GRILLE, NO.5 | ||||
| 53125-58190 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53125-58200 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53125-58200 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53125-58170 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53125-58160 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) |
1 | ||
| 53125-58200 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53125-58190 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53125-58200 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53125-58180 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR |
1 | ||
| 53125-58190 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53126C - MOULDING, RADIATOR GRILLE, NO.6 | ||||
| 53126-58150 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) |
1 | ||
| 53126-58200 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53126-58170C0 |
AGH3#,AYH30..07S..Z BLACK,202 |
1 | ||
| 53126-58170C2 |
AGH3#,AYH30..07S..Z BURNING BLACK CS.GF,222 |
1 | ||
| 53126-58160 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53126-58170C1 |
AGH3#,AYH30..07S..Z SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53126-58170A0 |
AGH3#,AYH30..07S..Z WHITE PEARL CS.,070 |
1 | ||
| 53126-58200 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53126-58200 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53126-58170D0 |
AGH3#,AYH30..07S..Z DK. RED M.M.,3Q3 |
1 | ||
| 53126-58170E0 |
AGH3#,AYH30..07S..Z GRAPHITE ME.,4X7 |
1 | ||
| 53126-58200 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53126L - MOULDING, RADIATOR GRILLE, NO.6 | ||||
| 53126-58210 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53126-58210 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53126-58210 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53126-58210 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53127B - MOULDING, RADIATOR GRILLE, NO.7 | ||||
| 53127-58100E0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) STEEL BLONDE ME.,4X1 |
1 | ||
| 53127-58100C2 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) BURNING BLACK CS.GF,222 |
1 | ||
| 53127-58130 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53127-58100C0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) BLACK,202 |
1 | ||
| 53127-58130 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53127-58100E1 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) GRAPHITE ME.,4X7 |
1 | ||
| 53127-58130 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53127-58130 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53127-58100A0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) WHITE PEARL CS.,070 |
1 | ||
| 53127E - MOULDING, RADIATOR GRILLE, NO.7 | ||||
| 53127-58140 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53127-58140 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53127-58140 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53127-58140 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53128C - MOULDING, RADIATOR GRILLE, NO.8 | ||||
| 53128-58060 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53128-58060 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53128-58060 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53128-58060 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53128F - MOULDING, RADIATOR GRILLE, NO.8 | ||||
| 53128-58070 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53128-58070 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53128-58070 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53128-58070 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53129B - MOULDING, RADIATOR GRILLE, NO.9 | ||||
| 53129-58010 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR |
1 | ||
| 53129-58040 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53129-58040 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53129-58040 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53129-58040 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53129C - MOULDING, RADIATOR GRILLE, NO.9 | ||||
| 53129-58050 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53129-58050 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53129-58050 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53129-58050 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53129-58020 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR |
1 | ||
| 53145B - CLIP, RADIATOR GRILLE GARNISH | ||||
| 53145-60030 |
AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR) |
6 | ||
| 53145-60030 |
AGH3#,AYH30..07S..Z |
6 | ||
| 89C48G - RETAINER, ULTRASONIC SENSOR, FRONT CENTER | ||||
| 89348-58230 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) 左側 |
1 | ||
| 89348-58220 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) 右側 |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| 90179-06362 | ||||
| 90189-05142 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 7551 | ||||
| 8408 | ||||
| 8606 | ||||
(2001- )VFIRE..EL,V,VL,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53039 - SEAL, RADIATOR, UPPER | ||||
| 53039-58090 |
AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR) |
1 | ||
| 53039-58090 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-58580C0 |
AYH30..VFIRE..(V,X) BLACK,202 |
1 | ||
| 53101-58580C1 |
AYH30..VFIRE..(V,X) BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58580A0 |
AYH30..VFIRE..(V,X) WHITE PEARL CS.,070 |
1 | ||
| 53101-58590C1 |
AYH30..VFIRE..(V,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58590A0 |
AYH30..VFIRE..(V,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,WHITE PEARL CS.,070 |
1 | ||
| 53101-58590E0 |
AYH30..VFIRE..(V,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,STEEL BLONDE ME.,4X1 |
1 | ||
| 53101-58580E0 |
AYH30..VFIRE..(V,X) GRAPHITE ME.,4X7 |
1 | ||
| 53101-58590C0 |
AYH30..VFIRE..(V,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,BLACK,202 |
1 | ||
| 53101-58590E1 |
AYH30..VFIRE..(V,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,GRAPHITE ME.,4X7 |
1 | ||
| 53101-58580E1 |
AYH30..VFIRE..(V,X) STEEL BLONDE ME.,4X1 |
1 | ||
| 53101-58700C2 |
AYH30..Z BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58700E0 |
AYH30..Z GRAPHITE ME.,4X7 |
1 | ||
| 53101-58700C0 |
AYH30..Z BLACK,202 |
1 | ||
| 53101-58710C2 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58700C1 |
AYH30..Z SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53101-58710D0 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,DK. RED M.M.,3Q3 |
1 | ||
| 53101-58700A0 |
AYH30..Z WHITE PEARL CS.,070 |
1 | ||
| 53101-58710A0 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,WHITE PEARL CS.,070 |
1 | ||
| 53101-58700D0 |
AYH30..Z DK. RED M.M.,3Q3 |
1 | ||
| 53101-58510 |
AGH3#,AYH30..07S..S ﾒｯｷ,“TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53101-58710E0 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,GRAPHITE ME.,4X7 |
1 | ||
| 53101-58710C0 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,BLACK,202 |
1 | ||
| 53101-58710C1 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53101-58670 |
AGH3#,AYH30..07S..S ﾒｯｷ,“TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰfｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53101-58750A0 |
AYH30..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,WHITE PEARL CS.,070 |
1 | ||
| 53101-58750C0 |
AYH30..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,BLACK,202 |
1 | ||
| 53101-58740C0 |
AYH30..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G),BLACK,202 |
1 | ||
| 53101-58740A0 |
AYH30..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G),WHITE PEARL CS.,070 |
1 | ||
| 53101-58740C2 |
AYH30..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G),BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58740C1 |
AYH30..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53101-58750C1 |
AYH30..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53101-58660 |
AGH3#,AYH30,GGH3#..S,SC,SR ﾒｯｷ,ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53101-58750C2 |
AYH30..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58740C1 |
AYH30..Z SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53101-58510 |
AGH3#,AYH30..07S..S ﾒｯｷ,“Type Gold 2”*(H) |
1 | ||
| 53101-58670 |
AGH3#,AYH30..07S..S ﾒｯｷ,“Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 1VSP JBL |
1 | ||
| 53101-58440 |
AGH3#,AYH30,GGH3#..S,SC,SR ﾒｯｷ |
1 | ||
| 53101-58750C1 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53101-58740A0 |
AYH30..Z WHITE PEARL CS.,070 |
1 | ||
| 53101-58740C2 |
AYH30..Z BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58750C0 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,BLACK,202 |
1 | ||
| 53101-58740C0 |
AYH30..Z BLACK,202 |
1 | ||
| 53101-58750C2 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58750A0 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,WHITE PEARL CS.,070 |
1 | ||
| 53115A - BRACKET, RADIATOR GRILLE, RH | ||||
| 53115-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) |
1 | ||
| 53116A - BRACKET, RADIATOR GRILLE, LH | ||||
| 53116-58050 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) |
1 | ||
| 53121J - MOULDING, RADIATOR GRILLE, NO.1 | ||||
| 53121-58320 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53121-58330 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53121-58290 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) |
1 | ||
| 53121-58270 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53121-58270 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53121-58330 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53121-58270 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53121-58330 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53121-58270 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53122F - MOULDING, RADIATOR GRILLE, NO.2 | ||||
| 53122-58290 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53122-58250 |
AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR) |
1 | ||
| 53122-58250 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53122-58290 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53122-58310 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53122-58290 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53122-58290 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53122-58310 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53122-58310 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53123L - MOULDING, RADIATOR GRILLE, NO.3 | ||||
| 53123-58060 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53123-58330 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53123-58060 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53123-58350 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53123-58060 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53123-58350 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53123-58330 |
AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR) |
1 | ||
| 53123-58350 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53123-58350 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53124K - MOULDING, RADIATOR GRILLE, NO.4 | ||||
| 53124-58260 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) |
1 | ||
| 53124-58320 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53124-58330 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53124-58320 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53124-58300 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53124-58320 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53124-58330 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53124-58310 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR |
1 | ||
| 53124-58330 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53124-58330 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53125C - MOULDING, RADIATOR GRILLE, NO.5 | ||||
| 53125-58190 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53125-58200 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53125-58200 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53125-58170 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53125-58160 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) |
1 | ||
| 53125-58200 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53125-58190 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53125-58200 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53125-58180 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR |
1 | ||
| 53125-58190 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53126C - MOULDING, RADIATOR GRILLE, NO.6 | ||||
| 53126-58150 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) |
1 | ||
| 53126-58200 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53126-58170C0 |
AGH3#,AYH30..07S..Z BLACK,202 |
1 | ||
| 53126-58170C2 |
AGH3#,AYH30..07S..Z BURNING BLACK CS.GF,222 |
1 | ||
| 53126-58160 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53126-58170C1 |
AGH3#,AYH30..07S..Z SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53126-58170A0 |
AGH3#,AYH30..07S..Z WHITE PEARL CS.,070 |
1 | ||
| 53126-58200 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53126-58200 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53126-58170D0 |
AGH3#,AYH30..07S..Z DK. RED M.M.,3Q3 |
1 | ||
| 53126-58170E0 |
AGH3#,AYH30..07S..Z GRAPHITE ME.,4X7 |
1 | ||
| 53126-58200 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53126C - MOULDING, RADIATOR GRILLE, NO.6 | ||||
| 53126-58150 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) |
1 | ||
| 53126-58200 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53126-58170C0 |
AGH3#,AYH30..07S..Z BLACK,202 |
1 | ||
| 53126-58170C2 |
AGH3#,AYH30..07S..Z BURNING BLACK CS.GF,222 |
1 | ||
| 53126-58160 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53126-58170C1 |
AGH3#,AYH30..07S..Z SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53126-58170A0 |
AGH3#,AYH30..07S..Z WHITE PEARL CS.,070 |
1 | ||
| 53126-58200 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53126-58200 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53126-58170D0 |
AGH3#,AYH30..07S..Z DK. RED M.M.,3Q3 |
1 | ||
| 53126-58170E0 |
AGH3#,AYH30..07S..Z GRAPHITE ME.,4X7 |
1 | ||
| 53126-58200 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53127B - MOULDING, RADIATOR GRILLE, NO.7 | ||||
| 53127-58100E0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) STEEL BLONDE ME.,4X1 |
1 | ||
| 53127-58100C2 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) BURNING BLACK CS.GF,222 |
1 | ||
| 53127-58130 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53127-58100C0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) BLACK,202 |
1 | ||
| 53127-58130 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53127-58100E1 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) GRAPHITE ME.,4X7 |
1 | ||
| 53127-58130 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53127-58130 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53127-58100A0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) WHITE PEARL CS.,070 |
1 | ||
| 53141A - GARNISH, RADIATOR GRILLE, LOWER RH | ||||
| 53141-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) |
1 | ||
| 53142A - GARNISH, RADIATOR GRILLE, LOWER LH | ||||
| 53142-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) |
1 | ||
| 53145B - CLIP, RADIATOR GRILLE GARNISH | ||||
| 53145-60030 |
AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR) |
6 | ||
| 53145-60030 |
AGH3#,AYH30..07S..Z |
6 | ||
| 89C48G - RETAINER, ULTRASONIC SENSOR, FRONT CENTER | ||||
| 89348-58230 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) 左側 |
1 | ||
| 89348-58220 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) 右側 |
1 | ||
| 89C48G - RETAINER, ULTRASONIC SENSOR, FRONT CENTER | ||||
| 89348-58230 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) 左側 |
1 | ||
| 89348-58220 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) 右側 |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90167-40057 | ||||
| 90179-06362 | ||||
| 90189-05142 | ||||
| Linked diagrams | ||||
| 7551 | ||||
| 8408 | ||||
| 8606 | ||||
(2001- )ELZ,Z,ZG,ZR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53039 - SEAL, RADIATOR, UPPER | ||||
| 53039-58090 |
AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR) |
1 | ||
| 53039-58090 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-58580C0 |
AYH30..VFIRE..(V,X) BLACK,202 |
1 | ||
| 53101-58580C1 |
AYH30..VFIRE..(V,X) BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58580A0 |
AYH30..VFIRE..(V,X) WHITE PEARL CS.,070 |
1 | ||
| 53101-58590C1 |
AYH30..VFIRE..(V,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58590A0 |
AYH30..VFIRE..(V,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,WHITE PEARL CS.,070 |
1 | ||
| 53101-58590E0 |
AYH30..VFIRE..(V,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,STEEL BLONDE ME.,4X1 |
1 | ||
| 53101-58580E0 |
AYH30..VFIRE..(V,X) GRAPHITE ME.,4X7 |
1 | ||
| 53101-58590C0 |
AYH30..VFIRE..(V,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,BLACK,202 |
1 | ||
| 53101-58590E1 |
AYH30..VFIRE..(V,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,GRAPHITE ME.,4X7 |
1 | ||
| 53101-58580E1 |
AYH30..VFIRE..(V,X) STEEL BLONDE ME.,4X1 |
1 | ||
| 53101-58700C2 |
AYH30..Z BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58700E0 |
AYH30..Z GRAPHITE ME.,4X7 |
1 | ||
| 53101-58700C0 |
AYH30..Z BLACK,202 |
1 | ||
| 53101-58710C2 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58700C1 |
AYH30..Z SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53101-58710D0 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,DK. RED M.M.,3Q3 |
1 | ||
| 53101-58700A0 |
AYH30..Z WHITE PEARL CS.,070 |
1 | ||
| 53101-58710A0 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,WHITE PEARL CS.,070 |
1 | ||
| 53101-58700D0 |
AYH30..Z DK. RED M.M.,3Q3 |
1 | ||
| 53101-58510 |
AGH3#,AYH30..07S..S ﾒｯｷ,“TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53101-58710E0 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,GRAPHITE ME.,4X7 |
1 | ||
| 53101-58710C0 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,BLACK,202 |
1 | ||
| 53101-58710C1 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53101-58670 |
AGH3#,AYH30..07S..S ﾒｯｷ,“TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰfｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53101-58750A0 |
AYH30..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,WHITE PEARL CS.,070 |
1 | ||
| 53101-58750C0 |
AYH30..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,BLACK,202 |
1 | ||
| 53101-58740C0 |
AYH30..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G),BLACK,202 |
1 | ||
| 53101-58740A0 |
AYH30..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G),WHITE PEARL CS.,070 |
1 | ||
| 53101-58740C2 |
AYH30..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G),BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58740C1 |
AYH30..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53101-58750C1 |
AYH30..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53101-58660 |
AGH3#,AYH30,GGH3#..S,SC,SR ﾒｯｷ,ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53101-58750C2 |
AYH30..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58740C1 |
AYH30..Z SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53101-58510 |
AGH3#,AYH30..07S..S ﾒｯｷ,“Type Gold 2”*(H) |
1 | ||
| 53101-58670 |
AGH3#,AYH30..07S..S ﾒｯｷ,“Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 1VSP JBL |
1 | ||
| 53101-58440 |
AGH3#,AYH30,GGH3#..S,SC,SR ﾒｯｷ |
1 | ||
| 53101-58750C1 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53101-58740A0 |
AYH30..Z WHITE PEARL CS.,070 |
1 | ||
| 53101-58740C2 |
AYH30..Z BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58750C0 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,BLACK,202 |
1 | ||
| 53101-58740C0 |
AYH30..Z BLACK,202 |
1 | ||
| 53101-58750C2 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58750A0 |
AYH30..Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL,WHITE PEARL CS.,070 |
1 | ||
| 53121J - MOULDING, RADIATOR GRILLE, NO.1 | ||||
| 53121-58320 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53121-58330 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53121-58290 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) |
1 | ||
| 53121-58270 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53121-58270 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53121-58330 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53121-58270 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53121-58330 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53121-58270 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53122F - MOULDING, RADIATOR GRILLE, NO.2 | ||||
| 53122-58290 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53122-58250 |
AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR) |
1 | ||
| 53122-58250 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53122-58290 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53122-58310 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53122-58290 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53122-58290 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53122-58310 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53122-58310 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53123L - MOULDING, RADIATOR GRILLE, NO.3 | ||||
| 53123-58060 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53123-58330 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53123-58060 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53123-58350 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53123-58060 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53123-58350 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53123-58330 |
AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR) |
1 | ||
| 53123-58350 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53123-58350 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53124K - MOULDING, RADIATOR GRILLE, NO.4 | ||||
| 53124-58260 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) |
1 | ||
| 53124-58320 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53124-58330 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53124-58320 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53124-58300 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53124-58320 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53124-58330 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53124-58310 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR |
1 | ||
| 53124-58330 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53124-58330 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53125C - MOULDING, RADIATOR GRILLE, NO.5 | ||||
| 53125-58190 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53125-58200 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53125-58200 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53125-58170 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53125-58160 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) |
1 | ||
| 53125-58200 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53125-58190 |
AGH3#,AYH30..07S..Z |
1 | ||
| 53125-58200 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53125-58180 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR |
1 | ||
| 53125-58190 |
AGH3#,AYH30..07S..Z “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53126C - MOULDING, RADIATOR GRILLE, NO.6 | ||||
| 53126-58150 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) |
1 | ||
| 53126-58200 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53126-58170C0 |
AGH3#,AYH30..07S..Z BLACK,202 |
1 | ||
| 53126-58170C2 |
AGH3#,AYH30..07S..Z BURNING BLACK CS.GF,222 |
1 | ||
| 53126-58160 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 53126-58170C1 |
AGH3#,AYH30..07S..Z SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53126-58170A0 |
AGH3#,AYH30..07S..Z WHITE PEARL CS.,070 |
1 | ||
| 53126-58200 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H) |
1 | ||
| 53126-58200 |
AGH3#,AYH30..07S..S “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 53126-58170D0 |
AGH3#,AYH30..07S..Z DK. RED M.M.,3Q3 |
1 | ||
| 53126-58170E0 |
AGH3#,AYH30..07S..Z GRAPHITE ME.,4X7 |
1 | ||
| 53126-58200 |
AGH3#,AYH30..07S..S “Type Gold 2”*(H)&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 53145B - CLIP, RADIATOR GRILLE GARNISH | ||||
| 53145-60030 |
AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR) |
6 | ||
| 53145-60030 |
AGH3#,AYH30..07S..Z |
6 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90167-40057 | ||||
| 90179-06362 | ||||
| 90189-05142 | ||||
| Linked diagrams | ||||
| 7551 | ||||
| 8408 | ||||
| 8606 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
