ATH20W-PFXSB (2011)
Toyota Alphard/Vellfire/Hv
Production
Dec 2011
-
Jan 2015
Engine
2AZFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

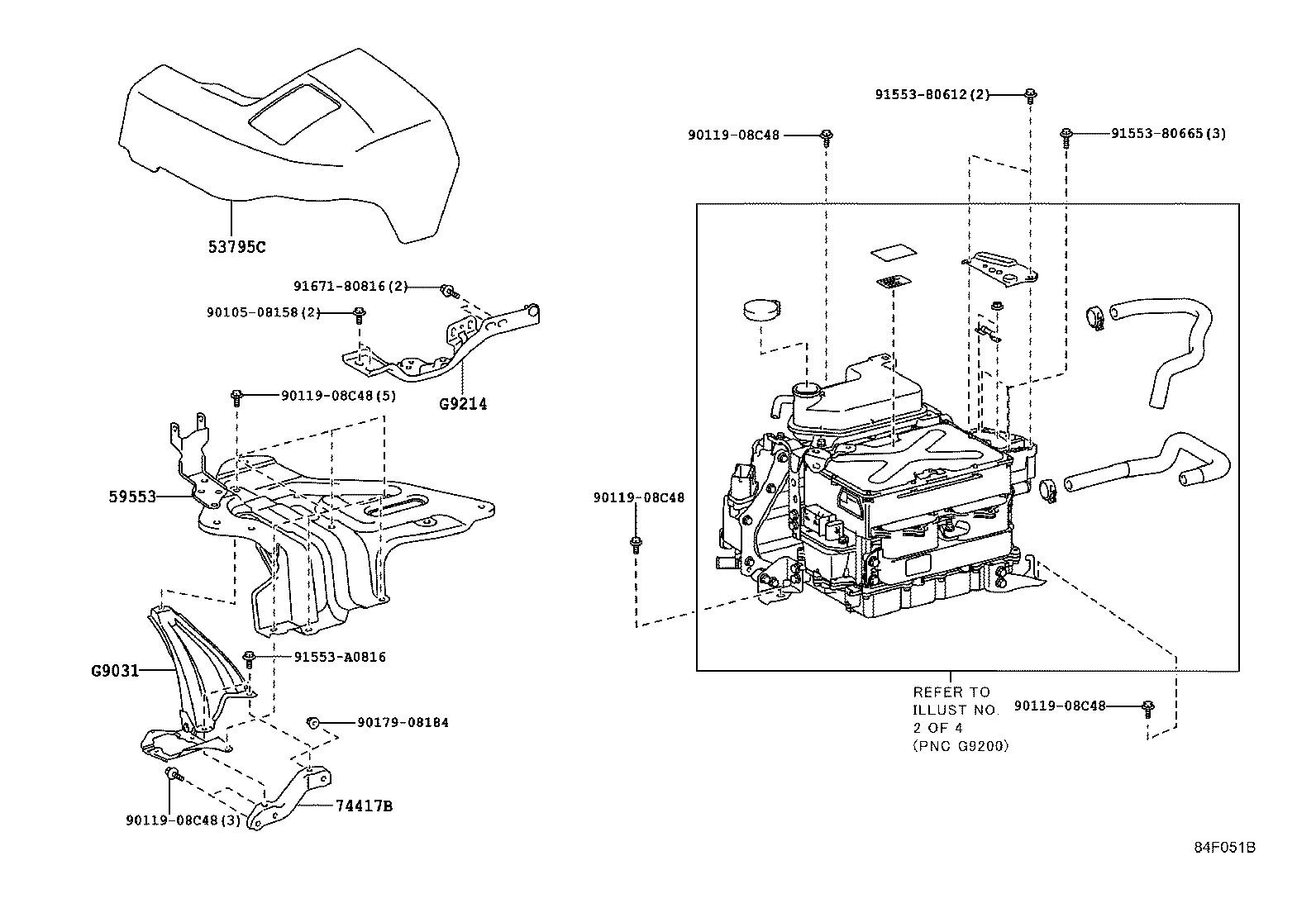

ILLUST NO. 1 OF 4(1112- )ATH20
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53795C - COVER, ENGINE ROOM, SIDE | ||||
| 53796-58020 |
ATH20 |
1 | ||
| 59553 - REINFORCEMENT, INVERTER BOX, NO.1 | ||||
| 59553-28011 |
ATH20 |
1 | ||
| 74417B - BRACKET, BATTERY CARRIER | ||||
| 74417-42030 |
ATH20 |
1 | ||
| G9031 - BRACKET SUB-ASSY, HV WATER PUMP | ||||
| G9031-28010 |
ATH20..CBU |
1 | ||
| G9214 - BRACKET, INVERTER, NO.1 | ||||
| G9214-58020 |
ATH20 |
1 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90119-08C48 | ||||
| 90179-08184 | ||||
| 91553-80612 | ||||
| 91553-80665 | ||||
| 91553-A0816 | ||||
| 91671-80816 | ||||

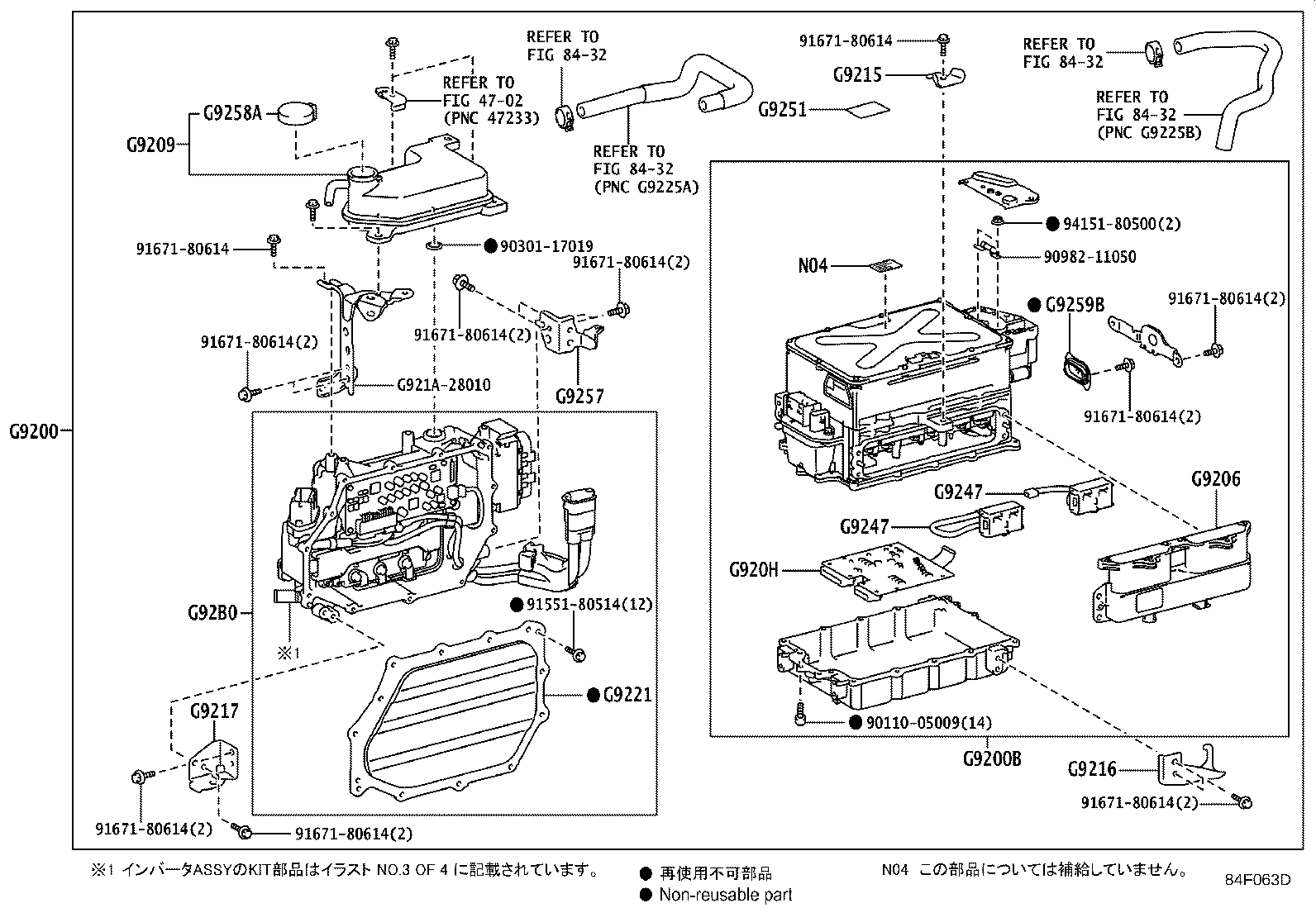

ILLUST NO. 2 OF 4(1112- )ATH20
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| G9200 - INVERTER ASSY, W/CONVERTER | ||||
| G92A0-28011 |
ATH20..CBU |
1 | ||
| G92A0-28012 |
ATH20..CBU |
1 | ||
| G9200B - INVERTER ASSY, HV MOTOR CONTROL, FRONT | ||||
| G9200-28041 |
ATH20..CBU |
1 | ||
| G9206 - CONNECTOR SUB-ASSY, INVERTER W/SENSOR | ||||
| G9206-33010 |
ATH20..CBU |
1 | ||
| G9209 - TANK SUB-ASSY, INVERTER RESERVE | ||||
| G9209-28011 |
ATH20..CBU |
1 | ||
| G920H - COMPUTER SUB-ASSY, MOTOR GENERATOR CONTROL | ||||
| 89807-28010 |
ATH20..CBU |
1 | ||
| G9215 - BRACKET, INVERTER, NO.2 | ||||
| G9215-28020 |
ATH20..CBU |
1 | ||
| G9216 - BRACKET, INVERTER, NO.3 | ||||
| G9216-28020 |
ATH20..CBU |
1 | ||
| G9217 - BRACKET, INVERTER, NO.4 | ||||
| G9217-28020 |
ATH20..CBU |
1 | ||
| G9221 - COVER, INVERTER | ||||
| G9221-28020 |
ATH20..CBU |
1 | ||
| G9247 - SENSOR, INVERTER CURRENT, NO.1 | ||||
| G9247-30031 |
ATH20..CBU |
2 | ||
| G9247 - SENSOR, INVERTER CURRENT, NO.1 | ||||
| G9247-30031 |
ATH20..CBU |
2 | ||
| G9251 - SEAT, INVERTER NAME | ||||
| G9251-47010 |
ATH20 |
1 | ||
| G9257 - BRACKET, INVERTER, NO.5 | ||||
| G9257-28010 |
ATH20..CBU |
1 | ||
| G9258A - CAP, INVERTER RESERVE TANK | ||||
| G9258-28012 |
ATH20..CBU |
1 | ||
| G9258-28011 |
ATH20..CBU |
1 | ||
| G9259B - PLUG, INVERTER DRAIN | ||||
| G9259-33010 |
ATH20..CBU |
1 | ||
| G92B0 - INVERTER ASSY, HYBRID MOTOR CONTROL, REAR | ||||
| G92B0-28010 |
ATH20..CBU |
1 | ||
| Common parts | ||||
| 90110-05009 | ||||
| 90301-17019 | ||||
| 90982-11050 | ||||
| 91551-80514 | ||||
| 91671-80614 | ||||
| 94151-80500 | ||||
| G921A-28010 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 8432 | ||||

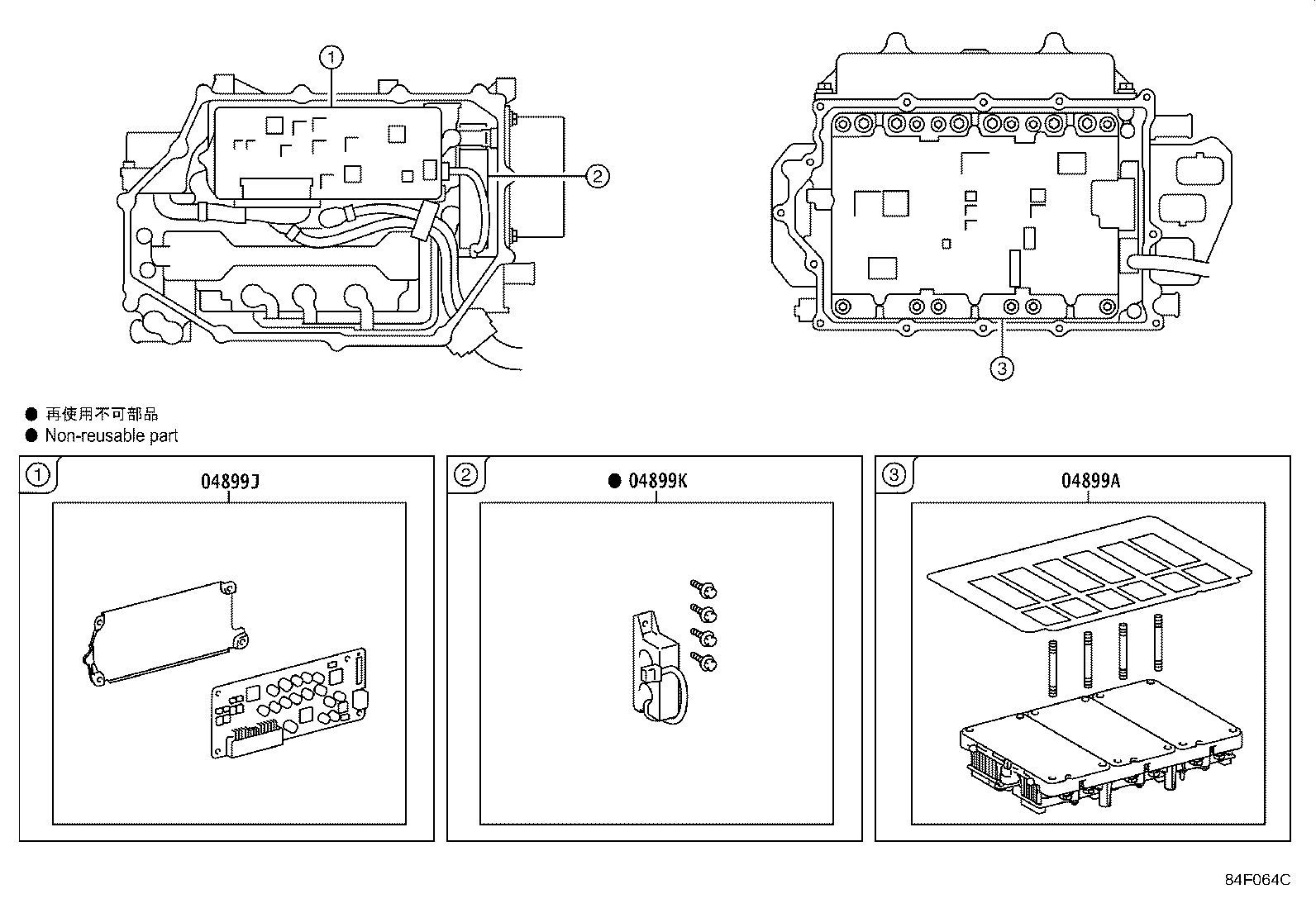

ILLUST NO. 3 OF 4(1112- )ATH20
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04899A - TRANSISTOR KIT, POWER MODULE INTELLIGENT(FRONT IPM) | ||||
| 04899-28080 |
ATH20..CBU |
1 | ||
| 04899J - COMPUTER KIT, MOTOR GENERATOR CONTROL, REAR | ||||
| 04899-28090 |
ATH20..CBU |
1 | ||
| 04899K - SENSOR KIT, INVERTER CURRENT, REAR | ||||
| 04899-28100 |
ATH20..CBU |
1 | ||

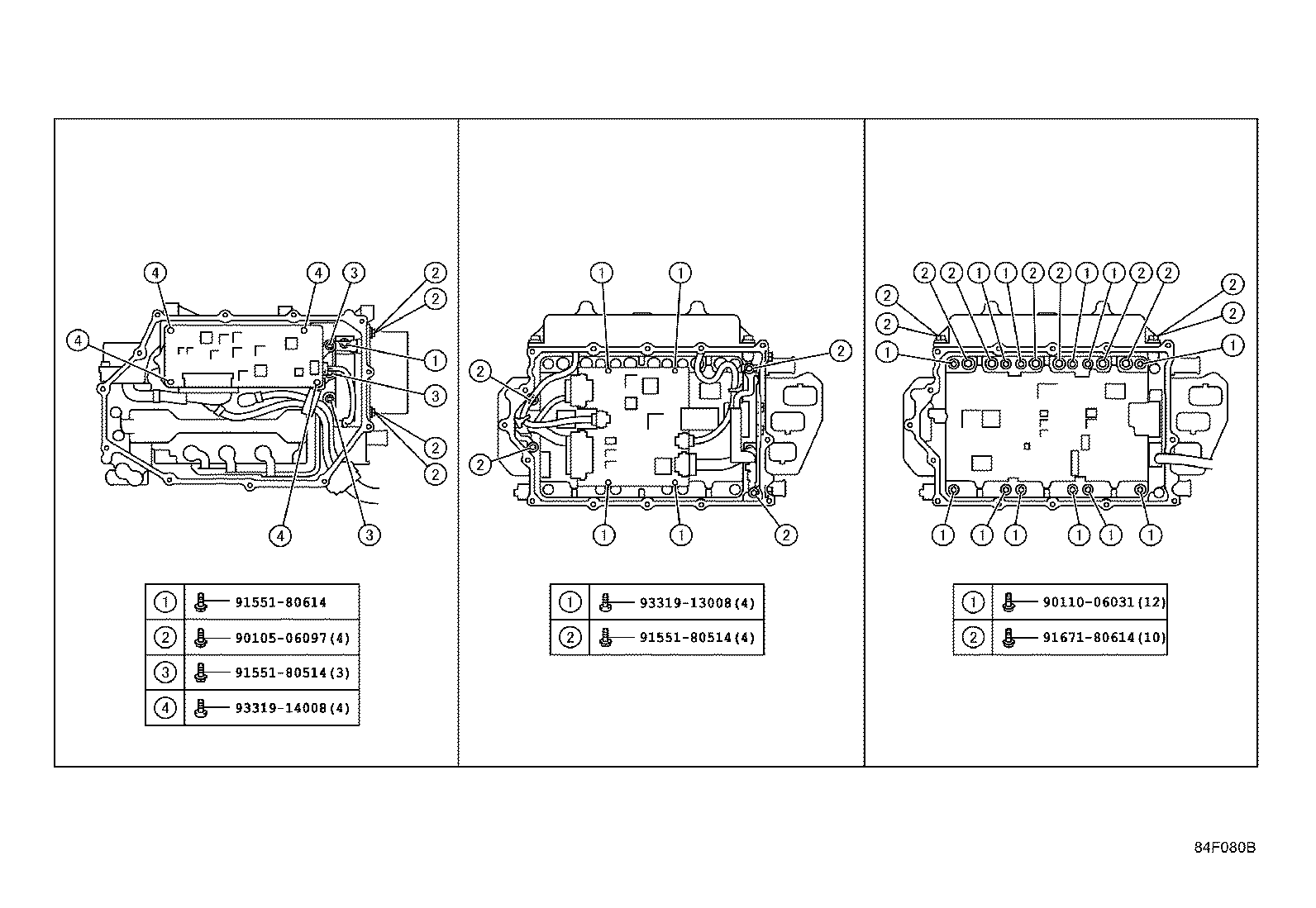

ILLUST NO. 4 OF 4(1112- )ATH20
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-06097 | ||||
| 90110-06031 | ||||
| 91551-80514 | ||||
| 91551-80614 | ||||
| 91671-80614 | ||||
| 93319-13008 | ||||
| 93319-14008 | ||||
