ATH20W-PFXSB (2011)
Toyota Alphard/Vellfire/Hv
ILLUST NO.13 OF17(1112- )ATH20

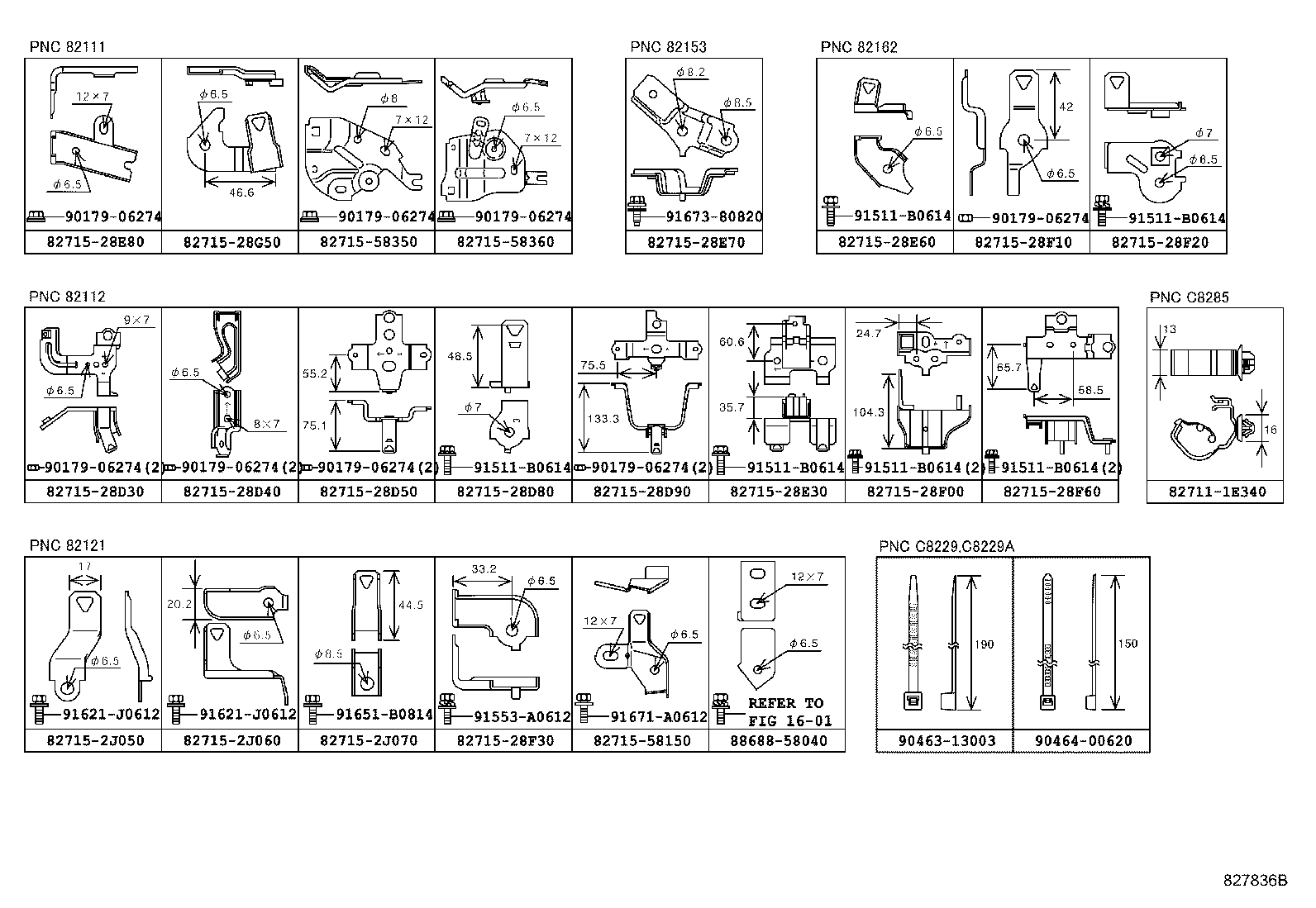

ｸﾗﾝﾌﾟ&ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E340 | ||||
| 82715-28D30 | ||||
| 82715-28D40 | ||||
| 82715-28D50 | ||||
| 82715-28D80 | ||||
| 82715-28D90 | ||||
| 82715-28E30 | ||||
| 82715-28E60 | ||||
| 82715-28E70 | ||||
| 82715-28E80 | ||||
| 82715-28F00 | ||||
| 82715-28F10 | ||||
| 82715-28F20 | ||||
| 82715-28F30 | ||||
| 82715-28F60 | ||||
| 82715-28G50 | ||||
| 82715-2J050 | ||||
| 82715-2J060 | ||||
| 82715-2J070 | ||||
| 82715-58150 | ||||
| 82715-58350 | ||||
| 82715-58360 | ||||
| 88688-58040 | ||||
| 90179-06274 | ||||
| 90463-13003 | ||||
| 90464-00620 | ||||
| 91511-B0614 | ||||
| 91553-A0612 | ||||
| 91621-J0612 | ||||
| 91651-B0814 | ||||
| 91671-A0612 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 1601 | ||||
ILLUST NO.14 OF17(1112- )ATH20

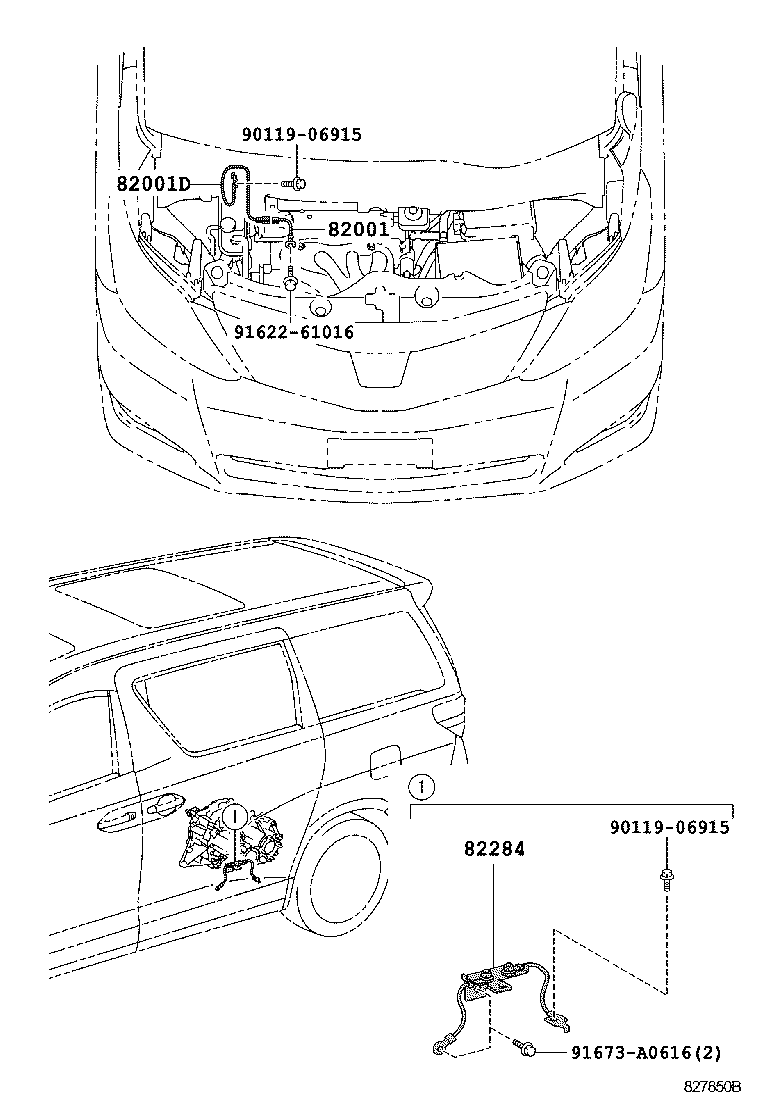

ｹｰﾌﾞﾙﾎﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82284 - WIRE, EARTH | ||||
| 86203-28050 |
ATH20..CBU |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91622-61016 | ||||
| 91673-A0616 | ||||
ILLUST NO. 9 OF17(1112- )ATH20

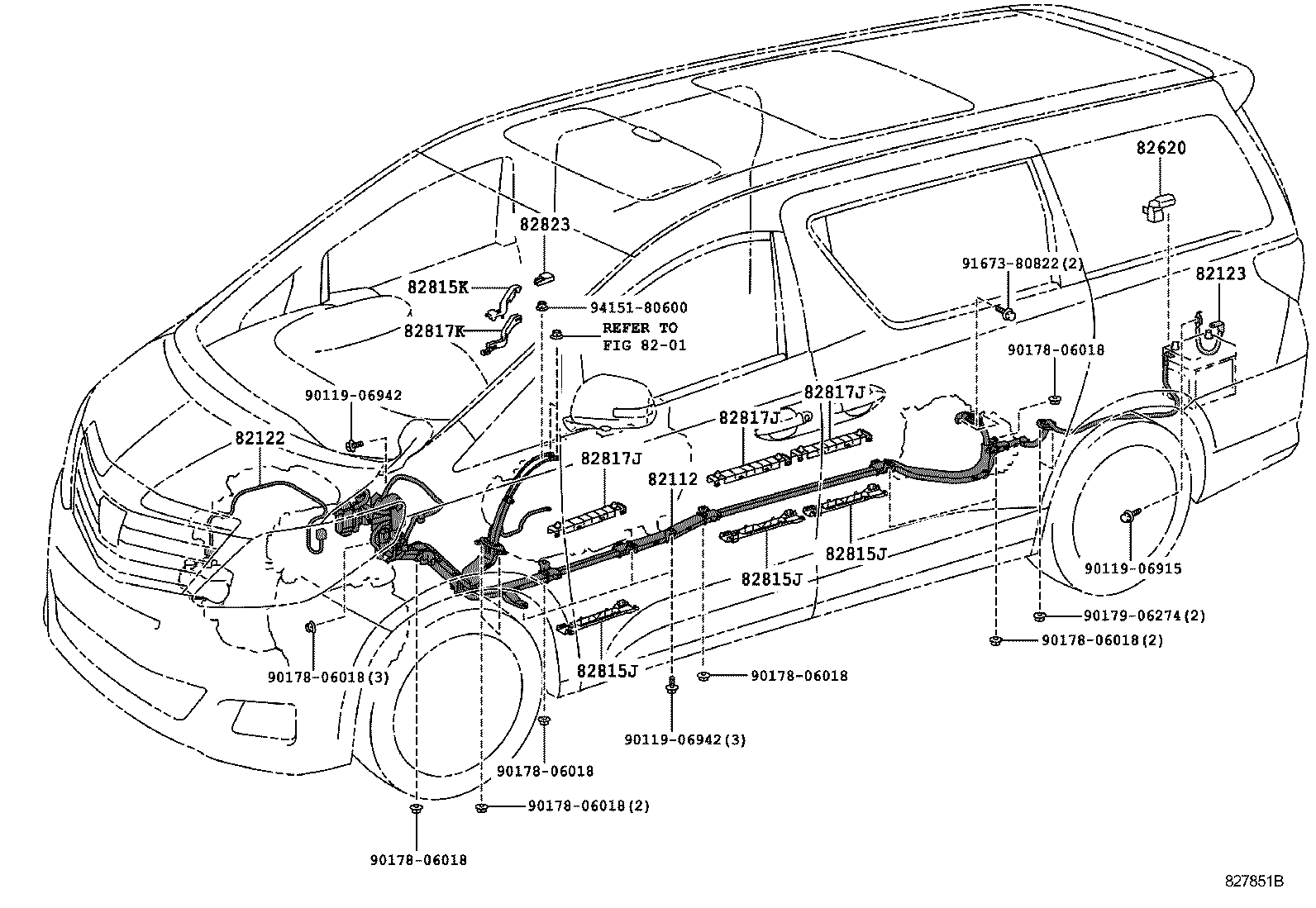

ｺｳｱﾂｹｰﾌﾞﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-58020 |
ATH20..CBU |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-58040 |
ATH20..CBU |
1 | ||
| 82122-58041 |
ATH20..CBU |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-58020 |
ATH20..CBU |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-58040 |
ATH20..CBU |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-28800 |
ATH20..CBU |
3 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-28800 |
ATH20..CBU |
3 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-28800 |
ATH20..CBU |
3 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-28A90 |
ATH20..CBU |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-28E40 |
ATH20..CBU |
3 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-28E40 |
ATH20..CBU |
3 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-28E40 |
ATH20..CBU |
3 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-28F50 |
ATH20..CBU |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-58010 |
ATH20..CBU |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06942 | ||||
| 90178-06018 | ||||
| 90179-06274 | ||||
| 91673-80822 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8201 | ||||
ILLUST NO. 1 OF17(1112- )ATH20

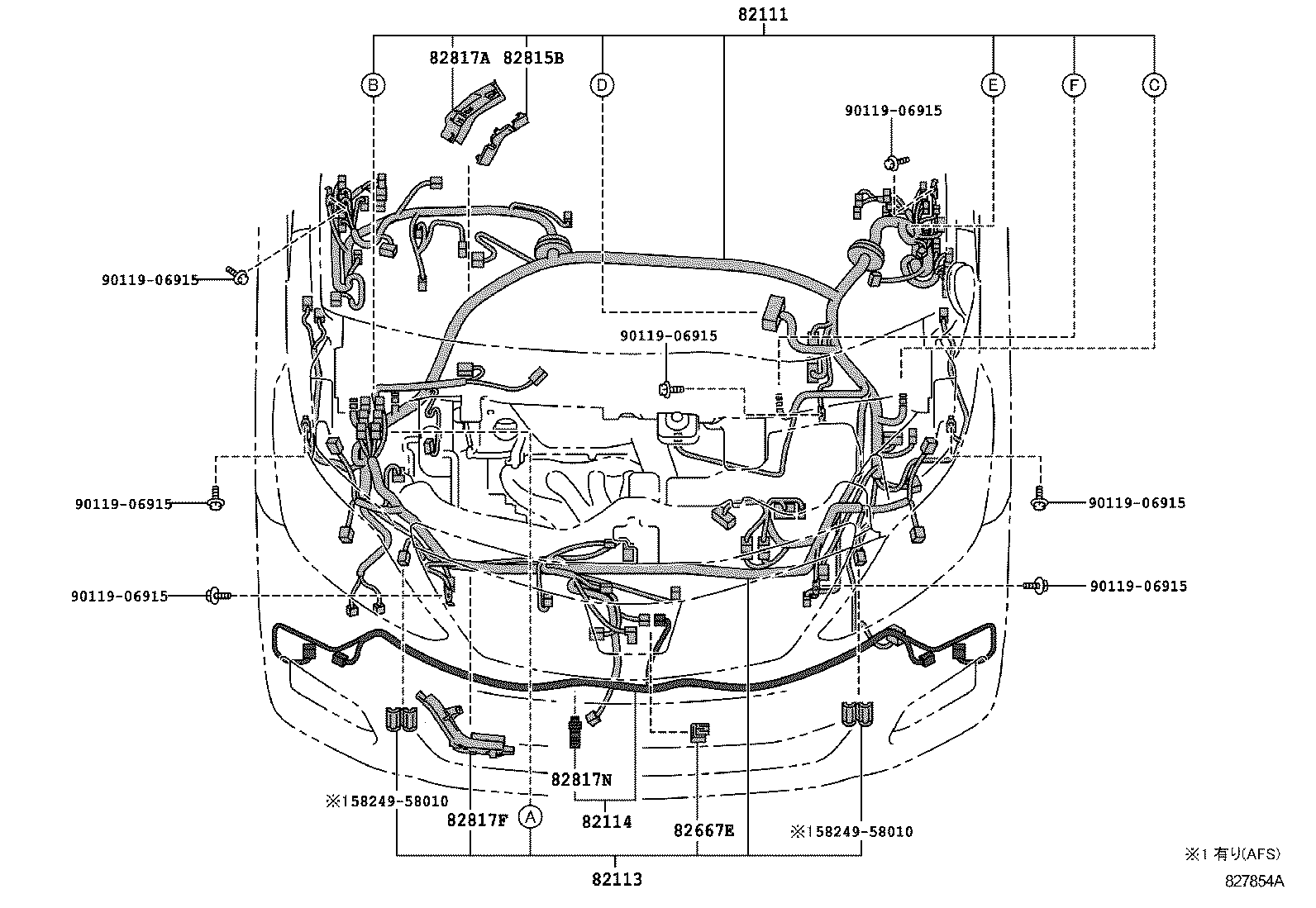

ｴﾝｼﾞﾝﾙｰﾑ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-58460 |
ATH20..(HBDG,HBDSR,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82111-58450 |
ATH20..(HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 82111-58451 |
ATH20..(HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 82111-58461 |
ATH20..(HBDG,HBDSR,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82111-58462 |
ATH20..(HBDG,HBDSR,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82111-58452 |
ATH20..(HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 82111-58450 |
ATH20..(HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 82111-58461 |
ATH20..(HBDG,HBDSR,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82111-58460 |
ATH20..(HBDG,HBDSR,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82111-58451 |
ATH20..(HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 82111-58462 |
ATH20..(HBDG,HBDSR,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82111-58452 |
ATH20..(HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-58290 |
ATH20..(HBDG,HBDSR,HBDV,HBDZR)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82113-58300 |
ATH20..(HBDSR,HBDZR)..CBU “G EDITION”*(C) or “Cﾊﾟｯｹｰｼﾞ”*(C),*LES&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82113-58330 |
ATH20..(HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 82113-58300 |
ATH20..(HBDG,HBDSR,HBDV,HBDZR)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(音声ｶﾞｲﾄﾞ付き駐車ｱｼｽﾄ) |
1 | ||
| 82113-58300 |
ATH20..(HBDSR,HBDZR)..CBU “G EDITION”*(C) or “Cﾊﾟｯｹｰｼﾞ”*(C),*LES&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(音声ｶﾞｲﾄﾞ付き駐車ｱｼｽﾄ) |
1 | ||
| 82113-58350 |
ATH20..(HBDSR,HBDZR)..CBU “G EDITION”*(C) or “Cﾊﾟｯｹｰｼﾞ”*(C),*LES&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82113-58350 |
ATH20..(HBDSR,HBDZR)..CBU “G EDITION”*(C) or “Cﾊﾟｯｹｰｼﾞ”*(C),*LES&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(音声ｶﾞｲﾄﾞ付き駐車ｱｼｽﾄ) |
1 | ||
| 82113-58350 |
ATH20..(HBDG,HBDSR,HBDV,HBDZR)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82113-58300 |
ATH20..(HBDG,HBDSR,HBDV,HBDZR)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82113-58350 |
ATH20..(HBDG,HBDSR,HBDV,HBDZR)..CBU “PREMIUM SEAT PACKAGE/EDITION”*(P)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(音声ｶﾞｲﾄﾞ付き駐車ｱｼｽﾄ) |
1 | ||
| Common parts | ||||
| 58249-58010 | ||||
| 90119-06915 | ||||
ILLUST NO. 2 OF17(1112- )ATH20

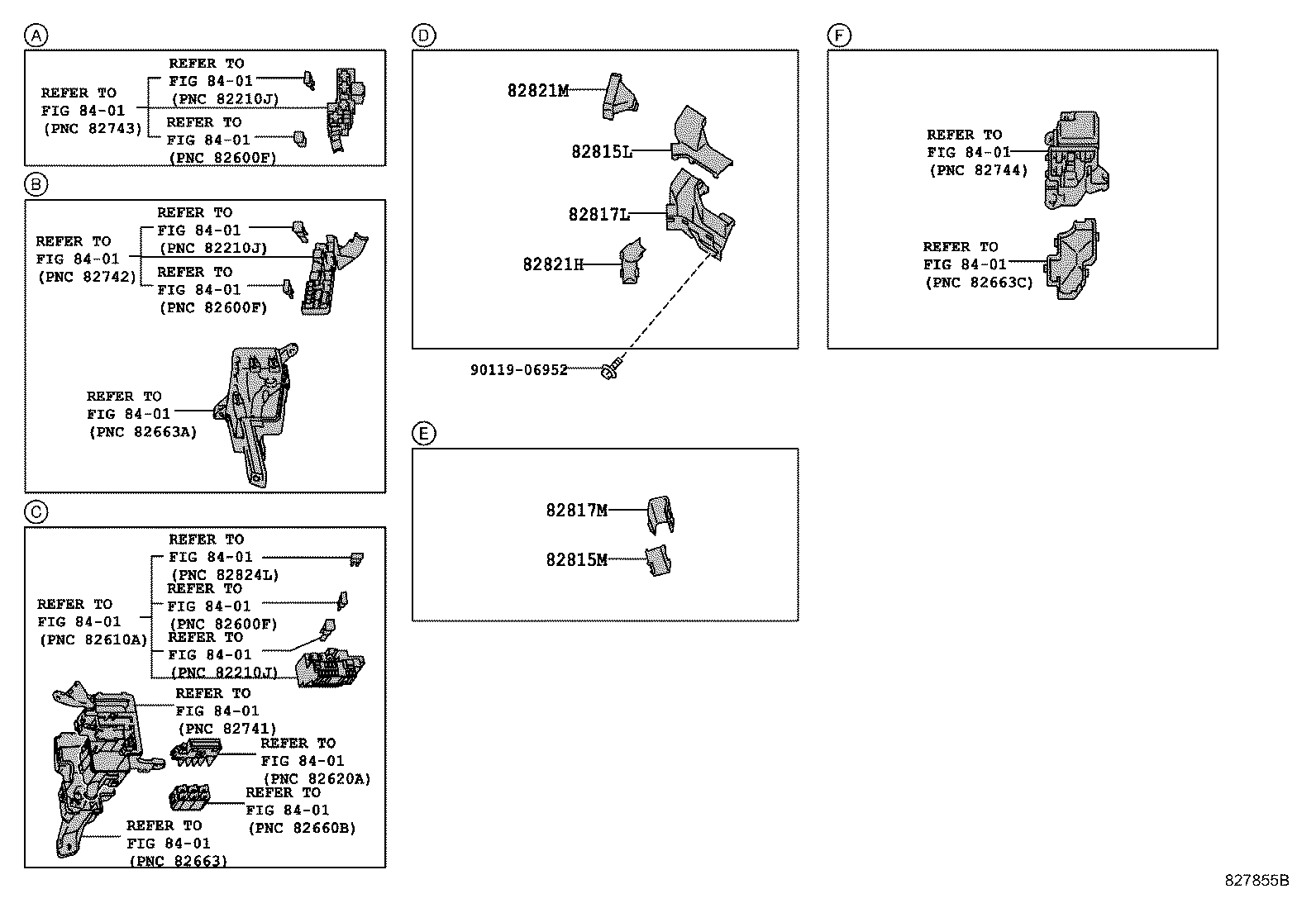

ｴﾝｼﾞﾝﾙｰﾑ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-58340 |
ATH20..CBU |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-58350 |
ATH20..CBU |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-58510 |
ATH20..CBU |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-58520 |
ATH20..CBU |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-58040 |
ATH20..CBU |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-75070 |
ATH20..CBU |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF17(1112- )ATH20

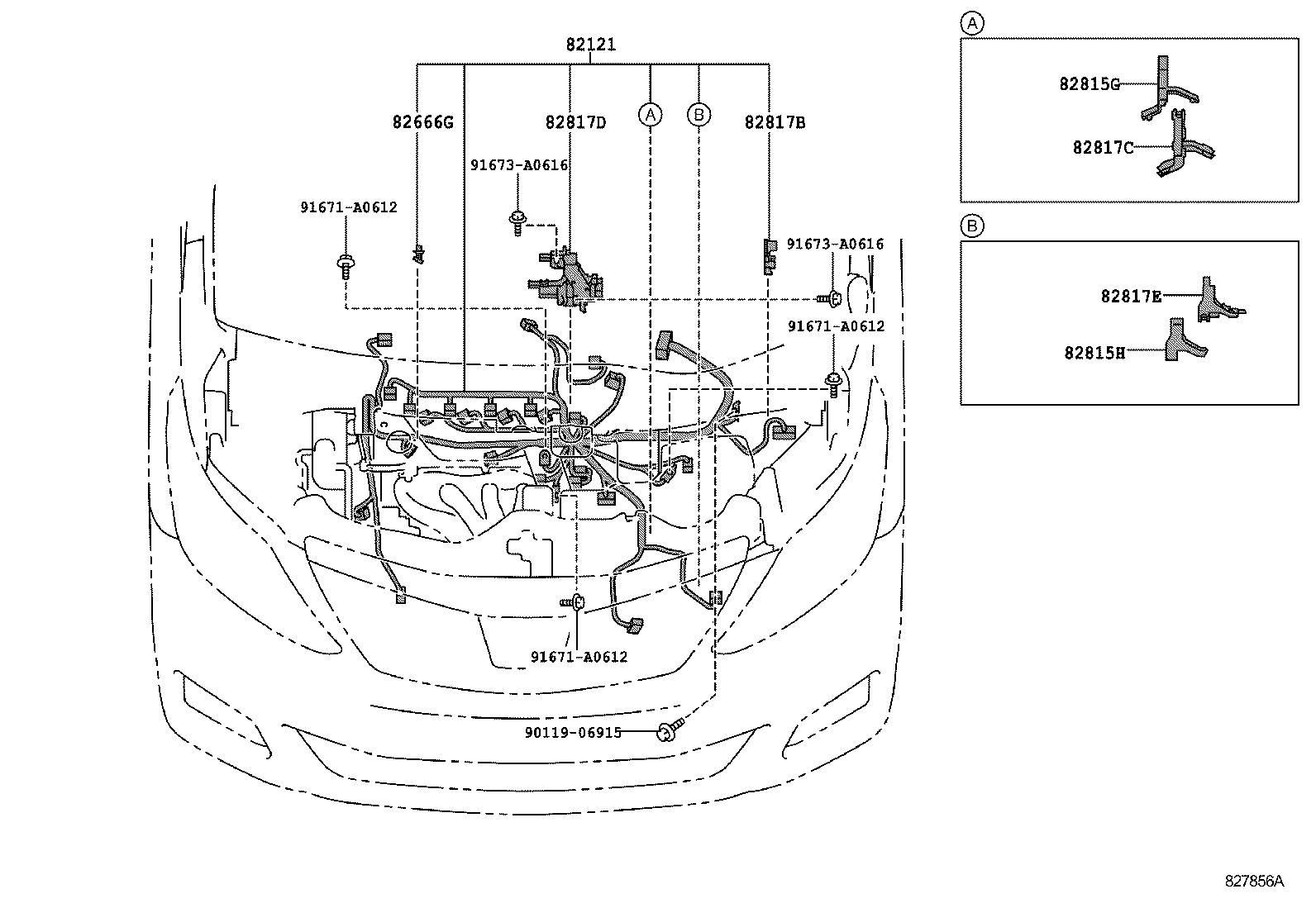

ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-58070 |
ATH20..CBU |
1 | ||
| 82121-58071 |
ATH20..CBU |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-28C00 |
ATH20..CBU |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-75100 |
ATH20..CBU |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-28F60 |
ATH20..CBU |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-28J10 |
ATH20..CBU |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-28L20 |
ATH20..CBU |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-75220 |
ATH20..CBU |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91671-A0612 | ||||
| 91673-A0616 | ||||
ILLUST NO. 4 OF17(1112- )ATH20

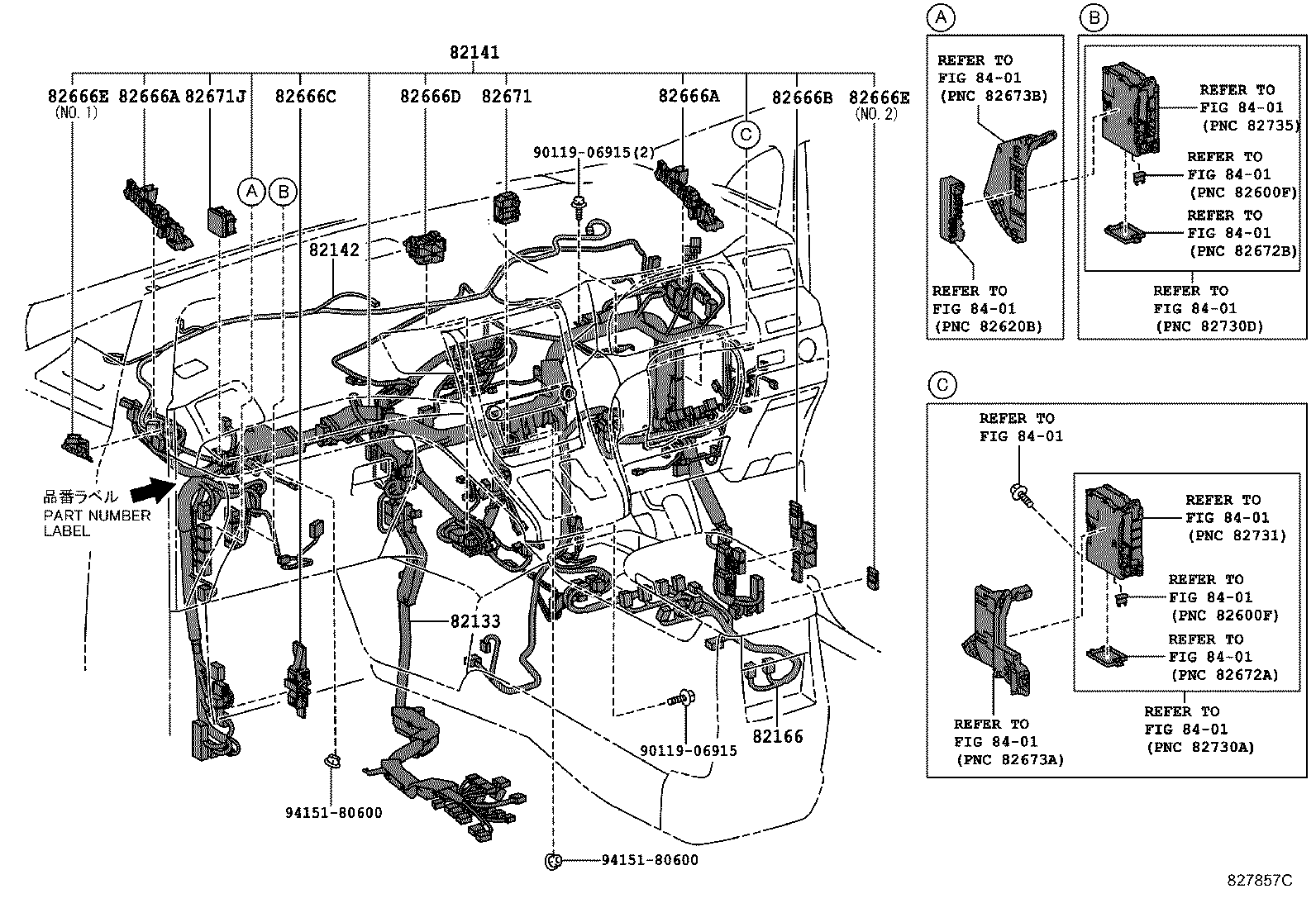

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-58320 |
ATH20..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82133-58290 |
ATH20..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(音声ｶﾞｲﾄﾞ付き駐車ｱｼｽﾄ) |
1 | ||
| 82133-58300 |
ATH20..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82133-58122 |
ANH2#,ATH20,GGH2#..CBU |
1 | ||
| 82133-58310 |
ATH20..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(音声ｶﾞｲﾄﾞ付き駐車ｱｼｽﾄ) |
1 | ||
| 82133-58291 |
ATH20..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(音声ｶﾞｲﾄﾞ付き駐車ｱｼｽﾄ) |
1 | ||
| 82133-58311 |
ATH20..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(音声ｶﾞｲﾄﾞ付き駐車ｱｼｽﾄ) |
1 | ||
| 82133-58321 |
ATH20..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82133-58301 |
ATH20..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-58360 |
ATH20..(HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 82141-58361 |
ATH20..(HBDG,HBDSR,HBDV,HBDZR)..CBU 品番ﾗﾍﾞﾙ=82141−58312 |
1 | ||
| 82141-58362 |
ATH20..(HBDG,HBDSR,HBDV,HBDZR)..CBU 品番ﾗﾍﾞﾙ=82141−58313 |
1 | ||
| 82141-58363 |
ATH20..(HBDG,HBDSR,HBDV,HBDZR)..CBU |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-58052 |
ANH2#,ATH20,GGH2#..(240G,240S,24V,24Z,350G,350S,35V,35Z,HBDG,HBDSR,HBDV,HBDX,HBDZR)..CBU |
1 | ||
| 82142-58063 |
ANH2#,ATH20,GGH2#..(240G,240S,24V,24Z,350G,350S,35V,35Z,HBDG,HBDSR,HBDV,HBDX,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82142-58063 |
ANH2#,ATH20,GGH2#..(240G,240S,24V,24Z,350G,350S,35V,35Z,HBDG,HBDSR,HBDV,HBDX,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-58250 |
ATH20..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82166-58251 |
ATH20..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(1500W):3個 |
1 | ||
| 82166-58240 |
ATH20..CBU |
1 | ||
| 82166-58251 |
ATH20..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(100W):2個&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82166-58241 |
ATH20..CBU |
1 | ||
| 82166-58250 |
ATH20..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 82166-58251 |
ATH20..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(100W):2個&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
