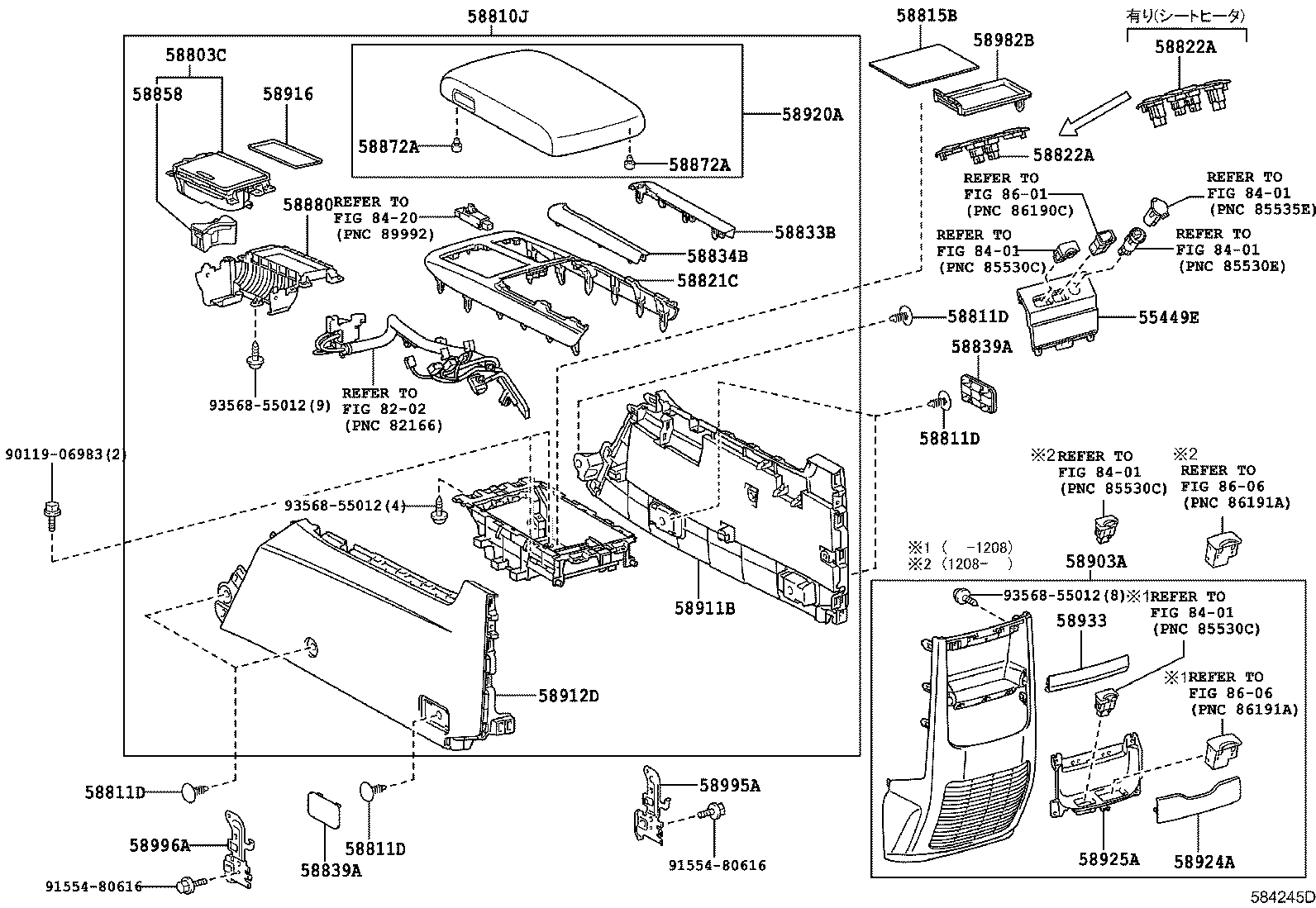

ATH20W-PFXSB (2011)
Toyota Alphard/Vellfire/Hv
(1112- )ATH20
ﾅｼ(ﾅﾋﾞｹﾞｰｼｮﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55449E - BASE, SWITCH | ||||
| 55449-58030 |
ATH20 |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-48010 |
ATH20 |
1 | ||
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55539-58070C0 |
ATH20..(HBDSR,HBDZR)..CBU BLACK,TRIM1# |
1 | ||
| 55539-58060C0 |
ATH20..(HBDSR,HBDZR)..CBU BLACK,TRIM1# |
1 | ||
| 55539K - COVER, SPARE SWITCH HOLE | ||||
| 55539-58080C0 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(1500W):3個,BLACK,TRIM1# |
1 | ||
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-58030 |
ATH20 |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-58200B0 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58810-58210B0 |
ATH20..(HBDSR,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58810-58210B0 |
ATH20..(HBDSR,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58810-58240B0 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58810-58250B0 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(100W):2個&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58810-58250B0 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(100W):2個&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58810-58250B0 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(1500W):3個,DK.GRAY,TRIM1# |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-07212B1 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
6 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-07212B1 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
6 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-07212B1 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
6 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-07212B1 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
6 | ||
| 58815B - CARPET, CONSOLE BOX | ||||
| 58815-58030 |
ATH20 |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-58140 |
ATH20..CBU |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-58020 |
ATH20 |
1 | ||
| 58822-58010 |
ATH20..HBDG,HBDSR,HBDV,HBDZR “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 58822-58010 |
ATH20..(HBDSR,HBDZR)..CBU “G EDITION”*(C) or “Cﾊﾟｯｹｰｼﾞ”*(C),*LES |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-58020 |
ATH20 |
1 | ||
| 58822-58010 |
ATH20..HBDG,HBDSR,HBDV,HBDZR “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 58822-58010 |
ATH20..(HBDSR,HBDZR)..CBU “G EDITION”*(C) or “Cﾊﾟｯｹｰｼﾞ”*(C),*LES |
1 | ||
| 58833B - GARNISH, CONSOLE UPPER PANEL, NO.1 | ||||
| 58833-58110 |
ATH20..CBU |
1 | ||
| 58834B - GARNISH, CONSOLE UPPER PANEL, NO.2 | ||||
| 58834-58080 |
ATH20..CBU |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-58030B0 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-58030B0 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58858 - BRACKET, CONSOLE SUPPORT, NO.1 | ||||
| 58852-58010 |
ATH20 |
1 | ||
| 58872A - CUSHION, CONSOLE BOX, NO.2 | ||||
| 58872-58020 |
ATH20 |
2 | ||
| 58872A - CUSHION, CONSOLE BOX, NO.2 | ||||
| 58872-58020 |
ATH20 |
2 | ||
| 58880 - BOX ASSY, EQUIPMENT SET | ||||
| 58880-58010 |
ATH20 |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-58140B0 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58903-58130B1 |
ATH20..(HBDSR,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58903-58130B1 |
ATH20..(HBDSR,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58903-58250B1 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(100W):2個&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58903-58250B1 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(1500W):3個,DK.GRAY,TRIM1# |
1 | ||
| 58903-58250B1 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(100W):2個&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58903-58250B1 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(1500W):3個&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58911B - PANEL, BOX, NO.1 | ||||
| 58911-58050B0 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58912D - PANEL, BOX, NO.2 | ||||
| 58912-58040B0 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-58040 |
ATH20 |
1 | ||
| 58920A - ARMREST ASSY, REAR CONSOLE | ||||
| 58920-58010B0 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58924A - PANEL, CONSOLE REAR END, NO.2 | ||||
| 58924-58020B0 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58925A - POCKET, CONSOLE BOX, REAR | ||||
| 58925-58010B0 |
ATH20..(HBDSR,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58925-58010B0 |
ATH20..(HBDSR,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58925-58020B0 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58925-58010B0 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(1500W):3個,DK.GRAY,TRIM1# |
1 | ||
| 58925-58010B0 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(1500W):3個&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58925-58010B0 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(100W):2個&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58925-58010B0 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(100W):2個&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58925A - POCKET, CONSOLE BOX, REAR | ||||
| 58925-58010B0 |
ATH20..(HBDSR,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58925-58010B0 |
ATH20..(HBDSR,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58925-58020B0 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58925-58010B0 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(1500W):3個,DK.GRAY,TRIM1# |
1 | ||
| 58925-58010B0 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(1500W):3個&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58925-58010B0 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(100W):2個&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58925-58010B0 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(100W):2個&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58933 - GARNISH, CONSOLE REAR END PANEL | ||||
| 58933-58010 |
ATH20 |
1 | ||
| 58982B - RETAINER, CONSOLE BOX, NO.3 | ||||
| 58982-58030 |
ATH20 |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-58040 |
ATH20 |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-58030 |
ATH20 |
1 | ||
| Common parts | ||||
| 90119-06983 | ||||
| 91554-80616 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
| 8420 | ||||

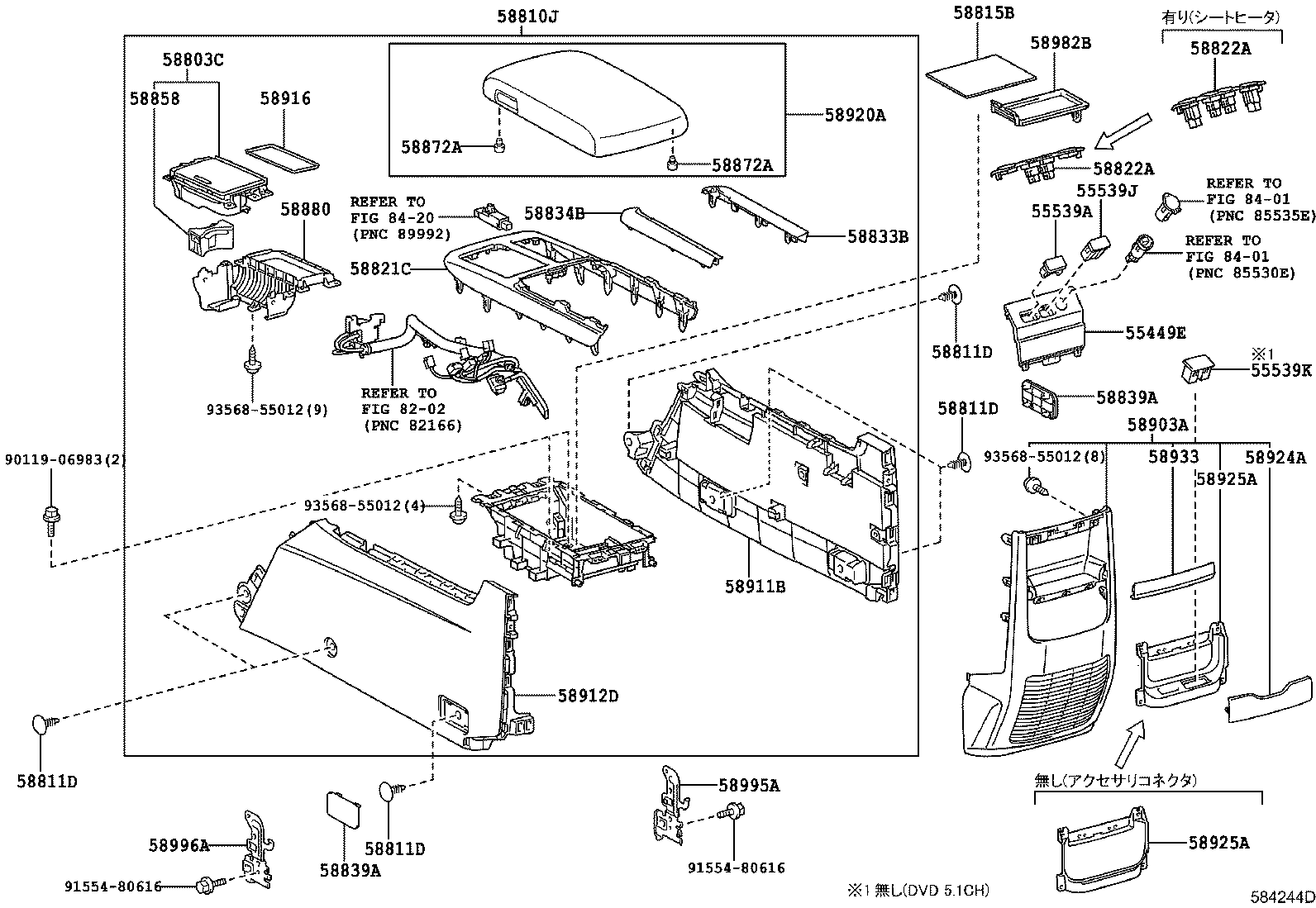

(1112- )ATH20
ｱﾘ(ﾅﾋﾞｹﾞｰｼｮﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55449E - BASE, SWITCH | ||||
| 55449-58030 |
ATH20 |
1 | ||
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-58030 |
ATH20 |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-58200B0 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58810-58210B0 |
ATH20..(HBDSR,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58810-58210B0 |
ATH20..(HBDSR,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58810-58240B0 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58810-58250B0 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(100W):2個&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58810-58250B0 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(100W):2個&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58810-58250B0 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(1500W):3個,DK.GRAY,TRIM1# |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-07212B1 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
6 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-07212B1 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
6 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-07212B1 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
6 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-07212B1 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
6 | ||
| 58815B - CARPET, CONSOLE BOX | ||||
| 58815-58030 |
ATH20 |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-58140 |
ATH20..CBU |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-58020 |
ATH20 |
1 | ||
| 58822-58010 |
ATH20..HBDG,HBDSR,HBDV,HBDZR “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 58822-58010 |
ATH20..(HBDSR,HBDZR)..CBU “G EDITION”*(C) or “Cﾊﾟｯｹｰｼﾞ”*(C),*LES |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-58020 |
ATH20 |
1 | ||
| 58822-58010 |
ATH20..HBDG,HBDSR,HBDV,HBDZR “PREMIUM SEAT PACKAGE/EDITION”*(P) |
1 | ||
| 58822-58010 |
ATH20..(HBDSR,HBDZR)..CBU “G EDITION”*(C) or “Cﾊﾟｯｹｰｼﾞ”*(C),*LES |
1 | ||
| 58833B - GARNISH, CONSOLE UPPER PANEL, NO.1 | ||||
| 58833-58110 |
ATH20..CBU |
1 | ||
| 58834B - GARNISH, CONSOLE UPPER PANEL, NO.2 | ||||
| 58834-58080 |
ATH20..CBU |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-58030B0 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-58030B0 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58858 - BRACKET, CONSOLE SUPPORT, NO.1 | ||||
| 58852-58010 |
ATH20 |
1 | ||
| 58872A - CUSHION, CONSOLE BOX, NO.2 | ||||
| 58872-58020 |
ATH20 |
2 | ||
| 58872A - CUSHION, CONSOLE BOX, NO.2 | ||||
| 58872-58020 |
ATH20 |
2 | ||
| 58880 - BOX ASSY, EQUIPMENT SET | ||||
| 58880-58010 |
ATH20 |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-58140B0 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58903-58130B1 |
ATH20..(HBDSR,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58903-58130B1 |
ATH20..(HBDSR,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58903-58250B1 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(100W):2個&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58903-58250B1 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(1500W):3個,DK.GRAY,TRIM1# |
1 | ||
| 58903-58250B1 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(100W):2個&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58903-58250B1 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(1500W):3個&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58911B - PANEL, BOX, NO.1 | ||||
| 58911-58050B0 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58912D - PANEL, BOX, NO.2 | ||||
| 58912-58040B0 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-58040 |
ATH20 |
1 | ||
| 58920A - ARMREST ASSY, REAR CONSOLE | ||||
| 58920-58010B0 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58924A - PANEL, CONSOLE REAR END, NO.2 | ||||
| 58924-58020B0 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58925A - POCKET, CONSOLE BOX, REAR | ||||
| 58925-58010B0 |
ATH20..(HBDSR,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58925-58010B0 |
ATH20..(HBDSR,HBDZR)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58925-58020B0 |
ATH20..(HBDSR,HBDZR)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58925-58010B0 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(1500W):3個,DK.GRAY,TRIM1# |
1 | ||
| 58925-58010B0 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(1500W):3個&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58925-58010B0 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(100W):2個&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58925-58010B0 |
ATH20..(HBDSR,HBDZR)..CBU ｱｸｾｻﾘｺﾈｸﾀ−12V:1個 & 100V(100W):2個&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58933 - GARNISH, CONSOLE REAR END PANEL | ||||
| 58933-58010 |
ATH20 |
1 | ||
| 58982B - RETAINER, CONSOLE BOX, NO.3 | ||||
| 58982-58030 |
ATH20 |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-58040 |
ATH20 |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-58030 |
ATH20 |
1 | ||
| Common parts | ||||
| 90119-06983 | ||||
| 91554-80616 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
| 8420 | ||||
| 8601 | ||||
| 8606 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
