ATH20W-NFXSB (2011)
Toyota Alphard/Vellfire/Hv
Production
Dec 2011
-
Jan 2015
Engine
2AZFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1112-1301)2AZFXE

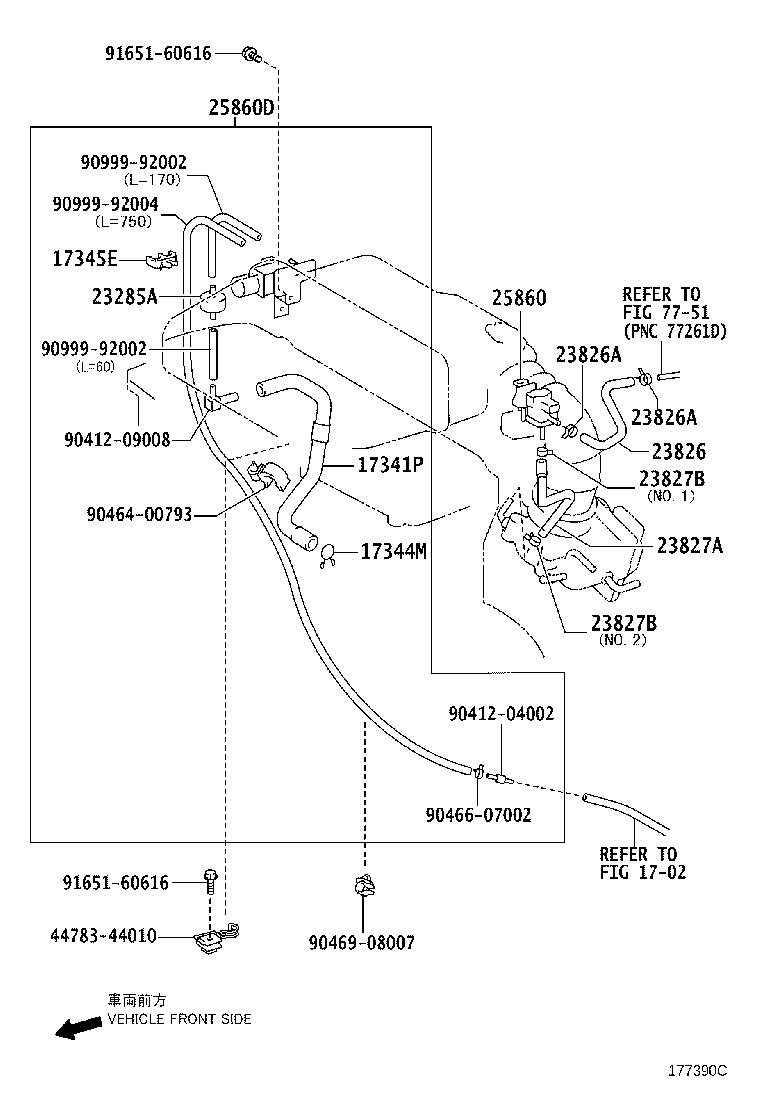

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341P - HOSE, AIR | ||||
| 17341-28030 |
2AZFXE..ATH20 |
1 | ||
| 17344M - CLIP(FOR AIR HOSE, NO.4) | ||||
| 90467-14001 |
2AZFXE..ATH20 |
1 | ||
| 17345E - CLAMP OR CLIP(FOR AIR HOSE, NO.5) | ||||
| 90469-07012 |
2AZFXE..ATH20 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10065 |
2AZFXE..ATH20 |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-28360 |
2AZFXE..ATH20 |
1 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-28310 |
2AZFXE..ATH20 |
1 | ||
| 25860D - VALVE ASSY, VACUUM SWITCHING, NO.2 | ||||
| 25860-28151 |
2AZFXE..ATH20 |
1 | ||
| 25860-28150 |
2AZFXE..ATH20 |
1 | ||
| Common parts | ||||
| 44783-44010 | ||||
| 90412-04002 | ||||
| 90412-09008 | ||||
| 90464-00793 | ||||
| 90466-07002 | ||||
| 90469-08007 | ||||
| 90999-92002 | ||||
| 90999-92004 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 1702 | ||||
| 7751 | ||||
(1301- )2AZFXE

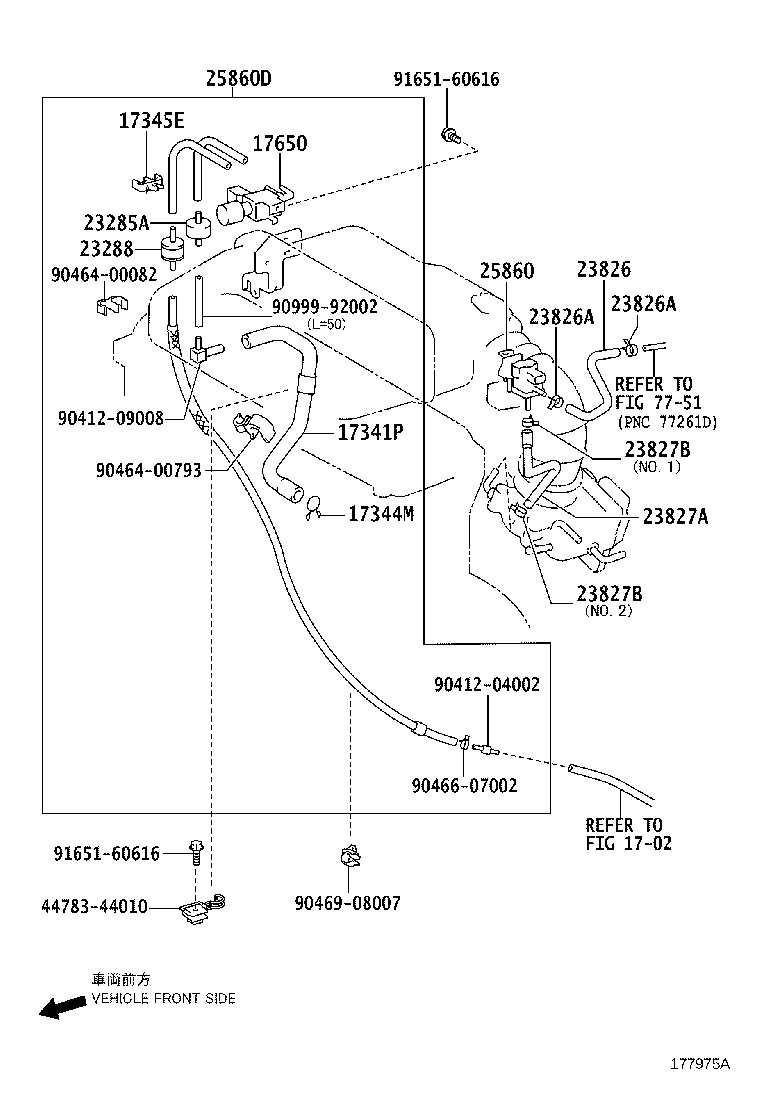

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341P - HOSE, AIR | ||||
| 17341-28030 |
2AZFXE..ATH20 |
1 | ||
| 17344M - CLIP(FOR AIR HOSE, NO.4) | ||||
| 90467-14001 |
2AZFXE..ATH20 |
1 | ||
| 17345E - CLAMP OR CLIP(FOR AIR HOSE, NO.5) | ||||
| 90469-07012 |
2AZFXE..ATH20 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 25860-30070 |
2AZFXE..ATH20 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10065 |
2AZFXE..ATH20 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04005 |
2AZFXE..ATH20..CBU |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-28360 |
2AZFXE..ATH20 |
1 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-28310 |
2AZFXE..ATH20 |
1 | ||
| 25860D - VALVE ASSY, VACUUM SWITCHING, NO.2 | ||||
| 25860-28151 |
2AZFXE..ATH20 |
1 | ||
| 25860-28150 |
2AZFXE..ATH20 |
1 | ||
| Common parts | ||||
| 44783-44010 | ||||
| 90412-04002 | ||||
| 90412-09008 | ||||
| 90464-00082 | ||||
| 90464-00793 | ||||
| 90466-07002 | ||||
| 90469-08007 | ||||
| 90999-92002 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 1702 | ||||
| 7751 | ||||
