ATH20W-NFXQB (2011)
Toyota Alphard/Vellfire/Hv
Production
Dec 2011
-
Jan 2015
Engine
2AZFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1112- )ATH20

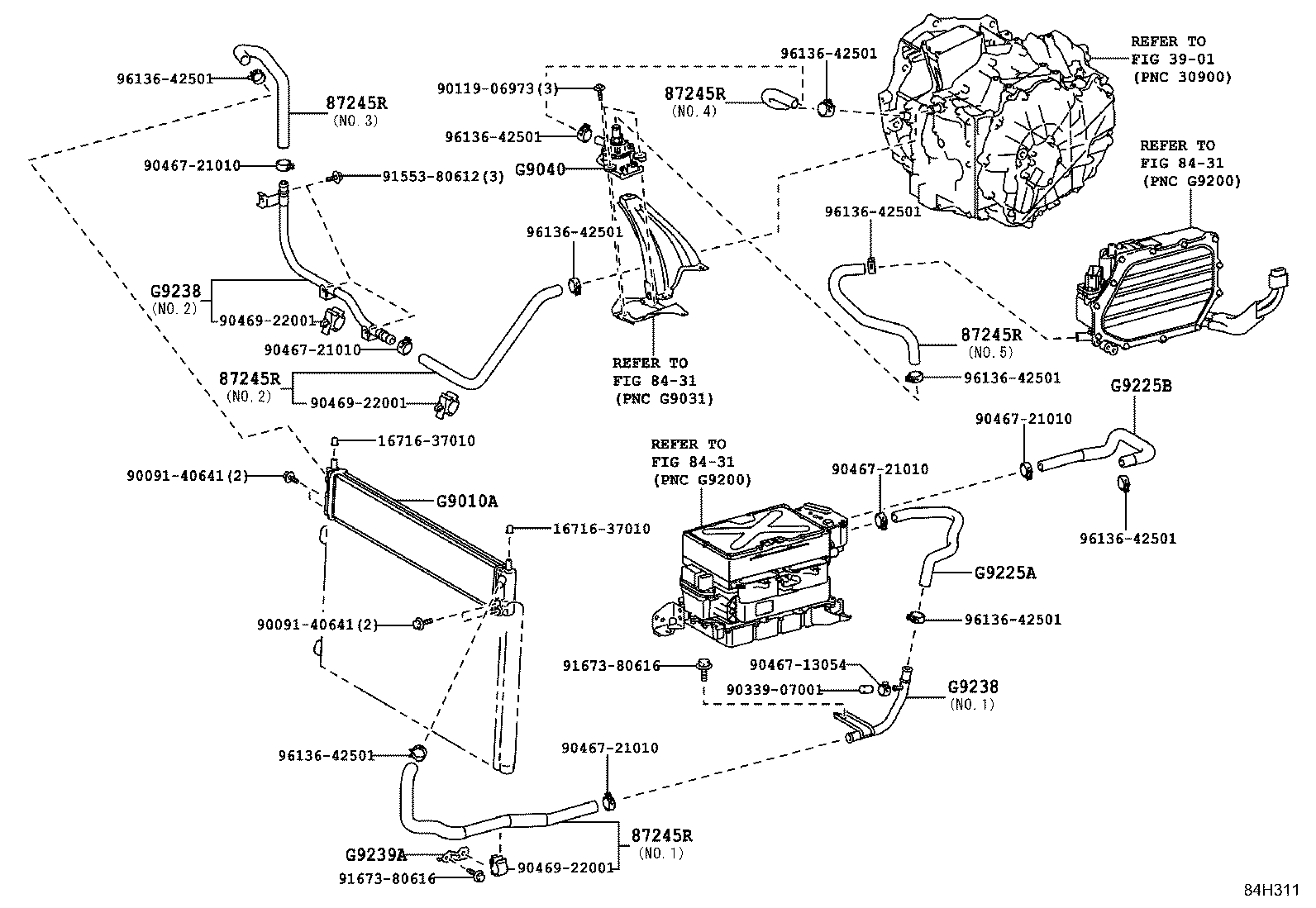

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245R - HOSE, WATER | ||||
| G9225-28060 |
ATH20 NO.5 |
1 | ||
| G9225-58010 |
ATH20 NO.1 |
1 | ||
| G9225-28040 |
ATH20 NO.2 |
1 | ||
| G9225-58020 |
ATH20 NO.3 |
1 | ||
| G9225-28070 |
ATH20 NO.4 |
1 | ||
| 87245R - HOSE, WATER | ||||
| G9225-28060 |
ATH20 NO.5 |
1 | ||
| G9225-58010 |
ATH20 NO.1 |
1 | ||
| G9225-28040 |
ATH20 NO.2 |
1 | ||
| G9225-58020 |
ATH20 NO.3 |
1 | ||
| G9225-28070 |
ATH20 NO.4 |
1 | ||
| 87245R - HOSE, WATER | ||||
| G9225-28060 |
ATH20 NO.5 |
1 | ||
| G9225-58010 |
ATH20 NO.1 |
1 | ||
| G9225-28040 |
ATH20 NO.2 |
1 | ||
| G9225-58020 |
ATH20 NO.3 |
1 | ||
| G9225-28070 |
ATH20 NO.4 |
1 | ||
| 87245R - HOSE, WATER | ||||
| G9225-28060 |
ATH20 NO.5 |
1 | ||
| G9225-58010 |
ATH20 NO.1 |
1 | ||
| G9225-28040 |
ATH20 NO.2 |
1 | ||
| G9225-58020 |
ATH20 NO.3 |
1 | ||
| G9225-28070 |
ATH20 NO.4 |
1 | ||
| 87245R - HOSE, WATER | ||||
| G9225-28060 |
ATH20 NO.5 |
1 | ||
| G9225-58010 |
ATH20 NO.1 |
1 | ||
| G9225-28040 |
ATH20 NO.2 |
1 | ||
| G9225-58020 |
ATH20 NO.3 |
1 | ||
| G9225-28070 |
ATH20 NO.4 |
1 | ||
| G9010A - RADIATOR ASSY | ||||
| G9010-58030 |
ATH20..CBU |
1 | ||
| G9040 - INVERTER WATER PUMP ASSY(W/MOTOR) | ||||
| G9040-28010 |
ATH20 |
1 | ||
| G9225A - HOSE, INVERTER COOLING, NO.7 | ||||
| G9225-28010 |
ATH20..CBU |
1 | ||
| G9225B - HOSE, INVERTER COOLING, NO.8 | ||||
| G9225-28020 |
ATH20..CBU |
1 | ||
| G9238 - PIPE, INVERTER COOLING | ||||
| G9238-28010 |
ATH20 NO.1 |
1 | ||
| G9238-28020 |
ATH20 NO.2 |
1 | ||
| G9238 - PIPE, INVERTER COOLING | ||||
| G9238-28010 |
ATH20 NO.1 |
1 | ||
| G9238-28020 |
ATH20 NO.2 |
1 | ||
| G9239A - BRACKET, INVERTER COOLING PIPE | ||||
| G9239-58010 |
ATH20 |
1 | ||
| Common parts | ||||
| 16716-37010 | ||||
| 90091-40641 | ||||
| 90119-06973 | ||||
| 90339-07001 | ||||
| 90467-13054 | ||||
| 90467-21010 | ||||
| 90469-22001 | ||||
| 91553-80612 | ||||
| 91673-80616 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 3901 | ||||
| 8431 | ||||
