ATH20W-NFXGB (2011)

Toyota Alphard/Vellfire/Hv

Production Dec 2011 - Jan 2015
Engine 2AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

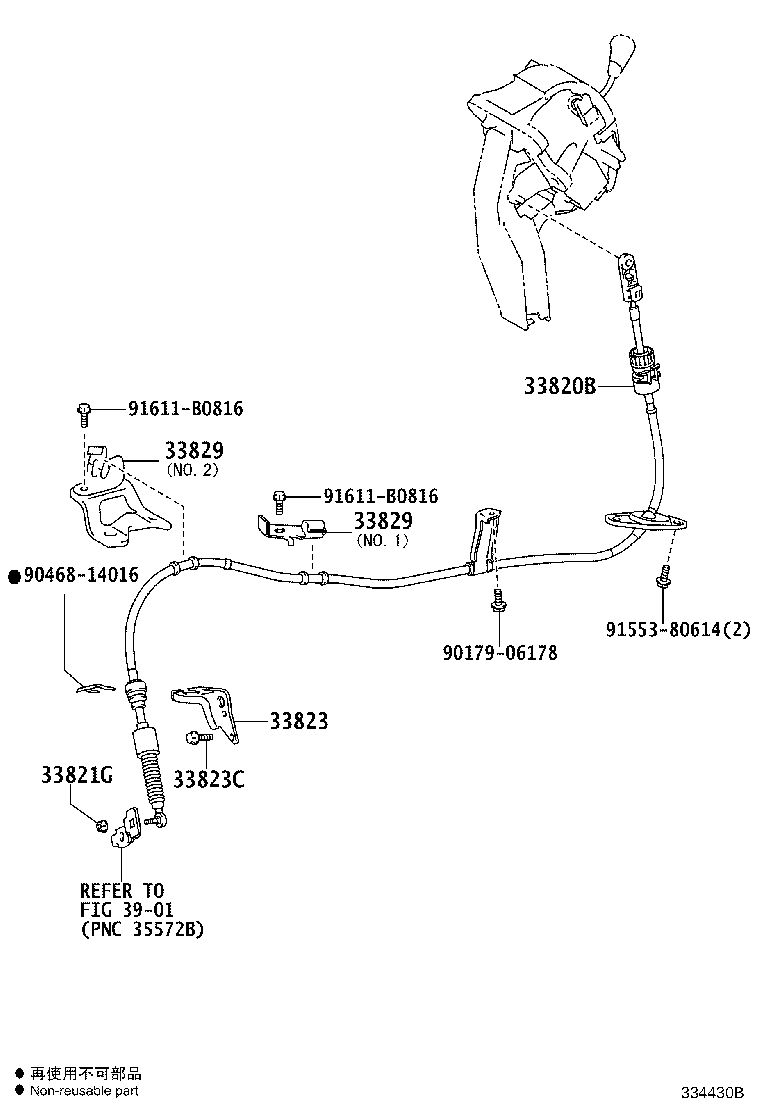

ILLUST NO. 2 OF 2(1112- )ATH20

Click highlighted areas on diagram

diagram 33820B 33821G 33823 33823C 33829 33829 3901 9017906178 9046814016 9155380614 91611B0816 91611B0816
Part # Description Qty Price
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-58060

ATH20

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-28280

ATH20

 1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-28080

ATH20

NO.1

 1
33829-58010

ATH20

NO.2

 1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-28080

ATH20

NO.1

 1
33829-58010

ATH20

NO.2

 1
Common parts
90179-06178
90468-14016
91553-80614
91611-B0816
Linked diagrams
3901
