ATH20W-NFXGB (2011)

Toyota Alphard/Vellfire/Hv

Production Dec 2011 - Jan 2015
Engine 2AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )2AZFXE

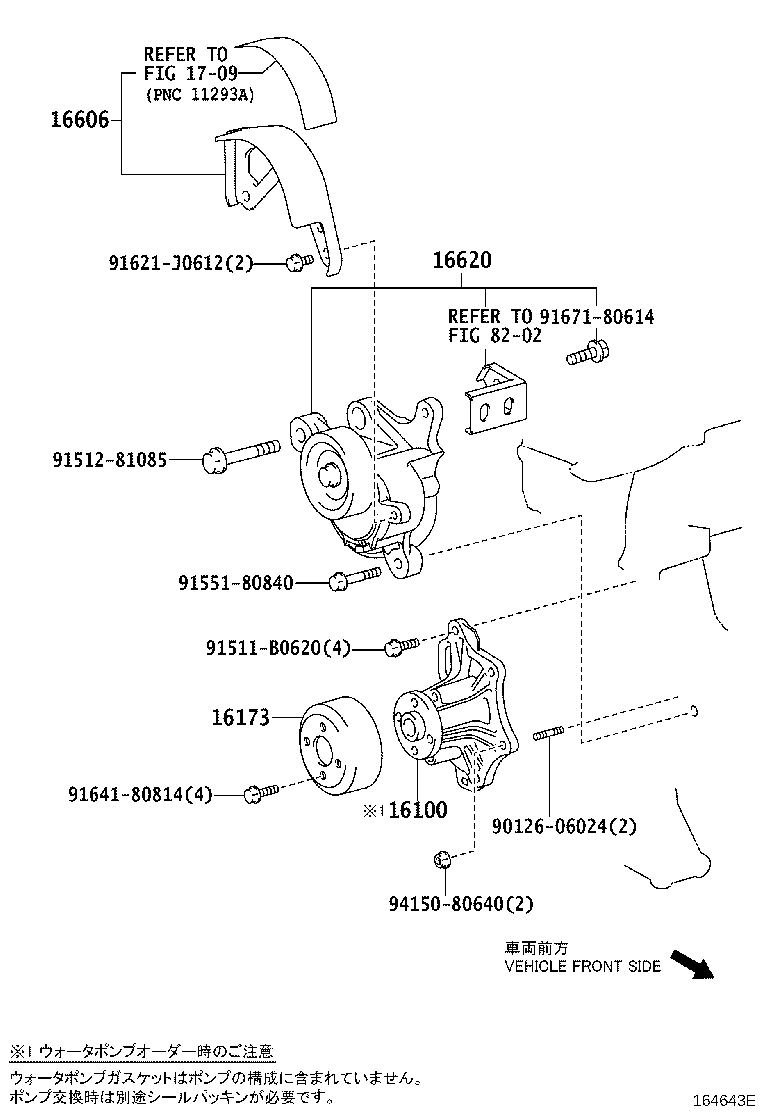

Click highlighted areas on diagram

diagram 16100 16173 16606 16620 1709 8202 9012606024 91511B0620 9151281085 9155180840 91621J0612 9164180814 9167180614 9415080640
Part # Description Qty Price
16606 - COVER SUB-ASSY, V-RIBBED BELT TENSIONER
16606-28010

2AZFXE..ATH20

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-28050

2AZFXE..ATH20..CBU

 1
Common parts
90126-06024
91511-B0620
91512-81085
91551-80840
91621-J0612
91641-80814
91671-80614
94150-80640
Linked diagrams
1709
8202
