ANH25W-PRXQK (2008)
Toyota Alphard/Vellfire/Hv
(0804- )

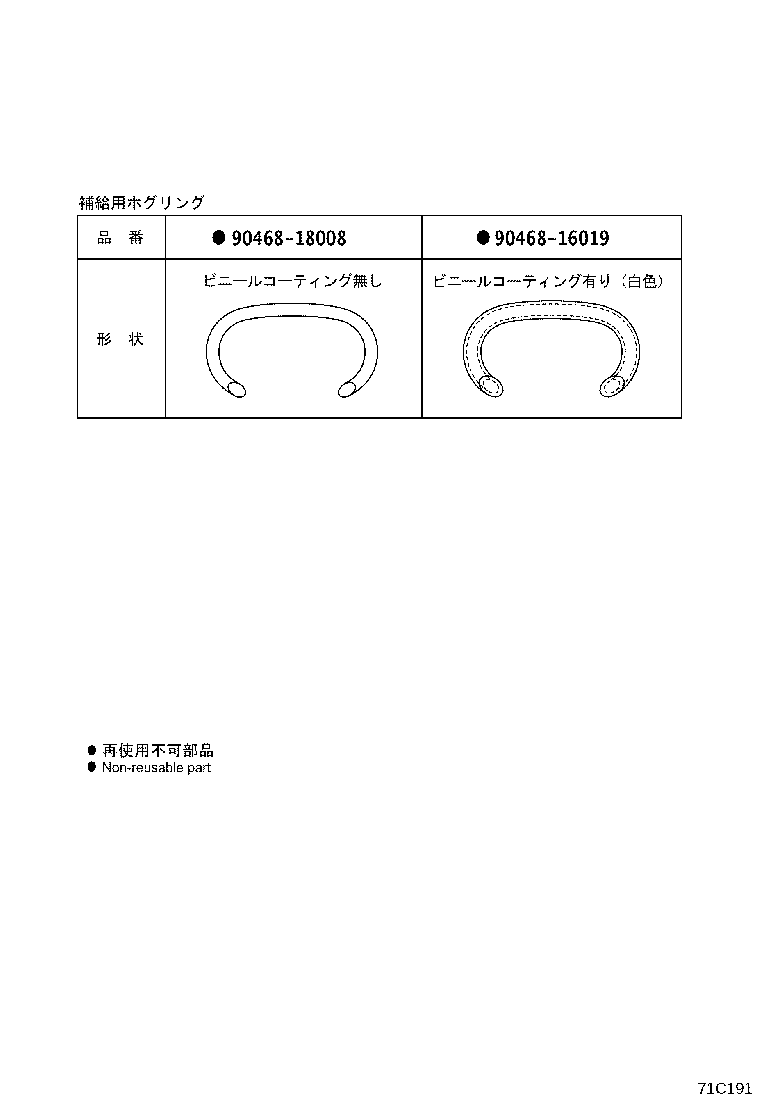

ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||

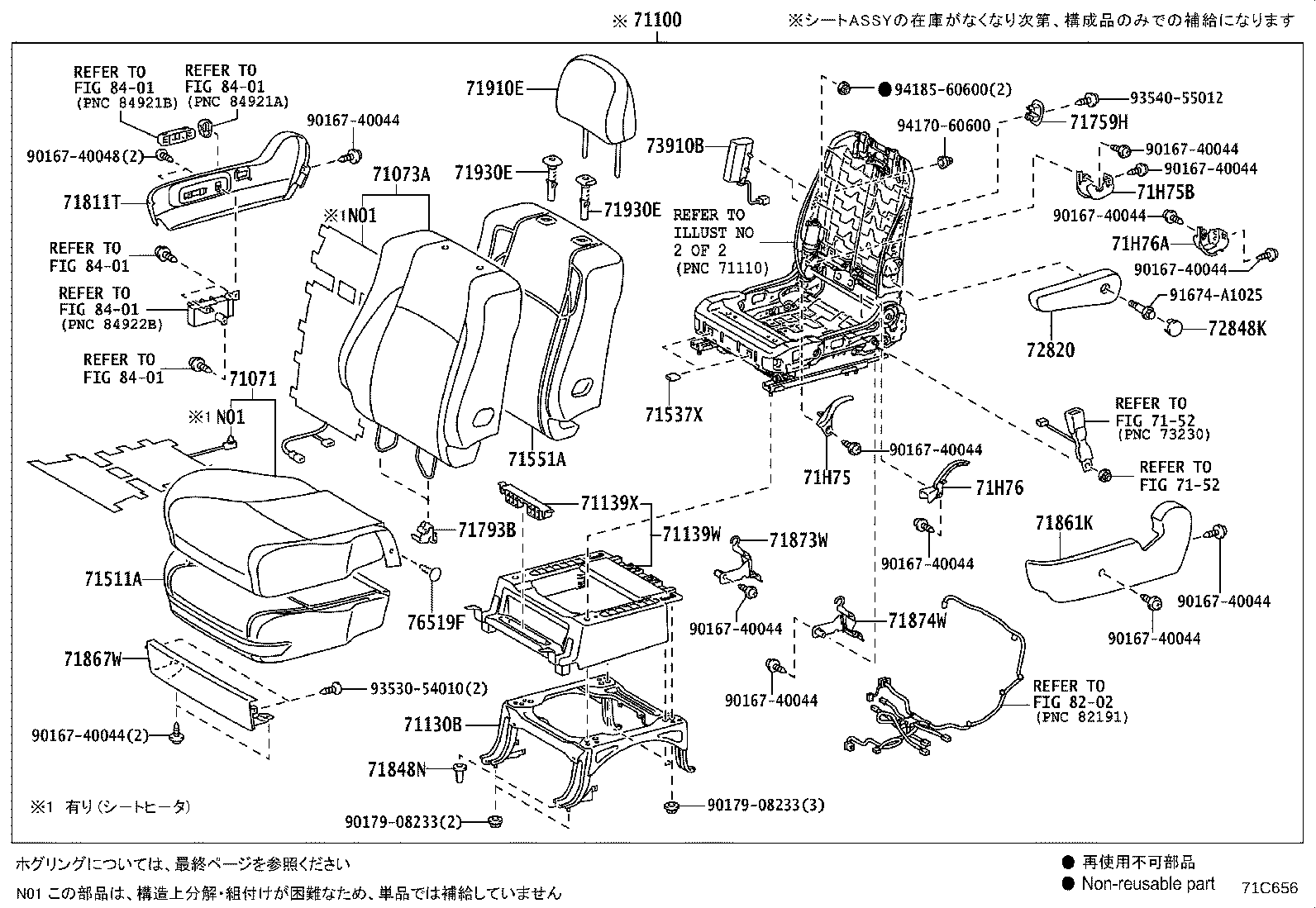

ILLUST NO. 1 OF 2(0804-1110)ANH25..07S..240S,24Z ; (0804-1110)ANH20..08S..240G,24V ; (0804-1110)ANH2
ｳﾝﾃﾝｾｷ-ｱﾘ(ﾊﾟﾜｰｼｰﾄ)&ﾅｼ(ｵｵｶﾞﾀ ﾌｯﾄﾚｽﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71071-58180A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71071-58180A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71073-58340A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71073-58340A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71073-58341A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71073-58341A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71100 - SEAT ASSY, FRONT RH | ||||
| 71100-58530A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71100-58530A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71130B - LEG ASSY, FRONT SEAT, RH | ||||
| 71130-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 71130-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 71139W - COVER, FRONT SEAT LEG(FOR RH SEAT) | ||||
| 71139-58150A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71139-58150A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71139X - COVER, FRONT SEAT LEG NO.2 | ||||
| 71139-58130A0 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 71139-58130A0 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 71511A - PAD, FRONT SEAT CUSHION, RH | ||||
| 71511-58060 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71511-58060 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71537X - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-26010 |
ANH2#,GGH2#..CBU |
2 | ||
| 71537-26010 |
ANH2#,GGH2#..CBU |
2 | ||
| 71551A - PAD, FRONT SEAT BACK, RH | ||||
| 71551-58090 |
ANH2#,GGH2#..(240G,240S,24V,24Z,350G,350S,35V,35Z)..CBU |
1 | ||
| 71551-58090 |
ANH2#,GGH2#..(240G,240S,24V,24Z,350G,350S,35V,35Z)..CBU |
1 | ||
| 71759H - HOOK, FRONT SEAT BACK | ||||
| 71759-28050A1 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,35V)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),SHELL,TRIM0# |
1 | ||
| 71759-28050A1 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,35V)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),SHELL,TRIM0# |
1 | ||
| 71759-28050A1 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
2 | ||
| 71759-28050A1 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
2 | ||
| 71793B - CLIP, FRONT SEAT BACK POCKET | ||||
| 71793-58010 |
ANH2#,GGH2#..CBU |
4 | ||
| 71793-58010 |
ANH2#,GGH2#..CBU |
4 | ||
| 71793-58010 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,35V)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
2 | ||
| 71793-58010 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,35V)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
2 | ||
| 71811T - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-28360A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71811-28360A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1 | ||||
| 71848-33010 |
ANH2#,GGH2#..CBU |
2 | ||
| 71848-33010 |
ANH2#,GGH2#..CBU |
2 | ||
| 71861K - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-58070A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71861-58070A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71867W - SHIELD, FRONT SEAT CUSHION, FRONT RH | ||||
| 71867-28030A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71867-28030A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71873W - SHIELD, FRONT SEAT CUSHION, LOWER RH, OUTER | ||||
| 71874-30020 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71874-30020 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71874W - SHIELD, FRONT SEAT CUSHION, LOWER LH, INNER | ||||
| 71873-30070 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71873-30070 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71910E - HEADREST ASSY, FRONT SEAT, RH | ||||
| 71910-58140A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71910-58140A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71931-47010A7 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ無,SHELL,TRIM0# |
1 | ||
| 71931-47010A7 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ無,SHELL,TRIM0# |
1 | ||
| 71930-44020A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ付,SHELL,TRIM0# |
1 | ||
| 71930-44020A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ付,SHELL,TRIM0# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71931-47010A7 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ無,SHELL,TRIM0# |
1 | ||
| 71931-47010A7 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ無,SHELL,TRIM0# |
1 | ||
| 71930-44020A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ付,SHELL,TRIM0# |
1 | ||
| 71930-44020A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ付,SHELL,TRIM0# |
1 | ||
| 71H75 - COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT) | ||||
| 71875-58030A3 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71875-58030A3 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71H75B - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT BACK F | ||||
| 71875-58050 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71875-58050 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71H76 - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT) | ||||
| 71875-48050A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71875-48050A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71H76A - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT BACK F | ||||
| 71876-58050 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71876-58050 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 72820 - ARMREST ASSY, FRONT SEAT, LH(FOR RH SEAT) | ||||
| 72890-58510A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 72890-58510A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 72848K - CAP, SEAT ARMREST, NO.1(FOR RH SEAT) | ||||
| 72848-28030A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 72848-28030A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73910B - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 73910-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 73910-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 73910-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 76519F - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,35V)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
2 | ||
| 76519-42010 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,35V)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
2 | ||
| 76519-42010 |
ANH2#,GGH2#..CBU |
4 | ||
| 76519-42010 |
ANH2#,GGH2#..CBU |
4 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90179-08233 | ||||
| 91674-A1025 | ||||
| 93530-54010 | ||||
| 93540-55012 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||

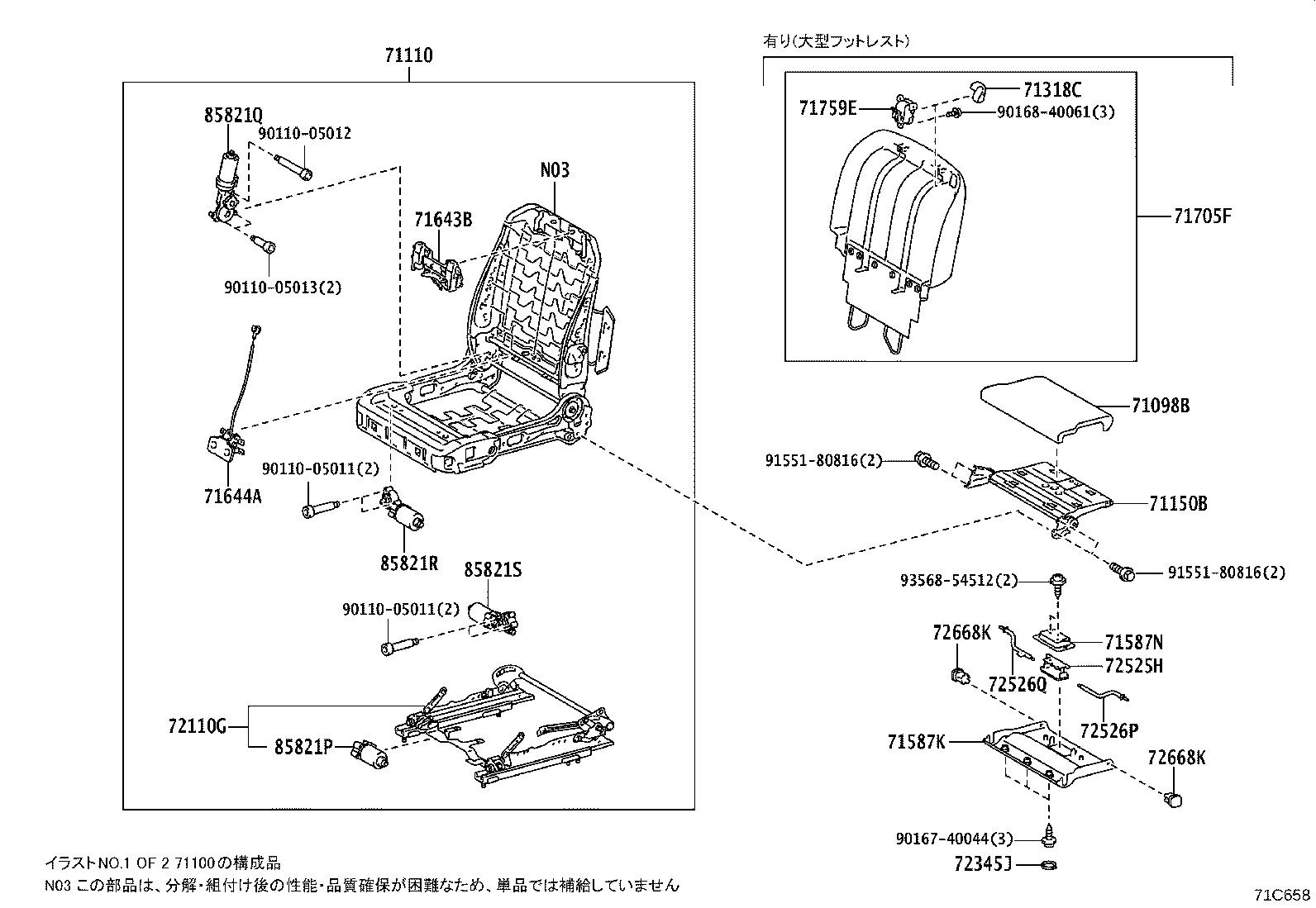

ILLUST NO. 2 OF 2(0804-1110)07S..350S,35Z ; (0804-1110)240G,24V,350G,35V ; (1106-1110)07S..240S,24Z
ｳﾝﾃﾝｾｷ-ｱﾘ(ﾊﾟﾜｰｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71110 - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-58100 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71643B - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,35V)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 71643-12011 |
ANH2#,GGH2#..CBU |
2 | ||
| 71644A - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ANH2#,GGH2#..CBU |
2 | ||
| 71644-12030 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,35V)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 72110G - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-58050 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 85821P - MOTOR ASSY, POWER SEAT SLIDE, RH | ||||
| 85801-58010 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 85821Q - MOTOR ASSY, POWER SEAT RECLINING, RH | ||||
| 85801-58020 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 85821R - MOTOR ASSY, POWER SEAT TILT, RH | ||||
| 85801-58040 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 85821S - MOTOR ASSY, POWER SEAT LIFTER, RH | ||||
| 85801-58030 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| Common parts | ||||
| 90110-05011 | ||||
| 90110-05012 | ||||
| 90110-05013 | ||||
| 90167-40044 | ||||
| 90168-40061 | ||||
| 91551-80816 | ||||
| 93568-54512 | ||||

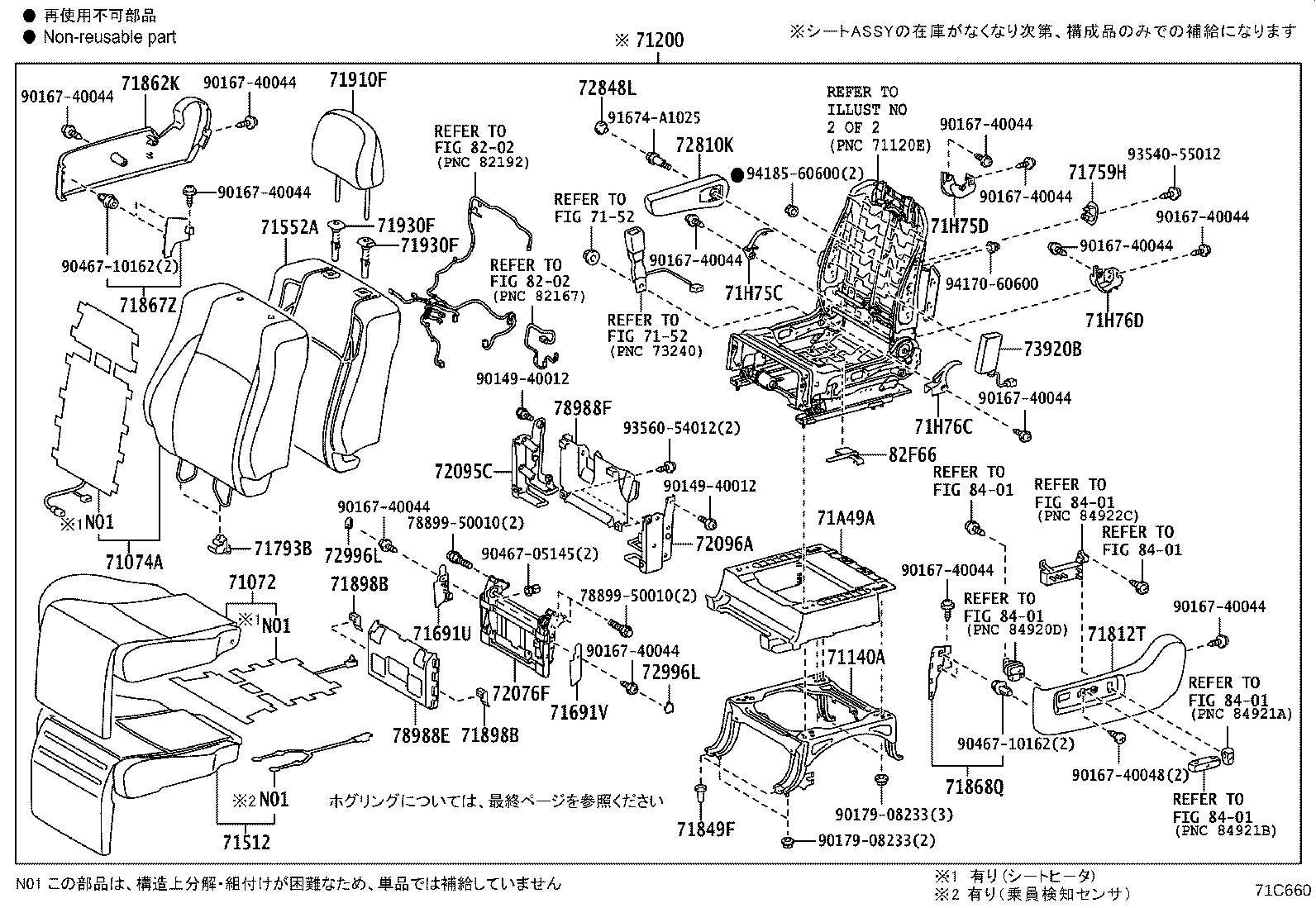

ILLUST NO. 1 OF 2(0804-1110)240G,24V,350G,35V
ｼﾞｮｼｭｾｷ-ｱﾘ(ﾊﾟﾜｰｼｰﾄ)&ﾅｼ(ｵｵｶﾞﾀ ﾌｯﾄﾚｽﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71072-58180A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71072-58181A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71074-58360A1 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71074-58361A1 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71140A - LEG ASSY, FRONT SEAT, LH | ||||
| 71140-58030 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71200 - SEAT ASSY, FRONT LH | ||||
| 71200-58581A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHEEL,TRIM0# |
1 | ||
| 71200-58580A4 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71512 - PAD, FRONT SEAT CUSHION, LH | ||||
| 71502-58030 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71552A - PAD, FRONT SEAT BACK, LH | ||||
| 71552-58060 |
ANH2#,GGH2#..(240G,240S,24V,24Z,350G,350S,35V,35Z)..CBU |
1 | ||
| 71691U - COVER, RECLINING ADJUSTER ARM, NO.1 | ||||
| 71691-50010A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71691V - COVER, RECLINING ADJUSTER ARM, NO.2 | ||||
| 71691-50020A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71759H - HOOK, FRONT SEAT BACK | ||||
| 71759-28050A1 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,35V)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),SHELL,TRIM0# |
1 | ||
| 71759-28050A1 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
2 | ||
| 71793B - CLIP, FRONT SEAT BACK POCKET | ||||
| 71793-58010 |
ANH2#,GGH2#..CBU |
4 | ||
| 71793-58010 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,35V)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
2 | ||
| 71812T - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-58090A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71849F - CAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT) | ||||
| 71848-33010 |
ANH2#,GGH2#..CBU |
2 | ||
| 71862K - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-58060A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71867Z - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH(FOR LH SEAT) | ||||
| 71867-58010A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71868Q - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH(FOR LH SEAT) | ||||
| 71868-58010A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71898B - HOOK, FRONT SEAT COVER | ||||
| 71898-50010 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
2 | ||
| 71898B - HOOK, FRONT SEAT COVER | ||||
| 71898-50010 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
2 | ||
| 71910F - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-58140A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71930-44020A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ付,SHELL,TRIM0# |
1 | ||
| 71931-47010A7 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ無,SHELL,TRIM0# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71930-44020A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ付,SHELL,TRIM0# |
1 | ||
| 71931-47010A7 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ﾛｯｸ無,SHELL,TRIM0# |
1 | ||
| 71A49A - COVER, FRONT SEAT LEG(FOR LH SEAT) | ||||
| 71149-58040A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71H75C - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT) | ||||
| 71876-48040A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71H75D - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT BACK F | ||||
| 71875-60140 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71H76C - COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT) | ||||
| 71876-60150A4 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71875-48050A2 |
ANH2#,GGH2#..08S..(240G,24V,350G,35V)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),SHELL,TRIM0# |
1 | ||
| 71H76D - COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT BACK F | ||||
| 71876-60140 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 72076F - ARM SUB-ASSY, RECLINING ADJUSTER, LWR INNER LH | ||||
| 72076-58010 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 72095C - PLATE SUB-ASSY, RECLINING ADJUSTER ARM, NO.1 | ||||
| 72095-58010A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 72096A - PLATE SUB-ASSY, RECLINING ADJUSTER ARM, NO.2 | ||||
| 72096-58010A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 72810K - ARMREST ASSY, FRONT SEAT, RH(FOR LH SEAT) | ||||
| 72880-58510A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 72848L - CAP, SEAT ARMREST, NO.1(FOR LH SEAT) | ||||
| 72848-28030A2 |
ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 72996L - CAP, RECLINING ADJUSTER ARM COVER | ||||
| 72996-50120A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
2 | ||
| 72996L - CAP, RECLINING ADJUSTER ARM COVER | ||||
| 72996-50120A2 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
2 | ||
| 73920B - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 73920-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 78988E - COVER, FRONT SEAT FOOTREST, NO.1 | ||||
| 78988-58010 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 78988F - COVER, FRONT SEAT FOOTREST, NO.2 | ||||
| 78988-58020A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 82F66 - HOLDER, CONNECTOR | ||||
| 82666-21060 |
ANH2#,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 78899-50010 | ||||
| 90149-40012 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90179-08233 | ||||
| 90467-05145 | ||||
| 90467-10162 | ||||
| 91674-A1025 | ||||
| 93540-55012 | ||||
| 93560-54012 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||

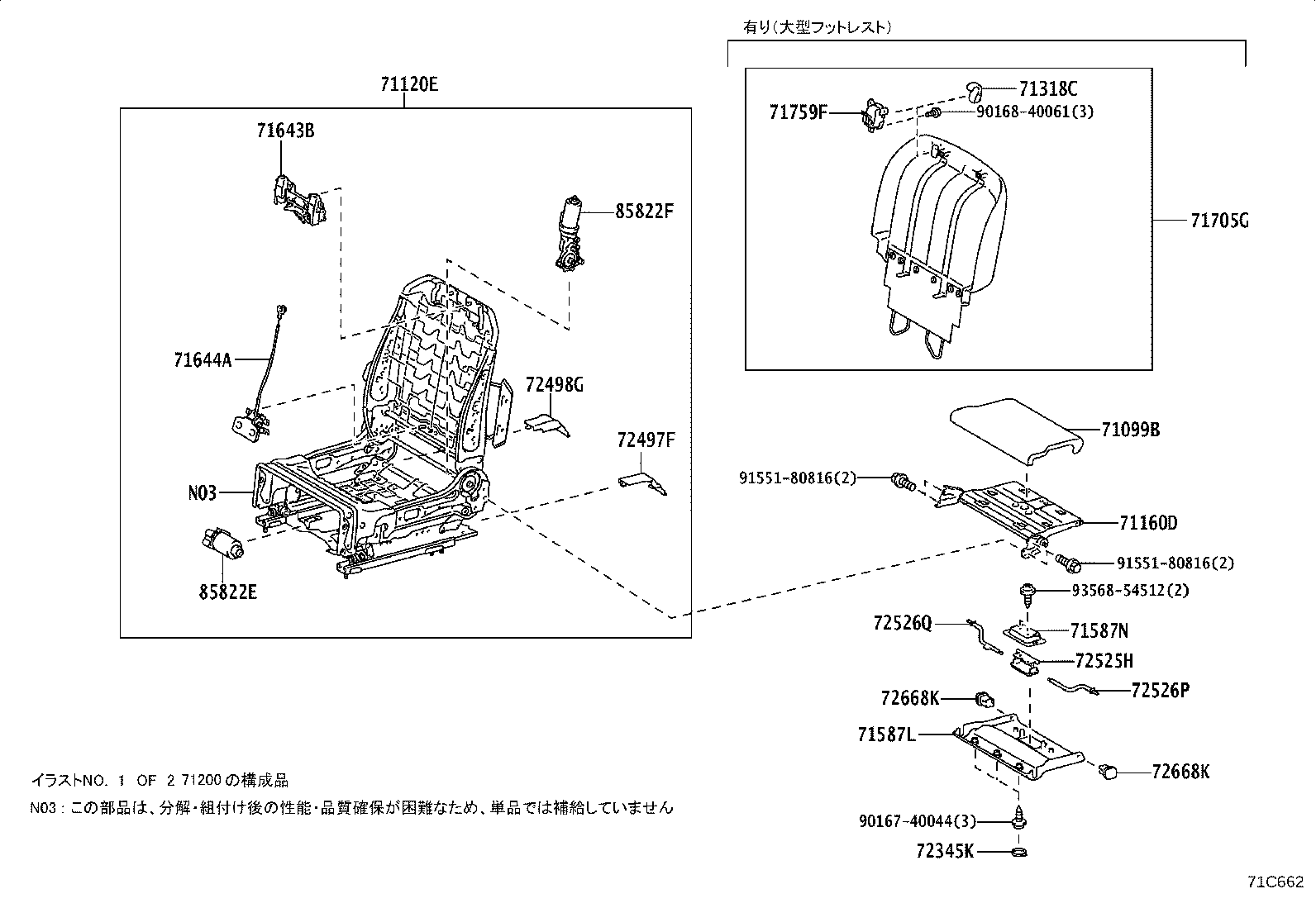

ILLUST NO. 2 OF 2(0804-1110)07S..350S,35Z ; (0804-1110)240G,24V,350G,35V
ｼﾞｮｼｭｾｷ-ｱﾘ(ﾊﾟﾜｰｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71120E - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-58110 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 71643B - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,35V)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 71643-12011 |
ANH2#,GGH2#..CBU |
2 | ||
| 71644A - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ANH2#,GGH2#..CBU |
2 | ||
| 71644-12030 |
ANH2#,GGH2#..08S..(240G,240X,24V,24X,350G,35V)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 72497F - COVER, VERTICAL ADJUSTER BRACKET, OUTER | ||||
| 72497-60010 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 72498G - COVER, VERTICAL ADJUSTER BRACKET, INNER | ||||
| 72498-60010 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 85822E - MOTOR ASSY, POWER SEAT SLIDE, LH | ||||
| 85801-28060 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| 85822F - MOTOR ASSY, POWER SEAT RECLINING, LH | ||||
| 85801-28050 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90168-40061 | ||||
| 91551-80816 | ||||
| 93568-54512 | ||||
(0804-1110)
ﾌﾛﾝﾄｼｰﾄ ﾌｨｯﾃｨﾝｸﾞ ﾊﾟｰﾂ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71139T - COVER, FRONT SEAT LEG, REAR RH | ||||
| 71139-58120A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| 71139U - COVER, FRONT SEAT LEG, REAR LH | ||||
| 71149-58060A0 |
ANH2#,GGH2#..(240G,24V,350G,35V)..CBU SHELL,TRIM0# |
1 | ||
| Common parts | ||||
| 90119-10927 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
