ANH25W-PRXQK (2008)

Toyota Alphard/Vellfire/Hv

Production Apr 2008 - Oct 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0804- )ANH2#

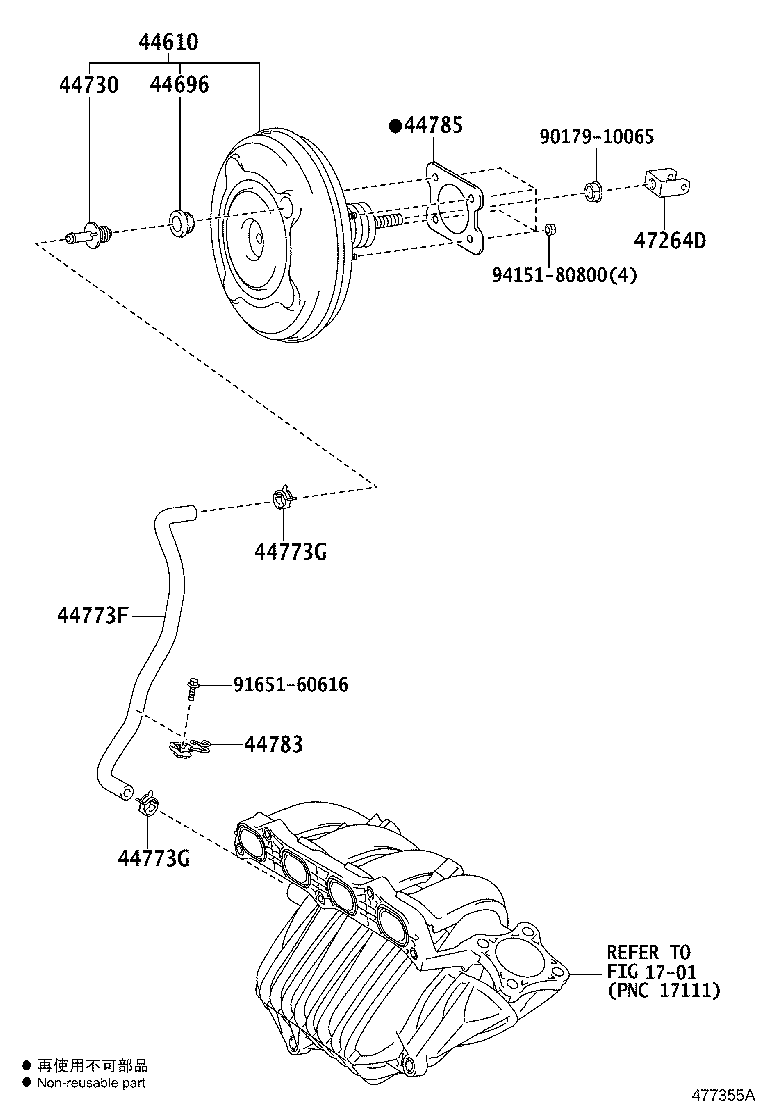

Click highlighted areas on diagram

diagram 1701 44610 44696 44730 44773F 44773G 44773G 44783 44785 47264D 9017910065 9165160616 9415180800
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-58030

ANH2#,GGH2#..CBU

 1
44696 - GROMMET, CHECK VALVE
90480-24015

ANH2#,GGH2#..CBU

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-28030

ANH2#,GGH2#..CBU

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-58040

ANH2#..CBU

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
96133-41500

ANH2#..CBU

 2
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
96133-41500

ANH2#..CBU

 2
44783 - CLAMP, VACUUM HOSE
44783-44010

ANH2#..CBU

 1
44785 - GASKET, BRAKE BOOSTER
44785-12040

ANH2#,GGH2#..CBU

 1
44785-28010

ANH2#,GGH2#..CBU

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-30060

ANH2#,GGH2#..CBU

 1
Common parts
90179-10065
91651-60616
94151-80800
Linked diagrams
1701
