Toyota Alphard/vellfire/hv ANH25 TRANSAXLE ASSY(CVT)

ANH25W-NRXSK (2008)

Toyota Alphard/Vellfire/Hv

Production Apr 2008 - Oct 2011

Engine 2AZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

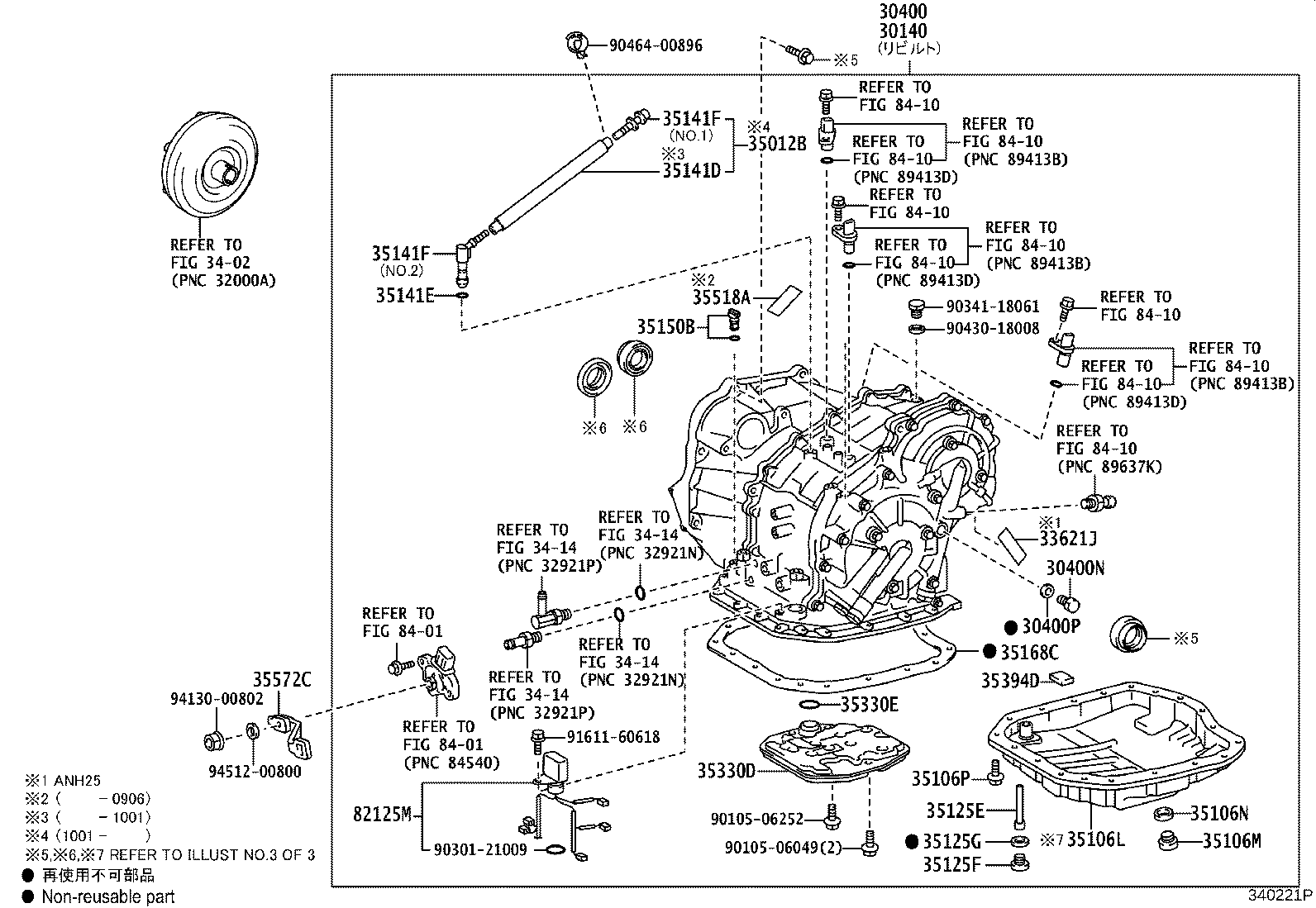

ILLUST NO. 1 OF 2(0804-1103)ANH2#

Click highlighted areas on diagram

K112,K112F

Part #	Description	Period	Qty
30140 - TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER)
30140-58021	ANH25..CBU K112F	07/2011 - 10/2011	1
30140-58020	ANH25..CBU K112F	04/2008 - 07/2011	1
30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
30400-58020	ANH25..CBU K112F	04/2008 - 07/2011	1
30400-58021	ANH25..CBU K112F	07/2011 - 10/2011	1
30400N - PLUG, REFILL(CVT)
90341-18061	ANH2#..CBU	04/2008 - 10/2011	1
30400P - GASKET, REFILL PLUG(CVT)
90430-18008	ANH2#..CBU	04/2008 - 10/2011	1
33621J - LABEL, TRANSAXLE OIL INFORMATION
33621-12150	ANH25..CBU	04/2008 - 10/2011	1
35012B - HOSE SUB-ASSY, TRANSMISSION BREATHER
3510A-44010	ANH2#..CBU	01/2010 - 10/2011	1
35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT)
35106-44021	ANH2#..CBU ﾏｰｸ=T2	08/2008 - 03/2011	1
35106-44022	ANH2#..CBU	03/2011 - 10/2011	1
35106-44020	ANH2#..CBU ﾏｰｸ無し	04/2008 - 08/2008	1
35106M - PLUG SUB-ASSY, DRAIN(CVT)
90341-18016	ANH2#..CBU	04/2008 - 03/2011	1
35106N - GASKET, DRAIN PLUG(CVT)
90430-18008	ANH2#..CBU	04/2008 - 03/2011	1
35106P - BOLT(FOR TRANSAXLE OIL PAN)
90119-06173	ANH2#..CBU	04/2008 - 10/2011	19
35125E - TUBE, OVERFLOW(CVT)
35125-44070	ANH2#..CBU	04/2008 - 10/2011	1
35125F - PLUG, OVERFLOW(CVT)
90341-12034	ANH2#..CBU	04/2008 - 10/2011	1
35125G - GASKET, OVERFLOW PLUG(CVT)
90430-12008	ANH2#..CBU	04/2008 - 10/2011	1
35141D - HOSE(FOR BREATHER PLUG)
35121-63010	ANH2#..CBU	04/2008 - 01/2010	1
35141E - RING, O(FOR BREATHER PLUG)
90301-06005	ANH2#..CBU	04/2008 - 10/2011	1
35141F - PLUG, BREATHER, NO.1(CVT)
90930-03149	ANH2#..CBU NO.1	04/2008 - 10/2011	1
90930-03164	ANH2#..CBU NO.2	04/2008 - 10/2011	1
35141F - PLUG, BREATHER, NO.1(CVT)
90930-03149	ANH2#..CBU NO.1	04/2008 - 10/2011	1
90930-03164	ANH2#..CBU NO.2	04/2008 - 10/2011	1
35150B - PLUG ASSY, TRANSMISSION CASE
35150-44010	ANH2#..CBU	04/2008 - 10/2011	1
35168C - GASKET, TRANSAXLE OIL PAN(CVT)
35168-63010	ANH2#..CBU PNC 35106L参照	04/2008 - 08/2008	1
35168-20010	ANH2#..CBU PNC 35106L参照	08/2008 - 10/2011	1
35330D - STRAINER ASSY, OIL
35330-0W040	ANH2#..CBU	04/2008 - 10/2011	1
35330E - RING, O (FOR OIL STRAINER)
90301-24013	ANH2#..CBU	04/2008 - 10/2011	1
35394D - MAGNET, OIL CLEANER(CVT)
35394-30011	ANH2#..CBU	04/2008 - 10/2011	3
35518A - LABEL, AUTOMATIC TRANSAXLE INFORMATION, NO.2
35518-63010	ANH2#..CBU	04/2008 - 06/2009	1
35572C - LEVER, TRANSMISSION CONTROL SHAFT
35572-42030	ANH2#..CBU	04/2008 - 10/2011	1
82125M - WIRE, TRANSMISSION
82125-44020	ANH2#..CBU	04/2008 - 10/2011	1
Common parts
90105-06049
90105-06252
90301-21009
90341-18061
90430-18008
90464-00896
91611-60618
94130-00802
94512-00800
Linked diagrams
3402
3414
8401
8410

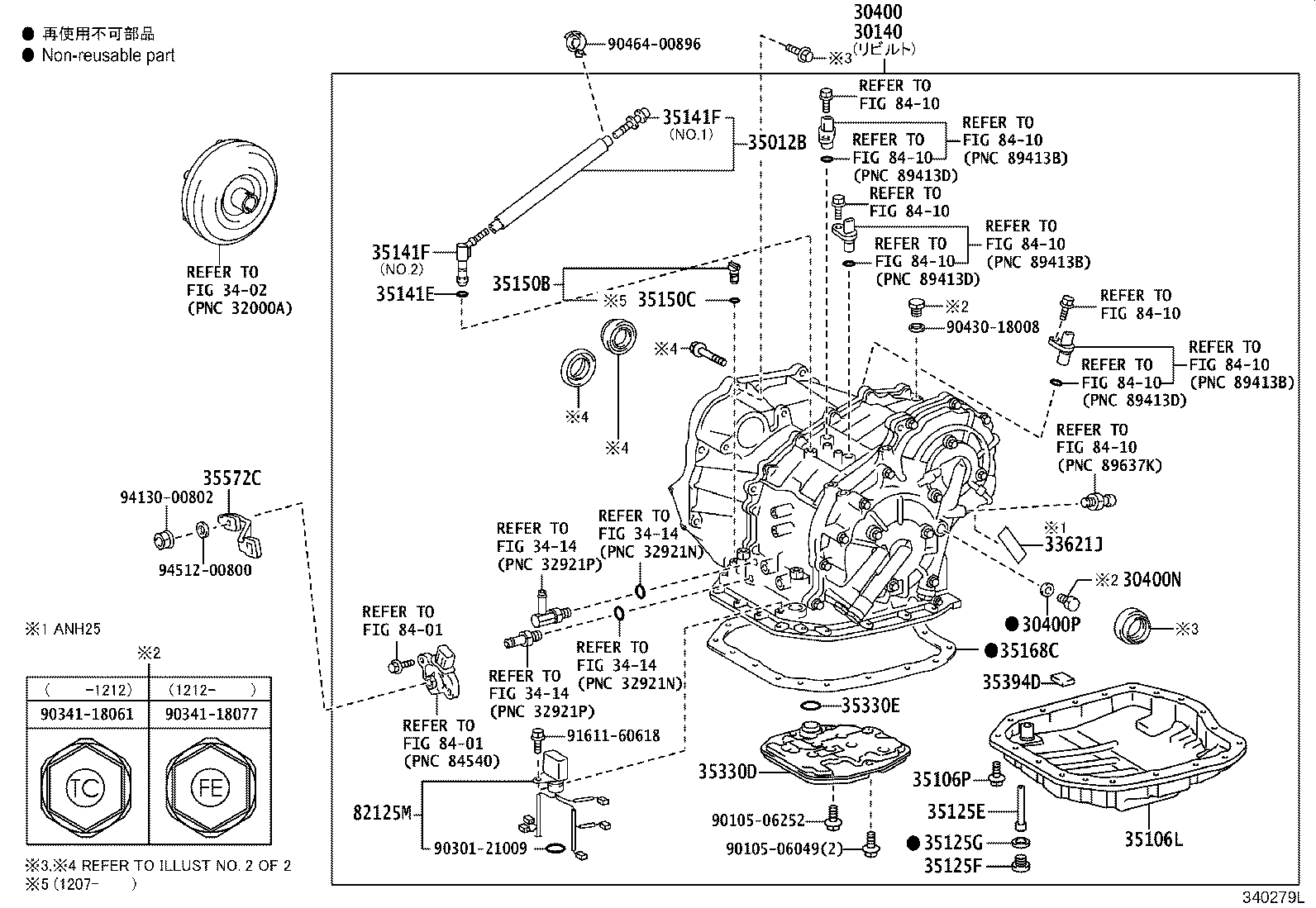

ILLUST NO. 1 OF 2(1103- )ANH2#

Click highlighted areas on diagram

K112,K112F

Part #	Description	Period	Qty
30140 - TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER)
30140-58021	ANH25..CBU K112F	07/2011 - 10/2011	1
30140-58020	ANH25..CBU K112F	04/2008 - 07/2011	1
30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
30400-58020	ANH25..CBU K112F	04/2008 - 07/2011	1
30400-58021	ANH25..CBU K112F	07/2011 - 10/2011	1
30400N - PLUG, REFILL(CVT)
90341-18061	ANH2#..CBU	04/2008 - 10/2011	1
30400P - GASKET, REFILL PLUG(CVT)
90430-18008	ANH2#..CBU	04/2008 - 10/2011	1
33621J - LABEL, TRANSAXLE OIL INFORMATION
33621-12150	ANH25..CBU	04/2008 - 10/2011	1
35012B - HOSE SUB-ASSY, TRANSMISSION BREATHER
3510A-44010	ANH2#..CBU	01/2010 - 10/2011	1
35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT)
35106-44021	ANH2#..CBU ﾏｰｸ=T2	08/2008 - 03/2011	1
35106-44022	ANH2#..CBU	03/2011 - 10/2011	1
35106-44020	ANH2#..CBU ﾏｰｸ無し	04/2008 - 08/2008	1
35106P - BOLT(FOR TRANSAXLE OIL PAN)
90119-06173	ANH2#..CBU	04/2008 - 10/2011	19
35125E - TUBE, OVERFLOW(CVT)
35125-44070	ANH2#..CBU	04/2008 - 10/2011	1
35125F - PLUG, OVERFLOW(CVT)
90341-12034	ANH2#..CBU	04/2008 - 10/2011	1
35125G - GASKET, OVERFLOW PLUG(CVT)
90430-12008	ANH2#..CBU	04/2008 - 10/2011	1
35141E - RING, O(FOR BREATHER PLUG)
90301-06005	ANH2#..CBU	04/2008 - 10/2011	1
35141F - PLUG, BREATHER, NO.1(CVT)
90930-03149	ANH2#..CBU NO.1	04/2008 - 10/2011	1
90930-03164	ANH2#..CBU NO.2	04/2008 - 10/2011	1
35141F - PLUG, BREATHER, NO.1(CVT)
90930-03149	ANH2#..CBU NO.1	04/2008 - 10/2011	1
90930-03164	ANH2#..CBU NO.2	04/2008 - 10/2011	1
35150B - PLUG ASSY, TRANSMISSION CASE
35150-44010	ANH2#..CBU	04/2008 - 10/2011	1
35168C - GASKET, TRANSAXLE OIL PAN(CVT)
35168-63010	ANH2#..CBU PNC 35106L参照	04/2008 - 08/2008	1
35168-20010	ANH2#..CBU PNC 35106L参照	08/2008 - 10/2011	1
35330D - STRAINER ASSY, OIL
35330-0W040	ANH2#..CBU	04/2008 - 10/2011	1
35330E - RING, O (FOR OIL STRAINER)
90301-24013	ANH2#..CBU	04/2008 - 10/2011	1
35394D - MAGNET, OIL CLEANER(CVT)
35394-30011	ANH2#..CBU	04/2008 - 10/2011	3
35572C - LEVER, TRANSMISSION CONTROL SHAFT
35572-42030	ANH2#..CBU	04/2008 - 10/2011	1
82125M - WIRE, TRANSMISSION
82125-44020	ANH2#..CBU	04/2008 - 10/2011	1
Common parts
90105-06049
90105-06252
90301-21009
90341-18061
90341-18077
90430-18008
90464-00896
91611-60618
94130-00802
94512-00800
Linked diagrams
3402
3414
8401
8410

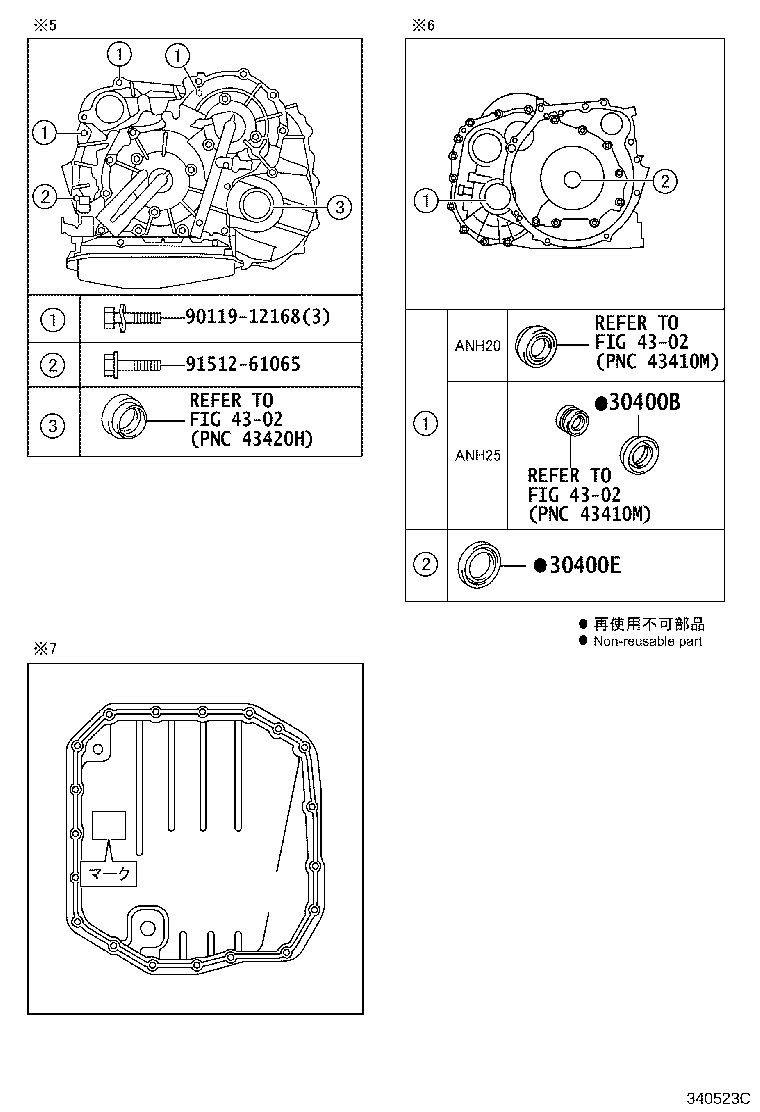

ILLUST NO. 2 OF 2(0804-1103)ANH2#

Click highlighted areas on diagram

K112,K112F

Part #	Description	Period	Qty
30400B - SEAL, TYPE T OIL, NO.1(FOR CVT)
90311-49002	ANH25..CBU	04/2008 - 10/2011	1
30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP)
90311-45025	ANH2#..CBU	04/2008 - 10/2011	1
Common parts
90119-12168
91512-61065
Linked diagrams
4302

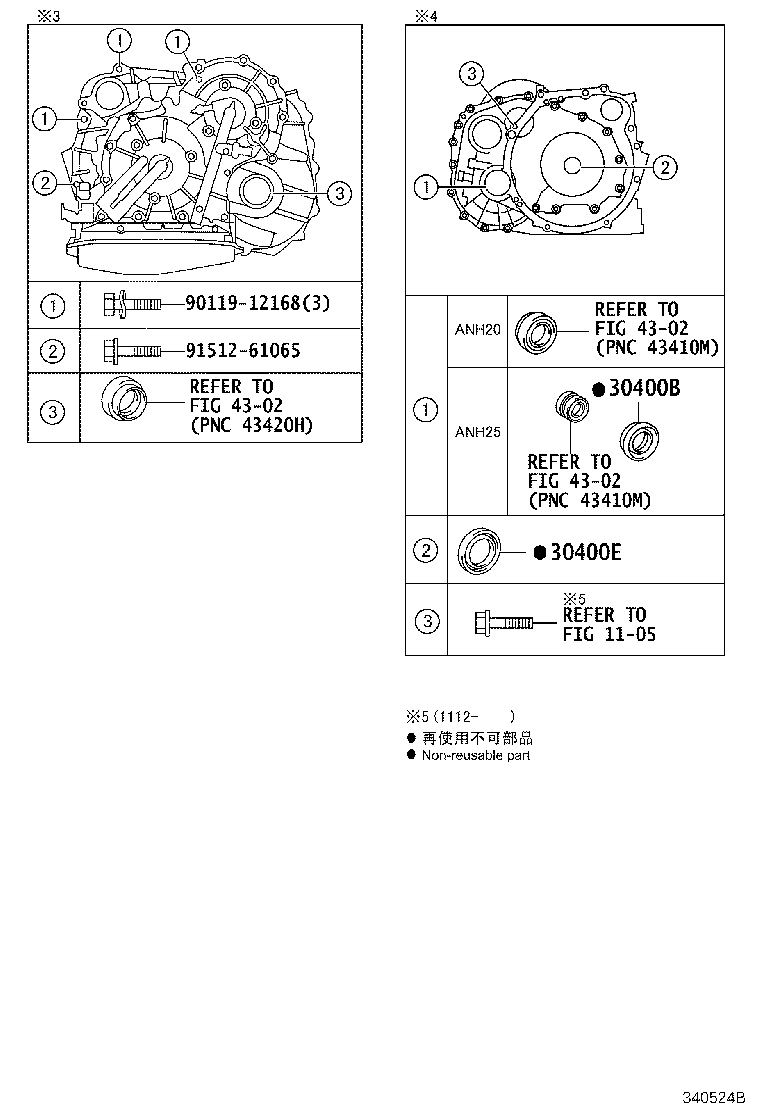

ILLUST NO. 2 OF 2(1103- )ANH2#

Click highlighted areas on diagram

K112,K112F

Part #	Description	Period	Qty
30400B - SEAL, TYPE T OIL, NO.1(FOR CVT)
90311-49002	ANH25..CBU	04/2008 - 10/2011	1
30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP)
90311-45025	ANH2#..CBU	04/2008 - 10/2011	1
Common parts
90119-12168
91512-61065
Linked diagrams
1105
4302
