ANH25W-NRXQK (2008)

Toyota Alphard/Vellfire/Hv

Production Apr 2008 - Oct 2011
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0804- )2AZFE..ANH25

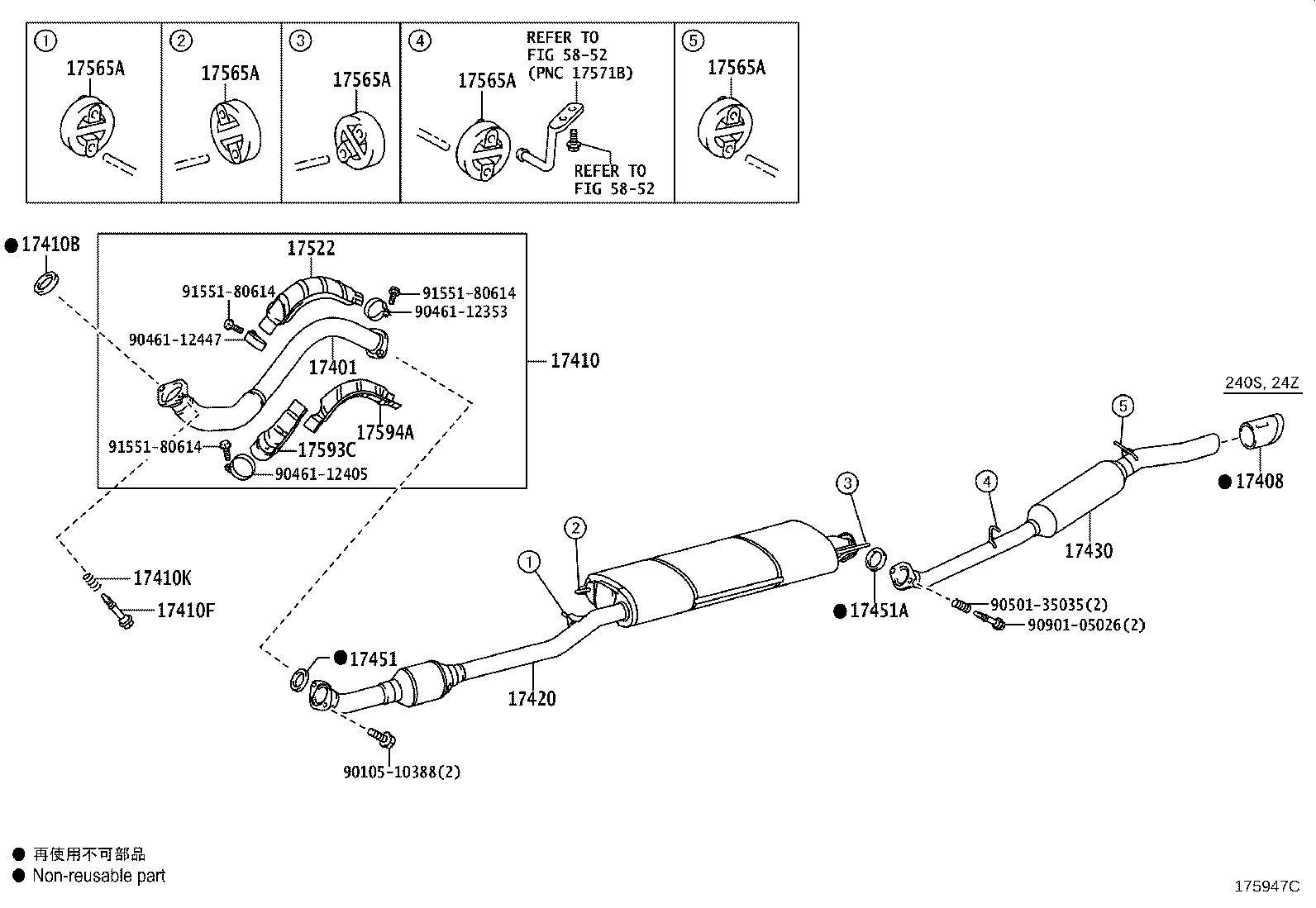

Click highlighted areas on diagram

diagram 17401 17408 17410 17410B 17410F 17410K 17420 17430 17451 17451A 17522 17565A 17565A 17565A 17565A 17565A 17593C 17594A 5852 5852 9010510388 9046112353 9046112405 9046112447 9050135035 9090105026 9155180614 9155180614 9155180614
Part # Description Qty Price
17401 - PIPE SUB-ASSY, EXHAUST, FRONT
17401-28100

2AZFE..ANH2#..CBU

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-28590

2AZFE..ANH2#..CBU

 1
17410B - GASKET, EXHAUST PIPE
17451-28040

2AZFE..ANH2#..CBU

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90901-05020

2AZFE..ANH2#..CBU

 2
17410K - SPRING, EXHAUST PIPE
90501-35037

2AZFE..ANH2#..CBU

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-28880

2AZFE..ANH25..CBU

 1
17420-28A20

2AZFE..ANH2#..CBU

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-28890

2AZFE..ANH2#..(240G,240X,24V,24X)..CBU

 1
17451 - GASKET, EXHAUST PIPE
90917-06078

2AZFE..ANH2#..CBU

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-28021

2AZFE..ANH2#..CBU

 1
17451-28022

2AZFE..ANH2#..CBU

 1
17522 - PROTECTOR, EXHAUST PIPE, UPPER NO.2
17522-28040

2AZFE..ANH2#..CBU

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

2AZFE,2GRFE..ANH2#,GGH2#..CBU

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

2AZFE,2GRFE..ANH2#,GGH2#..CBU

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

2AZFE,2GRFE..ANH2#,GGH2#..CBU

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

2AZFE,2GRFE..ANH2#,GGH2#..CBU

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

2AZFE,2GRFE..ANH2#,GGH2#..CBU

 5
17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1
17593-28040

2AZFE..ANH2#..CBU

 1
17594A - PROTECTOR, EXHAUST PIPE, LOWER NO.2
17594-28020

2AZFE..ANH2#..CBU

 1
Common parts
90105-10388
90461-12353
90461-12405
90461-12447
90501-35035
90901-05026
91551-80614
Linked diagrams
5852
