Toyota Alphard/vellfire/hv ANH25 WATER PUMP

ANH25W-NFXGK (2008)

Toyota Alphard/Vellfire/Hv

Production Apr 2008 - Oct 2011

Engine 2AZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

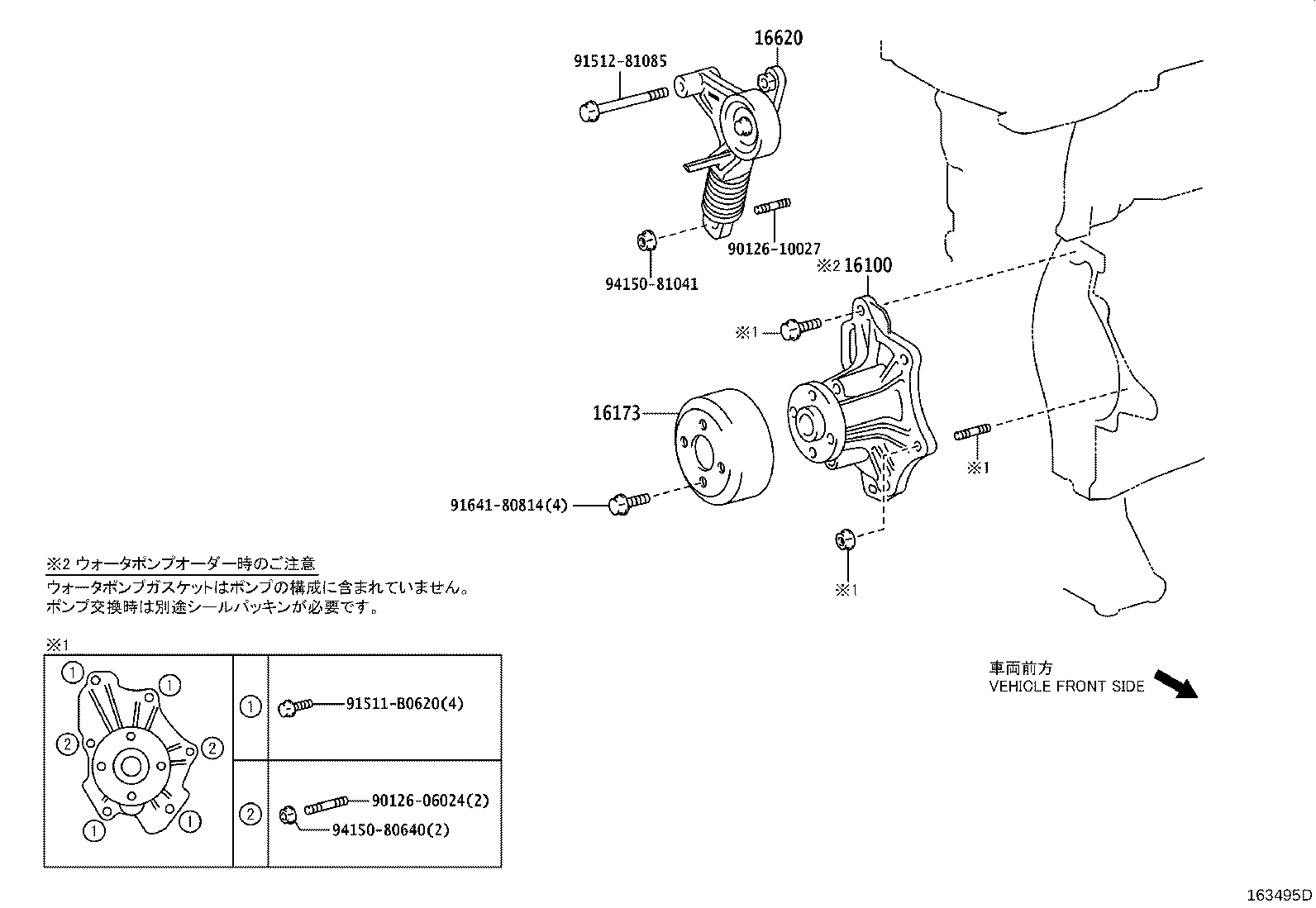

Click highlighted areas on diagram

*195

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-28041	2AZFE..ANH2#..CBU *195	04/2008 - 10/2011	1
16100-28041	2AZFE..ANH2#..CBU *195	04/2008 - 10/2011	1
16100-0H040	2AZFE..ANH2#..CBU *194	04/2008 - 10/2011	1
16173 - PULLEY, WATER PUMP
16173-0H040	2AZFE..ANH2#..CBU *194	04/2008 - 10/2011	1
16173-28020	2AZFE..ANH2#..CBU *195	04/2008 - 10/2011	1
16173-28020	2AZFE..ANH2#..CBU *195	04/2008 - 10/2011	1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-28041	2AZFE..ANH2#..CBU (J),*194	04/2008 - 05/2008	1
16620-0H030	2AZFE..ANH2#..CBU (L),*194	04/2008 - 05/2008	1
16620-0H020	2AZFE..ANH2#..CBU *194	05/2008 - 10/2011	1
16620-0H020	2AZFE..ANH2#..CBU *195	04/2008 - 10/2011	1
16620-0H020	2AZFE..ANH2#..CBU *195	04/2008 - 10/2011	1
Common parts
90126-06024
90126-10027
91511-B0620
91512-81085
91641-80814
94150-80640
94150-81041

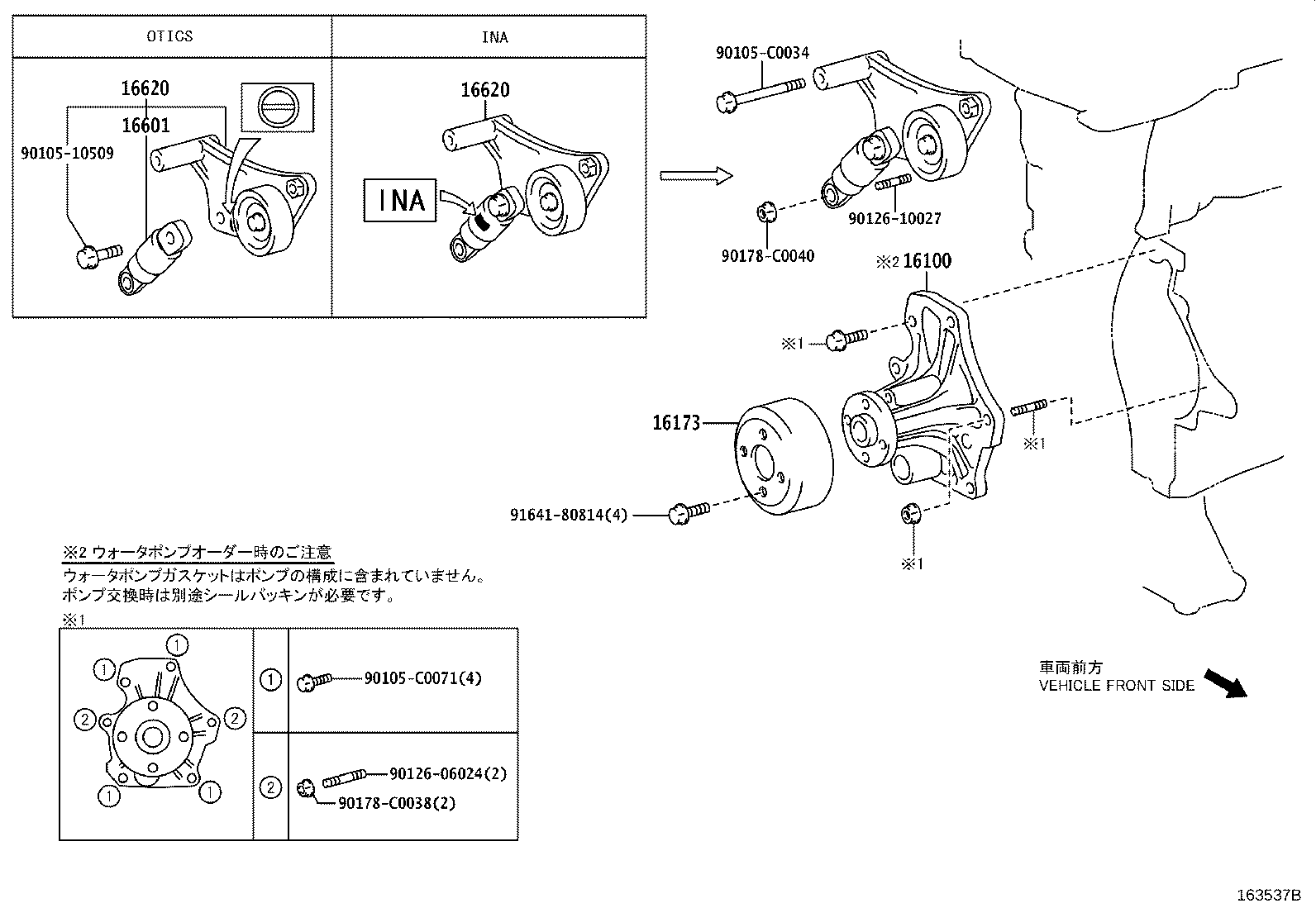

Click highlighted areas on diagram

*194

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-28041	2AZFE..ANH2#..CBU *195	04/2008 - 10/2011	1
16100-28041	2AZFE..ANH2#..CBU *195	04/2008 - 10/2011	1
16100-0H040	2AZFE..ANH2#..CBU *194	04/2008 - 10/2011	1
16173 - PULLEY, WATER PUMP
16173-0H040	2AZFE..ANH2#..CBU *194	04/2008 - 10/2011	1
16173-28020	2AZFE..ANH2#..CBU *195	04/2008 - 10/2011	1
16173-28020	2AZFE..ANH2#..CBU *195	04/2008 - 10/2011	1
16601 - TENSIONER SUB-ASSY, V-RIBBED BELT
16601-28021	2AZFE..ANH2#..CBU *194,OTICS	04/2008 - 05/2008	1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-28041	2AZFE..ANH2#..CBU (J),*194	04/2008 - 05/2008	1
16620-0H030	2AZFE..ANH2#..CBU (L),*194	04/2008 - 05/2008	1
16620-0H020	2AZFE..ANH2#..CBU *194	05/2008 - 10/2011	1
16620-0H020	2AZFE..ANH2#..CBU *195	04/2008 - 10/2011	1
16620-0H020	2AZFE..ANH2#..CBU *195	04/2008 - 10/2011	1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-28041	2AZFE..ANH2#..CBU (J),*194	04/2008 - 05/2008	1
16620-0H030	2AZFE..ANH2#..CBU (L),*194	04/2008 - 05/2008	1
16620-0H020	2AZFE..ANH2#..CBU *194	05/2008 - 10/2011	1
16620-0H020	2AZFE..ANH2#..CBU *195	04/2008 - 10/2011	1
16620-0H020	2AZFE..ANH2#..CBU *195	04/2008 - 10/2011	1
Common parts
90105-10509
90105-C0034
90105-C0071
90126-06024
90126-10027
90178-C0038
90178-C0040
91641-80814

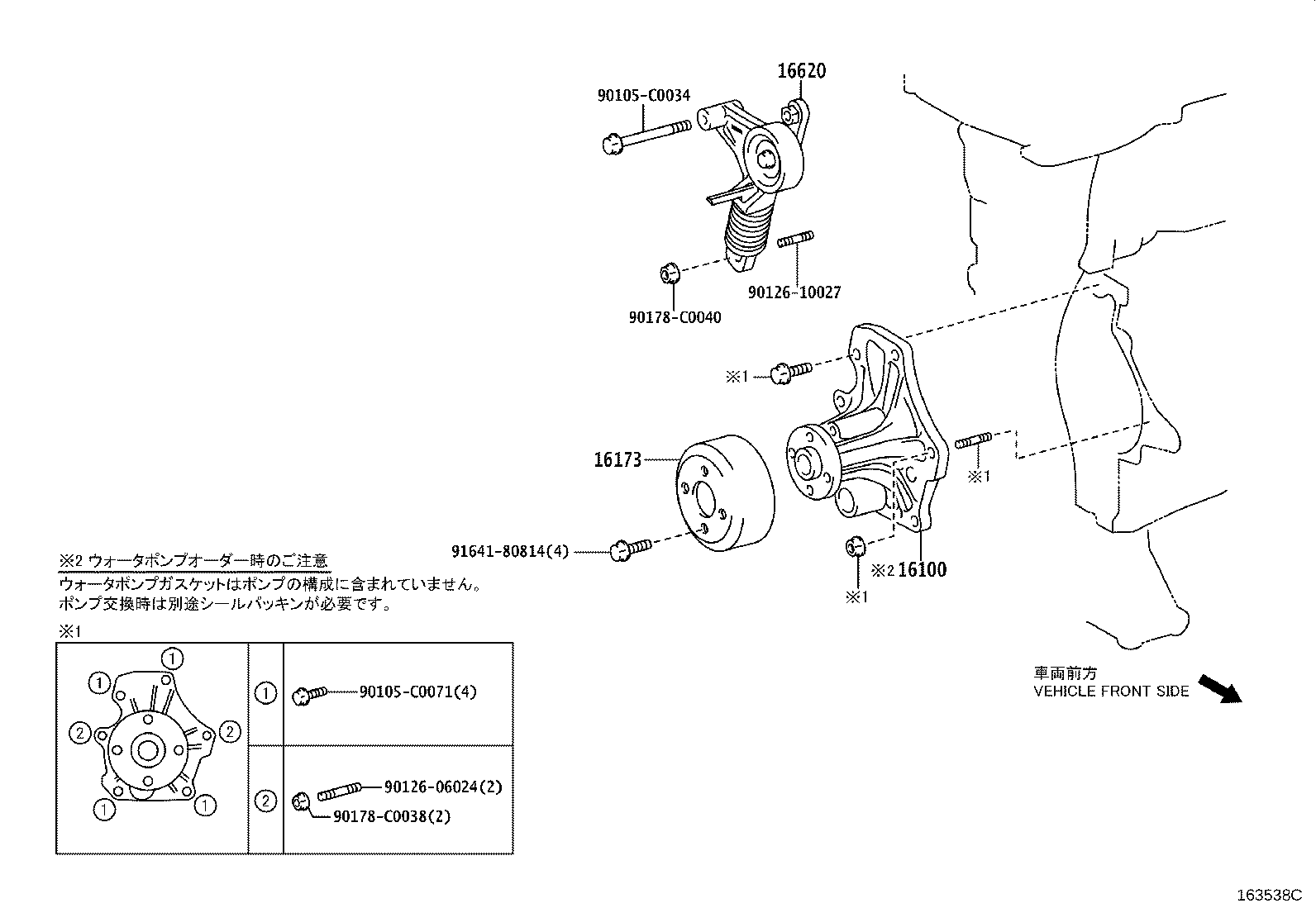

Click highlighted areas on diagram

*194

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-28041	2AZFE..ANH2#..CBU *195	04/2008 - 10/2011	1
16100-28041	2AZFE..ANH2#..CBU *195	04/2008 - 10/2011	1
16100-0H040	2AZFE..ANH2#..CBU *194	04/2008 - 10/2011	1
16173 - PULLEY, WATER PUMP
16173-0H040	2AZFE..ANH2#..CBU *194	04/2008 - 10/2011	1
16173-28020	2AZFE..ANH2#..CBU *195	04/2008 - 10/2011	1
16173-28020	2AZFE..ANH2#..CBU *195	04/2008 - 10/2011	1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-28041	2AZFE..ANH2#..CBU (J),*194	04/2008 - 05/2008	1
16620-0H030	2AZFE..ANH2#..CBU (L),*194	04/2008 - 05/2008	1
16620-0H020	2AZFE..ANH2#..CBU *194	05/2008 - 10/2011	1
16620-0H020	2AZFE..ANH2#..CBU *195	04/2008 - 10/2011	1
16620-0H020	2AZFE..ANH2#..CBU *195	04/2008 - 10/2011	1
Common parts
90105-C0034
90105-C0071
90126-06024
90126-10027
90178-C0038
90178-C0040
91641-80814
