AGH35W-PRXSK (2020)

Toyota Alphard/Vellfire/Hv

Production Jan 2020 - Sep 9999
Engine 2ARFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )AGH3#..S,X,Z

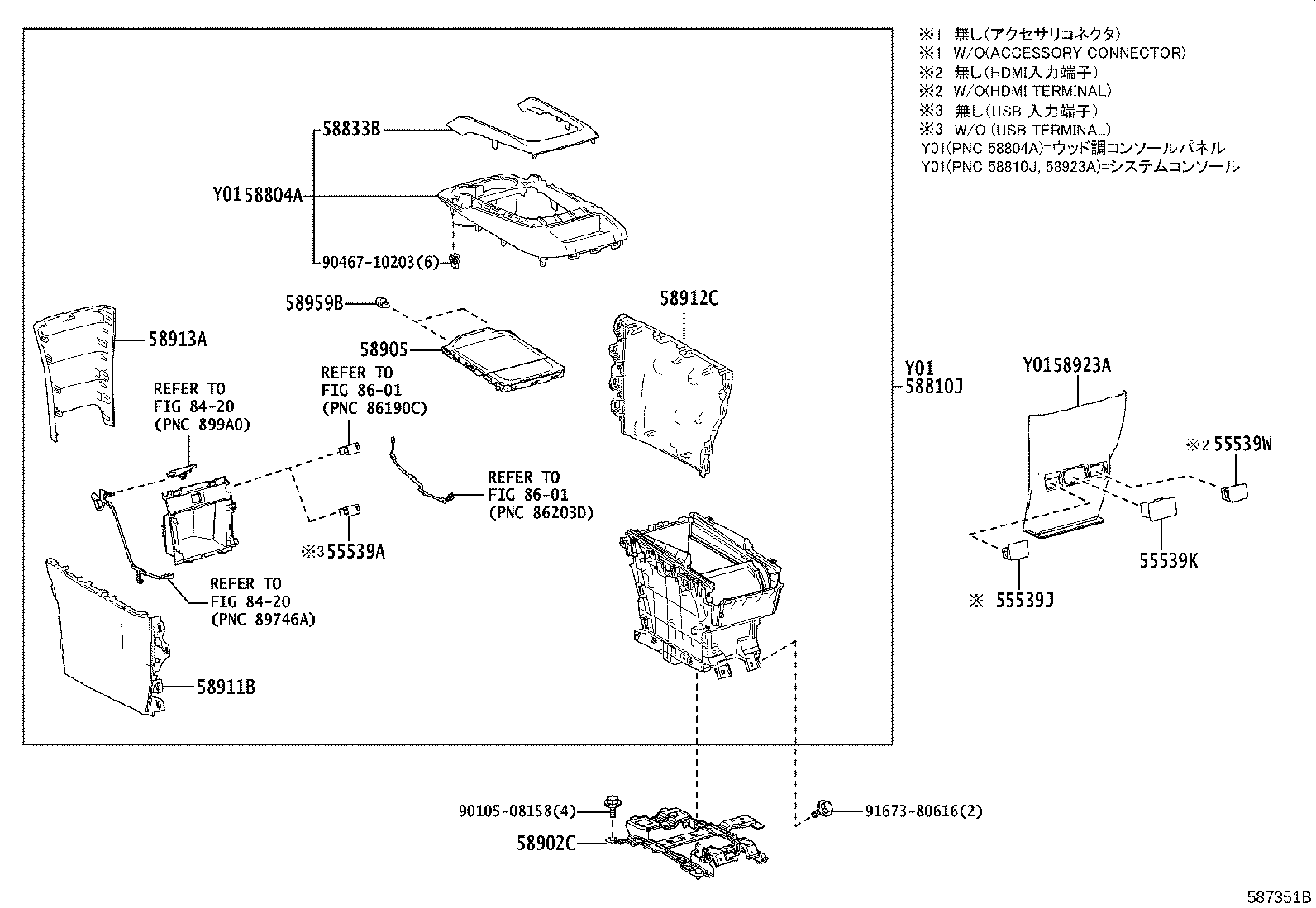

Click highlighted areas on diagram

ｽﾀﾝﾀﾞｰﾄﾞ ｺﾝｿｰﾙﾎﾞｯｸｽ

diagram 55539A 55539J 55539K 55539W 58804A 58810J 58833B 58902C 58905 58911B 58912C 58913A 58923A 58959B 8420 8420 8601 8601 9010508158 9046710203 9167380616
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55524-12010C0

AGH3#..S

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,BLACK,TRIM2#

 1
55524-12010C0

AGH3#..ALPHD..X

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ),BLACK,TRIM0#

 1
55524-12010C0

AGH3#..ALPHD..X

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,BLACK,TRIM0#

 1
55524-12010C0

AGH3#..S

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ),BLACK,TRIM2#

 1
55524-12010C0

AGH3#..ALPHD..X

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP),BLACK,TRIM0#

 1
55524-12010C0

AGH3#..S

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP),BLACK,TRIM2#

 1
55539J - COVER, SPARE SWITCH HOLE
55539-58120C1

AGH3#..S;AGH3#..07S..Z;AYH30,GGH3#..S,SC,SR,Z

BLACK,TRIM2#

 1
55539-58120C1

AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X)

BLACK,TRIM0#

 1
55539-58120C1

AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL

ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個,BLACK,TRIM0#

 1
55539K - COVER, SPARE SWITCH HOLE
55539-58140C1

AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X)

BLACK,TRIM0#

 1
55539-58140C1

AGH3#..S;AGH3#..07S..Z;AYH30,GGH3#..S,SC,SR,Z

BLACK,TRIM2#

 1
55539W - COVER, SPARE SWITCH HOLE
55539-58100C1

AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X)

ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ,BLACK,TRIM0#

 1
55539-58100C1

AGH3#..S;AGH3#..07S..Z;AYH30,GGH3#..S,SC,SR,Z

BLACK,TRIM2#

 1
55539-58100C1

AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X)

BLACK,TRIM0#

 1
55539-58100C1

AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X)

ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ,BLACK,TRIM0#

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-58180

AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X)

 1
58804-58180

AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X)

 1
58804-58320C0

AGH3#..ALPHD..X

BLACK,TRIM0#

 1
58804-58320C0

AGH3#..S

BLACK,TRIM2#

 1
58810J - BOX ASSY, CONSOLE
58810-58540C0

AGH3#..S;AGH3#..07S..Z

BLACK,TRIM2#

 1
58810-58540C0

AGH3#..ALPHD..X

BLACK,TRIM0#

 1
58810-58550C0

AYH30..ALPHD..(EL,ELS,G,X);AGH3#,GGH3#..ALPHD..(EL,ELS,G,GF)

BLACK,TRIM0#

 1
58810-58520C0

AGH3#..S

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,BLACK,TRIM2#

 1
58810-58520C0

AGH3#..S

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ),BLACK,TRIM2#

 1
58810-58520C0

AGH3#..S

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP),BLACK,TRIM2#

 1
58810-58520C0

AGH3#..ALPHD..X

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,BLACK,TRIM0#

 1
58810-58520C0

AGH3#..ALPHD..X

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ),BLACK,TRIM0#

 1
58810-58540C1

AGH3#..S

BLACK,TRIM2#

 1
58810-58540C1

AGH3#..ALPHD..X

BLACK,TRIM0#

 1
58810-58520C0

AGH3#..ALPHD..X

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP),BLACK,TRIM0#

 1
58833B - GARNISH, CONSOLE UPPER PANEL, NO.1
58833-58200

AGH3#..ALPHD..(S,X)

 1
58833-58150A0

AYH30..ALPHD..(EL,ELS,G,X);AGH3#,GGH3#..ALPHD..(EL,ELS,G,GF)

FLAXEN,TRIM0#

 1
58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58902-58060

AYH30..Z;AYH30..ALPHD;AGH3#,GGH3#..ALPHD..(EL,ELS,G,GF,SC)

 1
58902-58051

AGH3#..07S..Z;AGH3#..ALPHD..(S,X)

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-58180

AGH3#..ALPHD..(S,X)

 1
58911B - PANEL, BOX, NO.1
58911-58070C0

AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X)

BLACK,TRIM0#

 1
58911-58060C0

AGH3#..S;AGH3#..07S..Z

BLACK,TRIM2#

 1
58911-58070C0

AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X)

BLACK,TRIM0#

 1
58911-58060C0

AGH3#..ALPHD..X

BLACK,TRIM0#

 1
58912C - PANEL, BOX SIDE, NO.2
58912-58050C0

AGH3#..ALPHD..X

BLACK,TRIM0#

 1
58912-58050C0

AGH3#..S;AGH3#..07S..Z

BLACK,TRIM2#

 1
58913A - PANEL, BOX, NO.3
58913-58030C0

AGH3#..S;AGH3#..07S..Z

BLACK,TRIM2#

 1
58913-58030C0

AGH3#..ALPHD..X

BLACK,TRIM0#

 1
58923A - PANEL, CONSOLE REAR END
58923-58160C0

AGH3#..ALPHD..X

BLACK,TRIM0#

 1
58923-58160C0

AGH3#..S;AGH3#..07S..Z

BLACK,TRIM2#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060

AYH30..Z;AYH30..ALPHD;AGH3#,GGH3#..ALPHD..(EL,ELS,G,GF,SC)

 2
58959-35010

AGH3#..07S..Z;AGH3#..ALPHD..(S,X)

 2
Common parts
90105-08158
90467-10203
91673-80616
Linked diagrams
8420
8601
