AGH35W-PRXQK (2015)
Toyota Alphard/Vellfire/Hv
(1501- )

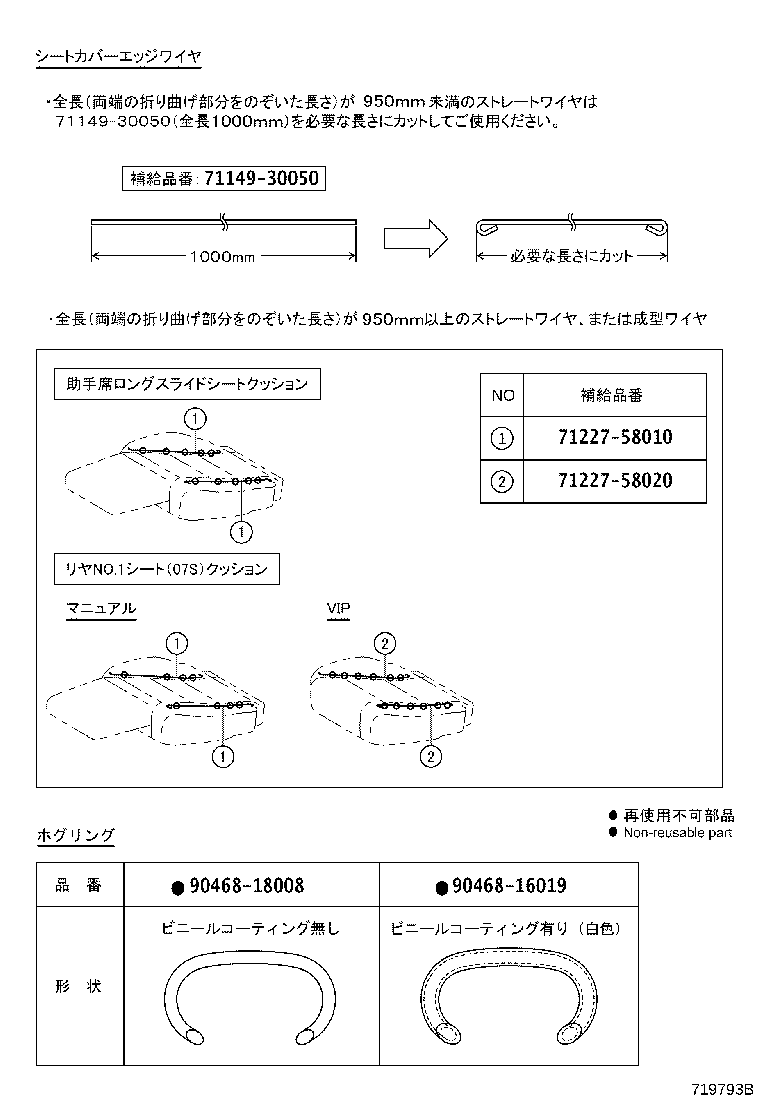

ｼｰﾄｶﾊﾞｰｴｯｼﾞﾜｲﾔ & ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 71227-58010 | ||||
| 71227-58020 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||

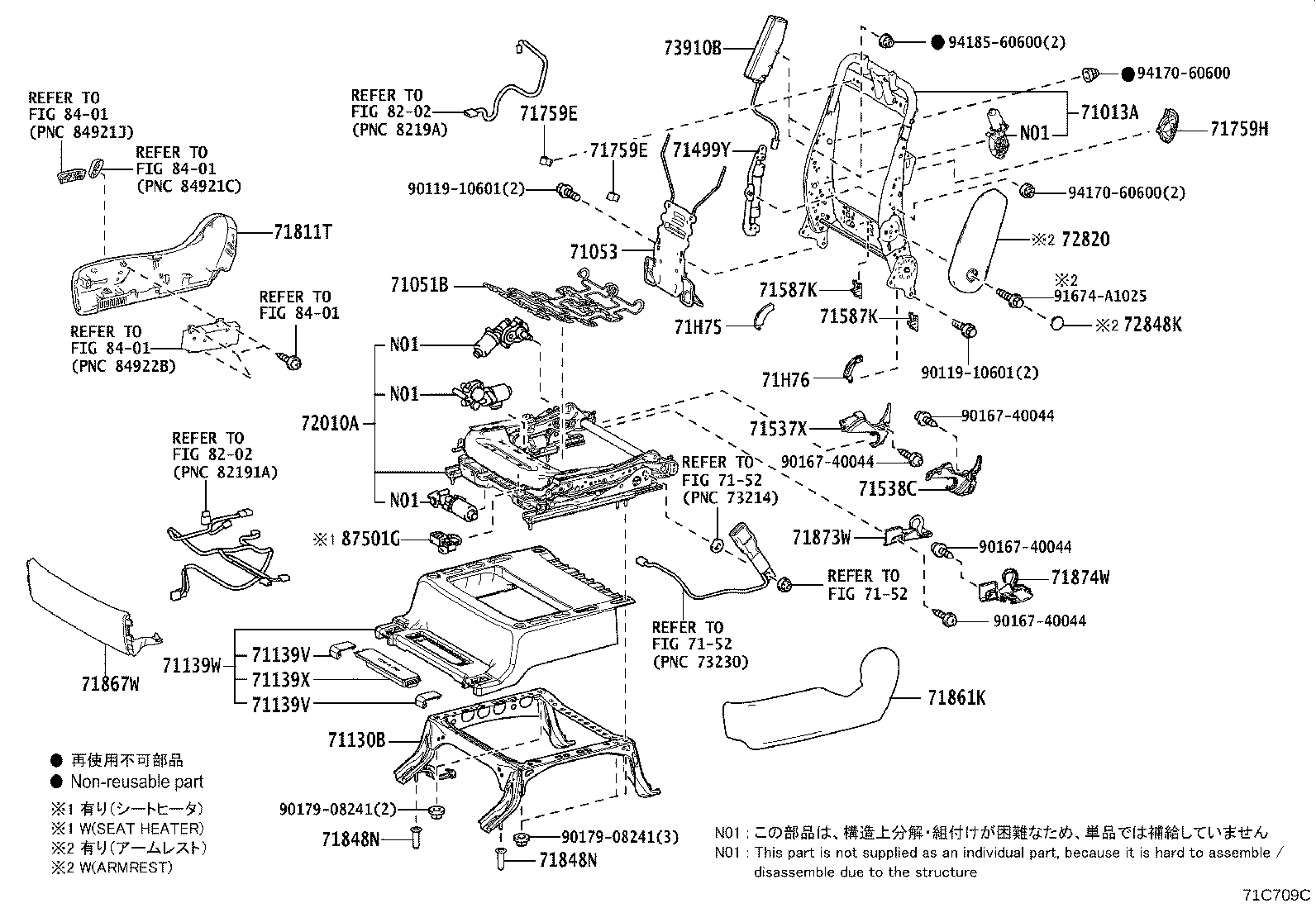

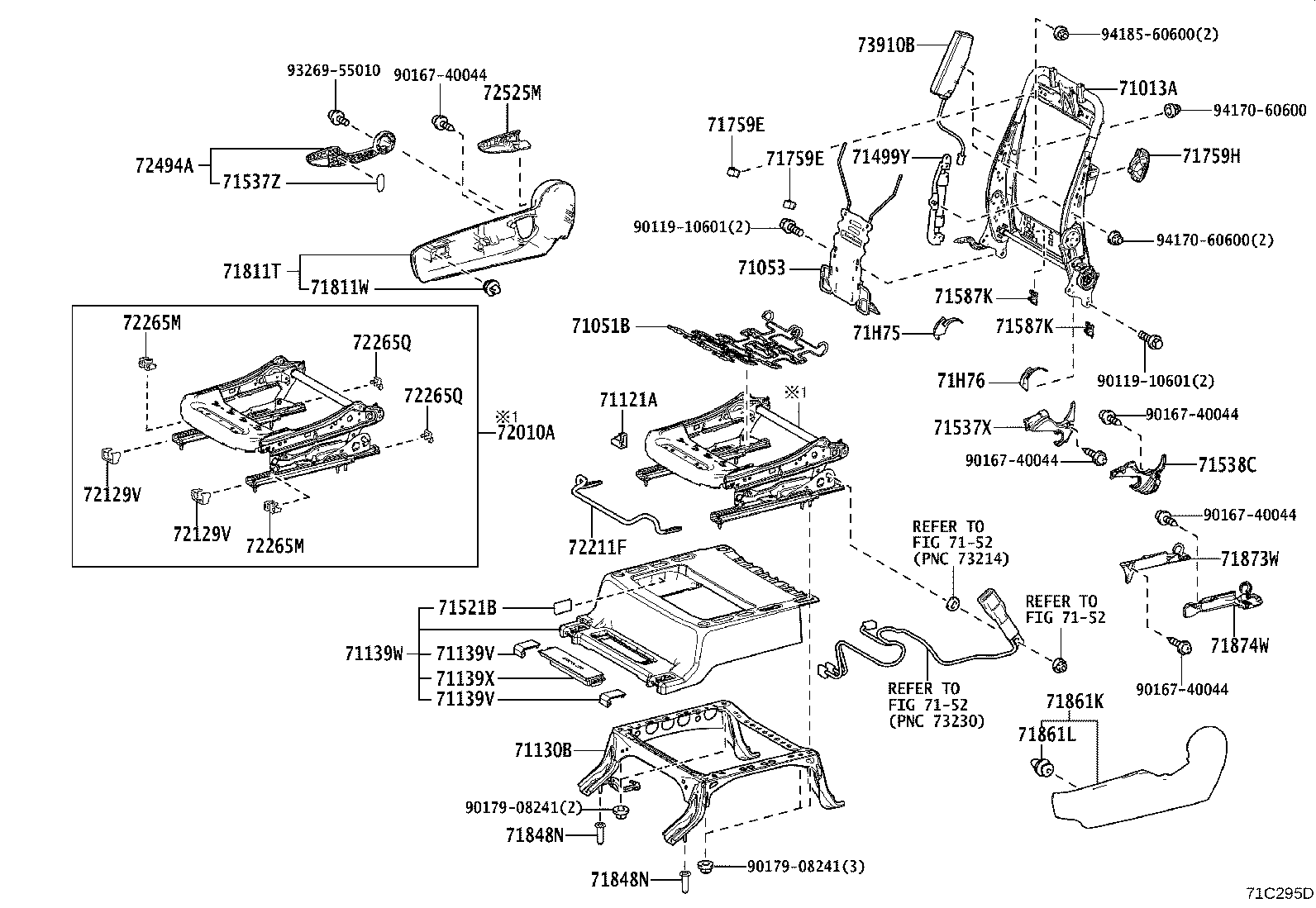

ILLUST NO. 2 OF 3(1501- )AGH3#,GGH3#..S,SA,X,Z,ZA
ｳﾝﾃﾝｾｷ ﾏﾆｭｱﾙｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013A - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-58050 |
AGH3#,GGH3#..G,GF,V,VL |
1 | ||
| 71013-58030 |
AGH3#,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 71051B - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47060 |
AGH3#,AYH30,GGH3# |
1 | ||
| 71053 - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-52050 |
AGH3#,AYH30,GGH3# |
1 | ||
| 71121A - BRACKET, FRONT SEAT CUSHION, OUTER | ||||
| 71121-47010 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 71130B - LEG ASSY, FRONT SEAT, RH | ||||
| 71130-58080 |
AGH3#,AYH30,GGH3# |
1 | ||
| 71139V - COVER, FRONT SEAT LEG NO.1 | ||||
| 71139-58340C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,TRIM2# |
2 | ||
| 71139-58340C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
2 | ||
| 71139V - COVER, FRONT SEAT LEG NO.1 | ||||
| 71139-58340C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,TRIM2# |
2 | ||
| 71139-58340C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
2 | ||
| 71139W - COVER, FRONT SEAT LEG(FOR RH SEAT) | ||||
| 71139-58310C0 |
AGH3#,GGH3#..07S;AGH3#..08S..(S,X,Z) BLACK,TRIM0#,2# |
1 | ||
| 71139-58310C0 |
AGH3#..08S..(G,V) BLACK,TRIM0# |
1 | ||
| 71139X - COVER, FRONT SEAT LEG NO.2 | ||||
| 71139-58350C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| 71139-58350C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,TRIM2# |
1 | ||
| 71499Y - DAMPER, SEAT BACK SPRING, RH | ||||
| 71499-58120 |
AGH3#,GGH3# |
1 | ||
| 71537X - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-47010C0 |
AGH3#..07S;AGH3#..08S..(S,X,Z);AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR BLACK,TRIM2# |
1 | ||
| 71537-47010A4 |
AGH3#,AYH30,GGH3#..EL,G,GF,S,SR,V,VL,X,Z,ZR FLAXEN,TRIM0# |
1 | ||
| 71537Z - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-47040 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 71538C - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-47010C0 |
AGH3#..07S;AGH3#..08S..(S,X,Z);AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR BLACK,TRIM2# |
1 | ||
| 71538-47010A4 |
AGH3#,AYH30,GGH3#..EL,G,GF,S,SR,V,VL,X,Z,ZR FLAXEN,TRIM0# |
1 | ||
| 71587K - PROTECTOR, FRONT SEAT BACK EDGE, RH | ||||
| 71587-52030 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71587K - PROTECTOR, FRONT SEAT BACK EDGE, RH | ||||
| 71587-52030 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71759E - HOOK, FRONT SEAT BACK, RH | ||||
| 71759-47011 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71759E - HOOK, FRONT SEAT BACK, RH | ||||
| 71759-47011 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71759H - HOOK, FRONT SEAT BACK | ||||
| 71759-28060A1 |
AGH3#,AYH30,GGH3#..G,GF,S,SR,V,VL,X,Z,ZR FLAXEN,TRIM0# |
1 | ||
| 71759-28060C0 |
AGH3#..07S;AGH3#..08S..(S,X,Z);AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR BLACK,TRIM2# |
1 | ||
| 71811T - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-12430A0 |
AGH3#,AYH30..X FLAXEN,TRIM0# |
1 | ||
| 71811-12430C0 |
AGH3#,GGH3#..S,SA,Z,ZA BLACK,TRIM2# |
1 | ||
| 71811-58090A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR FLAXEN,TRIM0# |
1 | ||
| 71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1 | ||||
| 71848-52040 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1 | ||||
| 71848-52040 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71861K - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-28080A0 |
AGH3#..S,X,Z FLAXEN,TRIM0# |
1 | ||
| 71861-28080C0 |
AGH3#,GGH3#..S,SA,X,Z,ZA BLACK,TRIM2# |
1 | ||
| 71861-58090A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR FLAXEN,TRIM0# |
1 | ||
| 71873W - SHIELD, FRONT SEAT CUSHION, LOWER RH, OUTER | ||||
| 71873-60030 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 71873-47040 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 71874W - SHIELD, FRONT SEAT CUSHION, LOWER LH, INNER | ||||
| 71874-60110 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 71874-47040 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 71H75 - COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT) | ||||
| 71875-47030A3 |
AGH3#,AYH30..S,X,Z FLAXEN,TRIM0# |
1 | ||
| 71875-47030C0 |
AGH3#,GGH3#..S,SA,X,Z,ZA BLACK,TRIM2# |
1 | ||
| 71875-60210A3 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR FLAXEN,TRIM0# |
1 | ||
| 71H76 - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT) | ||||
| 71876-47030A3 |
AGH3#,AYH30..S,X,Z FLAXEN,TRIM0# |
1 | ||
| 71876-60210A3 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR FLAXEN,TRIM0# |
1 | ||
| 71876-47030C0 |
AGH3#,GGH3#..S,SA,X,Z,ZA BLACK,TRIM2# |
1 | ||
| 72010A - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-58040 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 72010-58020 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 72129V - PROTECTOR, SEAT TRACK LOWER RAIL, RH | ||||
| 72129-28470 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
2 | ||
| 72129V - PROTECTOR, SEAT TRACK LOWER RAIL, RH | ||||
| 72129-28470 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
2 | ||
| 72211F - HANDLE, SEAT TRACK ADJUSTING, RH | ||||
| 72211-28160 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 72265M - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-V2010 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
2 | ||
| 72265M - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-V2010 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
2 | ||
| 72265Q - COVER, SEAT TRACK UPPER RAIL, RH REAR | ||||
| 72265-V2020 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
2 | ||
| 72265Q - COVER, SEAT TRACK UPPER RAIL, RH REAR | ||||
| 72265-V2020 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
2 | ||
| 72494A - HANDLE, FRONT SEAT VERTICAL ADJUSTER, RH | ||||
| 72494-42020A0 |
AGH3#,AYH30..S,X,Z FLAXEN,TRIM0# |
1 | ||
| 72494-42020C0 |
AGH3#,GGH3#..S,SA,X,Z,ZA BLACK,TRIM2# |
1 | ||
| 72525M - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47010C1 |
AGH3#,GGH3#..S,SA,Z,ZA BLACK,TRIM2# |
1 | ||
| 72525-47010A3 |
AGH3#,AYH30..S,X,Z FLAXEN,TRIM0# |
1 | ||
| 72525-47010C0 |
AGH3#,GGH3#..S,SA,X,Z,ZA BLACK,TRIM2# |
1 | ||
| 73910B - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90179-08241 | ||||
| 93269-55010 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||

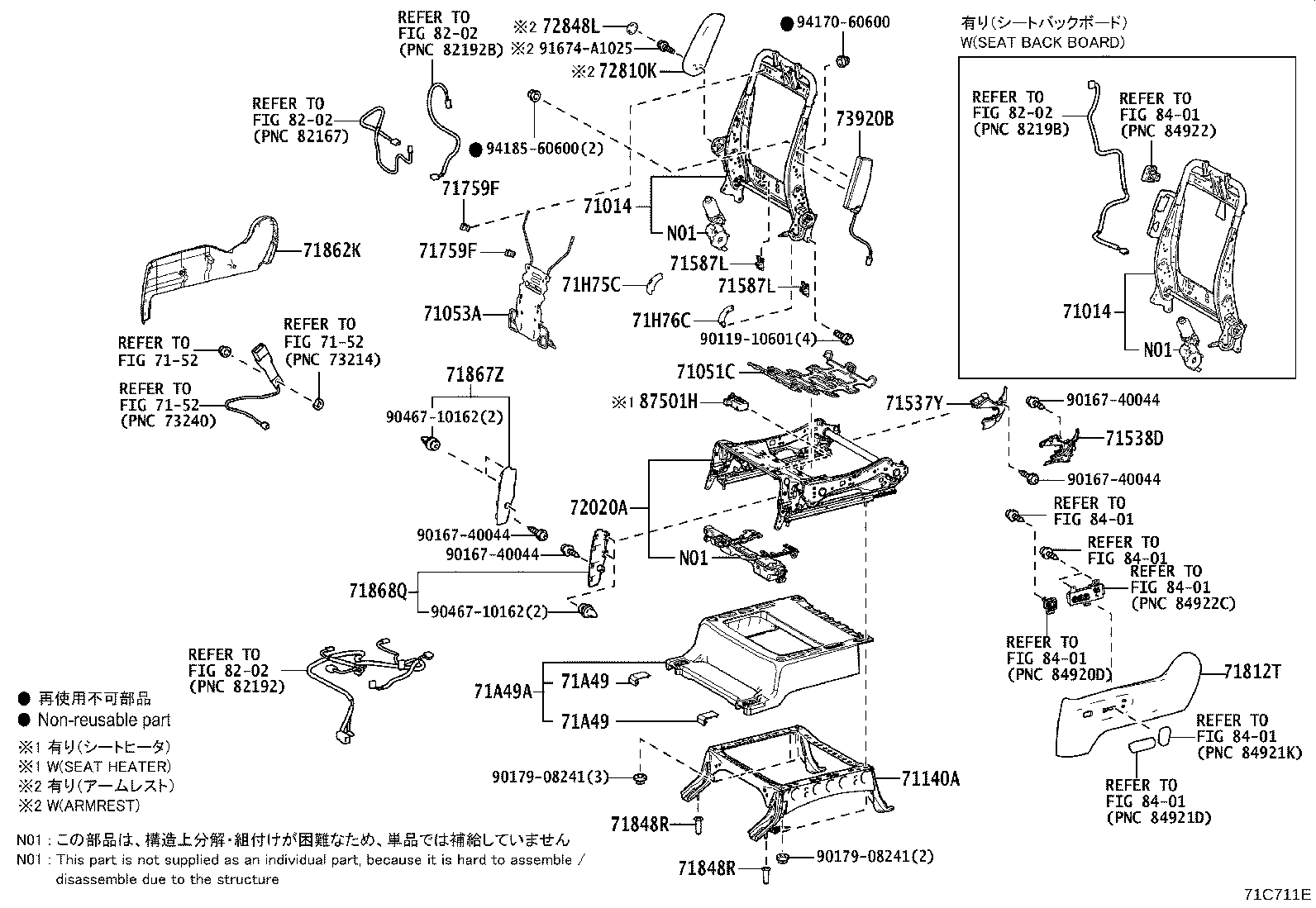

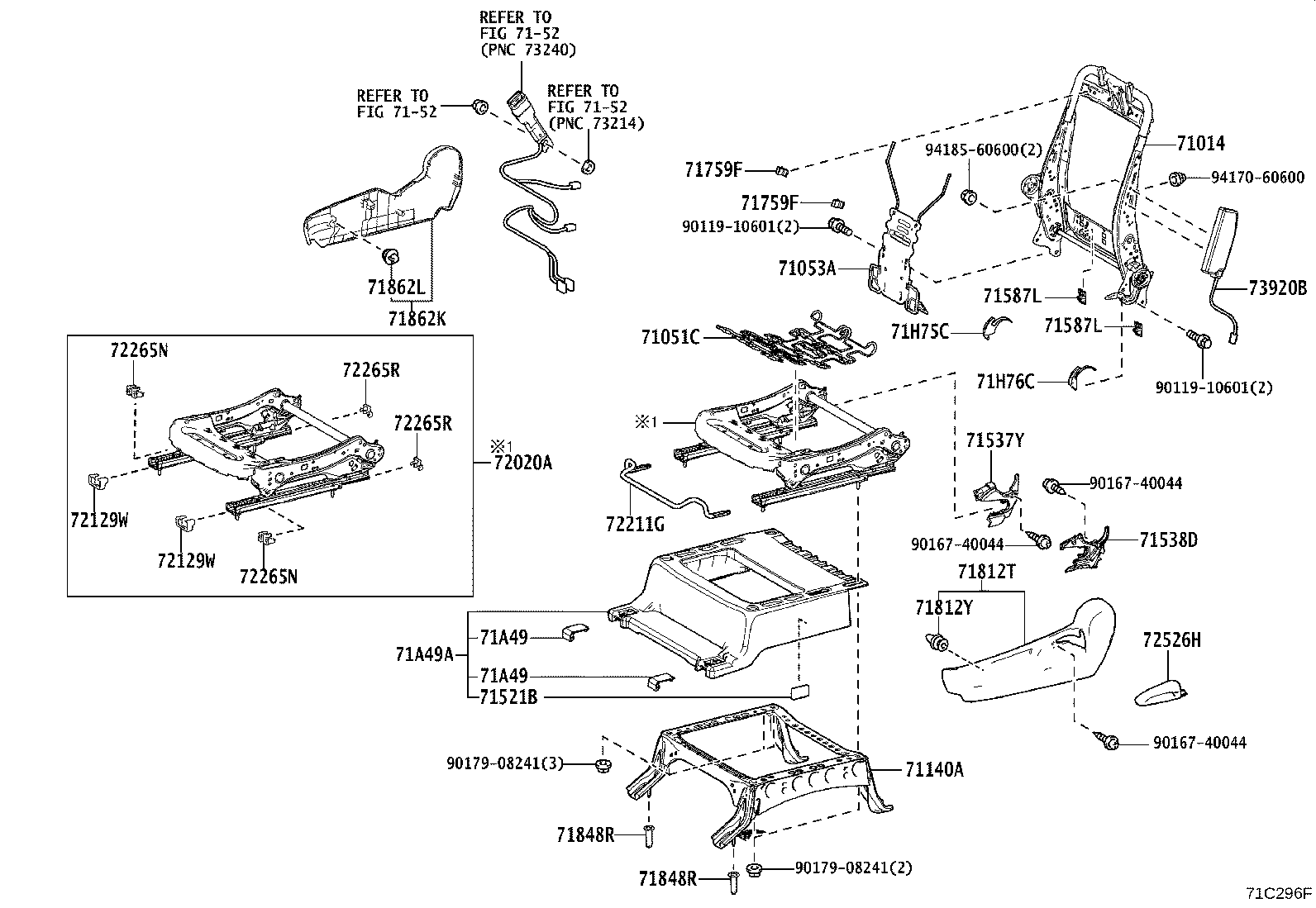

ILLUST NO. 3 OF 3(1501- )S,SA,X,Z,ZA
ｼﾞｮｼｭｾｷ ﾏﾆｭｱﾙｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014 - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-58010 |
AGH3#..S,X,Z |
1 | ||
| 71014-58030 |
AGH3#..08S..(G,V) |
1 | ||
| 71051C - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47060 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..EL,S,X,Z |
1 | ||
| 71053A - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-52050 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
1 | ||
| 71140A - LEG ASSY, FRONT SEAT, LH | ||||
| 71140-58070 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
1 | ||
| 71537Y - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-22040A1 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR FLAXEN,TRIM0# |
1 | ||
| 71537-22040C0 |
AYH30..EL,G,SR,V,ZR;AGH3#,GGH3#..EL,S,X,Z BLACK,TRIM2# |
1 | ||
| 71538D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-22020A1 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR FLAXEN,TRIM0# |
1 | ||
| 71538-22020C0 |
AYH30..EL,G,SR,V,ZR;AGH3#,GGH3#..EL,S,X,Z BLACK,TRIM2# |
1 | ||
| 71587L - PROTECTOR, FRONT SEAT BACK EDGE, LH | ||||
| 71587-52030 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
2 | ||
| 71587L - PROTECTOR, FRONT SEAT BACK EDGE, LH | ||||
| 71587-52030 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
2 | ||
| 71759F - HOOK, FRONT SEAT BACK, LH | ||||
| 71759-47011 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
2 | ||
| 71759F - HOOK, FRONT SEAT BACK, LH | ||||
| 71759-47011 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
2 | ||
| 71812T - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-28370C0 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 71812-58110A0 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR FLAXEN,TRIM0# |
1 | ||
| 71812-28370A0 |
AGH3#,AYH30..X FLAXEN,TRIM0# |
1 | ||
| 71812Y - CLIP, FRONT SEAT CUSHION SHIELD, LH | ||||
| 71769-47020 |
AGH3#,AYH30..S,X,Z |
1 | ||
| 71848R - CAP, FRONT SEAT ADJUSTER COVER, LH NO.1 | ||||
| 71848-52040 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
2 | ||
| 71848R - CAP, FRONT SEAT ADJUSTER COVER, LH NO.1 | ||||
| 71848-52040 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
2 | ||
| 71862K - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-28060C0 |
AGH3#..S,X,Z BLACK,TRIM2# |
1 | ||
| 71862-28060A0 |
AGH3#..S,X,Z FLAXEN,TRIM0# |
1 | ||
| 71862-58080A0 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR FLAXEN,TRIM0# |
1 | ||
| 71A49 - COVER, FRONT SEAT LEG, NO.1 | ||||
| 71139-58340C0 |
AGH3#..X;AYH30..G,V,X;AGH3#..08S..(G,V) BLACK,TRIM0# |
2 | ||
| 71139-58340C0 |
AGH3#,AYH30..S,SR,Z,ZR BLACK,TRIM2# |
2 | ||
| 71A49 - COVER, FRONT SEAT LEG, NO.1 | ||||
| 71139-58340C0 |
AGH3#..X;AYH30..G,V,X;AGH3#..08S..(G,V) BLACK,TRIM0# |
2 | ||
| 71139-58340C0 |
AGH3#,AYH30..S,SR,Z,ZR BLACK,TRIM2# |
2 | ||
| 71A49A - COVER, FRONT SEAT LEG(FOR LH SEAT) | ||||
| 71149-58160C0 |
AGH3#,GGH3#..EL,S,X,Z BLACK,TRIM0#,2# |
1 | ||
| 71149-58160C0 |
AGH3#..08S..(G,V) BLACK,TRIM0# |
1 | ||
| 71H75C - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT) | ||||
| 71875-47030C0 |
AGH3#..S,X,Z BLACK,TRIM2# |
1 | ||
| 71875-60210A3 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR FLAXEN,TRIM0# |
1 | ||
| 71875-47030A3 |
AGH3#,AYH30..S,X,Z FLAXEN,TRIM0# |
1 | ||
| 71H76C - COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT) | ||||
| 71876-47030C0 |
AGH3#..S,X,Z BLACK,TRIM2# |
1 | ||
| 71876-47030A3 |
AGH3#,AYH30..S,X,Z FLAXEN,TRIM0# |
1 | ||
| 71876-60210A3 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR FLAXEN,TRIM0# |
1 | ||
| 72020A - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-58050 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR |
1 | ||
| 72020-58040 |
AGH3#,AYH30..S,X,Z |
1 | ||
| 72129W - PROTECTOR, SEAT TRACK LOWER RAIL, LH | ||||
| 72129-28470 |
AGH3#,AYH30..S,X,Z |
2 | ||
| 72129W - PROTECTOR, SEAT TRACK LOWER RAIL, LH | ||||
| 72129-28470 |
AGH3#,AYH30..S,X,Z |
2 | ||
| 72211G - HANDLE, SEAT TRACK ADJUSTING, LH | ||||
| 72211-28160 |
AGH3#,AYH30..S,X,Z |
1 | ||
| 72265N - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-V2010 |
AGH3#,AYH30..S,X,Z |
2 | ||
| 72265N - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-V2010 |
AGH3#,AYH30..S,X,Z |
2 | ||
| 72265R - COVER, SEAT TRACK UPPER RAIL, LH REAR | ||||
| 72265-V2020 |
AGH3#,AYH30..S,X,Z |
2 | ||
| 72265R - COVER, SEAT TRACK UPPER RAIL, LH REAR | ||||
| 72265-V2020 |
AGH3#,AYH30..S,X,Z |
2 | ||
| 72526H - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-52040C0 |
AGH3#..S,X,Z BLACK,TRIM2# |
1 | ||
| 72526-52040A2 |
AGH3#,AYH30..S,X,Z FLAXEN,TRIM0# |
1 | ||
| 73920B - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-58040 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90179-08241 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1501- )
ﾌｨｯﾃｨﾝｸﾞﾊﾟｰﾂ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71139T - COVER, FRONT SEAT LEG, REAR RH | ||||
| 71139-58290C0 |
AGH3#,GGH3#..S,SA,Z,ZA BLACK,TRIM2# |
1 | ||
| 71139-58290C0 |
AGH3#,GGH3#..EL,G,GF,V,VL,X BLACK,TRIM0#,2# |
1 | ||
| 71139-58260C0 |
AGH3#,GGH3#..S,SA,Z,ZA BLACK,TRIM2# |
1 | ||
| 71139-58260C0 |
AGH3#,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| 71139U - COVER, FRONT SEAT LEG, REAR LH | ||||
| 71149-58140C0 |
AGH3#,GGH3#..EL,X;AGH3#..08S..(G,V) BLACK,TRIM0#,2# |
1 | ||
| 71149-58210C0 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 71149-58140C0 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 71149-58210C0 |
AGH3#..X;AGH3#..08S..(G,V) BLACK,TRIM0# |
1 | ||
| Common parts | ||||
| 90119-10990 | ||||

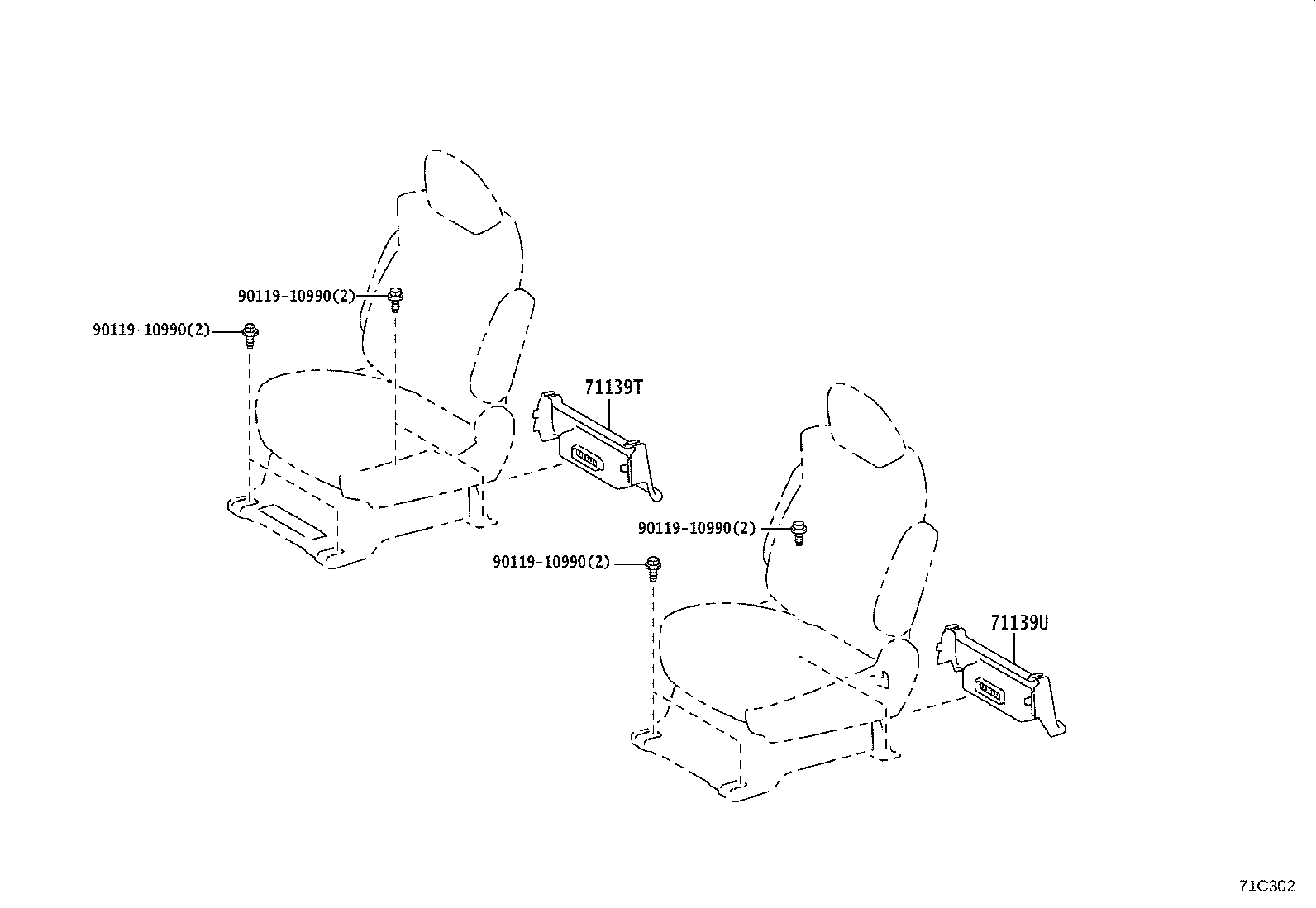

ILLUST NO. 1 OF 3(1501- )S,SA,X,Z,ZA
ﾏﾆｭｱﾙｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71071-58380A2 |
AGH3#..X FLAXEN,TRIM0# |
1 | ||
| 71071-58380C3 |
AGH3#,GGH3#..S,SA,Z,ZA BLACK,TRIM2# |
1 | ||
| 71071-58390A2 |
AGH3#,AYH30,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71072-58370A2 |
AGH3#..X FLAXEN,TRIM0# |
1 | ||
| 71072-58370C3 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 71072-58380A2 |
AYH30..G,V;AGH3#..08S..(G,V) FLAXEN,TRIM0# |
1 | ||
| 71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71073-58700A3 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71073-58630A3 |
AGH3#..X FLAXEN,TRIM0# |
1 | ||
| 71073-58630C5 |
AGH3#,GGH3#..S,SA,Z,ZA BLACK,TRIM2# |
1 | ||
| 71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71074-58620A3 |
AGH3#..08S..(G,V) FLAXEN,TRIM0# |
1 | ||
| 71074-58610C5 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 71074-58610A3 |
AGH3#..X FLAXEN,TRIM0# |
1 | ||
| 71430D - CLIP(FOR SEAT BACK COVER) | ||||
| 90467-08185 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71430D - CLIP(FOR SEAT BACK COVER) | ||||
| 90467-08185 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71511A - PAD, FRONT SEAT CUSHION, RH | ||||
| 71511-58110 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR |
1 | ||
| 71511-58100 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 71512 - PAD, FRONT SEAT CUSHION, LH | ||||
| 71502-58070 |
AYH30..G,SR,V,ZR;AGH3#..08S..(G,V) |
1 | ||
| 71502-58060 |
AGH3#,AYH30..S,X,Z |
1 | ||
| 71551A - PAD, FRONT SEAT BACK, RH | ||||
| 71551-58160 |
AGH3#,GGH3#..G,GF,S,SA,V,VL,X,Z,ZA |
1 | ||
| 71552A - PAD, FRONT SEAT BACK, LH | ||||
| 71552-58140 |
AGH3#..S,X,Z;AGH3#..08S..(G,V) |
1 | ||
| 71910E - HEADREST ASSY, FRONT SEAT, RH | ||||
| 71910-58240A1 |
AGH3#,AYH30..X FLAXEN,TRIM0# |
1 | ||
| 71910-58250A0 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR FLAXEN,TRIM0# |
1 | ||
| 71910-58241A1 |
AGH3#,AYH30..X FLAXEN,TRIM0# |
1 | ||
| 71910-58240C2 |
AGH3#,GGH3#..S,SA,Z,ZA BLACK,TRIM2# |
1 | ||
| 71910-58241C2 |
AGH3#,GGH3#..S,SA,Z,ZA BLACK,TRIM2# |
1 | ||
| 71910-58251A0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71910F - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-58250A0 |
AYH30..G,SR,V,ZR;AGH3#..08S..(G,V) FLAXEN,TRIM0# |
1 | ||
| 71910-58240C2 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 71910-58241C2 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 71910-58251A0 |
AYH30..G,V;AGH3#..08S..(G,V) FLAXEN,TRIM0# |
1 | ||
| 71910-58241A1 |
AGH3#,AYH30..X FLAXEN,TRIM0# |
1 | ||
| 71910-58240A1 |
AGH3#,AYH30..X FLAXEN,TRIM0# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71931-47020C0 |
AGH3#..07S;AGH3#..08S..(S,X,Z);AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR ﾛｯｸ無,BLACK,TRIM2# |
1 | ||
| 71930-47020C4 |
AGH3#,AYH30,GGH3#..EL,S,SA,SR,Z,ZA,ZR ﾛｯｸ付,BLACK,TRIM2# |
1 | ||
| 71931-47020A7 |
AGH3#,AYH30,GGH3#..EL,G,GF,S,SR,V,VL,X,Z,ZR ﾛｯｸ無,FLAXEN,TRIM0# |
1 | ||
| 71930-47020A7 |
AGH3#,AYH30,GGH3#..EL,G,GF,S,SR,V,VL,X,Z,ZR ﾛｯｸ付,FLAXEN,TRIM0# |
1 | ||
| 71930-47020C0 |
AGH3#..07S;AGH3#..08S..(S,X,Z);AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR ﾛｯｸ付,BLACK,TRIM2# |
1 | ||
| 71931-47020C4 |
AGH3#,AYH30,GGH3#..EL,S,SA,SR,Z,ZA,ZR ﾛｯｸ無,BLACK,TRIM2# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71931-47020C0 |
AGH3#..07S;AGH3#..08S..(S,X,Z);AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR ﾛｯｸ無,BLACK,TRIM2# |
1 | ||
| 71930-47020C4 |
AGH3#,AYH30,GGH3#..EL,S,SA,SR,Z,ZA,ZR ﾛｯｸ付,BLACK,TRIM2# |
1 | ||
| 71931-47020A7 |
AGH3#,AYH30,GGH3#..EL,G,GF,S,SR,V,VL,X,Z,ZR ﾛｯｸ無,FLAXEN,TRIM0# |
1 | ||
| 71930-47020A7 |
AGH3#,AYH30,GGH3#..EL,G,GF,S,SR,V,VL,X,Z,ZR ﾛｯｸ付,FLAXEN,TRIM0# |
1 | ||
| 71930-47020C0 |
AGH3#..07S;AGH3#..08S..(S,X,Z);AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR ﾛｯｸ付,BLACK,TRIM2# |
1 | ||
| 71931-47020C4 |
AGH3#,AYH30,GGH3#..EL,S,SA,SR,Z,ZA,ZR ﾛｯｸ無,BLACK,TRIM2# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71931-47020C0 |
AGH3#..07S;AGH3#..08S..(S,X,Z);AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR ﾛｯｸ無,BLACK,TRIM2# |
1 | ||
| 71931-47020A7 |
AGH3#,AYH30,GGH3#..EL,G,GF,S,SR,V,VL,X,Z,ZR ﾛｯｸ無,FLAXEN,TRIM0# |
1 | ||
| 71930-47020A7 |
AGH3#,AYH30,GGH3#..EL,G,GF,S,SR,V,VL,X,Z,ZR ﾛｯｸ付,FLAXEN,TRIM0# |
1 | ||
| 71930-47020C0 |
AGH3#..07S;AGH3#..08S..(S,X,Z);AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR ﾛｯｸ付,BLACK,TRIM2# |
1 | ||
| 71931-47020C4 |
AGH3#,AYH30,GGH3#..EL,S,SA,SR,Z,ZA,ZR ﾛｯｸ無,BLACK,TRIM2# |
1 | ||
| 71930-47020C4 |
AGH3#,AYH30,GGH3#..EL,S,SA,SR,Z,ZA,ZR ﾛｯｸ付,BLACK,TRIM2# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71931-47020C0 |
AGH3#..07S;AGH3#..08S..(S,X,Z);AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR ﾛｯｸ無,BLACK,TRIM2# |
1 | ||
| 71931-47020A7 |
AGH3#,AYH30,GGH3#..EL,G,GF,S,SR,V,VL,X,Z,ZR ﾛｯｸ無,FLAXEN,TRIM0# |
1 | ||
| 71930-47020A7 |
AGH3#,AYH30,GGH3#..EL,G,GF,S,SR,V,VL,X,Z,ZR ﾛｯｸ付,FLAXEN,TRIM0# |
1 | ||
| 71930-47020C0 |
AGH3#..07S;AGH3#..08S..(S,X,Z);AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR ﾛｯｸ付,BLACK,TRIM2# |
1 | ||
| 71931-47020C4 |
AGH3#,AYH30,GGH3#..EL,S,SA,SR,Z,ZA,ZR ﾛｯｸ無,BLACK,TRIM2# |
1 | ||
| 71930-47020C4 |
AGH3#,AYH30,GGH3#..EL,S,SA,SR,Z,ZA,ZR ﾛｯｸ付,BLACK,TRIM2# |
1 | ||
| 72810K - ARMREST ASSY, FRONT SEAT, RH(FOR LH SEAT) | ||||
| 72810-58080A1 |
AGH3#..X FLAXEN,TRIM0# |
1 | ||
| 72810-58090A1 |
AGH3#..08S..(G,V) FLAXEN,TRIM0# |
1 | ||
| 72810-58080C1 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 72820 - ARMREST ASSY, FRONT SEAT, LH(FOR RH SEAT) | ||||
| 72820-58080C1 |
AGH3#,GGH3#..S,SA,Z,ZA BLACK,TRIM2# |
1 | ||
| 72820-58080A1 |
AGH3#..X FLAXEN,TRIM0# |
1 | ||
| 72820-58090A1 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 72848K - CAP, SEAT ARMREST, NO.1(FOR RH SEAT) | ||||
| 72848-28030C0 |
AGH3#..08S..(S,X,Z);AGH3#,GGH3#..07S..(G,GF,S,SA,V,VL,X,Z,ZA) BLACK,TRIM2# |
1 | ||
| 72848-28030A3 |
AGH3#,GGH3#..G,GF,S,V,VL,X,Z FLAXEN,TRIM0# |
1 | ||
| 72848L - CAP, SEAT ARMREST, NO.1(FOR LH SEAT) | ||||
| 72848-28030C0 |
AGH3#..08S..(S,X,Z);AGH3#,GGH3#..07S..(G,GF,S,SA,V,VL,X,Z,ZA) BLACK,TRIM2# |
1 | ||
| 72848-28030A3 |
AGH3#,GGH3#..G,GF,S,V,VL,X,Z FLAXEN,TRIM0# |
1 | ||
| 79977N - FELT, SEAT BACK | ||||
| 79977-58030 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
2 | ||
| 79977N - FELT, SEAT BACK | ||||
| 79977-58030 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
2 | ||
| Common parts | ||||
| 91674-A1025 | ||||

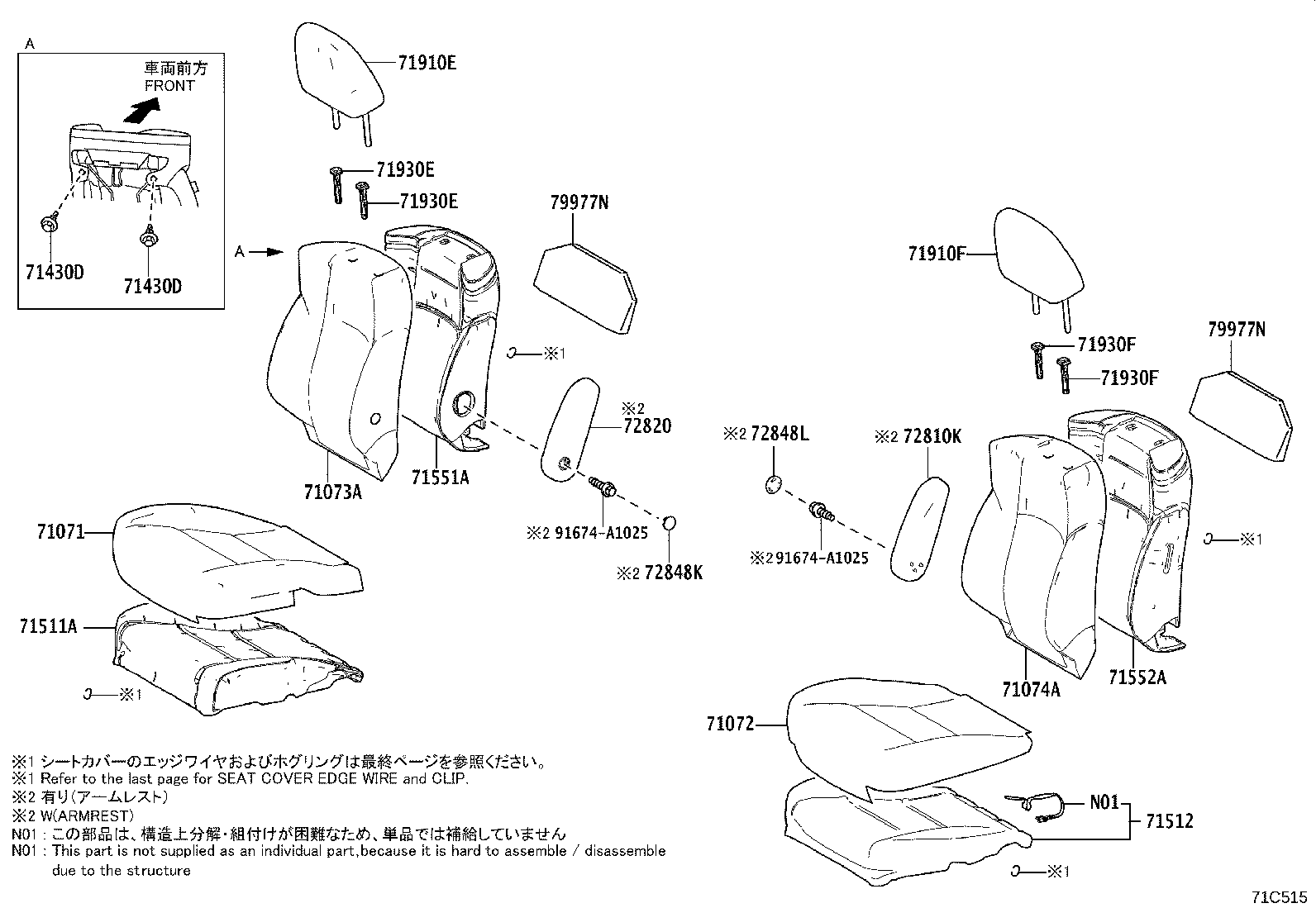

ILLUST NO. 2 OF 5(1501-1801)AGH3#,GGH3#..EL,G,GF,S,SA,V,VL,Z,ZA
ｳﾝﾃﾝｾｷ ﾊﾟﾜｰｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013A - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-58050 |
AGH3#,GGH3#..G,GF,V,VL |
1 | ||
| 71013-58030 |
AGH3#,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 71051B - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47060 |
AGH3#,AYH30,GGH3# |
1 | ||
| 71053 - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-52050 |
AGH3#,AYH30,GGH3# |
1 | ||
| 71130B - LEG ASSY, FRONT SEAT, RH | ||||
| 71130-58080 |
AGH3#,AYH30,GGH3# |
1 | ||
| 71139V - COVER, FRONT SEAT LEG NO.1 | ||||
| 71139-58340C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,TRIM2# |
2 | ||
| 71139-58340C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
2 | ||
| 71139V - COVER, FRONT SEAT LEG NO.1 | ||||
| 71139-58340C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,TRIM2# |
2 | ||
| 71139-58340C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
2 | ||
| 71139W - COVER, FRONT SEAT LEG(FOR RH SEAT) | ||||
| 71139-58310C0 |
AGH3#,GGH3#..07S;AGH3#..08S..(S,X,Z) BLACK,TRIM0#,2# |
1 | ||
| 71139-58310C0 |
AGH3#..08S..(G,V) BLACK,TRIM0# |
1 | ||
| 71139X - COVER, FRONT SEAT LEG NO.2 | ||||
| 71139-58350C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| 71139-58350C0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR BLACK,TRIM2# |
1 | ||
| 71499Y - DAMPER, SEAT BACK SPRING, RH | ||||
| 71499-58120 |
AGH3#,GGH3# |
1 | ||
| 71537X - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-47010C0 |
AGH3#..07S;AGH3#..08S..(S,X,Z);AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR BLACK,TRIM2# |
1 | ||
| 71537-47010A4 |
AGH3#,AYH30,GGH3#..EL,G,GF,S,SR,V,VL,X,Z,ZR FLAXEN,TRIM0# |
1 | ||
| 71538C - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-47010C0 |
AGH3#..07S;AGH3#..08S..(S,X,Z);AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR BLACK,TRIM2# |
1 | ||
| 71538-47010A4 |
AGH3#,AYH30,GGH3#..EL,G,GF,S,SR,V,VL,X,Z,ZR FLAXEN,TRIM0# |
1 | ||
| 71587K - PROTECTOR, FRONT SEAT BACK EDGE, RH | ||||
| 71587-52030 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71587K - PROTECTOR, FRONT SEAT BACK EDGE, RH | ||||
| 71587-52030 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71759E - HOOK, FRONT SEAT BACK, RH | ||||
| 71759-47011 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71759E - HOOK, FRONT SEAT BACK, RH | ||||
| 71759-47011 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71759H - HOOK, FRONT SEAT BACK | ||||
| 71759-28060A1 |
AGH3#,AYH30,GGH3#..G,GF,S,SR,V,VL,X,Z,ZR FLAXEN,TRIM0# |
1 | ||
| 71759-28060C0 |
AGH3#..07S;AGH3#..08S..(S,X,Z);AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR BLACK,TRIM2# |
1 | ||
| 71811T - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-12430A0 |
AGH3#,AYH30..X FLAXEN,TRIM0# |
1 | ||
| 71811-12430C0 |
AGH3#,GGH3#..S,SA,Z,ZA BLACK,TRIM2# |
1 | ||
| 71811-58090A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR FLAXEN,TRIM0# |
1 | ||
| 71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1 | ||||
| 71848-52040 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1 | ||||
| 71848-52040 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71861K - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-28080A0 |
AGH3#..S,X,Z FLAXEN,TRIM0# |
1 | ||
| 71861-28080C0 |
AGH3#,GGH3#..S,SA,X,Z,ZA BLACK,TRIM2# |
1 | ||
| 71861-58090A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR FLAXEN,TRIM0# |
1 | ||
| 71867W - SHIELD, FRONT SEAT CUSHION, FRONT RH | ||||
| 71867-58060A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR FLAXEN,TRIM0# |
1 | ||
| 71873W - SHIELD, FRONT SEAT CUSHION, LOWER RH, OUTER | ||||
| 71873-60030 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 71873-47040 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 71874W - SHIELD, FRONT SEAT CUSHION, LOWER LH, INNER | ||||
| 71874-60110 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 71874-47040 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 71H75 - COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT) | ||||
| 71875-47030A3 |
AGH3#,AYH30..S,X,Z FLAXEN,TRIM0# |
1 | ||
| 71875-47030C0 |
AGH3#,GGH3#..S,SA,X,Z,ZA BLACK,TRIM2# |
1 | ||
| 71875-60210A3 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR FLAXEN,TRIM0# |
1 | ||
| 71H76 - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT) | ||||
| 71876-47030A3 |
AGH3#,AYH30..S,X,Z FLAXEN,TRIM0# |
1 | ||
| 71876-60210A3 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR FLAXEN,TRIM0# |
1 | ||
| 71876-47030C0 |
AGH3#,GGH3#..S,SA,X,Z,ZA BLACK,TRIM2# |
1 | ||
| 72010A - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-58040 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 72010-58020 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 72820 - ARMREST ASSY, FRONT SEAT, LH(FOR RH SEAT) | ||||
| 72820-58080C1 |
AGH3#,GGH3#..S,SA,Z,ZA BLACK,TRIM2# |
1 | ||
| 72820-58080A1 |
AGH3#..X FLAXEN,TRIM0# |
1 | ||
| 72820-58090A1 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 72848K - CAP, SEAT ARMREST, NO.1(FOR RH SEAT) | ||||
| 72848-28030C0 |
AGH3#..08S..(S,X,Z);AGH3#,GGH3#..07S..(G,GF,S,SA,V,VL,X,Z,ZA) BLACK,TRIM2# |
1 | ||
| 72848-28030A3 |
AGH3#,GGH3#..G,GF,S,V,VL,X,Z FLAXEN,TRIM0# |
1 | ||
| 73910B - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90179-08241 | ||||
| 91674-A1025 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||

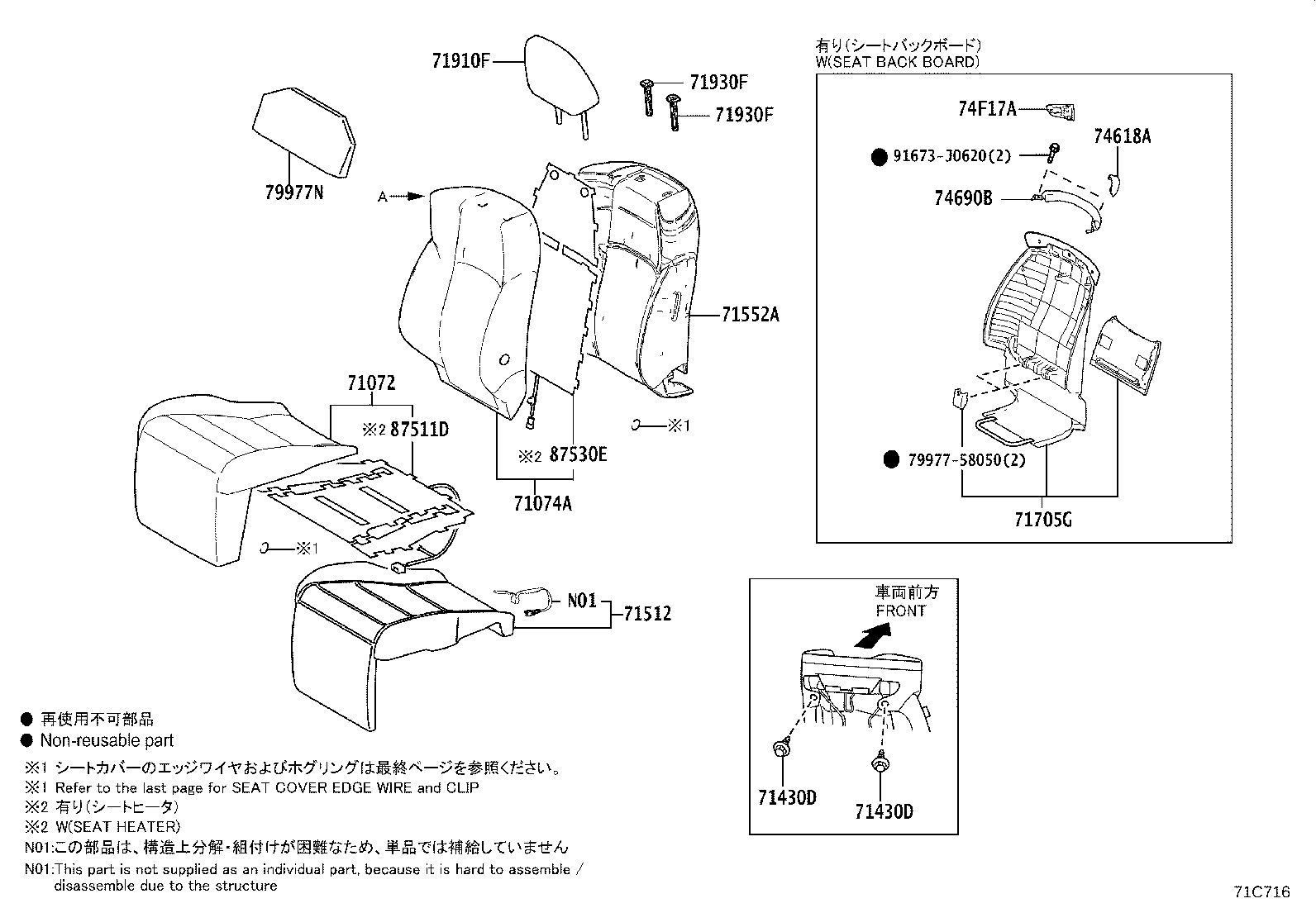

ILLUST NO. 4 OF 5(1501-1801)AGH3#,GGH3#..EL,G,GF,S,SA,V,VL,Z,ZA
ｼﾞｮｼｭｾｷ ﾊﾟﾜｰｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014 - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-58010 |
AGH3#..S,X,Z |
1 | ||
| 71014-58030 |
AGH3#..08S..(G,V) |
1 | ||
| 71014 - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-58010 |
AGH3#..S,X,Z |
1 | ||
| 71014-58030 |
AGH3#..08S..(G,V) |
1 | ||
| 71051C - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47060 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..EL,S,X,Z |
1 | ||
| 71053A - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-52050 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
1 | ||
| 71140A - LEG ASSY, FRONT SEAT, LH | ||||
| 71140-58070 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
1 | ||
| 71537Y - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-22040A1 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR FLAXEN,TRIM0# |
1 | ||
| 71537-22040C0 |
AYH30..EL,G,SR,V,ZR;AGH3#,GGH3#..EL,S,X,Z BLACK,TRIM2# |
1 | ||
| 71538D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-22020A1 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR FLAXEN,TRIM0# |
1 | ||
| 71538-22020C0 |
AYH30..EL,G,SR,V,ZR;AGH3#,GGH3#..EL,S,X,Z BLACK,TRIM2# |
1 | ||
| 71587L - PROTECTOR, FRONT SEAT BACK EDGE, LH | ||||
| 71587-52030 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
2 | ||
| 71587L - PROTECTOR, FRONT SEAT BACK EDGE, LH | ||||
| 71587-52030 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
2 | ||
| 71759F - HOOK, FRONT SEAT BACK, LH | ||||
| 71759-47011 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
2 | ||
| 71759F - HOOK, FRONT SEAT BACK, LH | ||||
| 71759-47011 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
2 | ||
| 71812T - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-28370C0 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 71812-58110A0 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR FLAXEN,TRIM0# |
1 | ||
| 71812-28370A0 |
AGH3#,AYH30..X FLAXEN,TRIM0# |
1 | ||
| 71848R - CAP, FRONT SEAT ADJUSTER COVER, LH NO.1 | ||||
| 71848-52040 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
2 | ||
| 71848R - CAP, FRONT SEAT ADJUSTER COVER, LH NO.1 | ||||
| 71848-52040 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
2 | ||
| 71862K - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-28060C0 |
AGH3#..S,X,Z BLACK,TRIM2# |
1 | ||
| 71862-28060A0 |
AGH3#..S,X,Z FLAXEN,TRIM0# |
1 | ||
| 71862-58080A0 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR FLAXEN,TRIM0# |
1 | ||
| 71867Z - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH(FOR LH SEAT) | ||||
| 71867-58070A0 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR FLAXEN,TRIM0# |
1 | ||
| 71868Q - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH(FOR LH SEAT) | ||||
| 71868-58060A0 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR FLAXEN,TRIM0# |
1 | ||
| 71A49 - COVER, FRONT SEAT LEG, NO.1 | ||||
| 71139-58340C0 |
AGH3#..X;AYH30..G,V,X;AGH3#..08S..(G,V) BLACK,TRIM0# |
2 | ||
| 71139-58340C0 |
AGH3#,AYH30..S,SR,Z,ZR BLACK,TRIM2# |
2 | ||
| 71A49 - COVER, FRONT SEAT LEG, NO.1 | ||||
| 71139-58340C0 |
AGH3#..X;AYH30..G,V,X;AGH3#..08S..(G,V) BLACK,TRIM0# |
2 | ||
| 71139-58340C0 |
AGH3#,AYH30..S,SR,Z,ZR BLACK,TRIM2# |
2 | ||
| 71A49A - COVER, FRONT SEAT LEG(FOR LH SEAT) | ||||
| 71149-58160C0 |
AGH3#,GGH3#..EL,S,X,Z BLACK,TRIM0#,2# |
1 | ||
| 71149-58160C0 |
AGH3#..08S..(G,V) BLACK,TRIM0# |
1 | ||
| 71H75C - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT) | ||||
| 71875-47030C0 |
AGH3#..S,X,Z BLACK,TRIM2# |
1 | ||
| 71875-60210A3 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR FLAXEN,TRIM0# |
1 | ||
| 71875-47030A3 |
AGH3#,AYH30..S,X,Z FLAXEN,TRIM0# |
1 | ||
| 71H76C - COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT) | ||||
| 71876-47030C0 |
AGH3#..S,X,Z BLACK,TRIM2# |
1 | ||
| 71876-47030A3 |
AGH3#,AYH30..S,X,Z FLAXEN,TRIM0# |
1 | ||
| 71876-60210A3 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR FLAXEN,TRIM0# |
1 | ||
| 72020A - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-58050 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR |
1 | ||
| 72020-58040 |
AGH3#,AYH30..S,X,Z |
1 | ||
| 72810K - ARMREST ASSY, FRONT SEAT, RH(FOR LH SEAT) | ||||
| 72810-58080A1 |
AGH3#..X FLAXEN,TRIM0# |
1 | ||
| 72810-58090A1 |
AGH3#..08S..(G,V) FLAXEN,TRIM0# |
1 | ||
| 72810-58080C1 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 72848L - CAP, SEAT ARMREST, NO.1(FOR LH SEAT) | ||||
| 72848-28030C0 |
AGH3#..08S..(S,X,Z);AGH3#,GGH3#..07S..(G,GF,S,SA,V,VL,X,Z,ZA) BLACK,TRIM2# |
1 | ||
| 72848-28030A3 |
AGH3#,GGH3#..G,GF,S,V,VL,X,Z FLAXEN,TRIM0# |
1 | ||
| 73920B - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-58040 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90179-08241 | ||||
| 90467-10162 | ||||
| 91674-A1025 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||

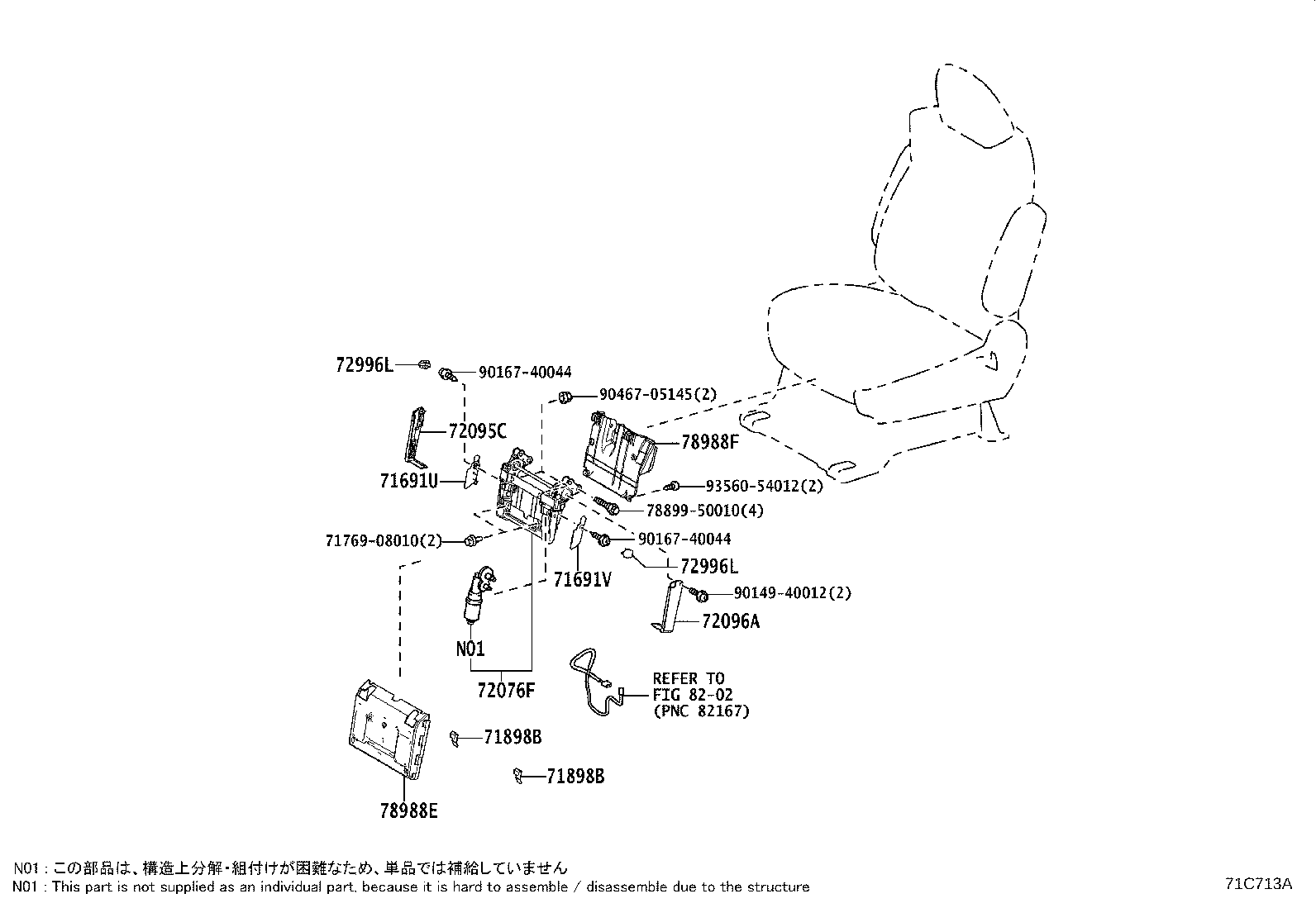

ILLUST NO. 5 OF 5(1501-1801)EL,G,GF,S,SA,SR,V,VL,Z,ZA,ZR
ｼﾞｮｼｭｾｷ ﾊﾟﾜｰｼｰﾄ, ｵｯﾄﾏﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71691U - COVER, RECLINING ADJUSTER ARM, NO.1 | ||||
| 71691-50010C0 |
AGH3#..08S..(G,V) BLACK,TRIM0# |
1 | ||
| 71691V - COVER, RECLINING ADJUSTER ARM, NO.2 | ||||
| 71691-50020C0 |
AGH3#..08S..(G,V) BLACK,TRIM0# |
1 | ||
| 71898B - HOOK, FRONT SEAT COVER | ||||
| 71898-50010 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR |
2 | ||
| 71898B - HOOK, FRONT SEAT COVER | ||||
| 71898-50010 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR |
2 | ||
| 72076F - ARM SUB-ASSY, RECLINING ADJUSTER, LWR INNER LH | ||||
| 72076-58010 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR |
1 | ||
| 72095C - PLATE SUB-ASSY, RECLINING ADJUSTER ARM, NO.1 | ||||
| 72095-58010C0 |
AGH3#..08S..(G,V) BLACK,TRIM0# |
1 | ||
| 72096A - PLATE SUB-ASSY, RECLINING ADJUSTER ARM, NO.2 | ||||
| 72096-58010C0 |
AGH3#..08S..(G,V) BLACK,TRIM0# |
1 | ||
| 72996L - CAP, RECLINING ADJUSTER ARM COVER | ||||
| 72996-50120C0 |
AGH3#..08S..(G,V) BLACK,TRIM0# |
2 | ||
| 72996L - CAP, RECLINING ADJUSTER ARM COVER | ||||
| 72996-50120C0 |
AGH3#..08S..(G,V) BLACK,TRIM0# |
2 | ||
| 78988E - COVER, FRONT SEAT FOOTREST, NO.1 | ||||
| 78988-58010 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR |
1 | ||
| 78988F - COVER, FRONT SEAT FOOTREST, NO.2 | ||||
| 78988-58020C0 |
AGH3#..08S..(G,V) BLACK,TRIM0# |
1 | ||
| Common parts | ||||
| 71769-08010 | ||||
| 78899-50010 | ||||
| 90149-40012 | ||||
| 90167-40044 | ||||
| 90467-05145 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 8202 | ||||

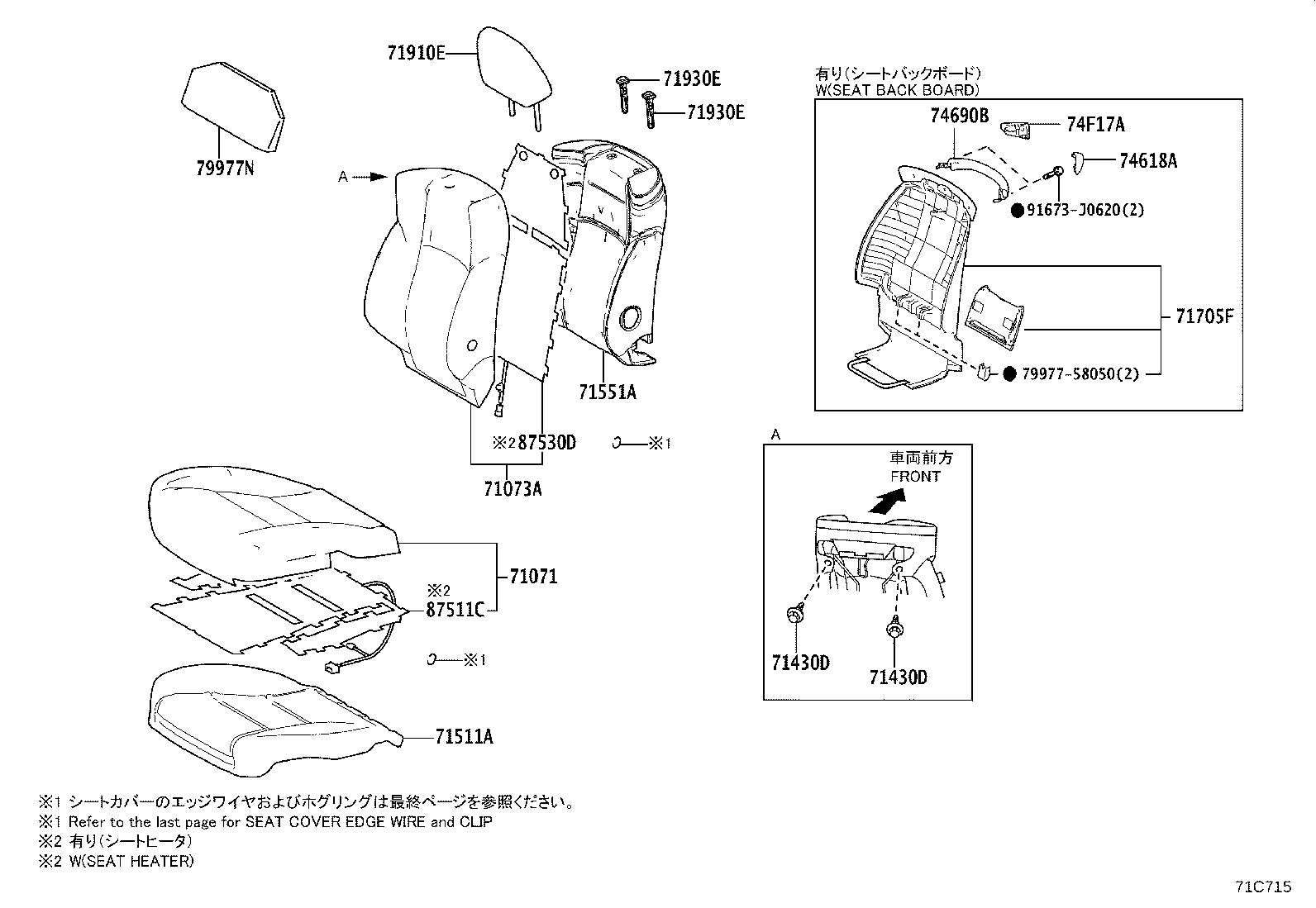

ILLUST NO. 1 OF 5(1501-1801)EL,G,GF,S,SA,SR,V,VL,Z,ZA,ZR
ｳﾝﾃﾝｾｷ ﾊﾟﾜｰｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71071-58380A2 |
AGH3#..X FLAXEN,TRIM0# |
1 | ||
| 71071-58380C3 |
AGH3#,GGH3#..S,SA,Z,ZA BLACK,TRIM2# |
1 | ||
| 71071-58390A2 |
AGH3#,AYH30,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71073-58700A3 |
AGH3#,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71073-58630A3 |
AGH3#..X FLAXEN,TRIM0# |
1 | ||
| 71073-58630C5 |
AGH3#,GGH3#..S,SA,Z,ZA BLACK,TRIM2# |
1 | ||
| 71430D - CLIP(FOR SEAT BACK COVER) | ||||
| 90467-08185 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71430D - CLIP(FOR SEAT BACK COVER) | ||||
| 90467-08185 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71511A - PAD, FRONT SEAT CUSHION, RH | ||||
| 71511-58110 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR |
1 | ||
| 71511-58100 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 71551A - PAD, FRONT SEAT BACK, RH | ||||
| 71551-58160 |
AGH3#,GGH3#..G,GF,S,SA,V,VL,X,Z,ZA |
1 | ||
| 71910E - HEADREST ASSY, FRONT SEAT, RH | ||||
| 71910-58240A1 |
AGH3#,AYH30..X FLAXEN,TRIM0# |
1 | ||
| 71910-58250A0 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR FLAXEN,TRIM0# |
1 | ||
| 71910-58241A1 |
AGH3#,AYH30..X FLAXEN,TRIM0# |
1 | ||
| 71910-58240C2 |
AGH3#,GGH3#..S,SA,Z,ZA BLACK,TRIM2# |
1 | ||
| 71910-58241C2 |
AGH3#,GGH3#..S,SA,Z,ZA BLACK,TRIM2# |
1 | ||
| 71910-58251A0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71931-47020C0 |
AGH3#..07S;AGH3#..08S..(S,X,Z);AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR ﾛｯｸ無,BLACK,TRIM2# |
1 | ||
| 71930-47020C4 |
AGH3#,AYH30,GGH3#..EL,S,SA,SR,Z,ZA,ZR ﾛｯｸ付,BLACK,TRIM2# |
1 | ||
| 71931-47020A7 |
AGH3#,AYH30,GGH3#..EL,G,GF,S,SR,V,VL,X,Z,ZR ﾛｯｸ無,FLAXEN,TRIM0# |
1 | ||
| 71930-47020A7 |
AGH3#,AYH30,GGH3#..EL,G,GF,S,SR,V,VL,X,Z,ZR ﾛｯｸ付,FLAXEN,TRIM0# |
1 | ||
| 71930-47020C0 |
AGH3#..07S;AGH3#..08S..(S,X,Z);AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR ﾛｯｸ付,BLACK,TRIM2# |
1 | ||
| 71931-47020C4 |
AGH3#,AYH30,GGH3#..EL,S,SA,SR,Z,ZA,ZR ﾛｯｸ無,BLACK,TRIM2# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71931-47020C0 |
AGH3#..07S;AGH3#..08S..(S,X,Z);AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR ﾛｯｸ無,BLACK,TRIM2# |
1 | ||
| 71930-47020C4 |
AGH3#,AYH30,GGH3#..EL,S,SA,SR,Z,ZA,ZR ﾛｯｸ付,BLACK,TRIM2# |
1 | ||
| 71931-47020A7 |
AGH3#,AYH30,GGH3#..EL,G,GF,S,SR,V,VL,X,Z,ZR ﾛｯｸ無,FLAXEN,TRIM0# |
1 | ||
| 71930-47020A7 |
AGH3#,AYH30,GGH3#..EL,G,GF,S,SR,V,VL,X,Z,ZR ﾛｯｸ付,FLAXEN,TRIM0# |
1 | ||
| 71930-47020C0 |
AGH3#..07S;AGH3#..08S..(S,X,Z);AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR ﾛｯｸ付,BLACK,TRIM2# |
1 | ||
| 71931-47020C4 |
AGH3#,AYH30,GGH3#..EL,S,SA,SR,Z,ZA,ZR ﾛｯｸ無,BLACK,TRIM2# |
1 | ||
| 79977N - FELT, SEAT BACK | ||||
| 79977-58030 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
2 | ||
| Common parts | ||||
| 79977-58050 | ||||
| 91673-J0620 | ||||
ILLUST NO. 3 OF 5(1501-1801)EL,G,GF,S,SA,SR,V,VL,Z,ZA,ZR
ｼﾞｮｼｭｾｷ ﾊﾟﾜｰｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71072-58370A2 |
AGH3#..X FLAXEN,TRIM0# |
1 | ||
| 71072-58370C3 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 71072-58380A2 |
AYH30..G,V;AGH3#..08S..(G,V) FLAXEN,TRIM0# |
1 | ||
| 71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71074-58620A3 |
AGH3#..08S..(G,V) FLAXEN,TRIM0# |
1 | ||
| 71074-58610C5 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 71074-58610A3 |
AGH3#..X FLAXEN,TRIM0# |
1 | ||
| 71430D - CLIP(FOR SEAT BACK COVER) | ||||
| 90467-08185 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71430D - CLIP(FOR SEAT BACK COVER) | ||||
| 90467-08185 |
AGH3#,AYH30,GGH3# |
2 | ||
| 71512 - PAD, FRONT SEAT CUSHION, LH | ||||
| 71502-58070 |
AYH30..G,SR,V,ZR;AGH3#..08S..(G,V) |
1 | ||
| 71502-58060 |
AGH3#,AYH30..S,X,Z |
1 | ||
| 71552A - PAD, FRONT SEAT BACK, LH | ||||
| 71552-58140 |
AGH3#..S,X,Z;AGH3#..08S..(G,V) |
1 | ||
| 71910F - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-58250A0 |
AYH30..G,SR,V,ZR;AGH3#..08S..(G,V) FLAXEN,TRIM0# |
1 | ||
| 71910-58240C2 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 71910-58241C2 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 71910-58251A0 |
AYH30..G,V;AGH3#..08S..(G,V) FLAXEN,TRIM0# |
1 | ||
| 71910-58241A1 |
AGH3#,AYH30..X FLAXEN,TRIM0# |
1 | ||
| 71910-58240A1 |
AGH3#,AYH30..X FLAXEN,TRIM0# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71931-47020C0 |
AGH3#..07S;AGH3#..08S..(S,X,Z);AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR ﾛｯｸ無,BLACK,TRIM2# |
1 | ||
| 71931-47020A7 |
AGH3#,AYH30,GGH3#..EL,G,GF,S,SR,V,VL,X,Z,ZR ﾛｯｸ無,FLAXEN,TRIM0# |
1 | ||
| 71930-47020A7 |
AGH3#,AYH30,GGH3#..EL,G,GF,S,SR,V,VL,X,Z,ZR ﾛｯｸ付,FLAXEN,TRIM0# |
1 | ||
| 71930-47020C0 |
AGH3#..07S;AGH3#..08S..(S,X,Z);AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR ﾛｯｸ付,BLACK,TRIM2# |
1 | ||
| 71931-47020C4 |
AGH3#,AYH30,GGH3#..EL,S,SA,SR,Z,ZA,ZR ﾛｯｸ無,BLACK,TRIM2# |
1 | ||
| 71930-47020C4 |
AGH3#,AYH30,GGH3#..EL,S,SA,SR,Z,ZA,ZR ﾛｯｸ付,BLACK,TRIM2# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71931-47020C0 |
AGH3#..07S;AGH3#..08S..(S,X,Z);AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR ﾛｯｸ無,BLACK,TRIM2# |
1 | ||
| 71931-47020A7 |
AGH3#,AYH30,GGH3#..EL,G,GF,S,SR,V,VL,X,Z,ZR ﾛｯｸ無,FLAXEN,TRIM0# |
1 | ||
| 71930-47020A7 |
AGH3#,AYH30,GGH3#..EL,G,GF,S,SR,V,VL,X,Z,ZR ﾛｯｸ付,FLAXEN,TRIM0# |
1 | ||
| 71930-47020C0 |
AGH3#..07S;AGH3#..08S..(S,X,Z);AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR ﾛｯｸ付,BLACK,TRIM2# |
1 | ||
| 71931-47020C4 |
AGH3#,AYH30,GGH3#..EL,S,SA,SR,Z,ZA,ZR ﾛｯｸ無,BLACK,TRIM2# |
1 | ||
| 71930-47020C4 |
AGH3#,AYH30,GGH3#..EL,S,SA,SR,Z,ZA,ZR ﾛｯｸ付,BLACK,TRIM2# |
1 | ||
| 79977N - FELT, SEAT BACK | ||||
| 79977-58030 |
AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR |
2 | ||
| Common parts | ||||
| 79977-58050 | ||||
| 91673-J0620 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
