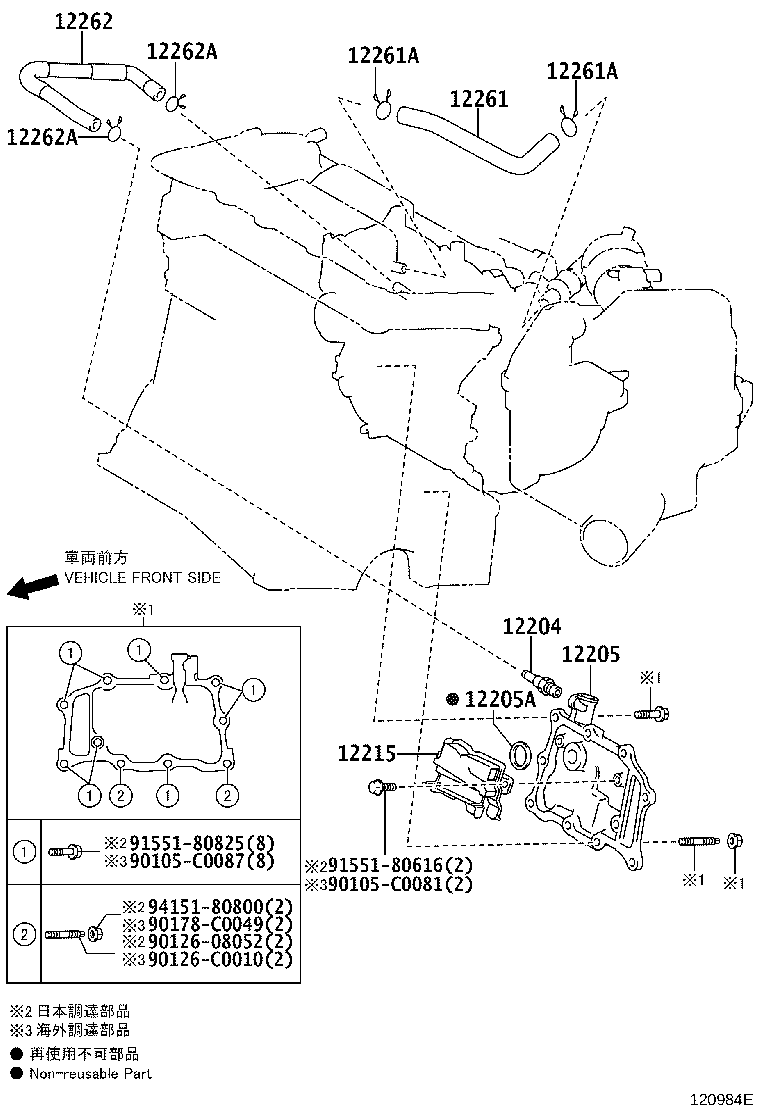

Toyota Alphard/vellfire/hv AGH35 VENTILATION HOSE

Part #	Description	Period	Qty
12204 - VALVE SUB-ASSY, VENTILATION
12204-36020	2AR#..AGH3#,AYH30 *347	01/2015 - 01/2018	1
12205 - CASE SUB-ASSY, VENTILATION
12205-0V020	2AR#..AGH3#,AYH30 (L),*347	01/2015 - 01/2018	1
12205-36010	2AR#..AGH3#,AYH30 (J),*347	01/2015 - 01/2018	1
12205A - RING, O(FOR VENTILATION CASE)
12273-0V010	2AR#..AGH3#,AYH30 *347	01/2015 - 01/2018	1
12215 - SEPARATOR, CASE
12215-36010	2AR#..AGH3#,AYH30 *347	01/2015 - 01/2018	1
12261 - HOSE, VENTILATION
12261-36100	2ARFE..AGH3#	01/2015 - 01/2018	1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-19003	2AR#..AGH3#,AYH30	01/2015 - 01/2018	2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-19003	2AR#..AGH3#,AYH30	01/2015 - 01/2018	2
12262 - HOSE, VENTILATION, NO.2
12262-0V010	2ARFE..AGH3# *347	01/2015 - 01/2018	1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16035	2AR#..AGH3#,AYH30 *347	01/2015 - 01/2018	2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16035	2AR#..AGH3#,AYH30 *347	01/2015 - 01/2018	2
Common parts
90105-C0081
90105-C0087
90126-08052
90126-C0010
90178-C0049
91551-80616
91551-80825
94151-80800

AGH35W-PRXQK (2015)
